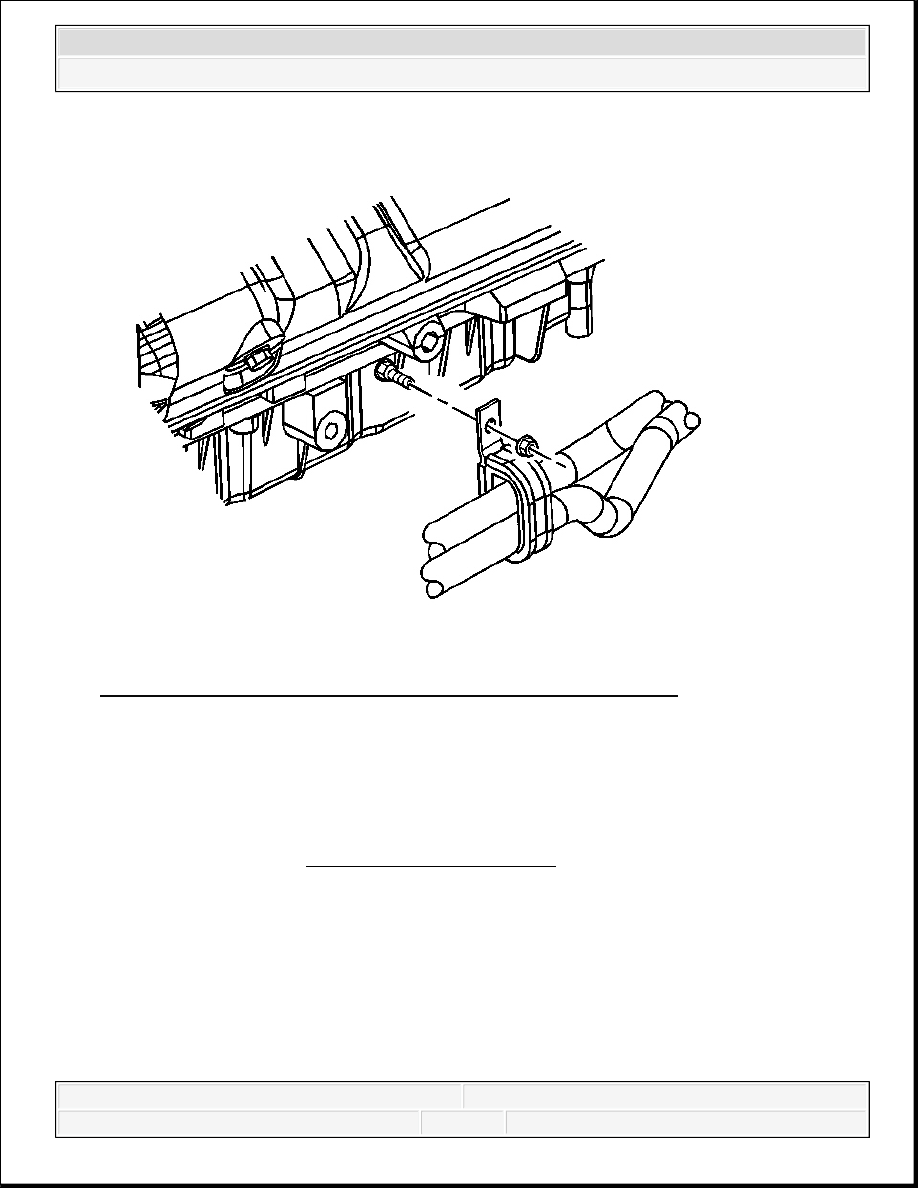

Fig. 37: View Of Transmission Oil Cooler Lines, Bracket & Bolt
Courtesy of GENERAL MOTORS CORP.
10. If RWD vehicle and equipped with an automatic transmission, remove the bracket bolt for
the transmission oil cooler lines to the engine.
11. Move the transmission oil cooler lines aside.
NOTE:
Refer to ENGINE LIFTING NOTICE
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Mechanical - 6.6L - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

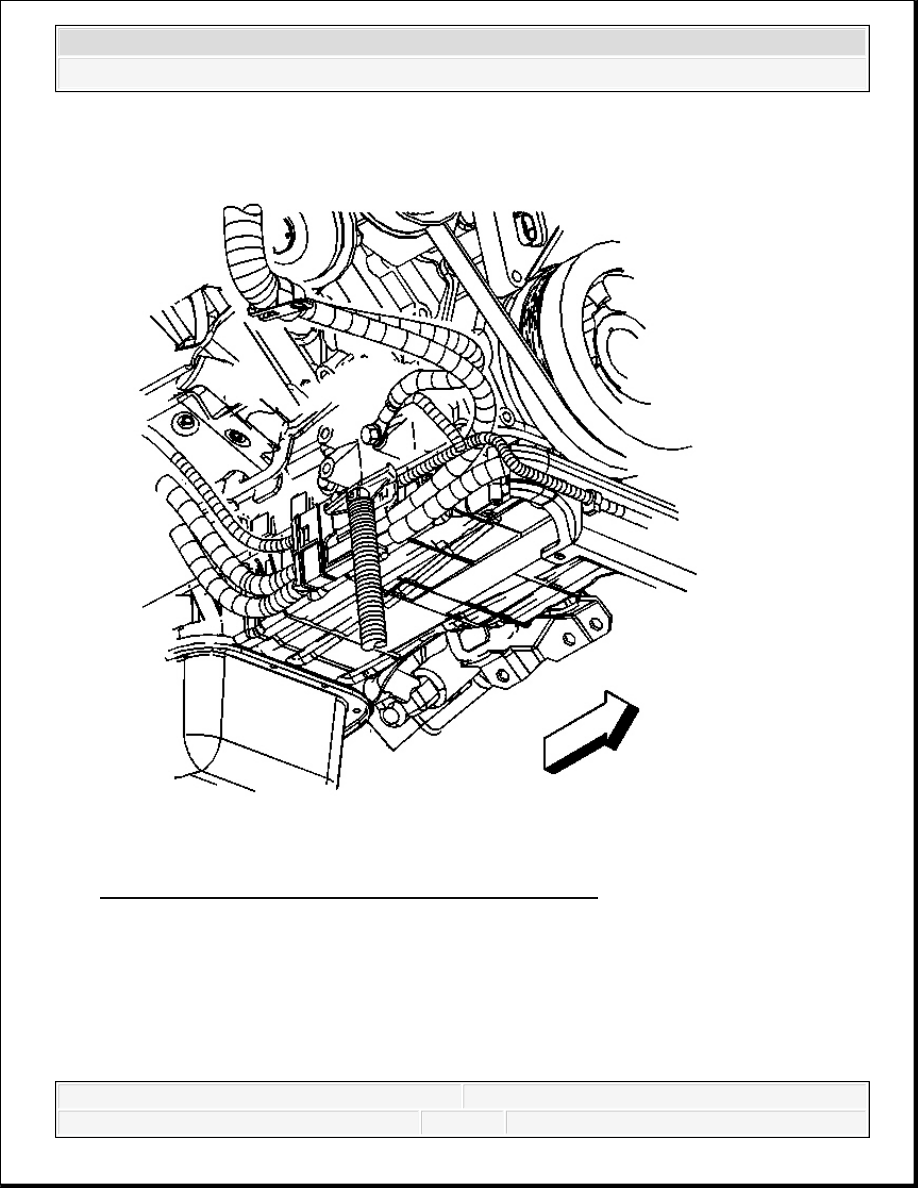

Fig. 38: View Of Ground Wire Bolt Bosses (Right Side)
Courtesy of GENERAL MOTORS CORP.
IMPORTANT: When raising the engine only raise enough to separate the
engine mount from the engine mount bracket. Raising any
further the fan shroud or the exhaust pipe will require
removal.
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Mechanical - 6.6L - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
12. If RWD vehicle, using a suitable jack on the ground wire bolt bosses, raise the engine.
Only raise the engine enough to separate the engine mount to engine mount bracket.
13. If 4WD vehicle, attach a chain to the front of the engine. Use accessible mounting bolts for
the generator mounting bracket and the power steering pump mounting bracket.
14. Raise the engine with a suitable lifting device to remove the engine mount.
Only raise the engine enough to separate the engine mount to engine mount bracket.

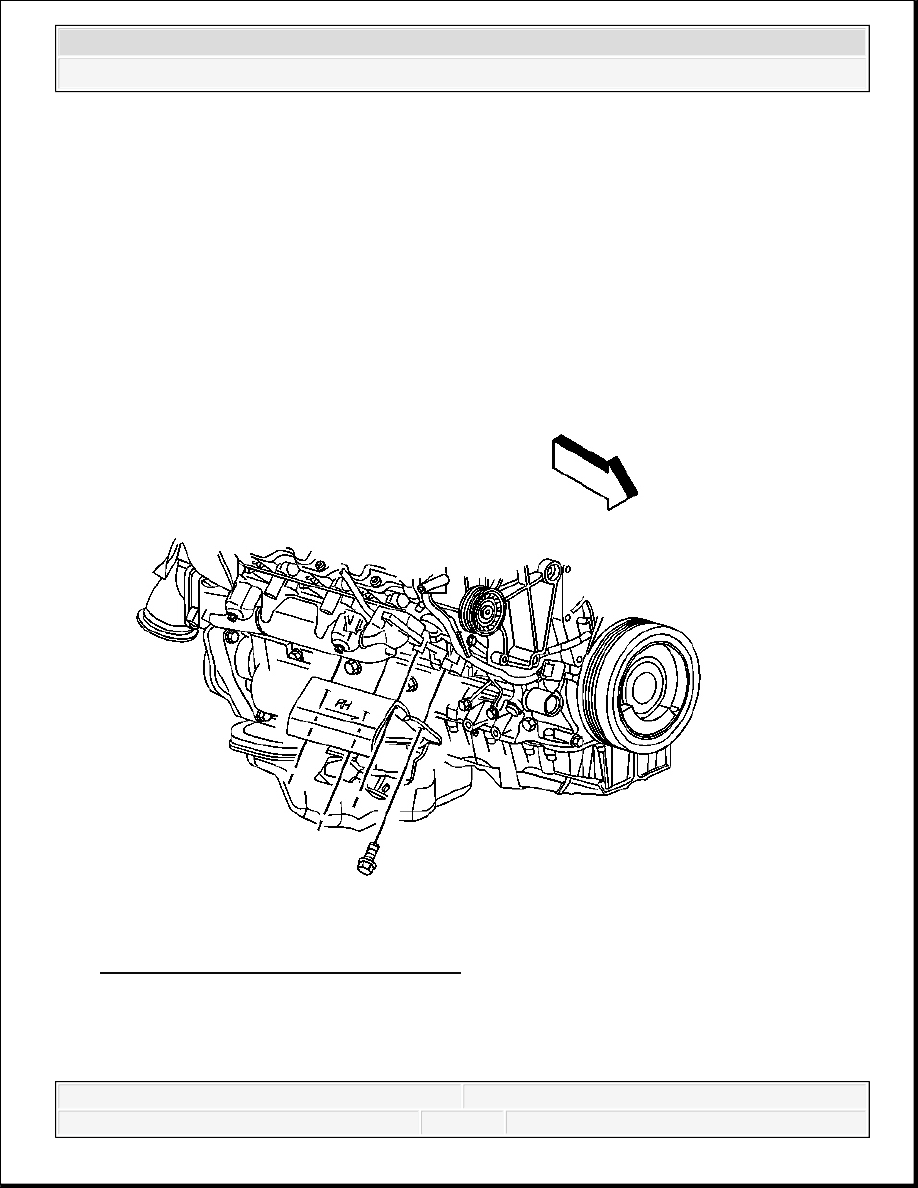

Fig. 39: Identifying Engine Mount Bolts
Courtesy of GENERAL MOTORS CORP.
15. Remove the bolts holding the engine mount to the engine.
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Mechanical - 6.6L - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

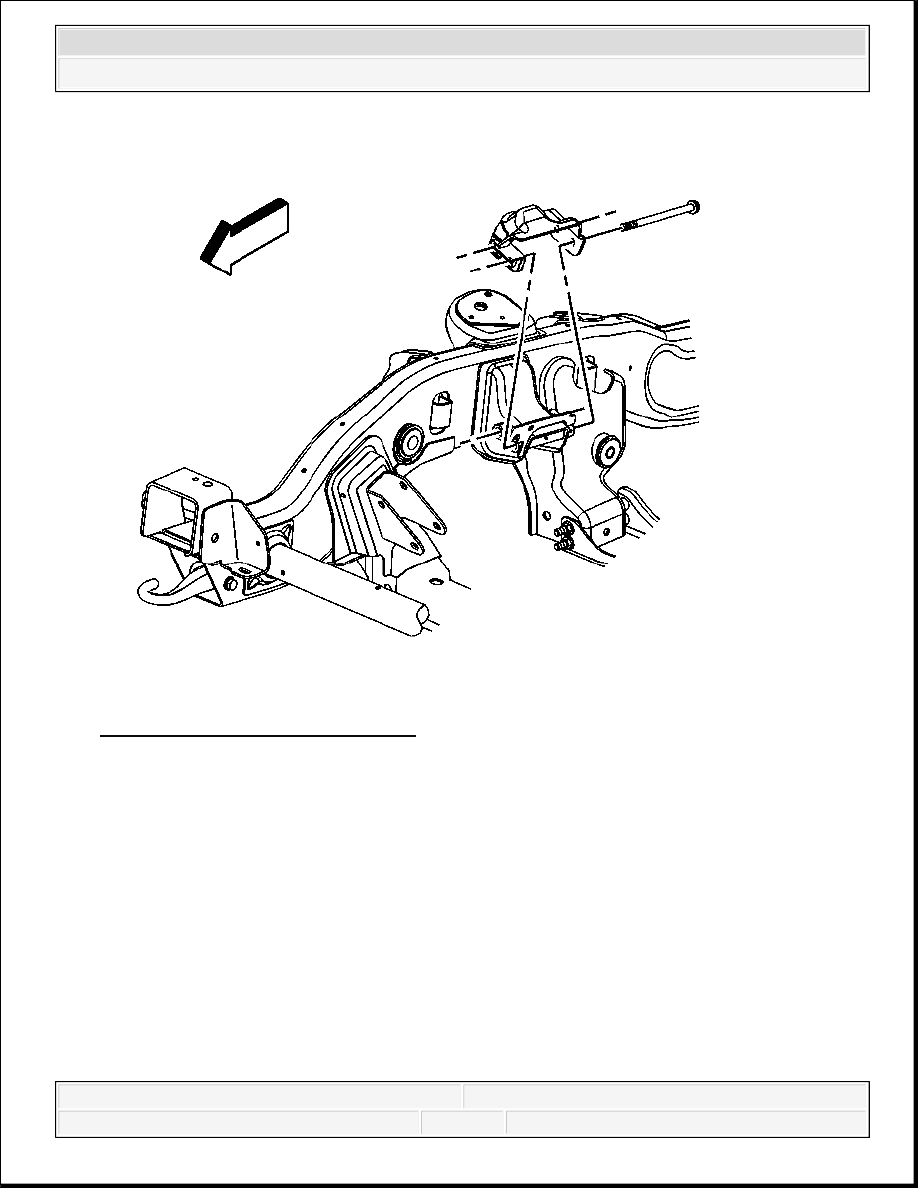

Fig. 40: Identifying Frame Bracket
Courtesy of GENERAL MOTORS CORP.
16. Remove the 2 through-bolts for the engine mount frame bracket.
17. Remove the engine mount frame bracket.
18. Remove the engine mount.
