Chevrolet Silverado / GMC Sierra. Manual - part 425
Fig. 30: View Of Engine Mount To Engine Mount Frame Bracket
Courtesy of GENERAL MOTORS CORP.
9. Install the 3 bolts holding the engine mount to the engine mount frame bracket.
Tighten: Tighten the engine mount to engine mount frame bracket bolts to 65 N.m (48 lb
ft).
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Mechanical - 6.6L - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
Fig. 31: Identifying Engine Shield And Retaining Bolts
Courtesy of GENERAL MOTORS CORP.
10. Install the engine protection shield and bolts.
Tighten: Tighten the engine protection shield bolts to 20 N.m (15 lb ft).
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Mechanical - 6.6L - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
Fig. 32: Identifying Oil Pan Skid Plate
Courtesy of GENERAL MOTORS CORP.
11. Install the oil pan skid plate.
Tighten: Tighten the bolts to 20 N.m (15 lb ft).
12. Remove the wheelhouse inner panel. Refer to Front Wheelhouse Liner Replacement -
Left Side (Chevrolet) or Front Wheelhouse Liner Replacement - Left Side (GMC) .
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Mechanical - 6.6L - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
13. Lower the vehicle.
ENGINE MOUNT REPLACEMENT - RIGHT SIDE
Removal Procedure

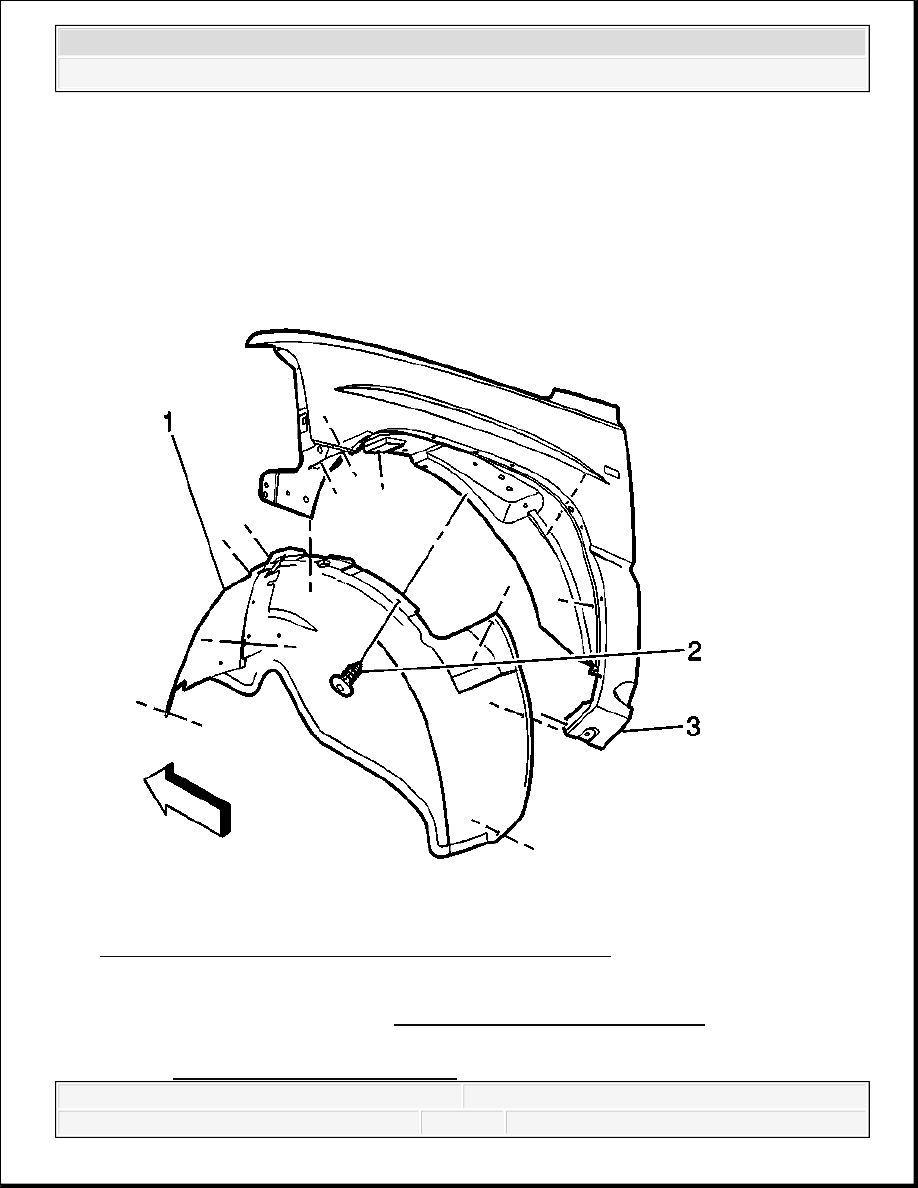

Fig. 33: View Of Wheelhouse Panel & Push-In Retainers
Courtesy of GENERAL MOTORS CORP.
1. Remove the starter motor. Refer to Starter Motor Replacement (6.6L) .
2. If RWD vehicle, raise the vehicle to a height to work through the front wheelhouse opening.
Refer to Lifting and Jacking the Vehicle .
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Mechanical - 6.6L - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
