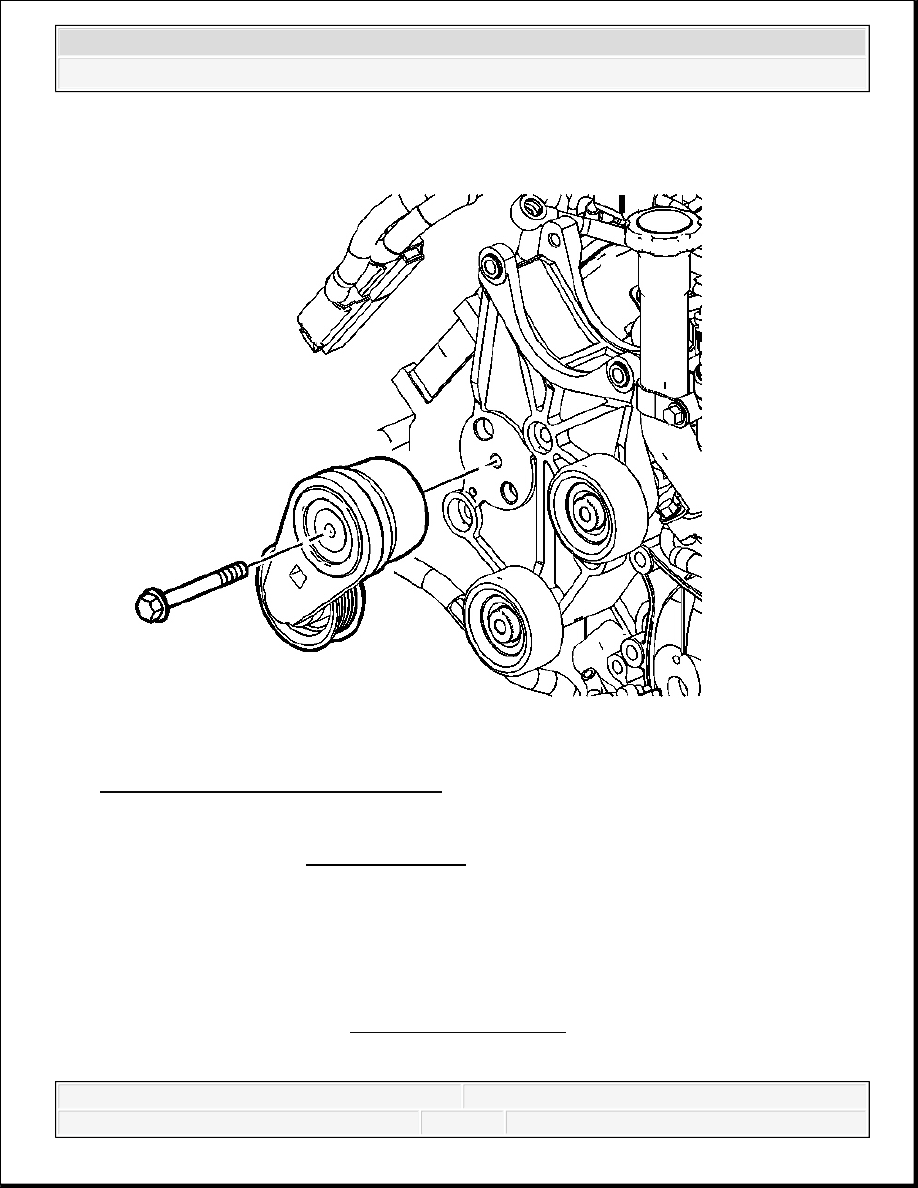

DRIVE BELT TENSIONER REPLACEMENT Removal Procedure Fig. 9: View Of Drive Belt Tensioner 1. Remove the drive belt. Refer to Drive Belt Replacement. 2. Remove the drive belt tensioner bolt. 3. Remove the drive belt tensioner. Installation Procedure
2008 Chevrolet Silverado 1500 2008 ENGINE Engine Mechanical - 6.6L - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

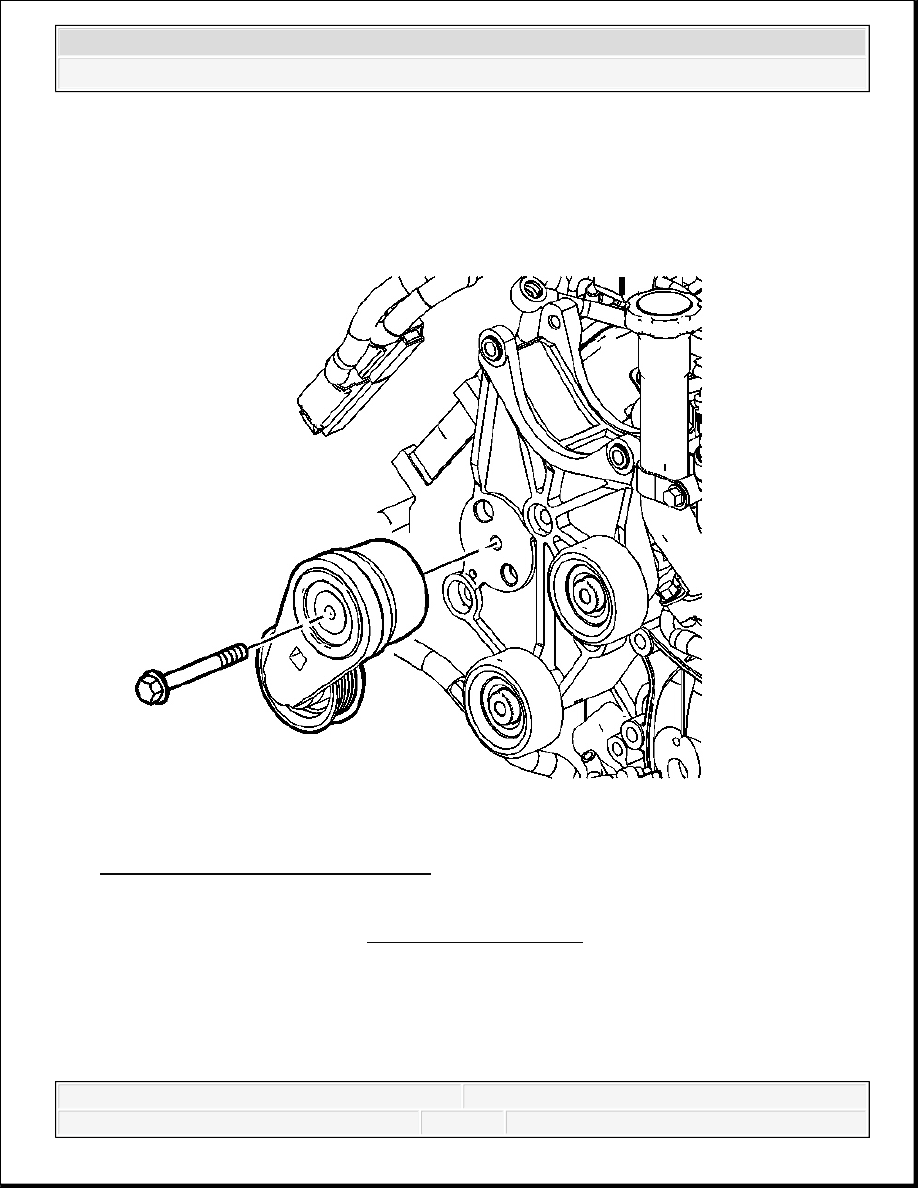

Fig. 10: View Of Drive Belt Tensioner 1. Install the drive belt tensioner. Align the pin with the hole in the generator bracket. 2. Install the drive belt tensioner bolt. Tighten: Tighten bolt to 50 N.m (37 lb ft). 3. Install the drive belt. Refer to Drive Belt Replacement. DRIVE BELT IDLER PULLEY REPLACEMENT NOTE: Refer to Fastener Notice .
2008 Chevrolet Silverado 1500 2008 ENGINE Engine Mechanical - 6.6L - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

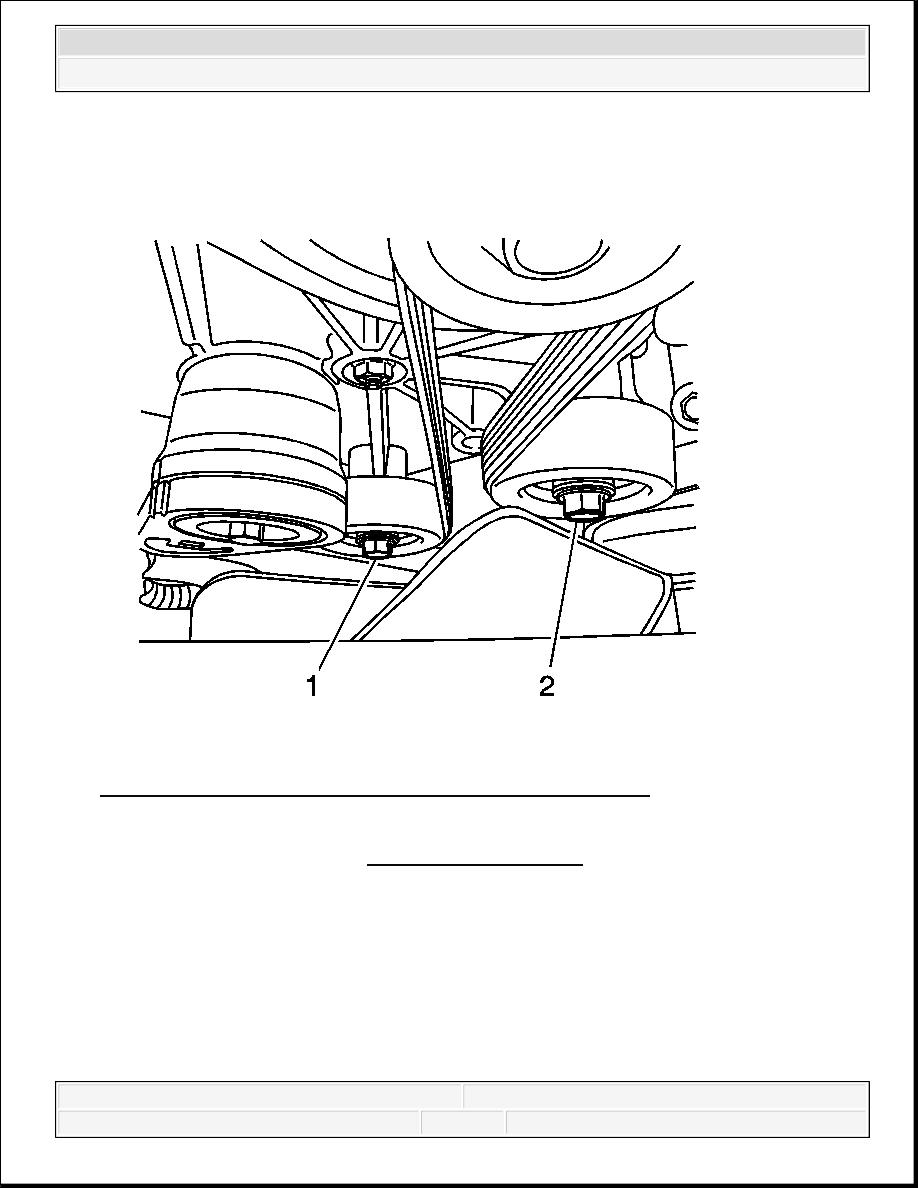

Removal Procedure Fig. 11: View Of Right Side Idler & Center Idler Pulley Bolts 1. Remove the drive belt. Refer to Drive Belt Replacement. 2. Remove the bolt (1) from the right side idler pulley. 3. Remove the idler pulley. 4. Remove the bolt (2) for the center idler pulley. 5. Remove the idler pulley. 6. If equipped with dual generators, remove the bolt from the left side idler pulley. 7. If equipped with dual generators, remove the idler pulley. Installation Procedure
2008 Chevrolet Silverado 1500 2008 ENGINE Engine Mechanical - 6.6L - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

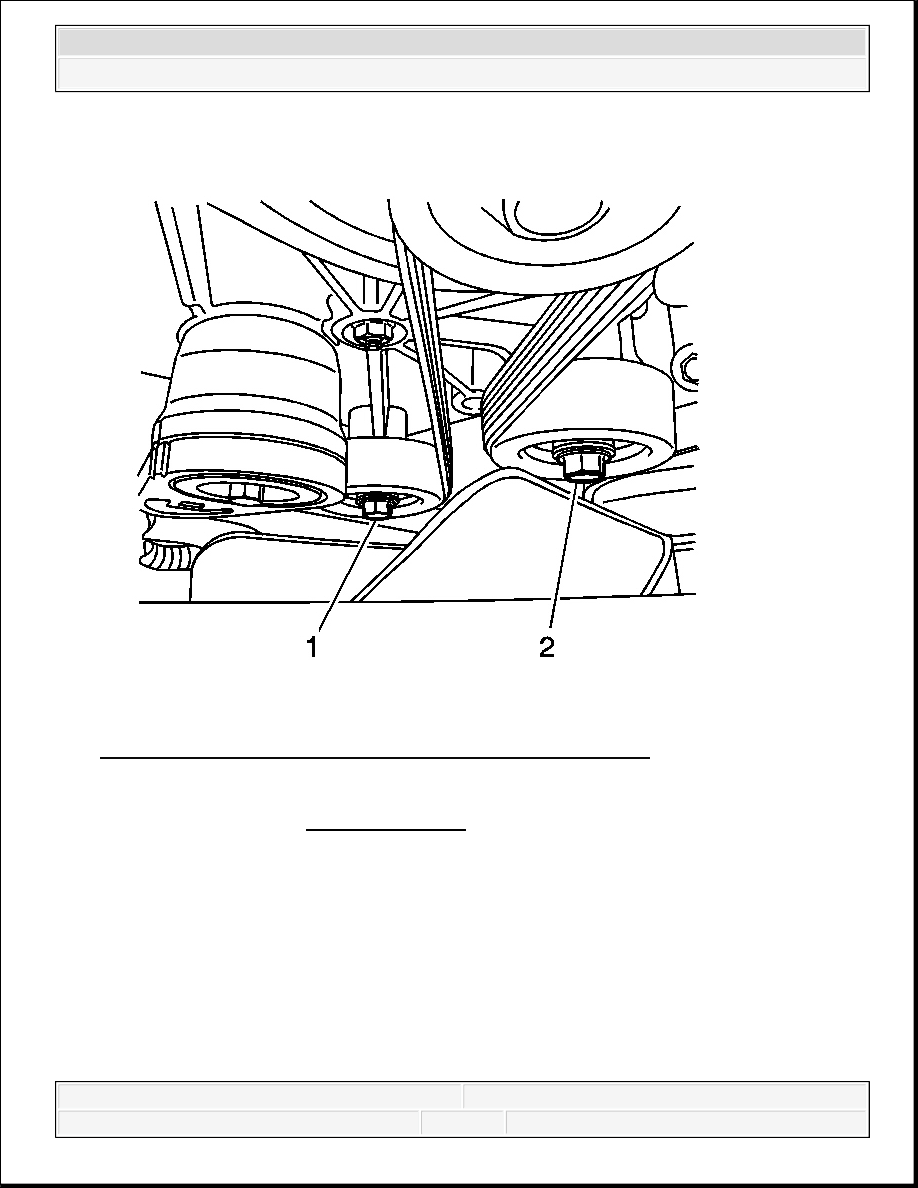

Fig. 12: View Of Right Side Idler & Center Idler Pulley Bolts 1. Install the right side idler pulley and bolt (1). Tighten: Tighten the bolt to 50 N.m (37 lb ft). 2. Install the center idler pulley and bolt (2). Tighten: Tighten the bolt to 50 N.m (37 lb ft). 3. If equipped with dual generators, install the left side idler pulley and bolt. NOTE: Refer to Fastener Notice .
