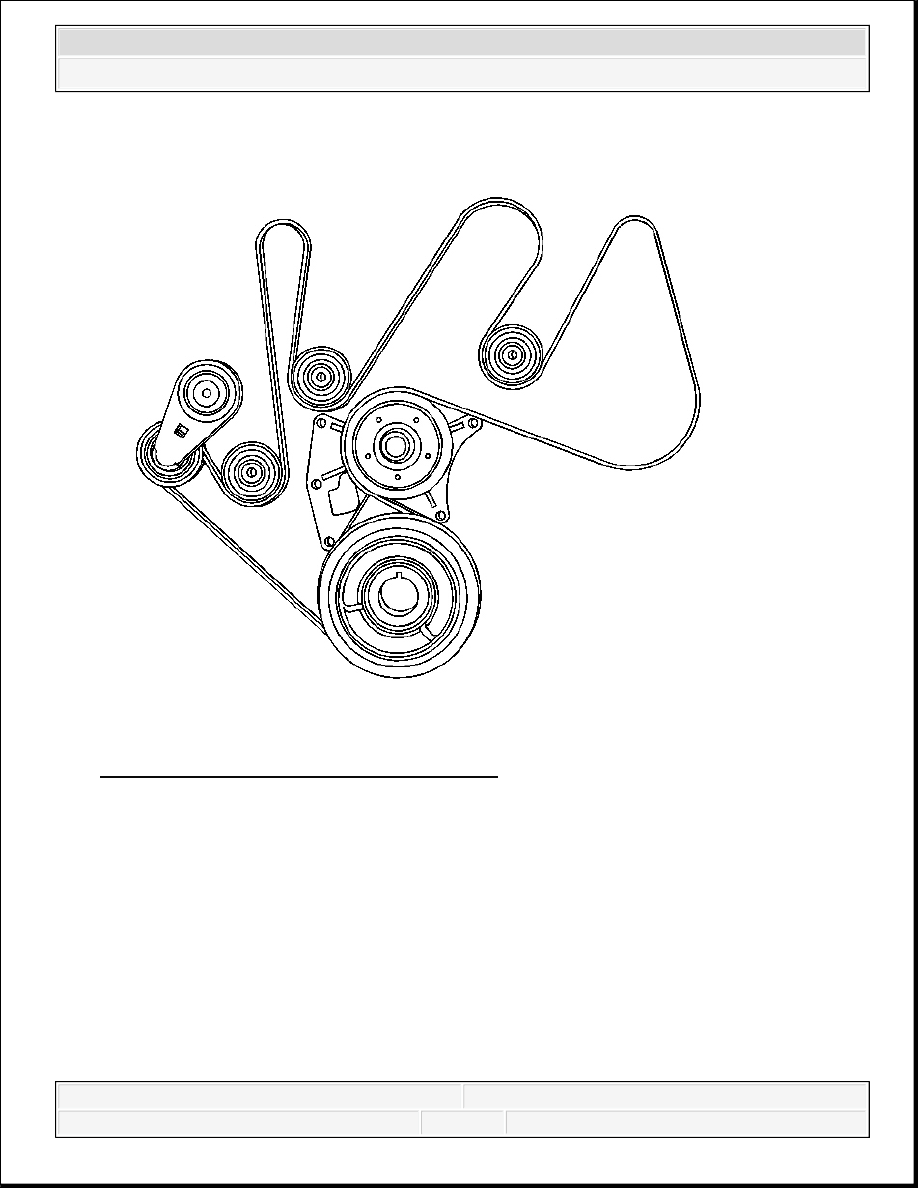

Fig. 5: View Of Drive Belt (Dual Generator) 1. Install the drive belt, if equipped with dual generators. 2. Route the drive belt over and/or around all the drive pulleys except for the tensioner.
2008 Chevrolet Silverado 1500 2008 ENGINE Engine Mechanical - 6.6L - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

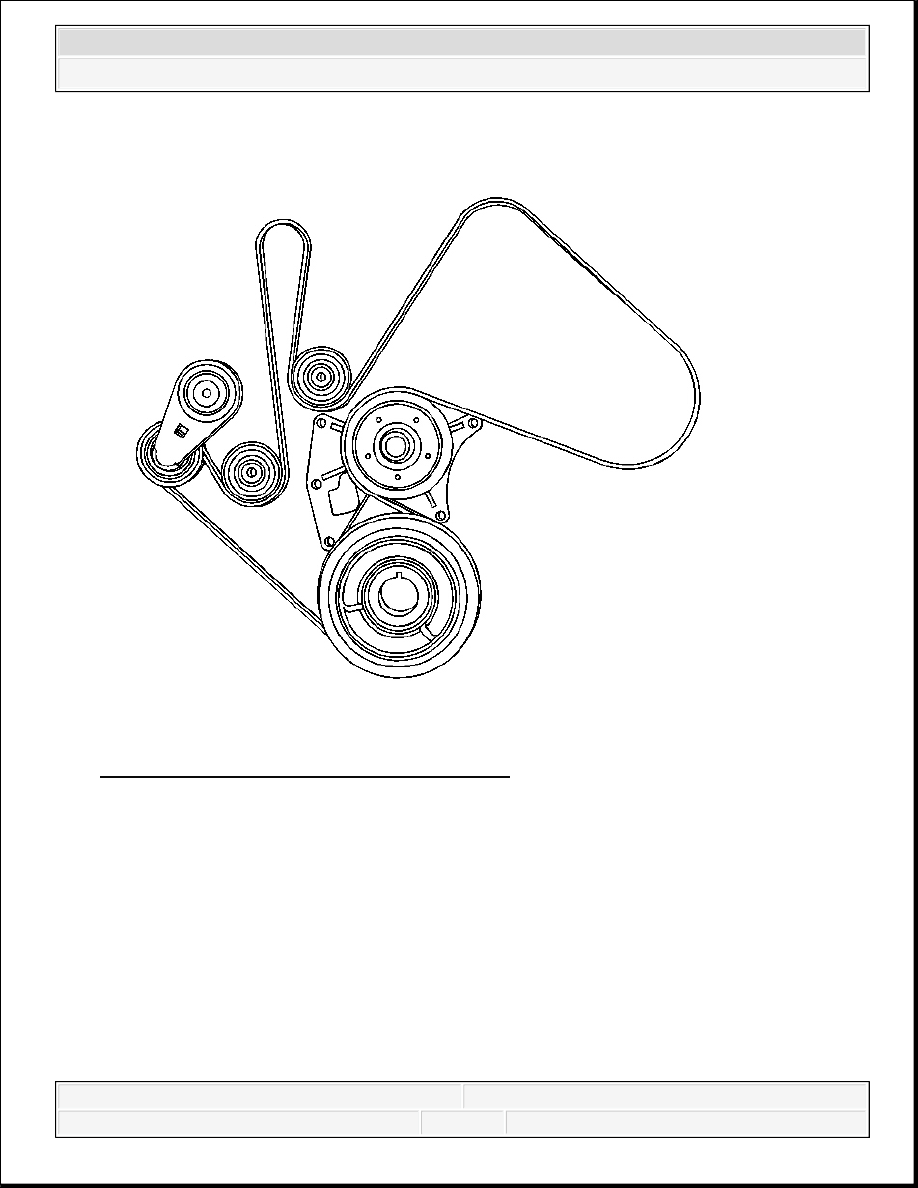

Fig. 6: View Of Drive Belt (Single Generator) 3. Install the drive belt, if equipped with a single generator. 4. Route the drive belt over and/or around all the drive pulleys except for the tensioner. 5. Install a 3/8 inch breaker bar into the tensioner opening and rotate the tensioner counterclockwise. 6. Install the belt over and/or around the tensioner. 7. Slowly release the tension on the tensioner arm. 8. Inspect the drive belt for proper installation on and/or around all pulleys.
2008 Chevrolet Silverado 1500 2008 ENGINE Engine Mechanical - 6.6L - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
Fig. 7: Identifying Fan Shroud Mounting Brackets & Bolts 9. Position the engine cooling fan shroud on the 3 mounting brackets (1). 10. Install the bolts. Loosely tighten the top mounting bolt at the oil filler neck. NOTE: Refer to Fastener Notice .
2008 Chevrolet Silverado 1500 2008 ENGINE Engine Mechanical - 6.6L - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

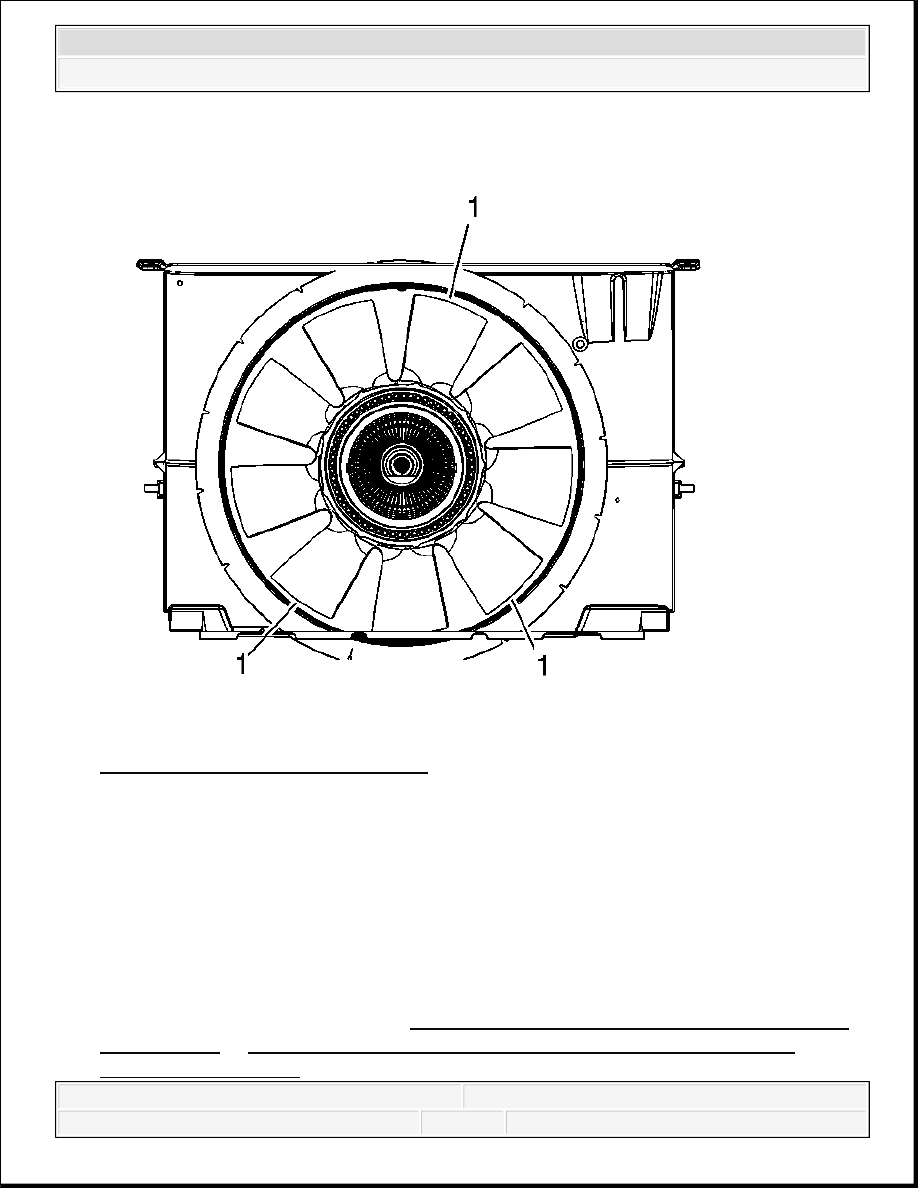

Fig. 8: View Of Cooling Fan Shroud 11. Center the engine cooling fan shroud to the fan blade in 3 places (1). 12. Fully tighten the 3 engine cooling fan shroud bolts (1). Tighten: Tighten the bolts to 8 N.m (71 lb in). 13. Install the upper fan shroud. Refer to Engine Coolant Fan Upper Shroud Replacement (Mechanical) or Engine Coolant Fan Upper Shroud Replacement (Automatic IMPORTANT: Maintain a 6 mm (0.25 in) minimum clearance at all 3 places.
