Chevrolet Silverado / GMC Sierra. Manual - part 400
Fuel Rail Bracket
538
Fuel Injection Pump Pipe
539
Injection Pipes
539
Injection Pipes
540
Lower Valve Rocker Arm Cover
540
Lower Valve Rocker Arm Cover
541
Lower Valve Rocker Arm Cover Gasket
541
Lower Valve Rocker Arm Cover Gasket
542
Lower Valve Rocker Arm Cover Bolt
543
Upper Valve Rocker Arm Cover Gasket
543
Upper Valve Rocker Arm Cover Gasket
544
Upper Valve Rocker Arm Cover
544
Upper Valve Rocker Arm Cover
545
Upper Valve Rocker Arm Cover Bolt
545
Upper Valve Rocker Arm Cover Bolt
545
Upper Valve Rocker Arm Cover Bolt
546
Engine Front Cover
547
Engine Front Cover Bolt
548
Flywheel Housing
549
Flywheel Housing Bolt
550
Dowel Pin
551
Crankshaft Rear Oil Seal
552
Flywheel Housing Oil Cooler Adapter
553
Flywheel Housing Oil Cooler Adapter Bolt
554
Flywheel Housing Oil Cooler Adapter Gasket
555
Flywheel Housing O-ring
556
Flywheel Housing Cover
557
Flywheel Housing Cover Bolt
558
Flywheel Housing Cover Gasket
559
Fuel Schrader Valve
560
Fuel Schrader Valve Nuts
561
Fuel Schrader Valve Bracket
561
Fuel Schrader Valve Bracket
562
Intake Pipe
563
Intake Heater
707
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Mechanical - 6.6L - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

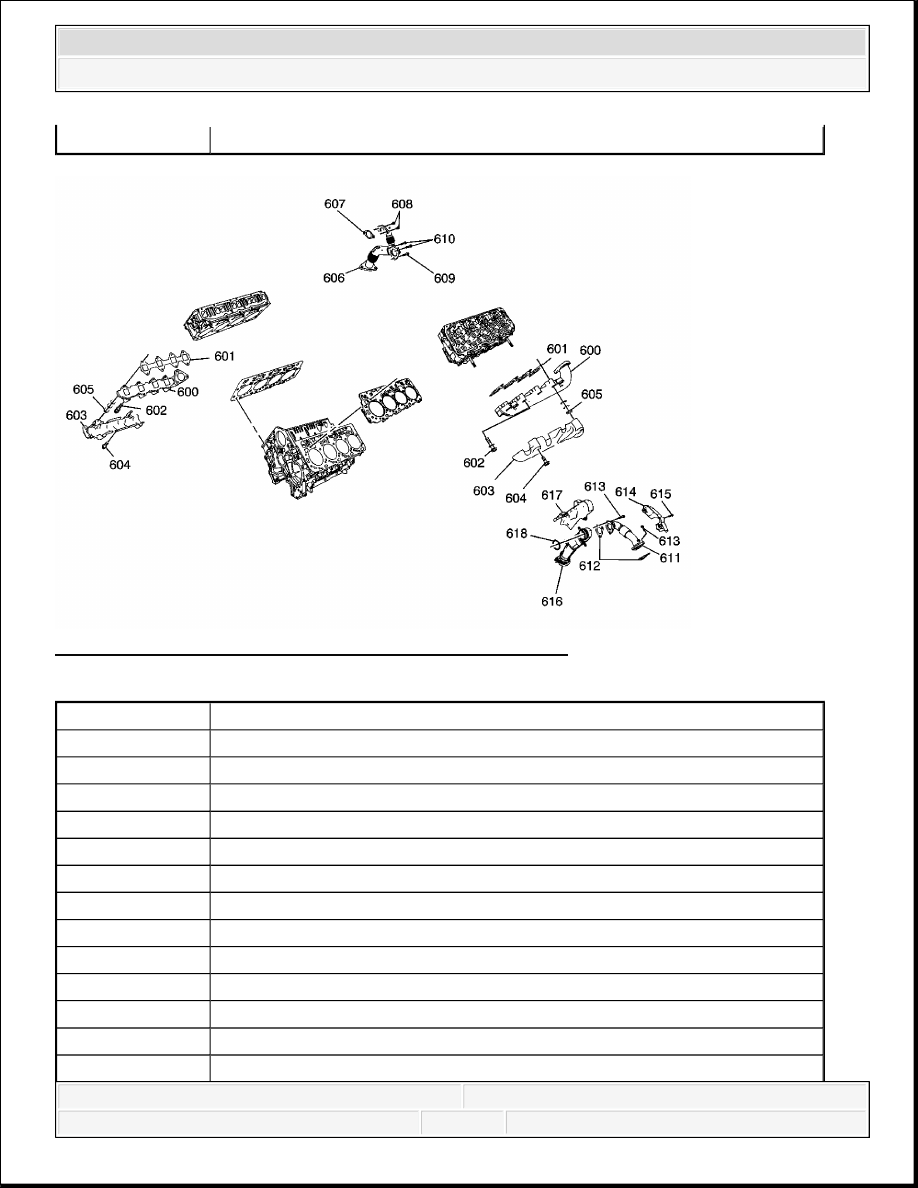

Fig. 41: Exhaust Manifolds, EGR, Air Components View
Courtesy of GENERAL MOTORS CORP.
Turbocharger Boost Sensor
Callout
Component Name
600
Exhaust Manifold
600
Exhaust Manifold
601
Exhaust Manifold Gasket
601
Exhaust Manifold Gasket
602
Exhaust Manifold Bolt
602
Exhaust Manifold Bolt
603
Exhaust Manifold Heat Shield
603
Exhaust Manifold Heat Shield
604
Exhaust Manifold Heat Shield Bolt
604
Exhaust Manifold Heat Shield Bolt
605
Exhaust Manifold Nut
605
Exhaust Manifold Nut
606
Exhaust Pipe
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Mechanical - 6.6L - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
607
Exhaust Pipe Gasket
608
Exhaust Pipe Bolt
609
Exhaust Pipe Stud
610
Exhaust Pipe Nut
611
Exhaust Crossover Pipe
612
Exhaust Crossover Pipe Gasket
613
Exhaust Crossover Pipe Bolt
613
Exhaust Crossover Pipe Bolt
614
Exhaust Crossover Pipe Heat Shield
615
Exhaust Crossover Pipe Heat Shield Bolt
616
Exhaust Outlet Adapter
617
Exhaust Outlet Heat Shield
618
Exhaust Outlet Adapter Clamp
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Mechanical - 6.6L - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

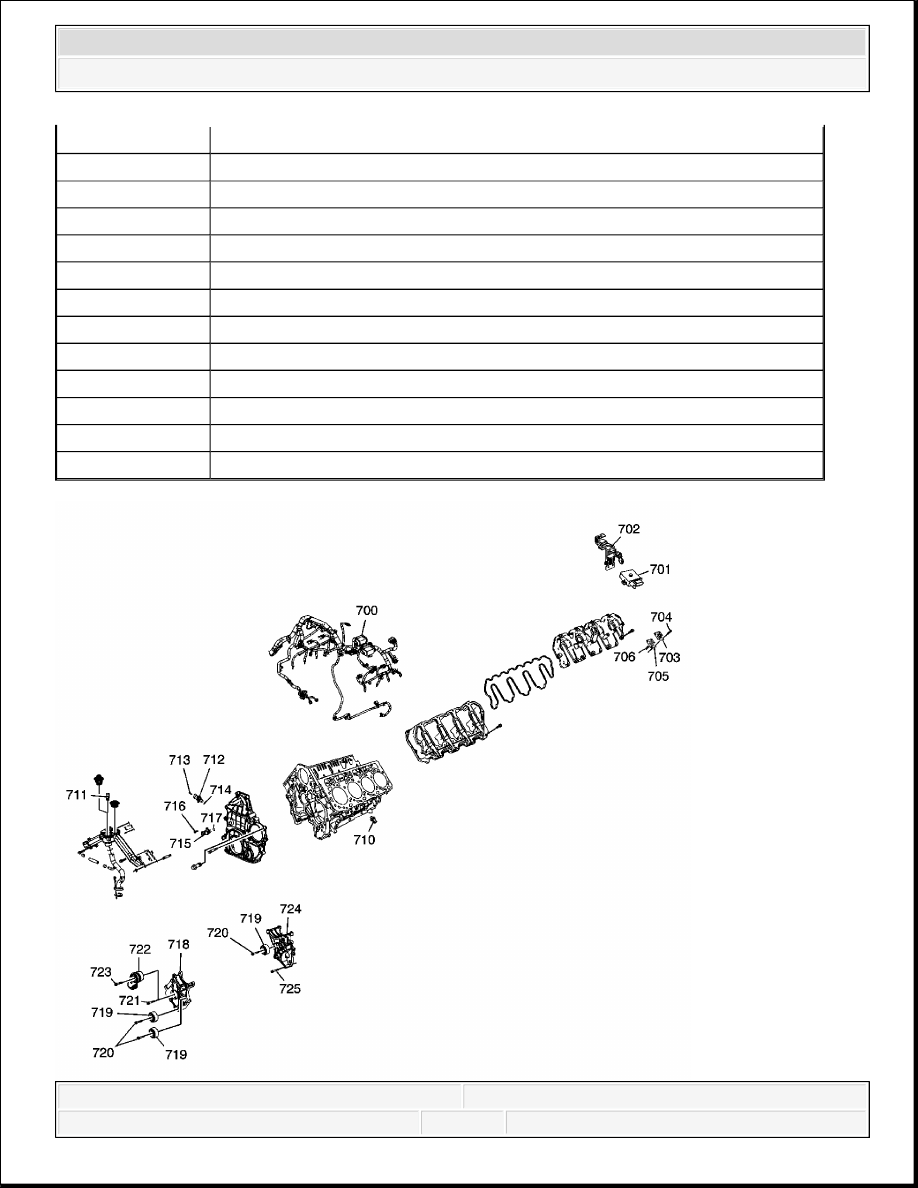

Fig. 42: Miscellaneous, Sensors, Ignition, Vacuum Hoses, Electrical
Courtesy of GENERAL MOTORS CORP.
ENGINE IDENTIFICATION
Callout
Component Name
700
Engine Wiring Harness
701
Glow Plug Controller
702
Glow Plug Controller Bracket
703
PCV Cover
704
PCV Cover Bolt
705
PCV Diaphragm
706
PCV Spring
710
Oil Pressure Sensor
711
Coolant Temperature Sensor
712
Crankshaft Position Sensor
713
Crankshaft Position Sensor Bolt
714
Crankshaft Position Sensor O-ring
715
Camshaft Position Sensor
716
Camshaft Position Sensor Bolt
717
Camshaft Position Sensor O-ring
718
Generator Mounting Bracket
719
Idler Pulley
719
Idler Pulley
719
Idler Pulley
720
Idler Pulley Bolt
720
Idler Pulley Bolt
721
Generator Mounting Bracket Bolt
722
Drive Belt Tensioner
723
Drive Belt Tensioner Bolt
724
Power Steering Pump Bracket
725
Power Steering Pump Bracket Bolt
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Mechanical - 6.6L - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
