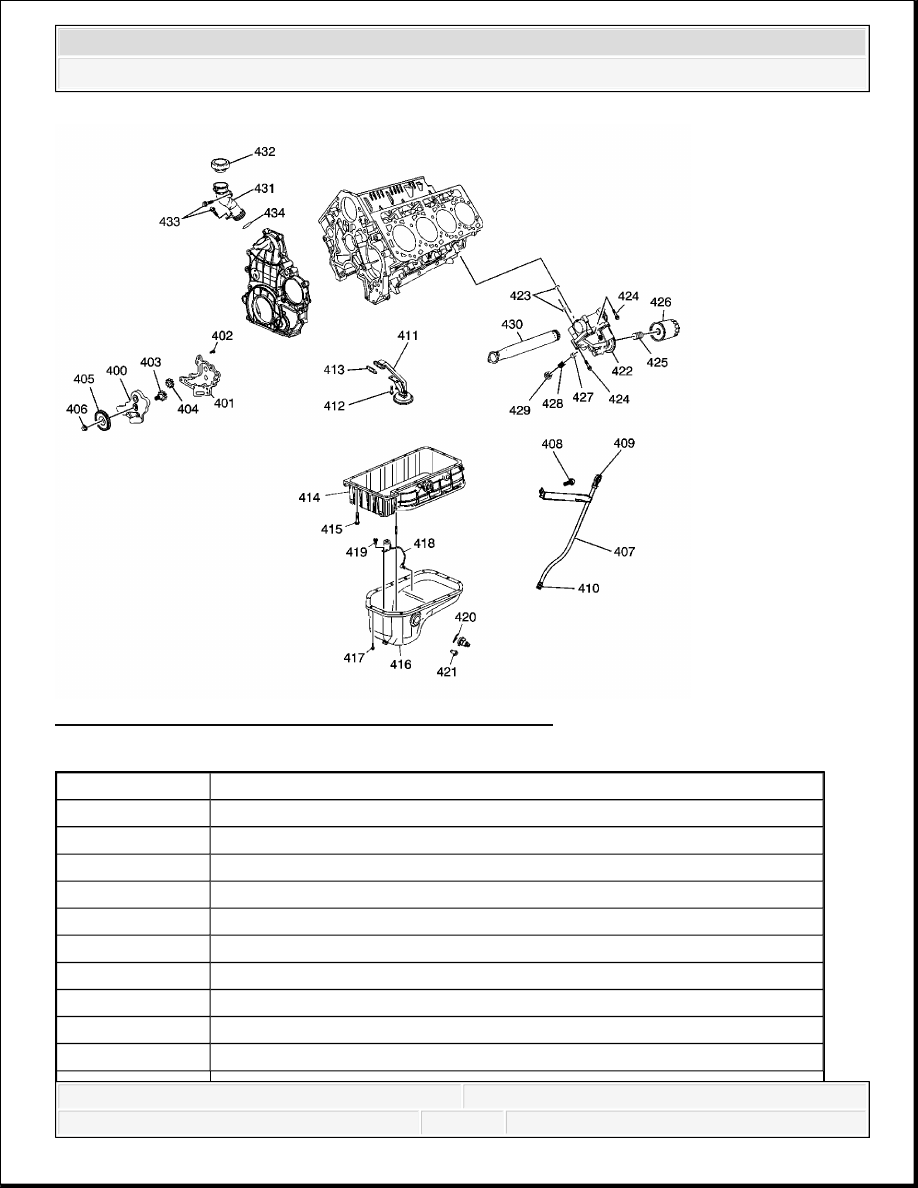

Fig. 39: Oil Pan, Pump, Filter, Tube Components View
Courtesy of GENERAL MOTORS CORP.
Callout
Component Name
400
Oil Pump Housing
401
Oil Pump Cover
402
Oil Pump Cover Bolt
403
Oil Pump Drive Gear
404
Oil Pump Driven Gear
405
Oil Pump Gear
406
Oil Pump Gear Nut
407
Oil Level Indicator Tube
408
Oil Level Indicator Tube Bolt
409
Oil Level Indicator
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Mechanical - 6.6L - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
410
Oil Level Indicator Tube O-ring
411
Oil Pump Pipe and Screen Assembly
412
Oil Pump Pipe and Screen Assembly Bolt
413
Oil Pump Pipe and Screen assembly Gasket
414
Upper Oil Pan
415
Upper Oil Pan Bolt
416
Lower Oil Pan
417
Lower Oil Pan Bolt
418
Oil Level Sensor
419
Oil Level Sensor Bolt
420
Oil Level Sensor Retainer
421
Oil Drain Plug
422
Engine Oil Cooler
423
Engine Oil Cooler O-ring
424
Engine Oil Cooler Bolt
424
Engine Oil Cooler Bolt
425
Oil Filter Adapter
426
Oil Filter
427
Oil Pressure Relief Valve Spring Cup
428
Oil Pressure Relief Valve Spring
429
Oil Pressure Relief Valve Spring Plug
430
Oil Cooler Tube
431
Oil Fill Tube
432
Oil Fill Tube Cap
433
Oil Fill Tube Bolt
434
Oil Fill Tube O-ring
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Mechanical - 6.6L - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

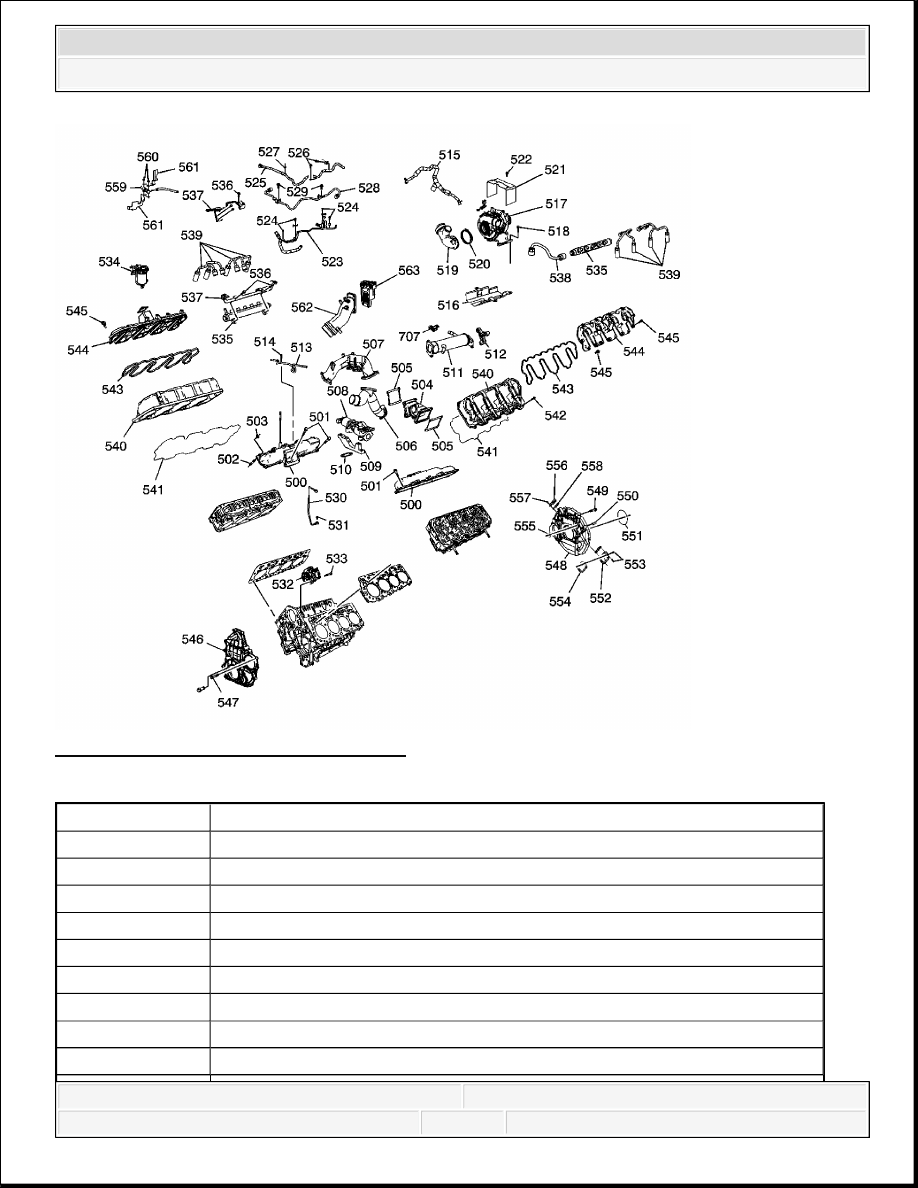

Fig. 40: Intake Manifold, Rails, Covers
Courtesy of GENERAL MOTORS CORP.
Callout
Component Name
500
Intake Manifold
500
Intake Manifold
501
Intake Manifold Bolt
501
Intake Manifold Bolt
502
Intake Manifold Stud
503
Intake Manifold Nut
504
Intake Manifold Crossover
505
Intake Manifold Crossover Gasket
505
Intake Manifold Crossover Gasket
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Mechanical - 6.6L - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
506
Intake Manifold Tube
507
Air Inlet Tube
508
EGR
509
EGR Bracket
510
EGR Gasket
511
EGR Cooler
512
EGR Cooler Bracket
513
Fuel Pipe
514
Fuel Pipe Bolt
515
PCV Hose
516
Lower Turbocharger Heat Shield
517
Turbocharger
518
Turbocharger Bolt
519
Turbocharger Air Inlet
520
Turbocharger Air Inlet Clamp
521
Upper Turbocharger Heat Shield
522
Upper Turbocharger Heat Shield Bolt
523
Fuel Inlet Pipe Assembly
524
Fuel Inlet Pipe Assembly Bolt
524
Fuel Inlet Pipe Assembly Bolt
525
Fuel Feed Pipe
526
Fuel Feed Pipe Bolt
527
Fuel Feed Pipe Nut
528
Fuel Rail Balance Pipe
529
Fuel Rail Balance Pipe Bolt
530
Turbocharger Oil Supply Line
531
Turbocharger Oil Supply Line Bolt
532
Fuel Injection Pump
533
Fuel Injection Pump Bolt
534
Fuel Filter Assembly
535
Fuel Rail
535
Fuel Rail
536
Fuel Rail Bolts
536
Fuel Rail Bolts
537
Fuel Rail Bracket
537
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Mechanical - 6.6L - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
