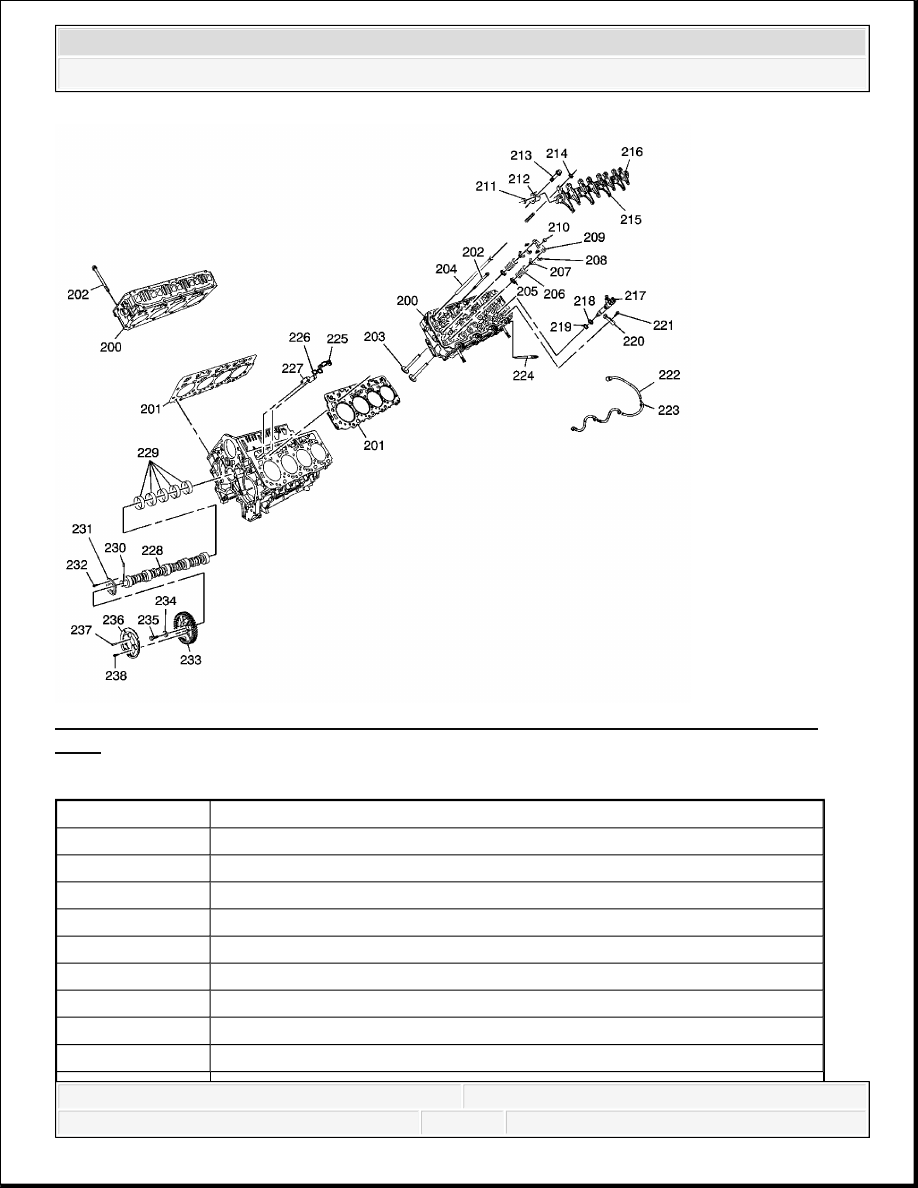

Fig. 37: Cylinder Head, Valves, Lifters, Timing Components, Camshaft Components
View
Courtesy of GENERAL MOTORS CORP.
Callout
Component Name
200
Cylinder Head
200
Cylinder Head
201
Cylinder Head Gasket
201
Cylinder Head Gasket
202
Cylinder Head Bolt
202
Cylinder Head Bolt
203
Exhaust Valve
204
Pushrod
205
Valve Spring Seat
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Mechanical - 6.6L - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
206
Valve Spring
207
Valve Spring Retainer
208
Valve Key
209
Valve Bridge
210
Valve Bridge Pin
211
Rocker Arm Shaft Plug
212
Rocker Arm Shaft Mount
213
Rocker Arm Shaft Mount Bolt
214
Rocker Arm Shaft Assembly Lock Nut
215
Rocker Arm
216
Rocker Arm Shaft Assembly
217
Fuel Injector
218
Fuel Injector O-ring Seal
219
Fuel Injector Gasket
220
Fuel Injector Bracket
221
Fuel Injector Bracket Bolt
222
Fuel Return Pipe
223
Fuel Return Pipe Bolt
224
Glow Plug
225
Valve Lifter Guide Bracket
226
Valve Lifter Guide
227
Valve Lifter
228
Camshaft
229
Camshaft Bearings
230
Camshaft Pin
231
Camshaft Thrust Plate
232
Camshaft Thrust Plate Bolt
233
Camshaft Gear
234
Camshaft Gear Washer
235
Camshaft Gear Bolt
236
Camshaft Position Sensor Exciter Ring
237
Camshaft Position Sensor Exciter Ring Pin
238
Camshaft Position Sensor Exciter Ring Bolt
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Mechanical - 6.6L - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

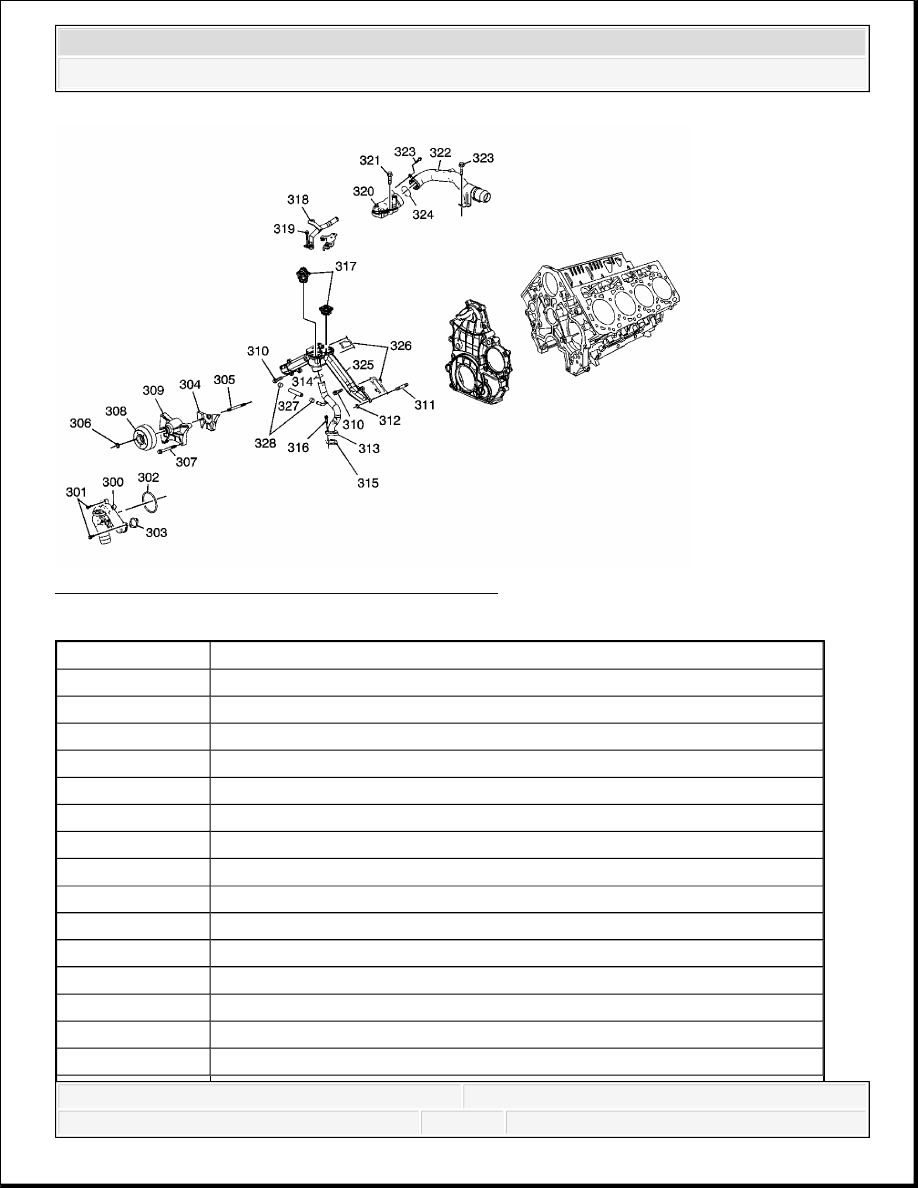

Fig. 38: Cooling, Water Pump Components View
Courtesy of GENERAL MOTORS CORP.
Callout
Component Name
300
Water Pump
301
Water Pump Bolt
302
Water Pump O-ring Seal
303
Water Pump Gasket
304
Cooling Fan Pulley Insulator
305
Cooling Fan Pulley Stud
306
Cooling Fan Pulley Nut
307
Cooling Fan Pulley Bolt
308
Cooling Fan Pulley
309
Cooling Fan Pulley Bracket
310
Thermostat Housing Bolt
310
Thermostat Housing Bolt
311
Thermostat Housing Stud
312
Thermostat Housing Nut
313
Thermostat Bypass Pipe
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Mechanical - 6.6L - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
314
Thermostat Bypass Pipe O-ring
315
Thermostat Bypass Pipe Gasket
316
Thermostat Bypass Pipe Bolt
317
Thermostat
318
Heater Pipe
319
Heater Pipe Bolt
320
Thermostat Cover
321
Thermostat Cover Bolt
322
Water Outlet
323
Water Outlet Bolt
323
Water Outlet Bolt
324
Water Outlet O-ring Seal
325
Thermostat Housing
326
Thermostat Housing Gasket
327
Thermostat Bypass Pipe Crossover Tube
328
Thermostat Bypass Pipe Crossover Tube Clamps
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Mechanical - 6.6L - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
