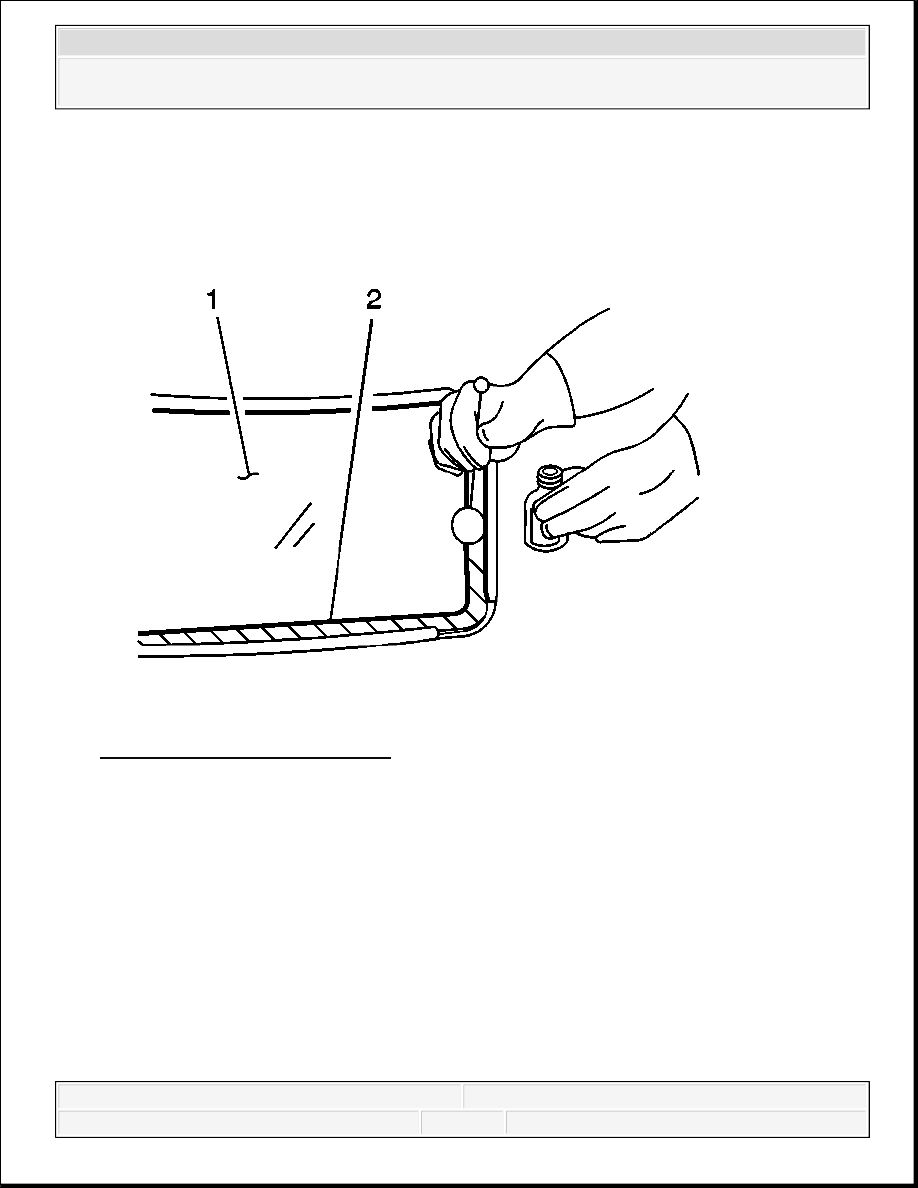

Courtesy of GENERAL MOTORS CORP. 15. Apply a second coat of the glass prep clear #1 to the same area of the glass. Fig. 105: Applying Glass Primer 16. Shake the glass primer black #2 for at least 1 minute. 17. Use a new dauber in order to apply the glass primer black #2 to the same areas (2) that glass prep clear #1 was applied. 18. Allow the glass primer to dry for approximately 10 minutes. IMPORTANT: The glass primer black #2 is effective up to 8 hours after applying it to the glass. The primed surface of the glass must
2008 Chevrolet Silverado 1500 2008 ACCESSORIES & EQUIPMENT Fixed and Moveable Windows - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

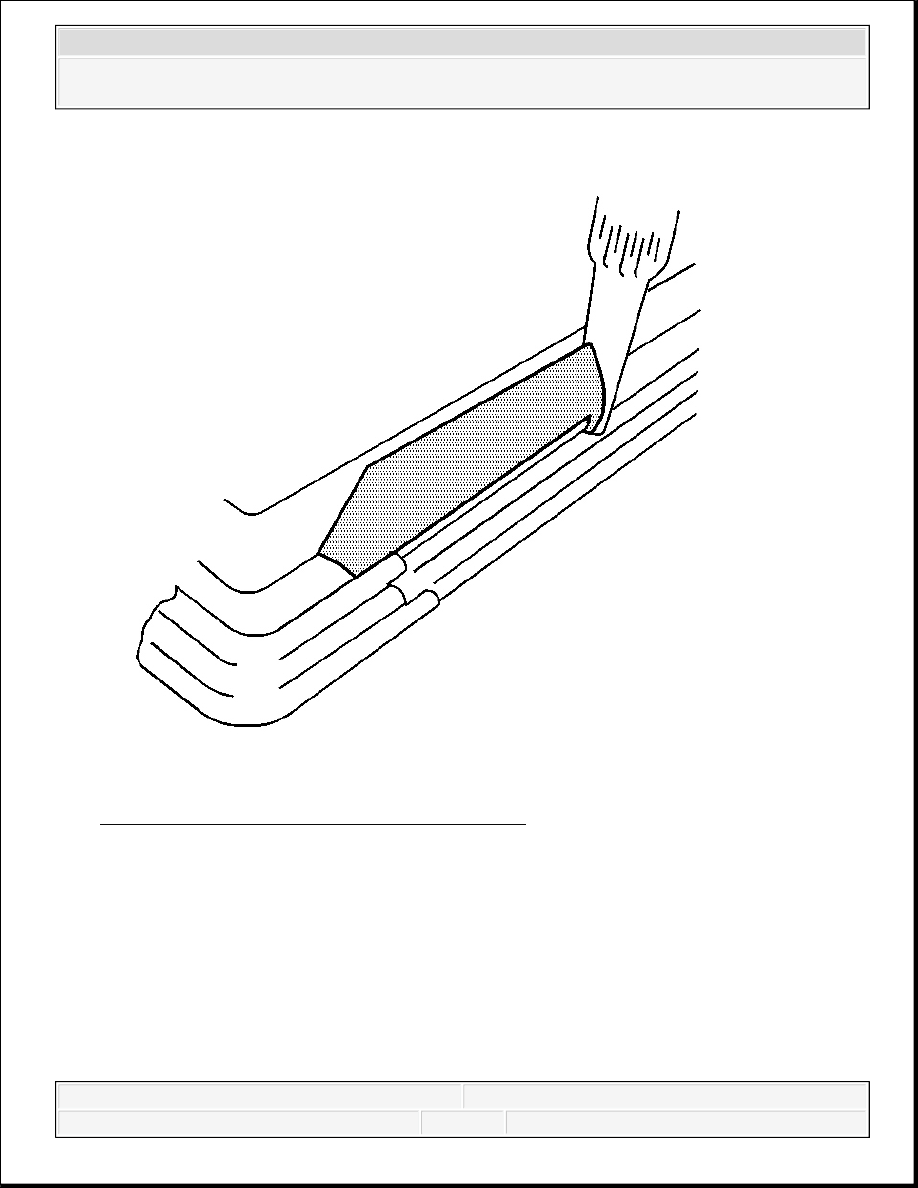

Fig. 106: View Of Modified Applicator Nozzle 19. Cut the applicator nozzle in order to provide a bead of 12.7 mm (1/2 in) wide and 12.7 mm (1/2 in) high.
2008 Chevrolet Silverado 1500 2008 ACCESSORIES & EQUIPMENT Fixed and Moveable Windows - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

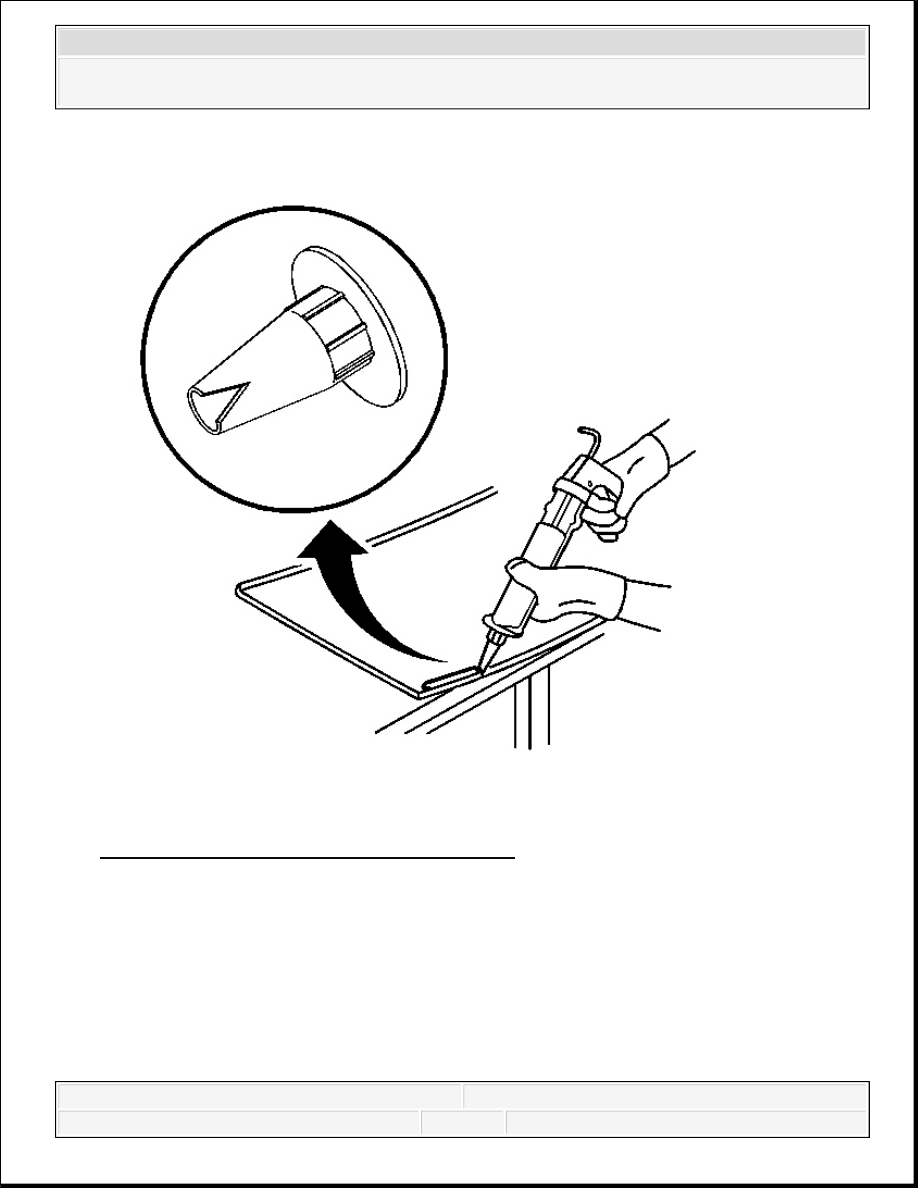

Fig. 107: Applying Bead Of Urethane Adhesive 20. Use a cartridge-type caulking gun in order to apply a smooth, continuous bead of urethane adhesive.
2008 Chevrolet Silverado 1500 2008 ACCESSORIES & EQUIPMENT Fixed and Moveable Windows - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

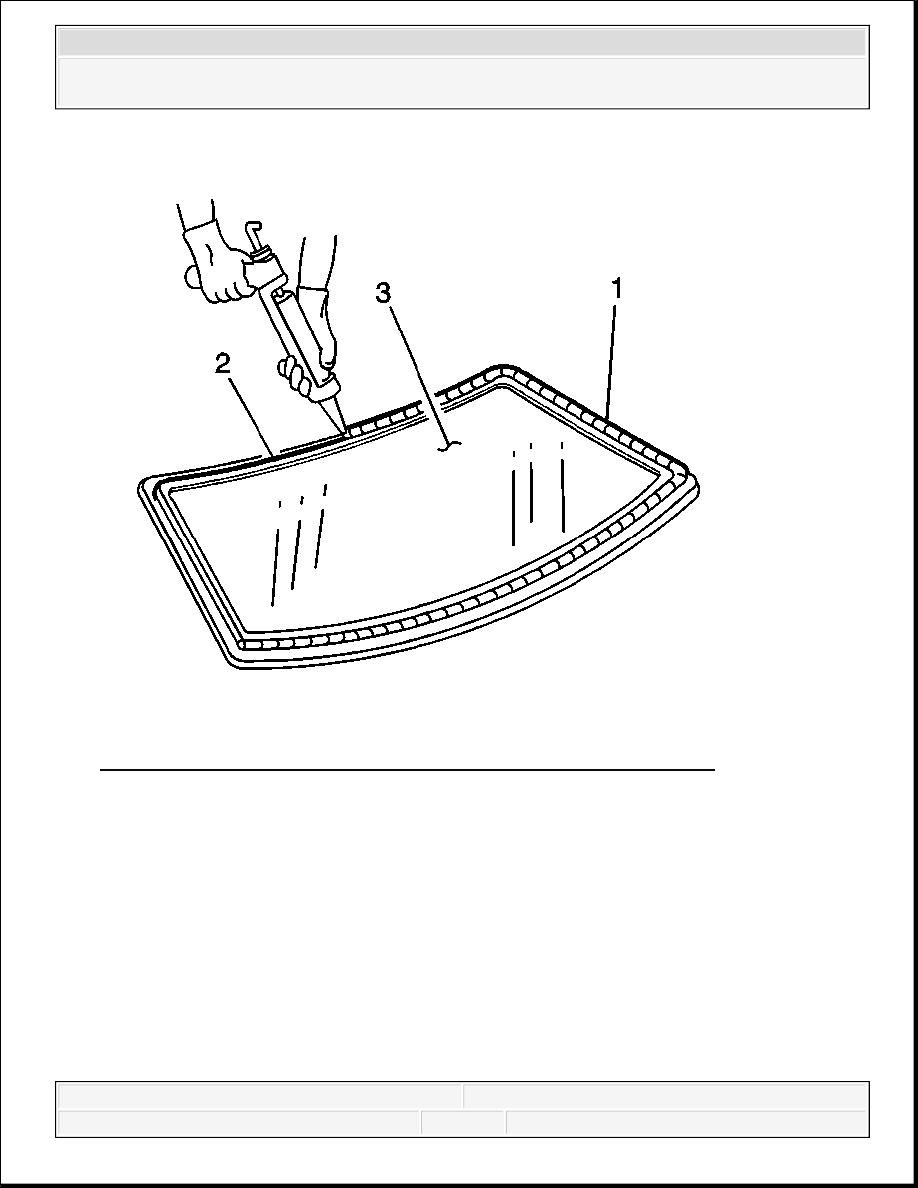

Fig. 108: Applying Urethane Adhesive To Inner Surface Of Window 21. Use the edge of the window or the inside edge of the reveal molding as a guide for the nozzle in order to apply the urethane adhesive (1) to the inner surface of the window (3). 22. With the aid of an assistant, place the window in the opening. If installing a rear window, place the rear window on the lower supports, if equipped. 23. Align the masking tape lines on the window and the body.
2008 Chevrolet Silverado 1500 2008 ACCESSORIES & EQUIPMENT Fixed and Moveable Windows - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
