Transfer Case Rear Case Half Removal
Callout
Component Name
1
Transfer Case Rear Output Shaft Seal
NOTE:
Refer to Transfer Case Seal Removal Notice .
2
Transfer Case Rear Output Shaft Bushing
Tip:
Only remove the bushing if faulty. Refer to
Transfer Case Rear Half Cleaning and
Inspection.
Follow the steps below for use of the J 45380 .
1. Install the finger section of the J 45380 in
front of the bushing.
2. Install the tube and forcing screw assembly
into the finger section. Ensure the forcing
screw is backed out.
3. Using a wrench on the forcing screw, remove
the bushing.
Special Tools:
J 45380 Transfer Case Rear Bushing Remover and
Installer
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Transfer Case - MP 3023/3024-NQH - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra &
Silverado

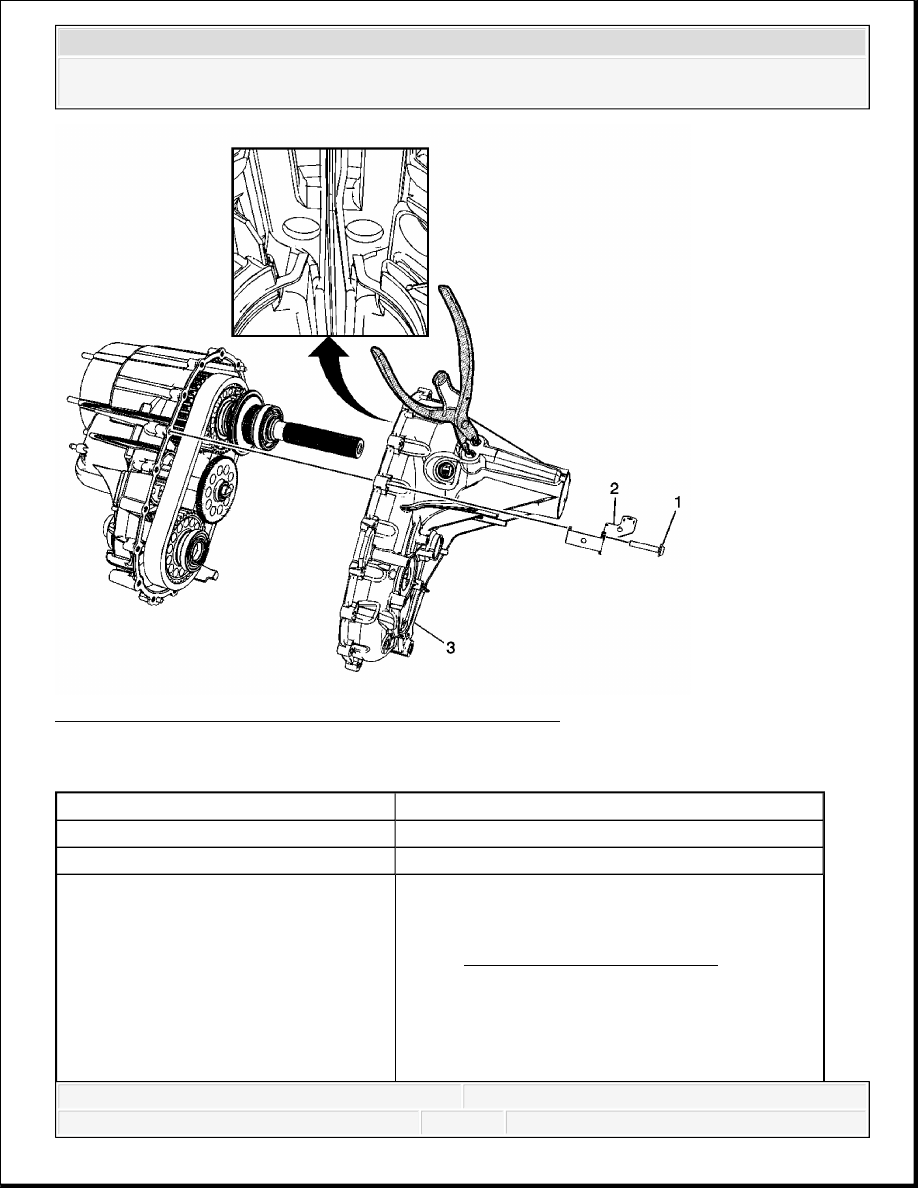

Fig. 24: View Of Transfer Case Halves, Bracket & Bolts
Courtesy of GENERAL MOTORS CORP.
Transfer Case Rear Case Half Removal
Callout
Component Name
1
Transfer Case Bolts (Qty: 17)
2
Transfer Case Bracket
3
Transfer Case Rear Case Half
Tip:
NOTE:
Refer to Machined Surface Damage Notice .
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Transfer Case - MP 3023/3024-NQH - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra &
Silverado
Oil Pump Suction Pipe and Actuator Shaft Gear Removal

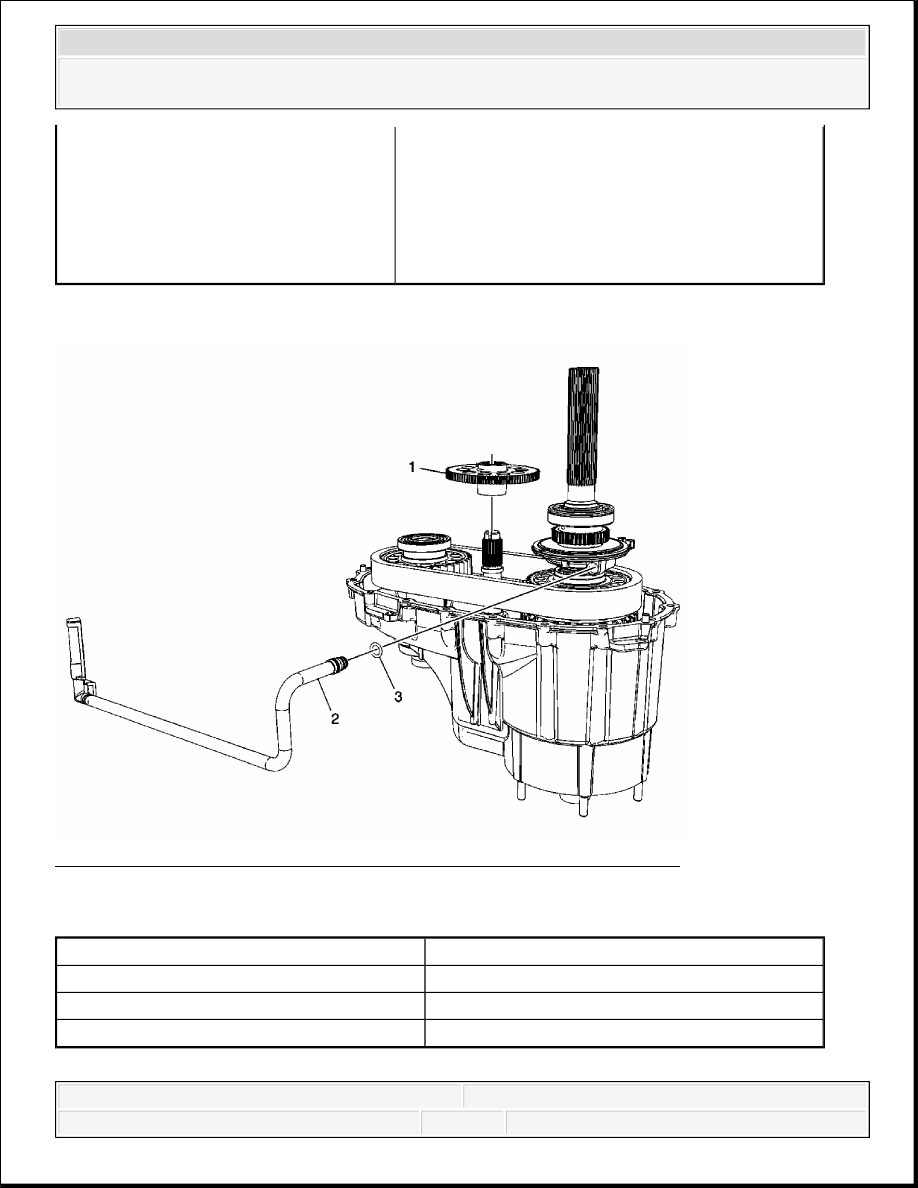

Fig. 25: View Of Oil Pump Suction Pipe, Seal & Actuator Shaft Gear
Courtesy of GENERAL MOTORS CORP.
Oil Pump Suction Pipe and Actuator Shaft Gear Removal
Use opposing pry bars at casting bosses to
spread the case.
Use snap ring pliers to release the transfer
case rear output shaft outer retaining ring
from the transfer case rear output shaft rear
bearing assembly.
Callout
Component Name
1
Transfer Case Actuator Shaft Gear
2
Transfer Case Oil Pump Suction Pipe
3
Transfer Case Oil Pump Suction Pipe Seal
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Transfer Case - MP 3023/3024-NQH - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra &
Silverado
Shift Fork Assembly, Drive Chain, and Rear Output Shaft Assembly Removal

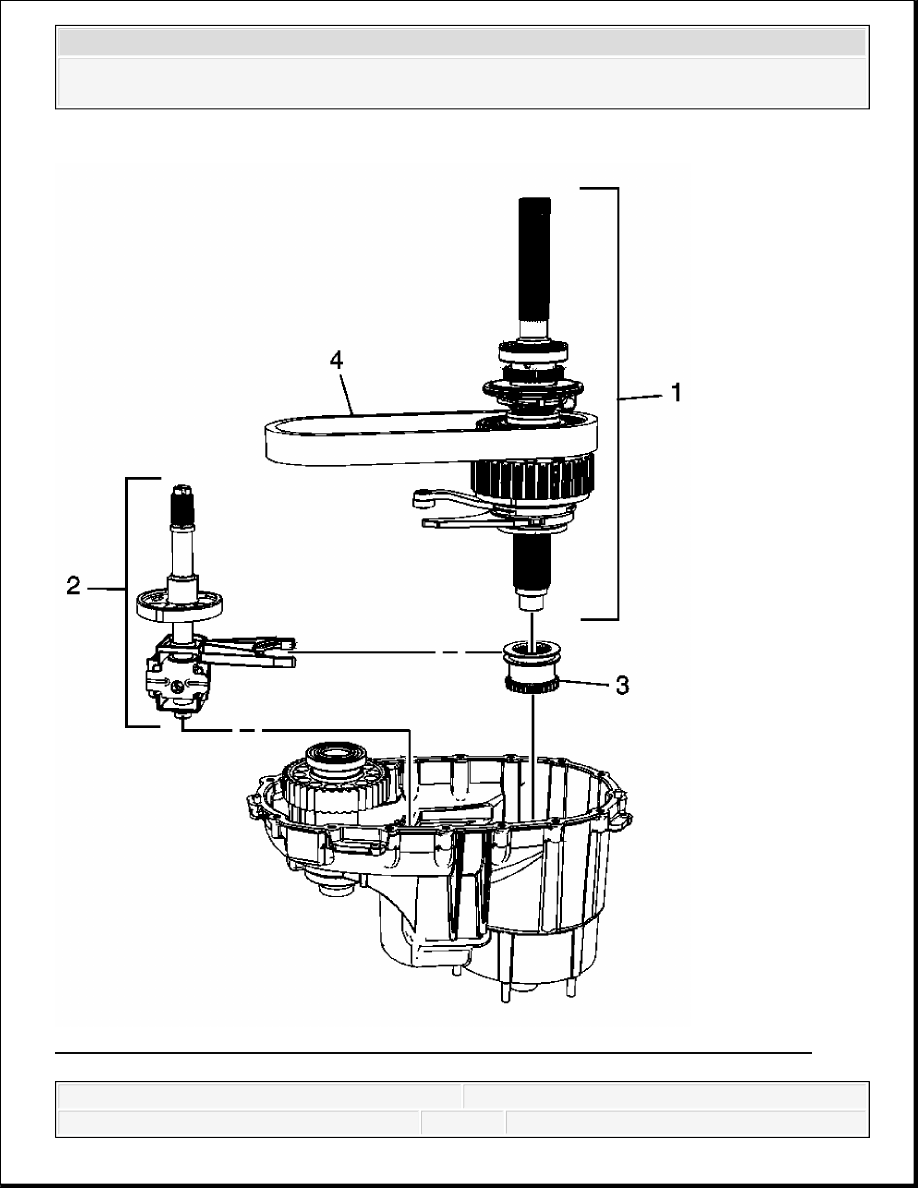

Fig. 26: View Of Shift Fork Assembly, Drive Chain, & Rear Output Shaft Assembly
Courtesy of GENERAL MOTORS CORP.
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Transfer Case - MP 3023/3024-NQH - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra &
Silverado
