Chevrolet Silverado / GMC Sierra. Manual - part 2936
Access Hole Plugs, Fill and Drain Plug, Vent, 2/4 Wheel Drive Actuator, Actuator Shaft Position Sensor, and Vehicle
Vehicle Speed Sensor Removal
J 45759 Assembly Fixture
2
Transfer Case
Special Tools:
J 3289-20 Holding Fixture
3
Pivot Pin
Tip:
Always secure with the pivot pin after
rotating.
The transfer case can be rotated 360 degrees
to facilitate repair.
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Transfer Case - MP 3023/3024-NQH - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra &
Silverado

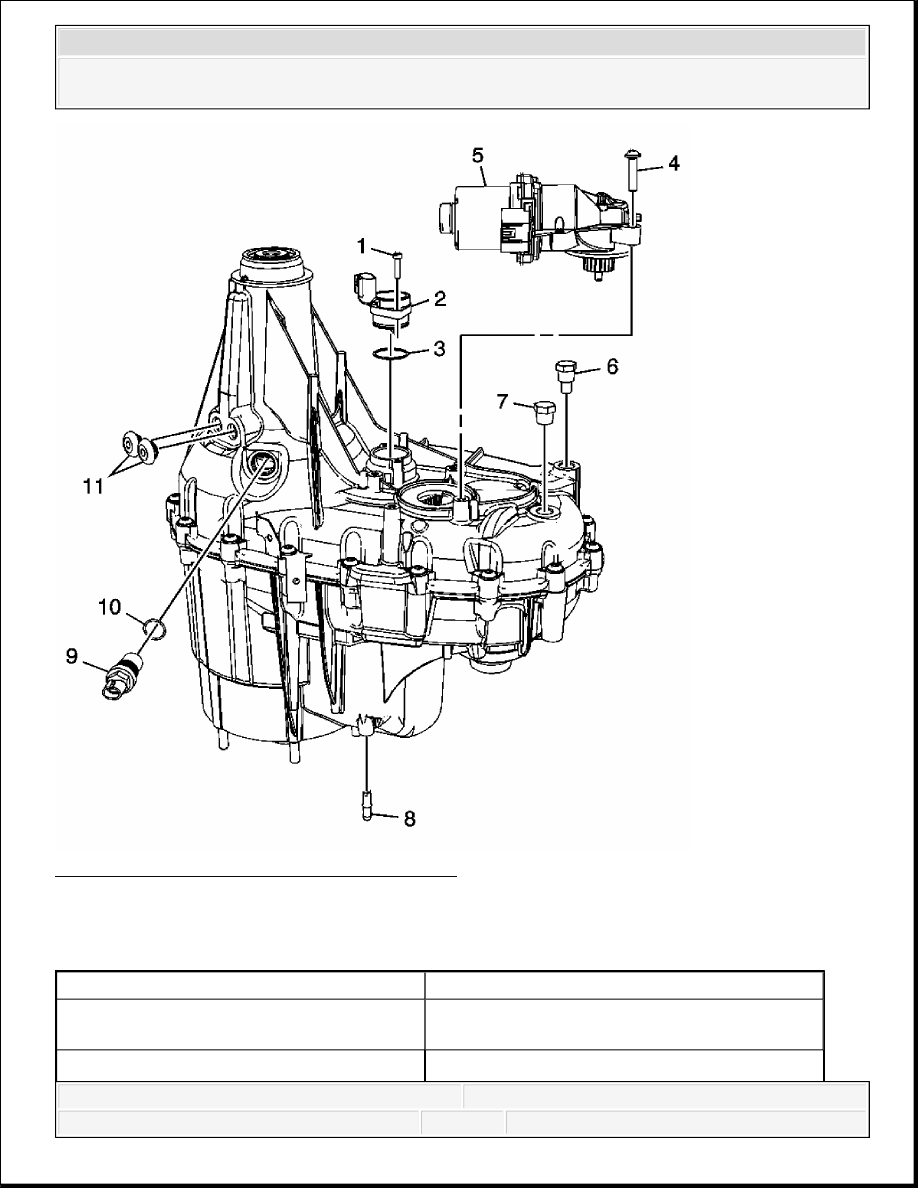

Fig. 22: View Of Transfer Case Components
Courtesy of GENERAL MOTORS CORP.
Access Hole Plugs, Fill and Drain Plug, Vent, 2/4 Wheel Drive Actuator, Actuator Shaft
Position Sensor, and Vehicle Speed Sensor Removal
Callout
Component Name
1
Transfer Case Actuator Shaft Position Sensor
Bolt/Screw
Transfer Case Actuator Shaft Position Sensor
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Transfer Case - MP 3023/3024-NQH - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra &
Silverado
Rear Output Shaft Seal and Bushing Removal
2
Assembly
3
Transfer Case Actuator Shaft Position Sensor
O-Ring Seal
4
Transfer Case Two/Four Wheel Drive Actuator
Bolt/Screw
5
Transfer Case Two/Four Wheel Drive Actuator
Assembly
6
Transfer Case Oil Drain Plug
7
Transfer Case Oil Fill Plug
8
Transfer Case Vent
Tip: Remove ONLY if the vent pipe is
damaged.
9
Vehicle Speed Sensor Assembly
10
Vehicle Speed Sensor O-Ring Seal
11
Transfer Case Access Hole Plugs (Qty: 2)
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Transfer Case - MP 3023/3024-NQH - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra &
Silverado

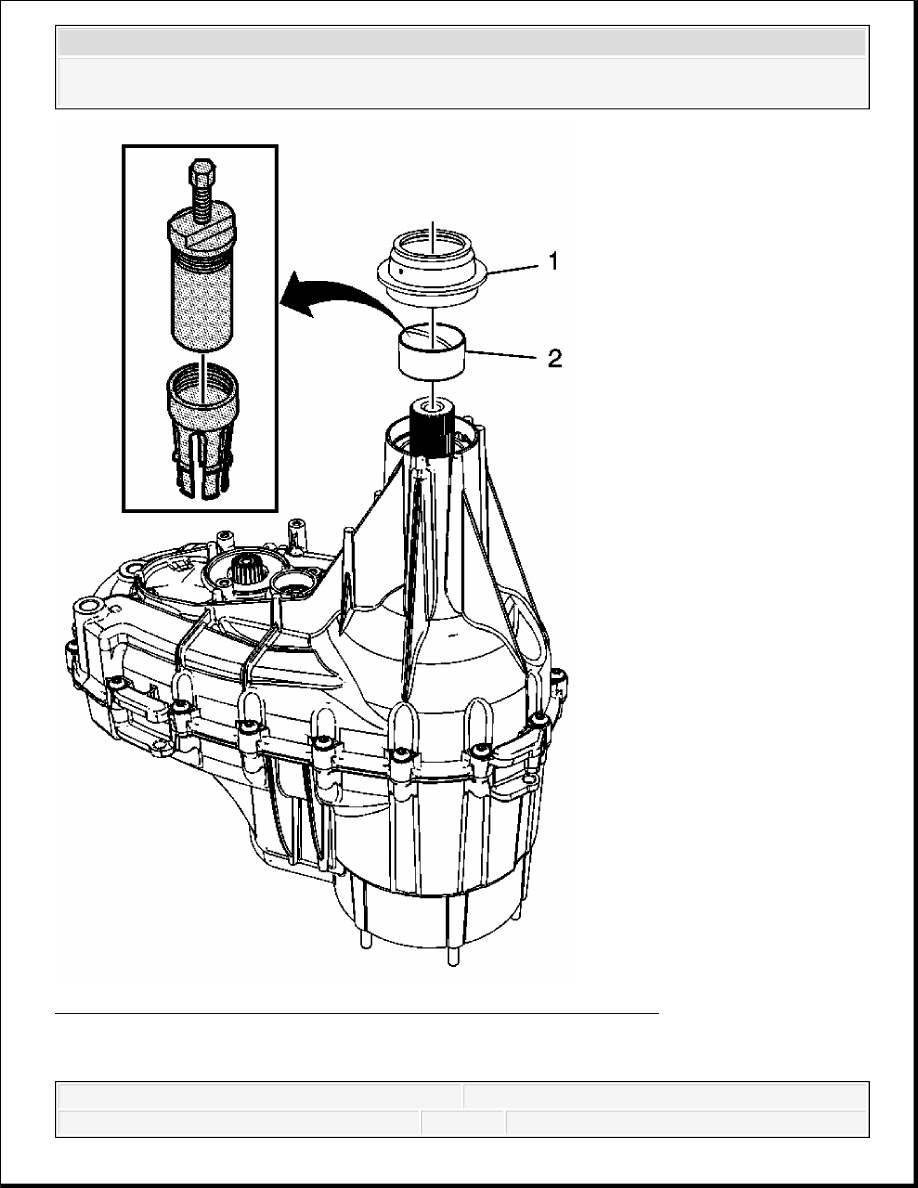

Fig. 23: View Of Transfer Case Rear Output Shaft Seal & Bushing
Courtesy of GENERAL MOTORS CORP.
Rear Output Shaft Seal and Bushing Removal
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Transfer Case - MP 3023/3024-NQH - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra &
Silverado
