OIL FILTER BYPASS VALVE REPLACEMENT
Removal Procedure
Fig. 175: View Of Engine Oil Filter
Courtesy of GENERAL MOTORS CORP.
2008 Hummer H2
2008 ENGINE Engine Mechanical - 6.2L - H2
1. Drain the engine oil.
2. Remove the oil filter.

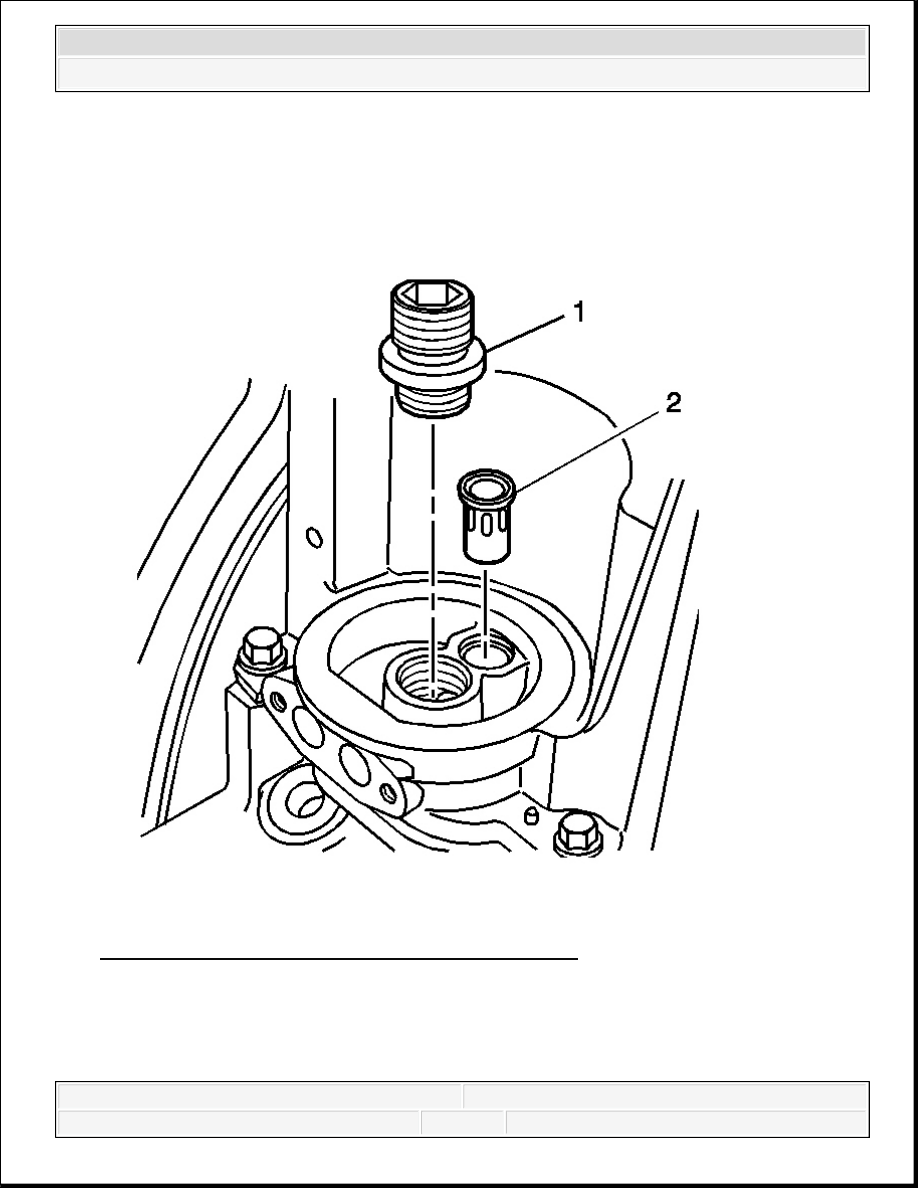

Fig. 176: View Of Oil Filter Adapter & Bypass Valve
Courtesy of GENERAL MOTORS CORP.
3. Remove the oil filter adapter (1).
4. Remove the oil filter bypass valve (2).
2008 Hummer H2
2008 ENGINE Engine Mechanical - 6.2L - H2
Installation Procedure

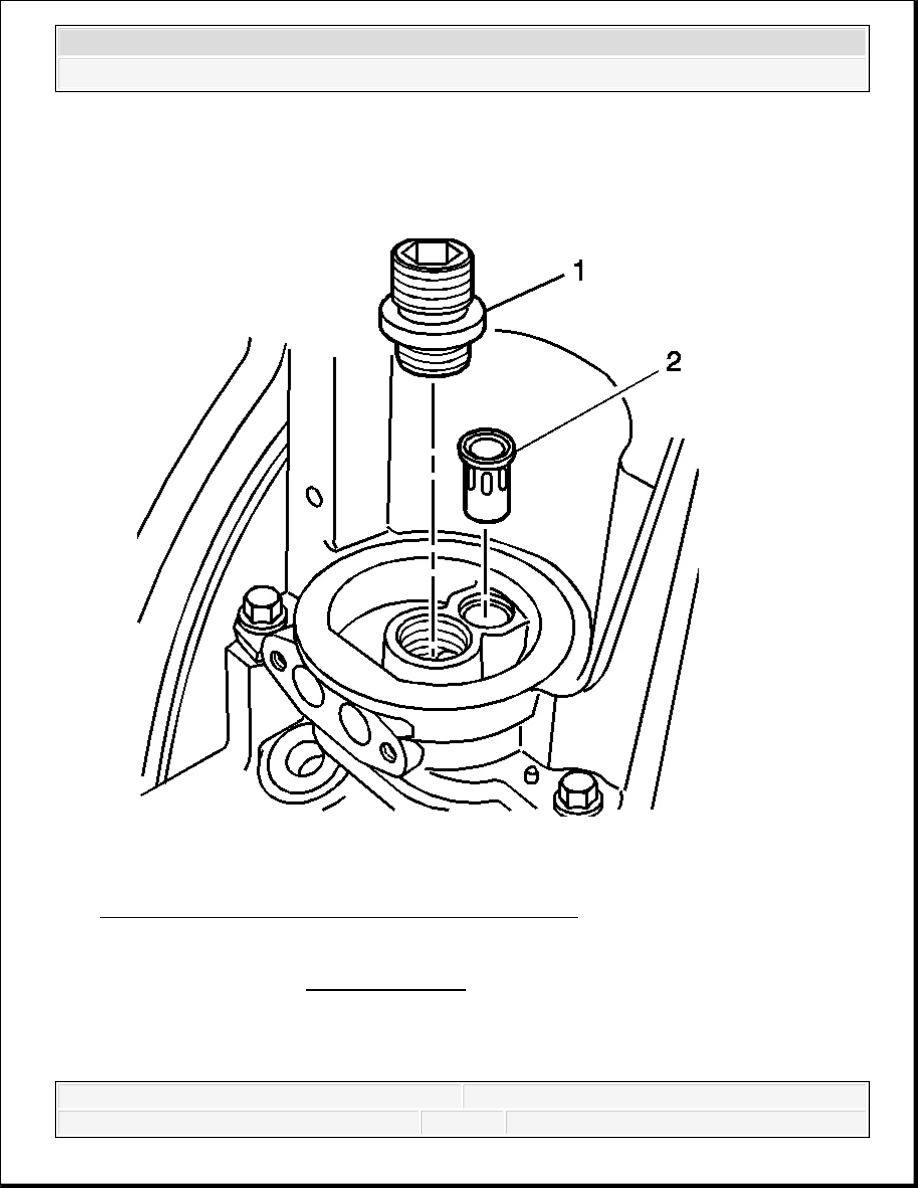

Fig. 177: View Of Oil Filter Adapter & Bypass Valve
Courtesy of GENERAL MOTORS CORP.
1. Install the oil filter bypass valve (2).
2. Install the oil filter adapter (1).
NOTE:
Refer to Fastener Notice .
2008 Hummer H2
2008 ENGINE Engine Mechanical - 6.2L - H2
