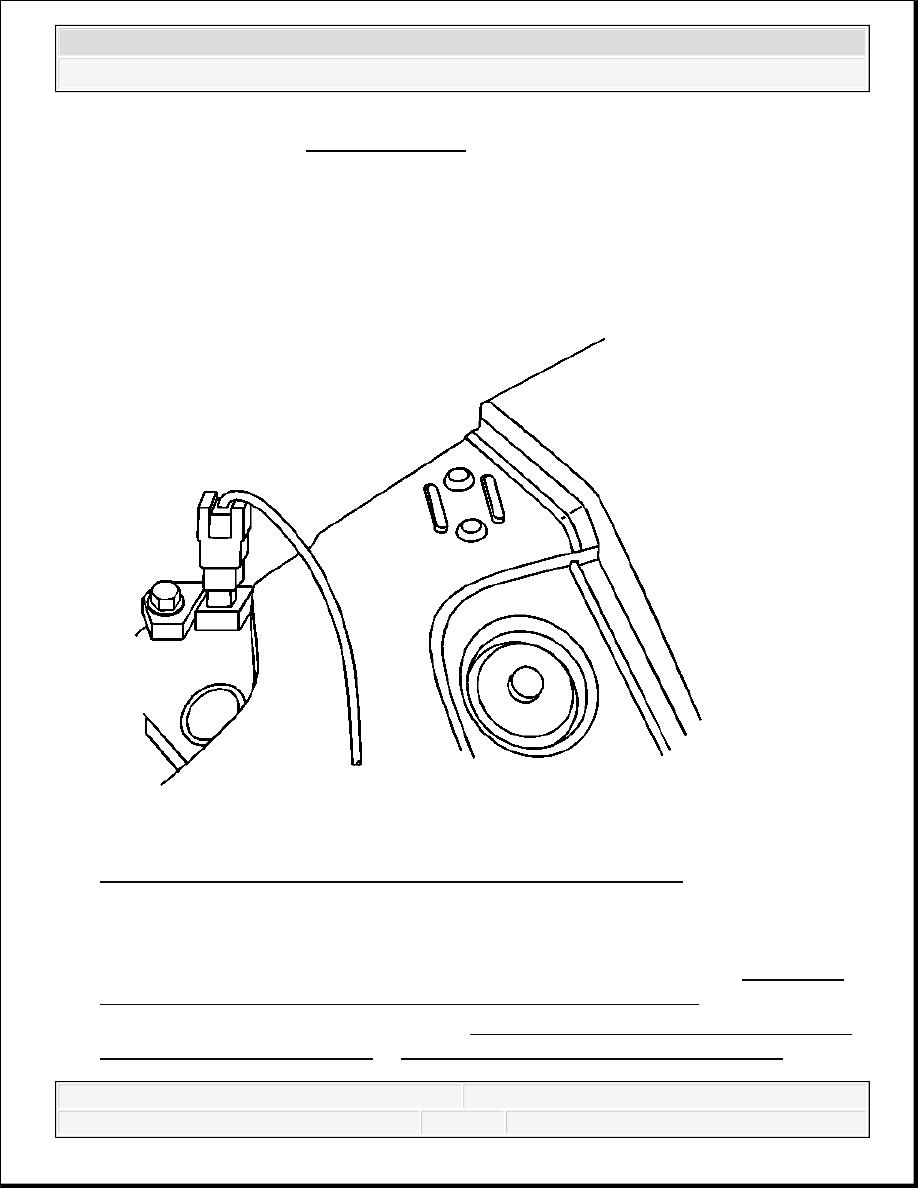

2. Install the park brake warning lamp switch bolt. Tighten: Tighten the bolt to 3 N.m (27 lb in). Fig. 14: Park Brake Warning Lamp Switch Electrical Connector 3. Connect the park brake warning lamp switch electrical connector. 4. Install the left side instrument panel electrical center/junction block. Refer to Instrument Panel Electrical Center or Junction Block Replacement - Left Side . 5. Connect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection (w/Single Battery) or Battery Negative Cable Disconnection and NOTE: Refer to Fastener Notice .
2008 Chevrolet Silverado 1500 2008 BRAKES Park Brake - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

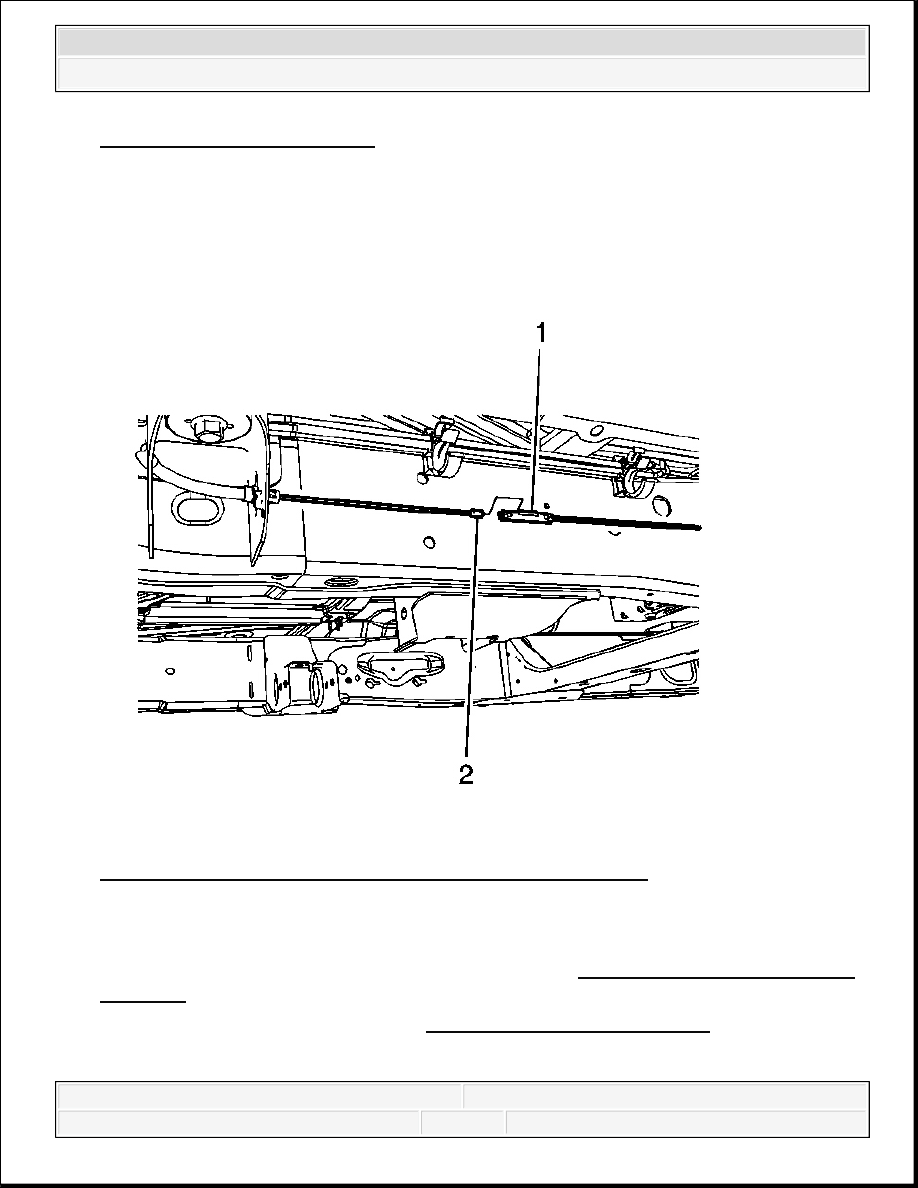

Connection (w/Dual Batteries) . PARKING BRAKE INTERMEDIATE CABLE REPLACEMENT (JD9, JF3, JF7) Removal Procedure Fig. 15: Park Brake Cable And Park Brake Cable Connector 1. Release the park brake. 2. Disable the park brake cable automatic adjuster. Refer to Parking Brake Cable Adjuster Disabling. 3. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle . 4. Disconnect the front park brake cable (2) from the intermediate cable connector by drilling
2008 Chevrolet Silverado 1500 2008 BRAKES Park Brake - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

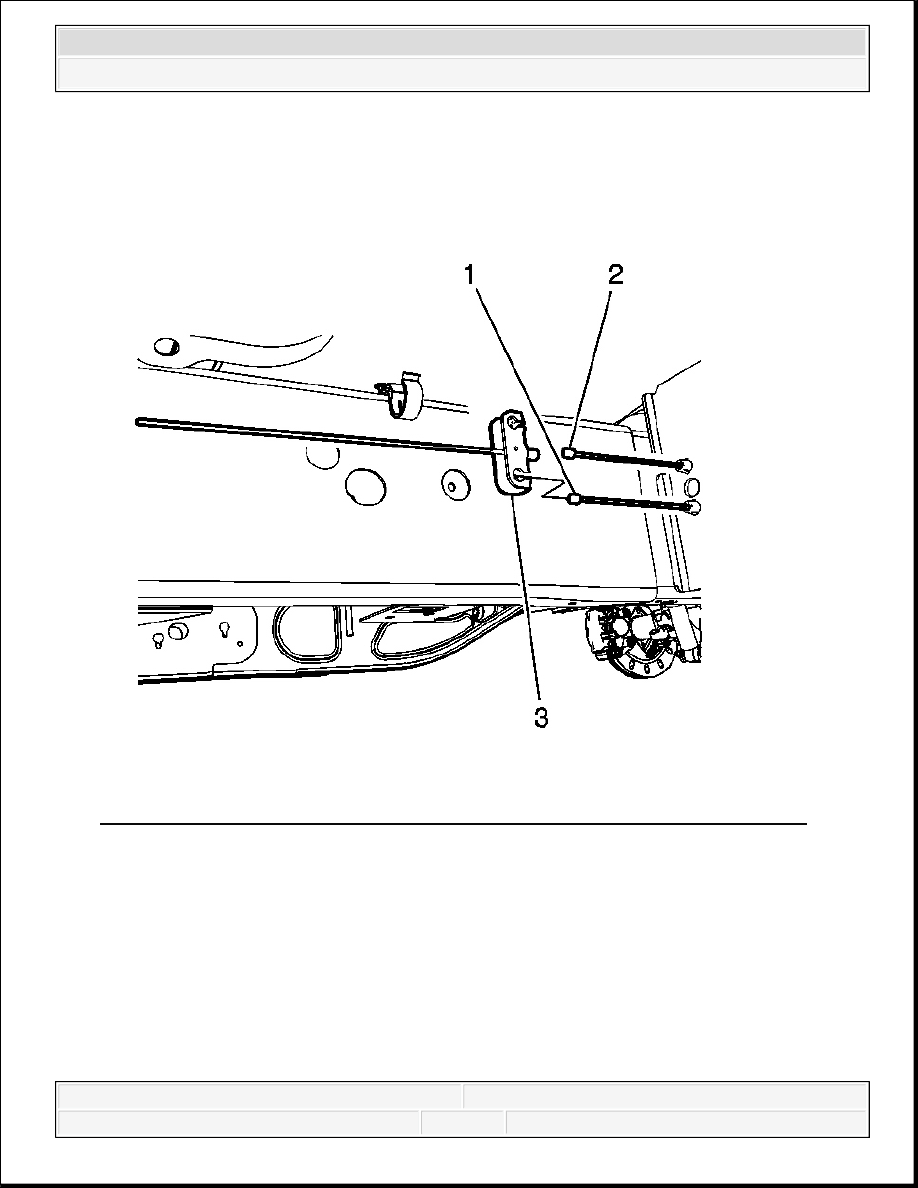

a 3 mm (1/8 in) hole through the dimple in the front to intermediate park brake cable Fig. 16: Park Brake Cable, Equalizer Bar And Intermediate Park Brake Cable 5. Disconnect the left park brake cable (1) and the right park brake cable (2) from the equalizer bar (3) on the intermediate park brake cable. 6. Remove the intermediate park brake cable. Installation Procedure
2008 Chevrolet Silverado 1500 2008 BRAKES Park Brake - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

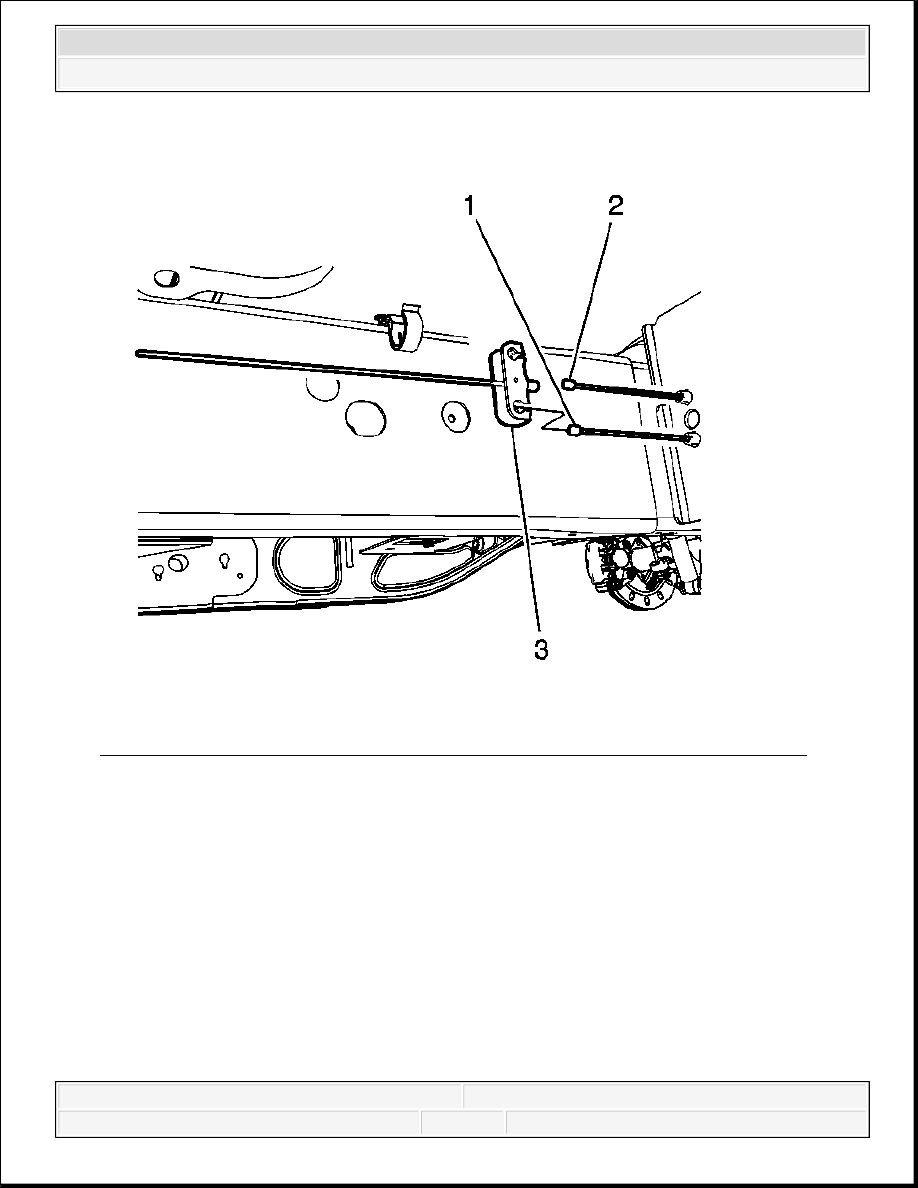

Fig. 17: Park Brake Cable, Equalizer Bar And Intermediate Park Brake Cable 1. Connect the left park brake cable (1) and the right park brake cable (2) to the equalizer bar (3) on the intermediate park brake cable.
