1. Insert the front brake cable through the hole in the front floor panel and seat the pass-
through grommet.
2. Position the floor carpet to the floor pan.

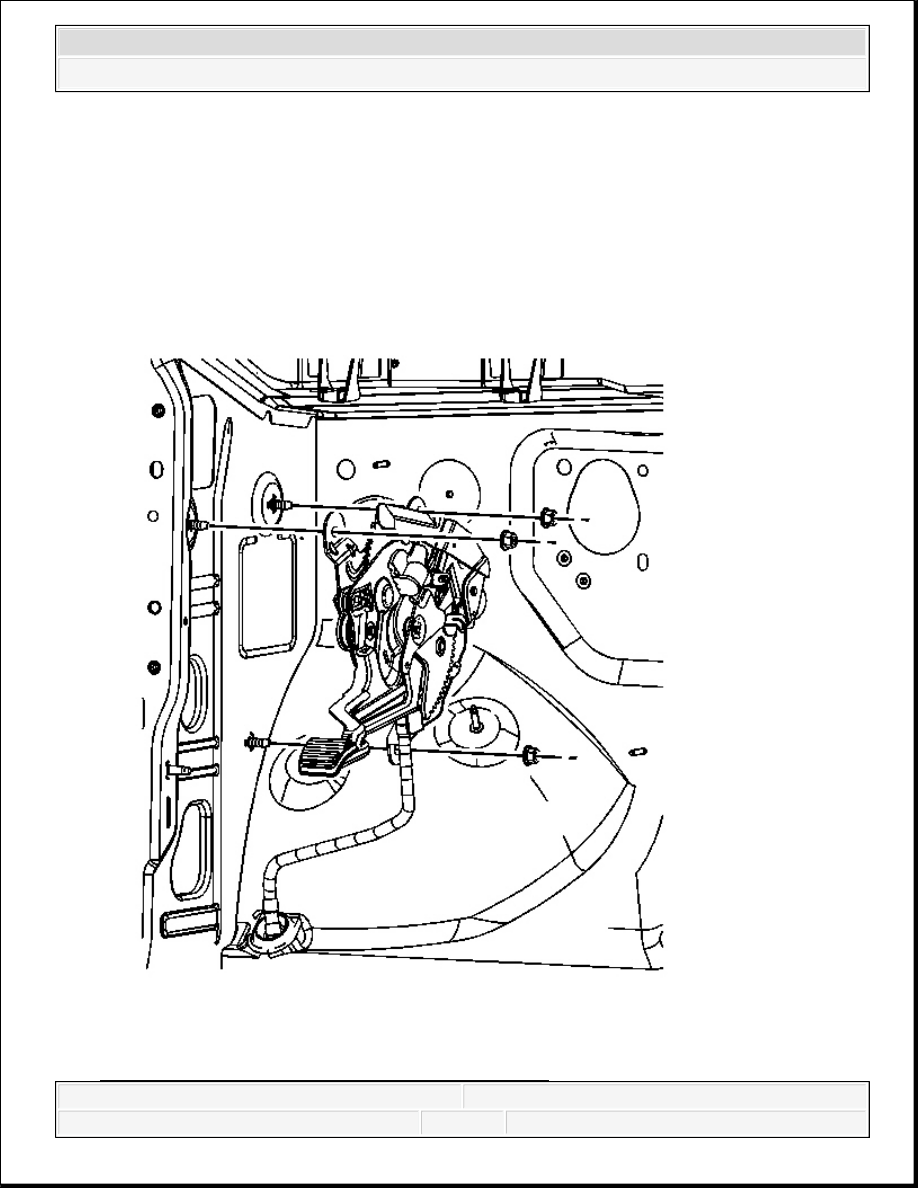

Fig. 8: View Of Park Brake Lever Mounting Nuts
seated in the front floor panel.
2008 Chevrolet Silverado 1500
2008 BRAKES Park Brake - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
Courtesy of GENERAL MOTORS CORP.
3. Position the park brake pedal assembly on the side panel.
4. Install and finger tighten the mounting nuts.
Tighten: Tighten the nuts to 25 N.m (18 lb ft).
5. Connect the park brake warning lamp connection.
NOTE:
Refer to Fastener Notice .
2008 Chevrolet Silverado 1500
2008 BRAKES Park Brake - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

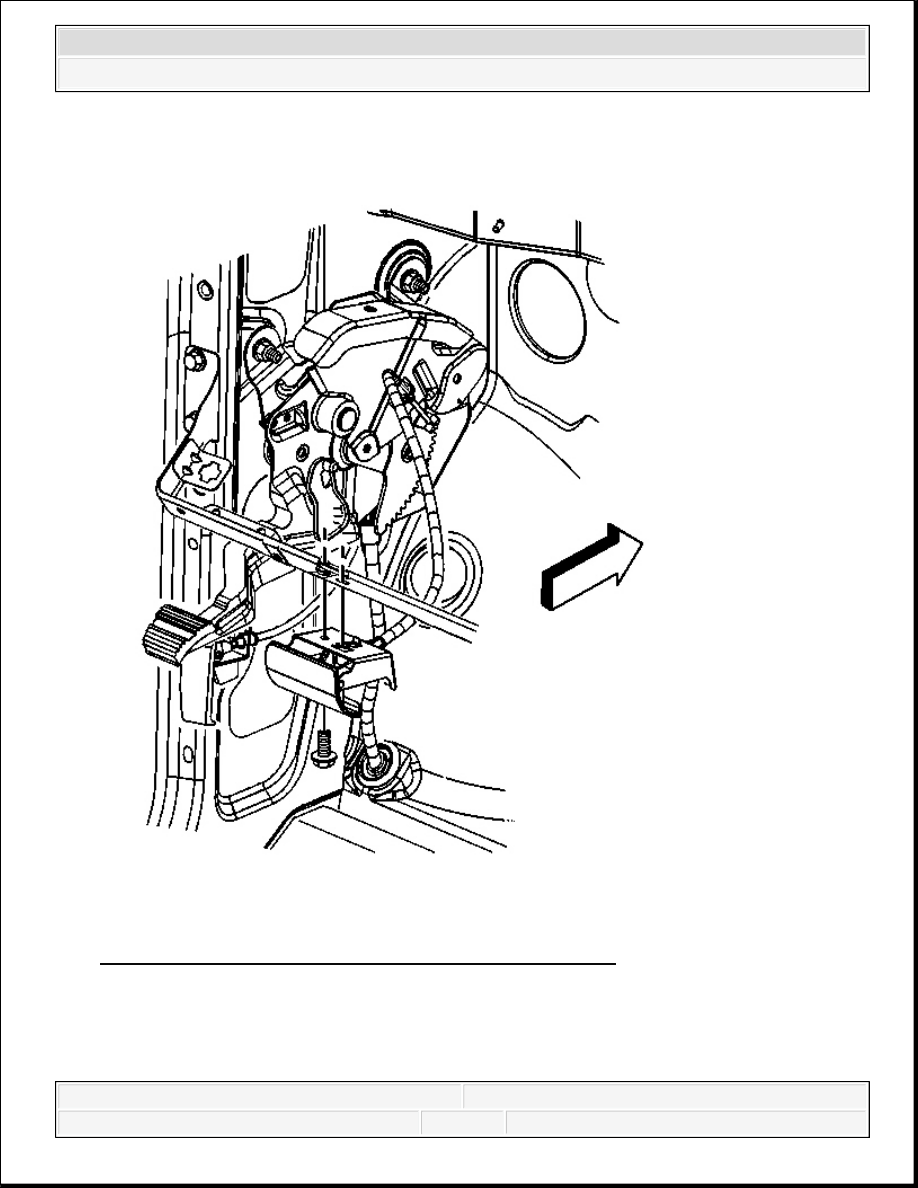

Fig. 9: View Of Park Brake Release Lever Handle & Bolt
Courtesy of GENERAL MOTORS CORP.
6. Install the park brake release handle to the instrument panel.
7. Install the park brake release handle bolt.
2008 Chevrolet Silverado 1500
2008 BRAKES Park Brake - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
Tighten: Tighten the bolt to 9 N.m (80 lb in).
8. Install the hinge pillar trim panel. Refer to Body Hinge Pillar Trim Panel Replacement .
9. Install the left side instrument panel electrical center/junction block. Refer to Instrument
Panel Electrical Center or Junction Block Replacement - Left Side .
10. Raise the vehicle.

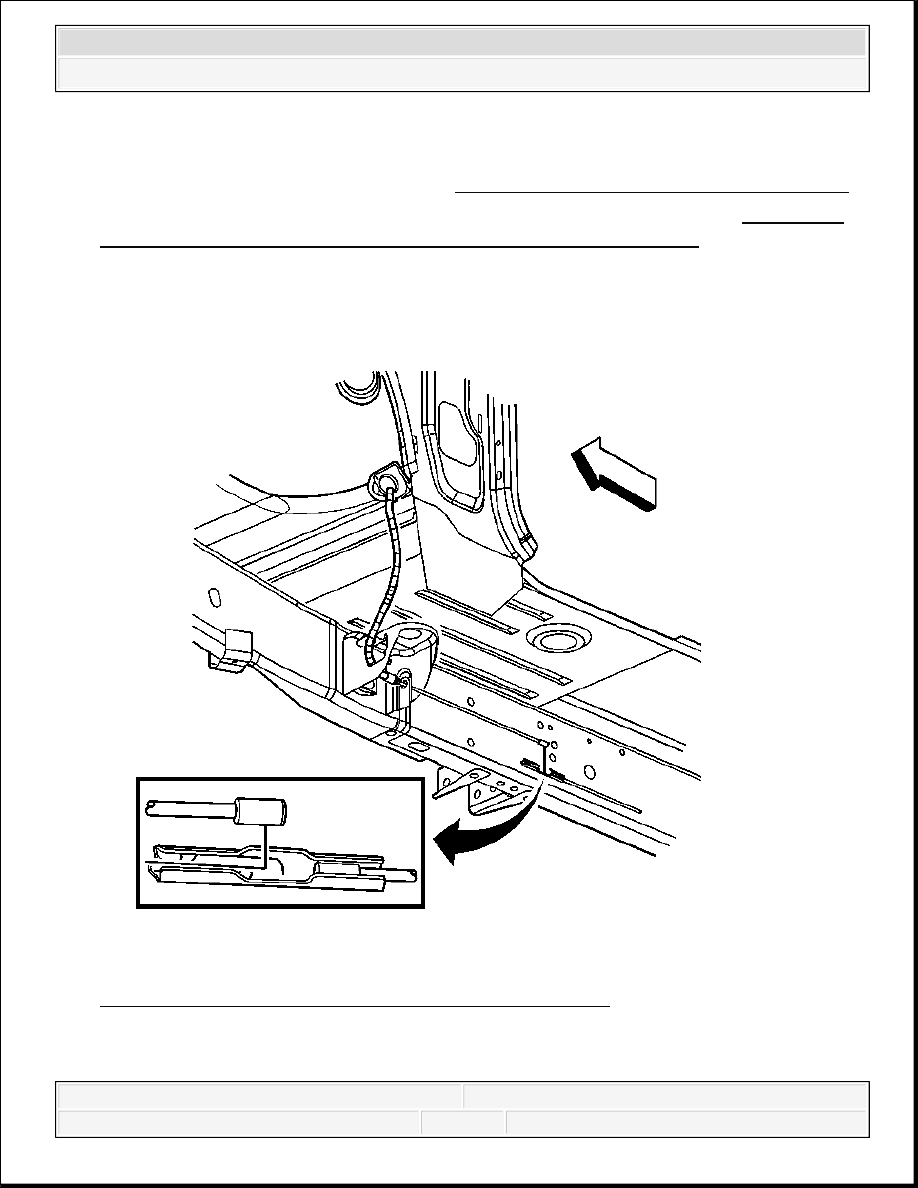

Fig. 10: View Of Park Brake Cable - Front/Intermediate
Courtesy of GENERAL MOTORS CORP.
11. Install the front park brake cable to the frame and press the retainer into place.
2008 Chevrolet Silverado 1500
2008 BRAKES Park Brake - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
