Chevrolet Silverado / GMC Sierra. Manual - part 2604

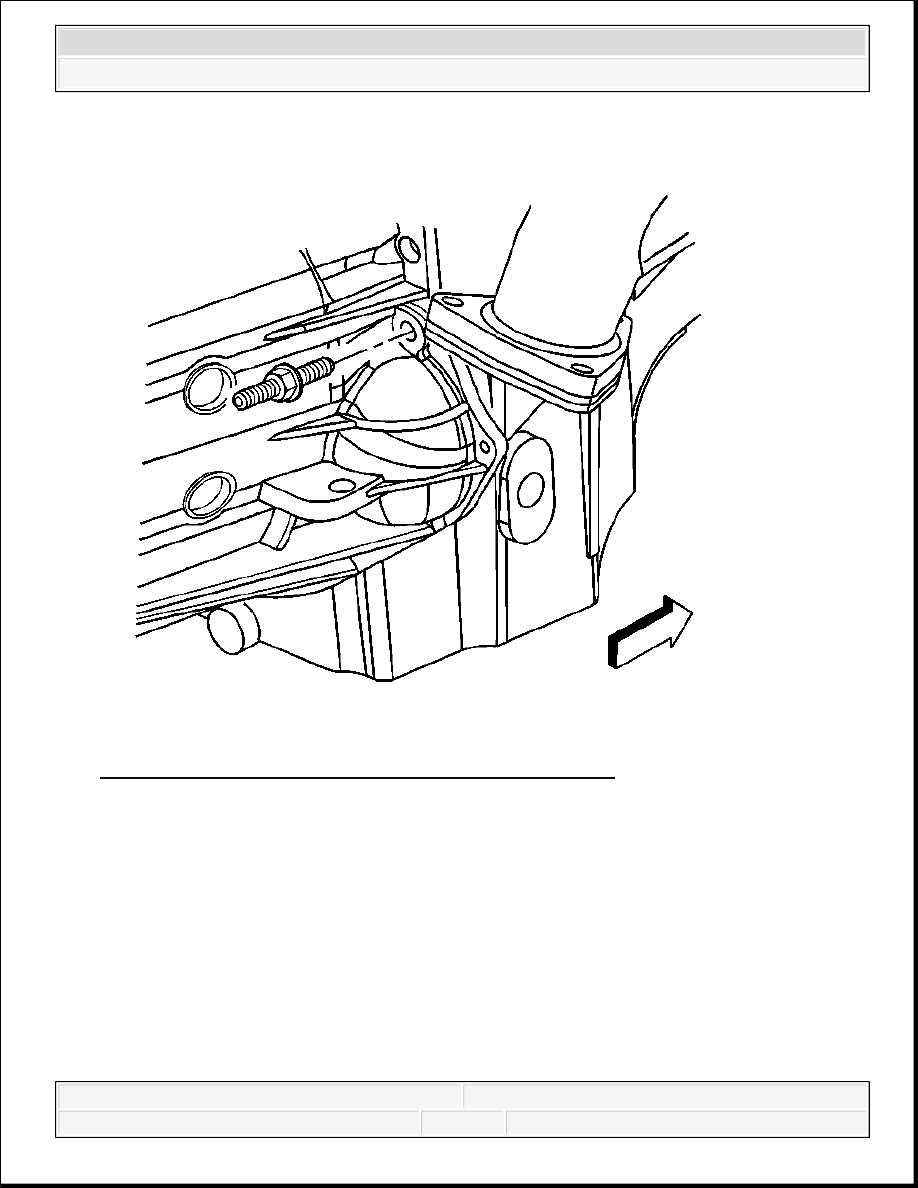

Fig. 34: View Of Manual Transmission Stud (Right Side)
Courtesy of GENERAL MOTORS CORP.
12. Remove the stud securing the right side of the transmission to the engine.
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Manual Transmission - Tremec 5-Speed (TZ0)

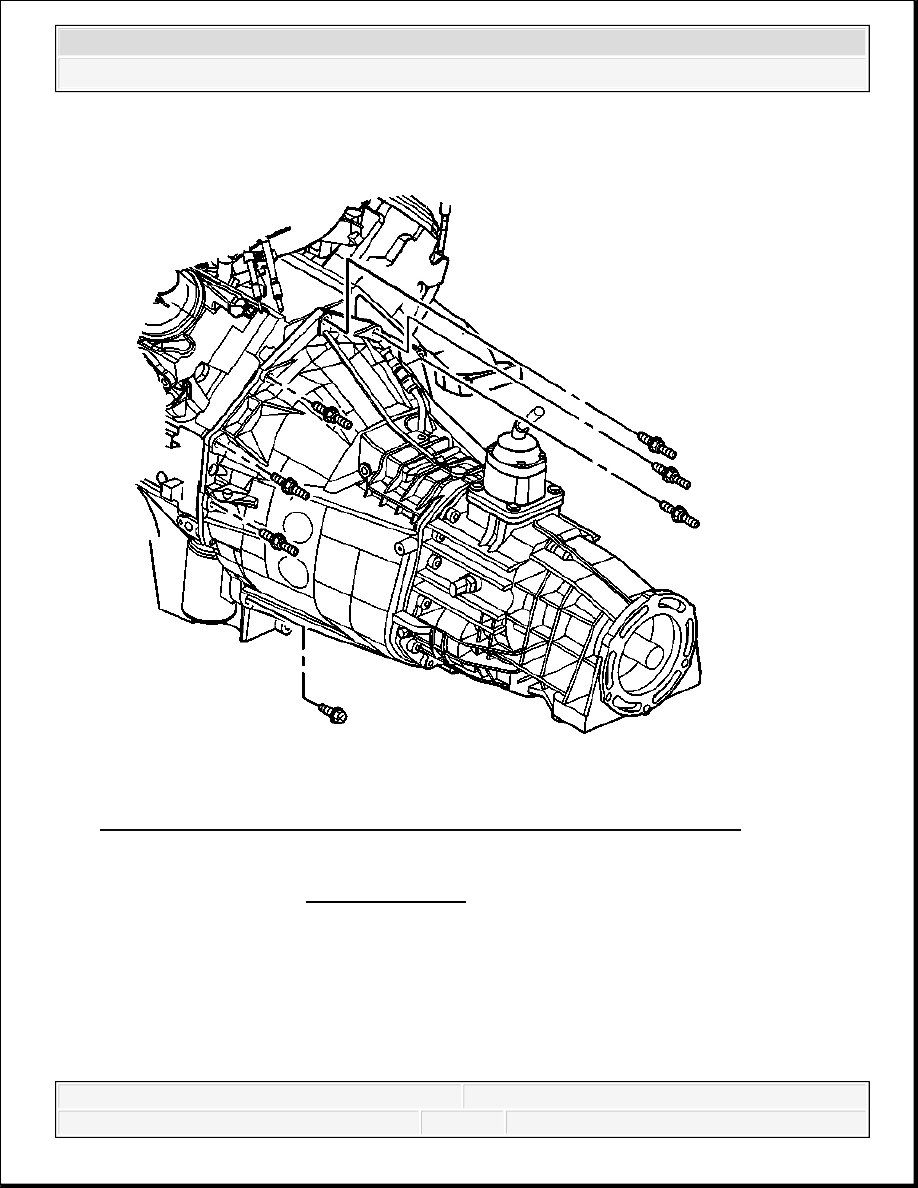

Fig. 35: View Of Transmission Mounting Bolts (Manual Transmission)
Courtesy of GENERAL MOTORS CORP.
13. Remove the bolt and studs securing the transmission to the engine.
14. Pull the transmission straight back off the clutch hub splines. Do not let the transmission
hang from the clutch assembly.
15. Remove the transmission from the vehicle.
Installation Procedure
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Manual Transmission - Tremec 5-Speed (TZ0)
Fig. 36: View Of Transmission Mounting Bolts (Manual Transmission)
Courtesy of GENERAL MOTORS CORP.
1. Install the transmission to the vehicle:
1. Ensure the transmission is positioned in the 3rd or 4th gear.
2. Rotate the transmission clockwise onto the clutch hub splines.
3. Install the bolt and studs securing the transmission to the engine.
Tighten: Tighten the bolt/studs to 50 N.m (37 lb ft).
NOTE:
Refer to Fastener Notice .
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Manual Transmission - Tremec 5-Speed (TZ0)
Fig. 37: View Of Manual Transmission Stud (Right Side)
Courtesy of GENERAL MOTORS CORP.
2. Install the stud securing the right side of the transmission to the engine.
Tighten: Tighten the stud to 50 N.m (37 lb ft).
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Manual Transmission - Tremec 5-Speed (TZ0)
