J 42371 Hydraulic Clutch Line Separator
Removal Procedure

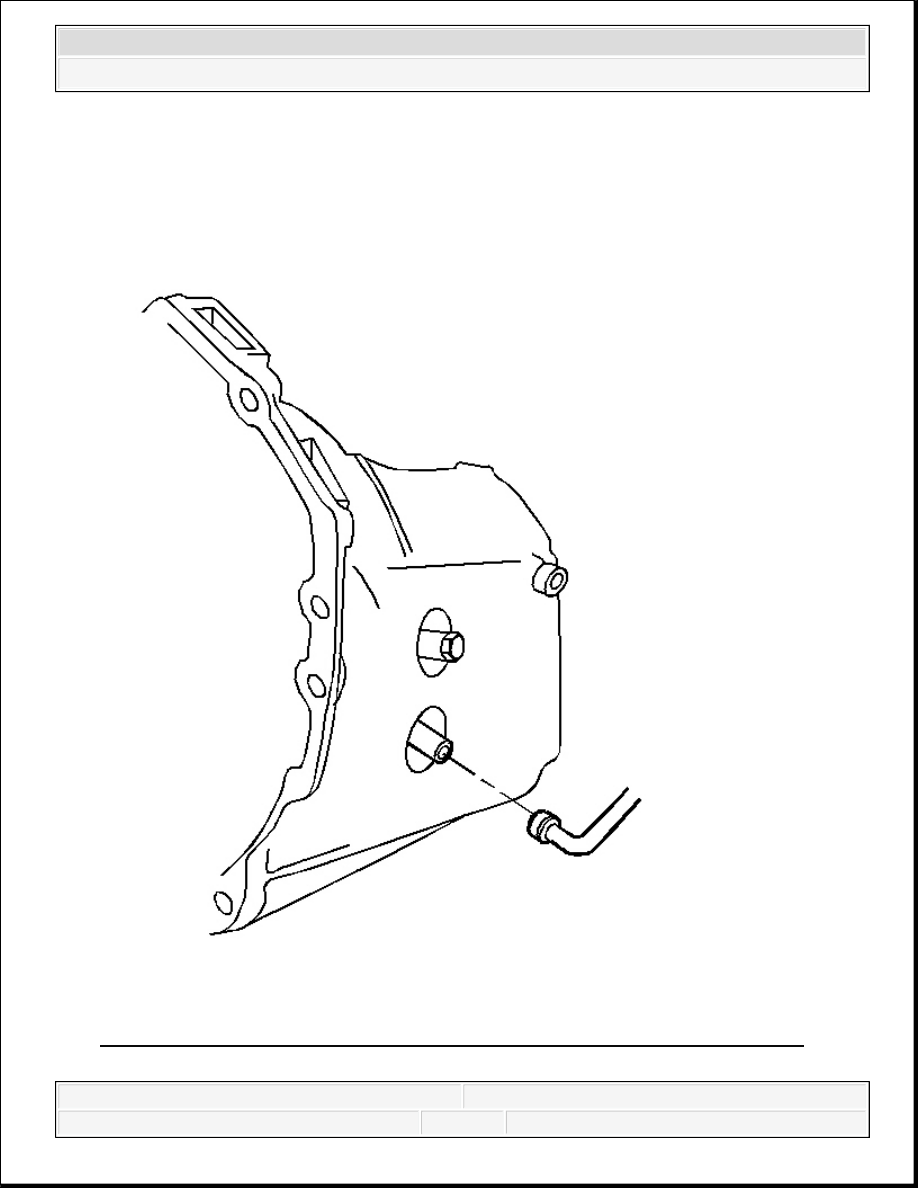

Fig. 31: Identifying Hydraulic Clutch Line At Clutch Actuator Quick Connect
Courtesy of GENERAL MOTORS CORP.
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Manual Transmission - Tremec 5-Speed (TZ0)
1. Shift the transmission into 3rd or 4th gear.
2. Remove the shift lever assembly. Refer to Transmission Control Replacement.
3. Remove the propeller shaft. Refer to One-Piece Propeller Shaft Replacement or Two-
Piece Propeller Shaft Replacement .
4. Using J 42371 , push back on the white plastic sleeve on the quick connect in order to
separate the hydraulic clutch line from the clutch actuator quick connect.

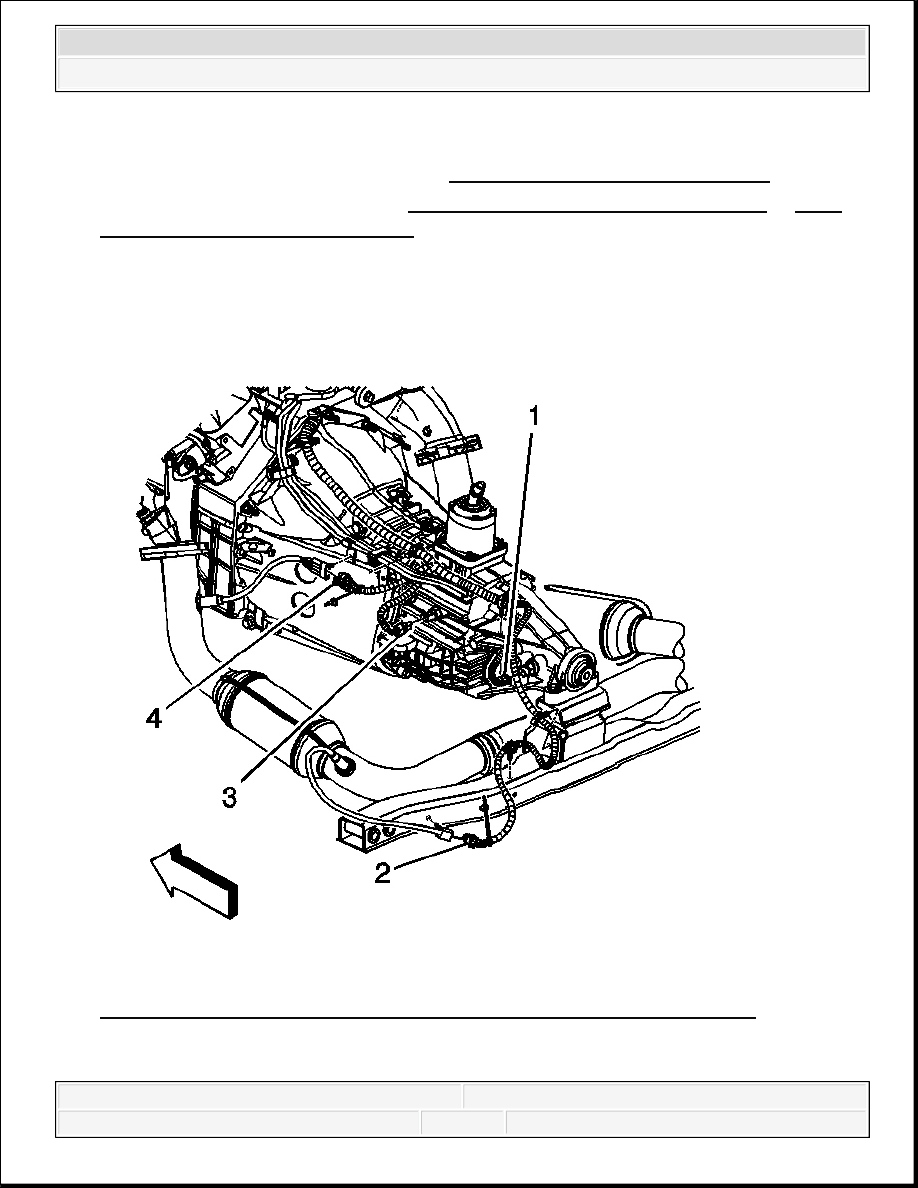

Fig. 32: Locating HO2S Electrical Connector At Harness (Manual 2WD)
Courtesy of GENERAL MOTORS CORP.
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Manual Transmission - Tremec 5-Speed (TZ0)
5. Disconnect the following engine wiring harness electrical connectors:
Vehicle speed sensor (VSS) (1)
Backup lamp switch (3)
Oxygen sensor (4)
6. Remove the engine harness clips from the fuel feed/return line clips and transmission.
7. Remove the starter motor. Refer to Starter Motor Replacement (4.3L) or Starter Motor
Replacement (4.8L, 5.3L, 6.0L, and 6.2L) or Starter Motor Replacement (6.6L) .
8. Support the transmission using a suitable transmission jack.
9. Remove the transmission support crossmember. Refer to Transmission Support
Crossmember Replacement (2WD 2500 HD/3500) or Transmission Support
Crossmember Replacement (2WD 1500/2500) or Transmission Support
Crossmember Replacement (4WD 1500/2500) or Transmission Support
Crossmember Replacement (4WD 2500 HD/3500) .
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Manual Transmission - Tremec 5-Speed (TZ0)

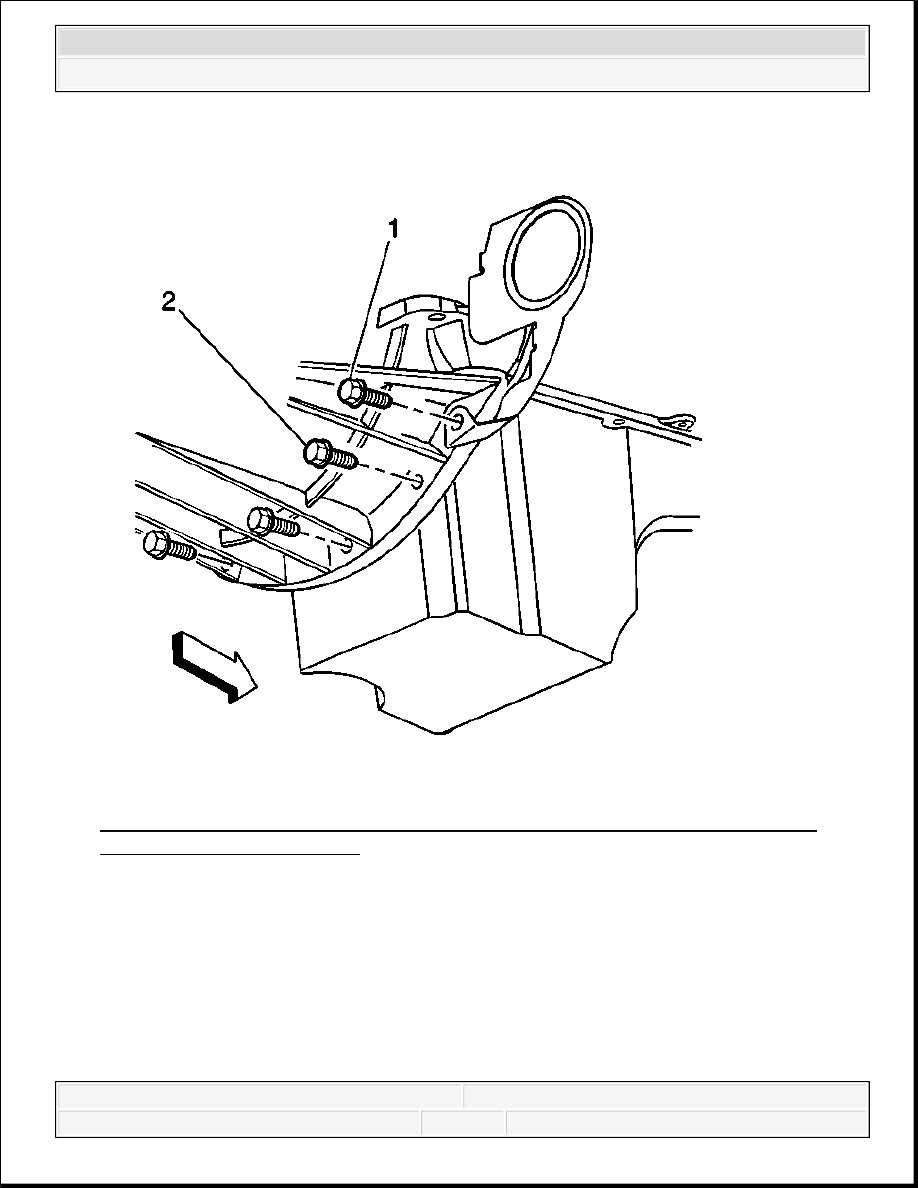

Fig. 33: Removing/Installing The Bolts Securing The Bottom Right Side Of The
Transmission To The Engine
Courtesy of GENERAL MOTORS CORP.
10. Remove the bolts (1, 2) securing the bottom right side of the transmission to the engine.
11. Remove the transmission cover.
