1. Install the control lever. 2. If alignment of the control lever is necessary, or if the shift lever assembly was replaced perform the following: 1. The nut must be seated at the bottom of the thread runout on the shift lever. 2. Seat the control lever against the shift lever assembly adjustment nut. 3. Back the control lever off the nut in order to align the index mark on the control lever perpendicular to the edge of the control lever boot retainer. 4. Ensure that the index mark is located on the passenger side and that the shift pattern is aligned parallel to the vehicle centerline or rotated no more than 6 degrees clockwise. 5. Hold the control lever and tighten the shift lever assembly nut against the control lever. Tighten: Tighten the nut to 37 N.m (27 lb in). 6. Install the control lever boot to the control lever. TRANSMISSION CONTROL REPLACEMENT Removal Procedure NOTE: Refer to Fastener Notice . IMPORTANT: Ensure that the control lever is positioned into the Do not disassemble the transmission shift lever. Internal When removing the shift lever from the transmission, use the
2008 Chevrolet Silverado 1500 2008 TRANSMISSION Manual Transmission - Tremec 5-Speed (TZ0)

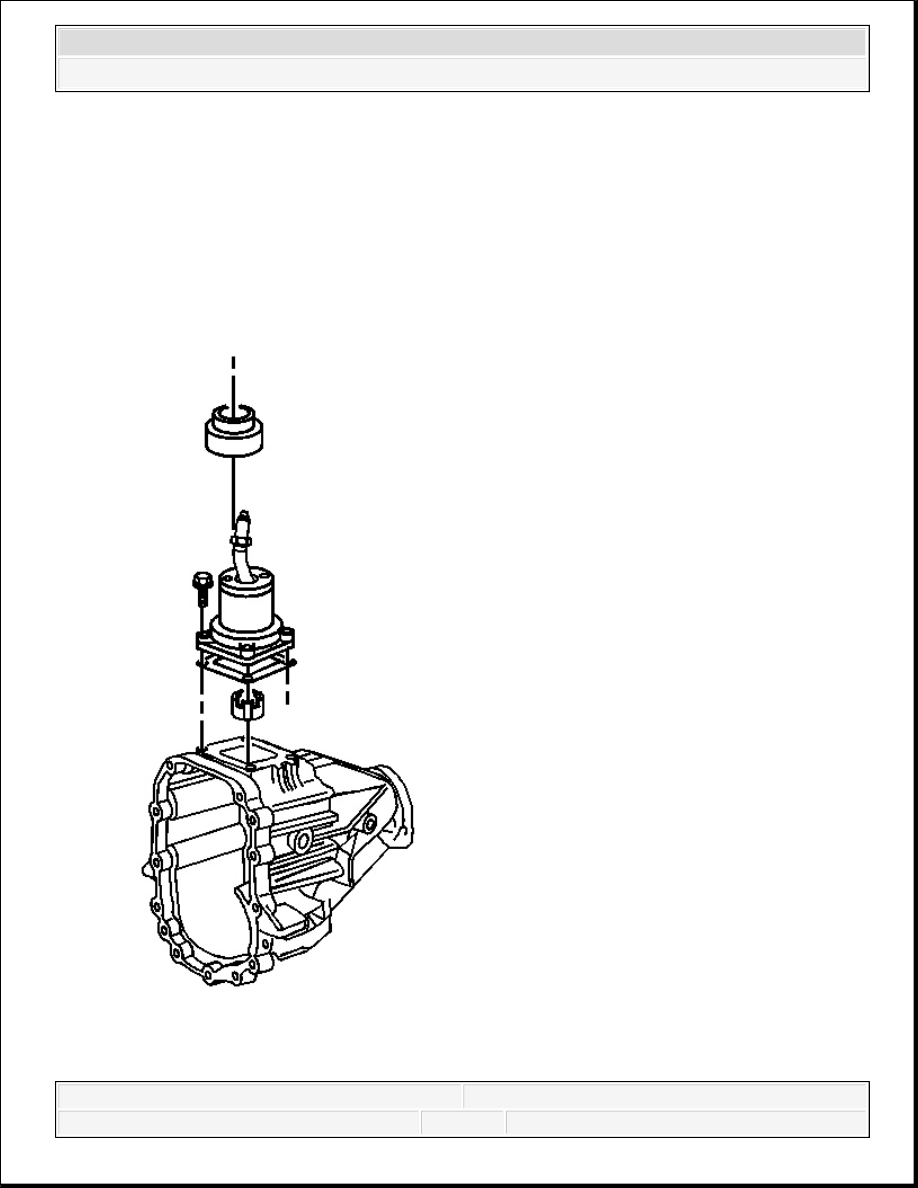

Fig. 13: View Of Control Lever And Boot 1. Remove the control lever and boot. Refer to Transmission Control Lever Boot Replacement . 2. Remove the boot.
2008 Chevrolet Silverado 1500 2008 TRANSMISSION Manual Transmission - Tremec 5-Speed (TZ0)
3. Remove the shift lever bolts. 4. Remove the shift lever and seal. 5. Remove the shift lever insulator. Installation Procedure
2008 Chevrolet Silverado 1500 2008 TRANSMISSION Manual Transmission - Tremec 5-Speed (TZ0)

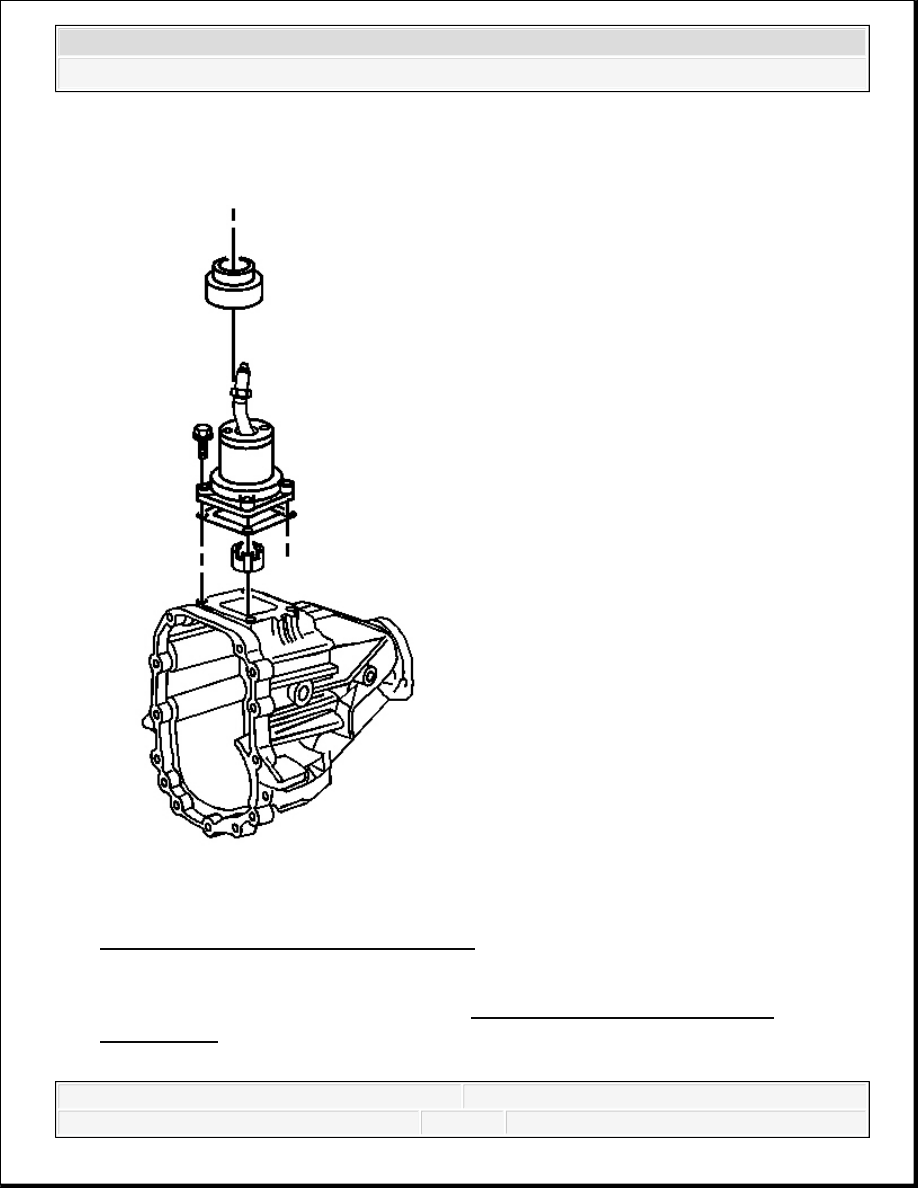

Fig. 14: View Of Control Lever And Boot 1. Install a NEW shift lever insulator. 2. Install the shift lever seal and lever. 3. Install the shift lever bolts. Tighten: Tighten the bolts to 20 N.m (15 lb ft). 4. Install the boot. 5. Install the control lever and boot. Refer to Transmission Control Lever Boot Replacement . MAINSHAFT REAR OIL SEAL REPLACEMENT Tools Required J 23129 Universal Seal Remover J 6125-1B Slide Hammer J 36503 Extension Housing Seal Installer Removal Procedure NOTE: Refer to Fastener Notice .
