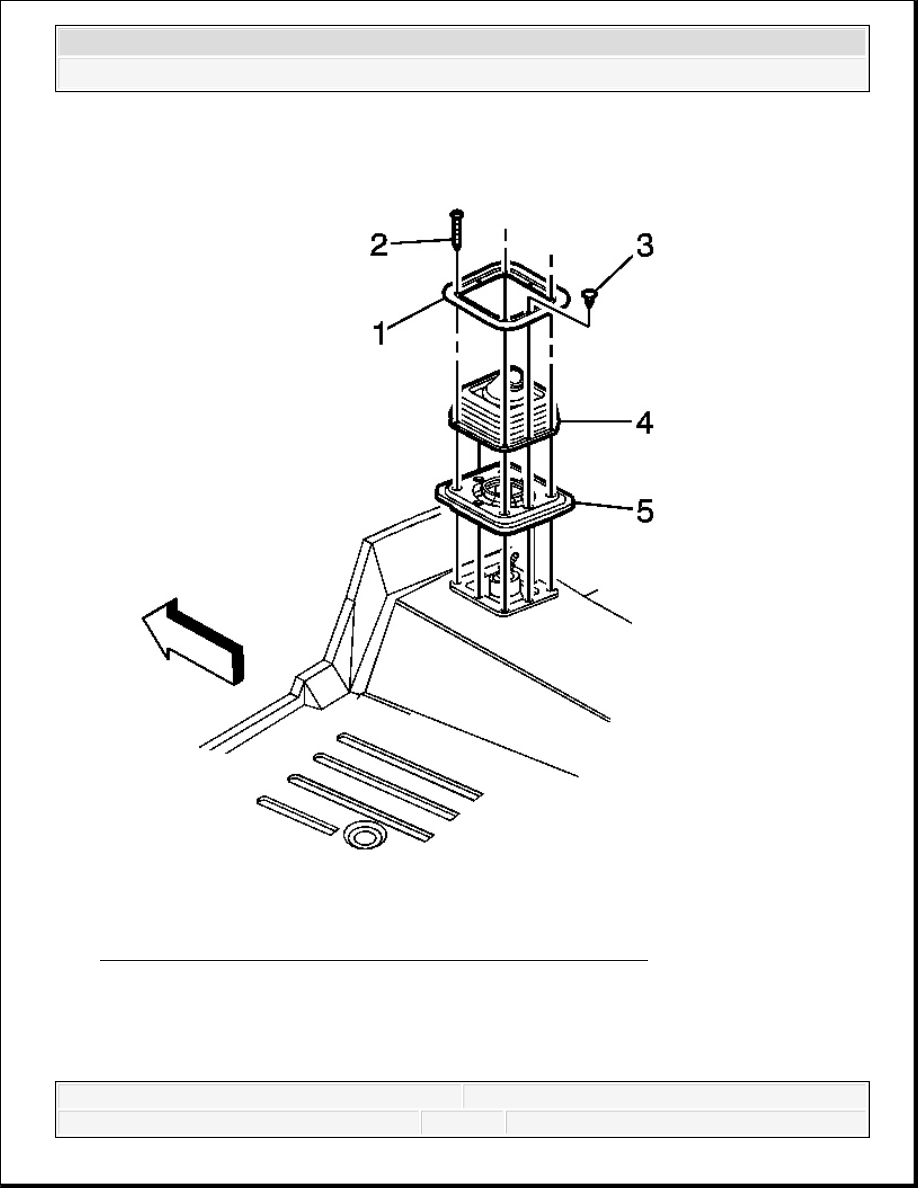

Fig. 10: Exploded View Of Transmission Control Lever Boot 1. Install the control lever insulator (5) to the floor. 2. Assemble the control lever boot retaining bezel (1) to the boot (4) and insert the 4 plastic retainers (3).
2008 Chevrolet Silverado 1500 2008 TRANSMISSION Manual Transmission - Tremec 5-Speed (TZ0)
3. Install the control lever boot retaining bezel (1), boot (4) and secure the 4 plastic retainers (3) to the floor. 4. Lift and push the lower edge of the control lever boot as necessary in order to install the 4 retaining screws (2). Tighten: Tighten the screws to 1.6 N.m (14 lb in). 5. Install the transmission control lever. Refer to Transmission Control Lever Knob Replacement . TRANSMISSION CONTROL LEVER KNOB REPLACEMENT Removal Procedure 1. Remove the control lever boot from the control lever. NOTE: Refer to Fastener Notice .
2008 Chevrolet Silverado 1500 2008 TRANSMISSION Manual Transmission - Tremec 5-Speed (TZ0)

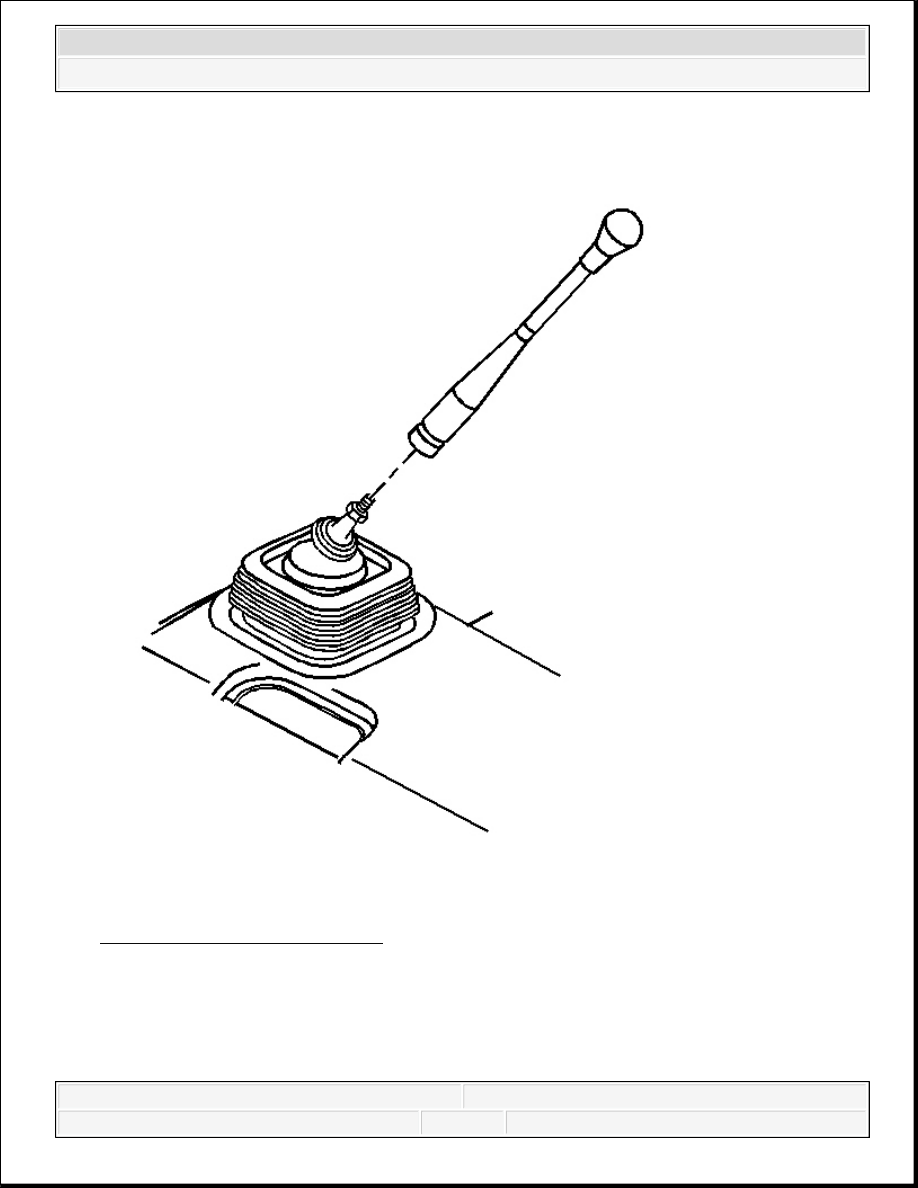

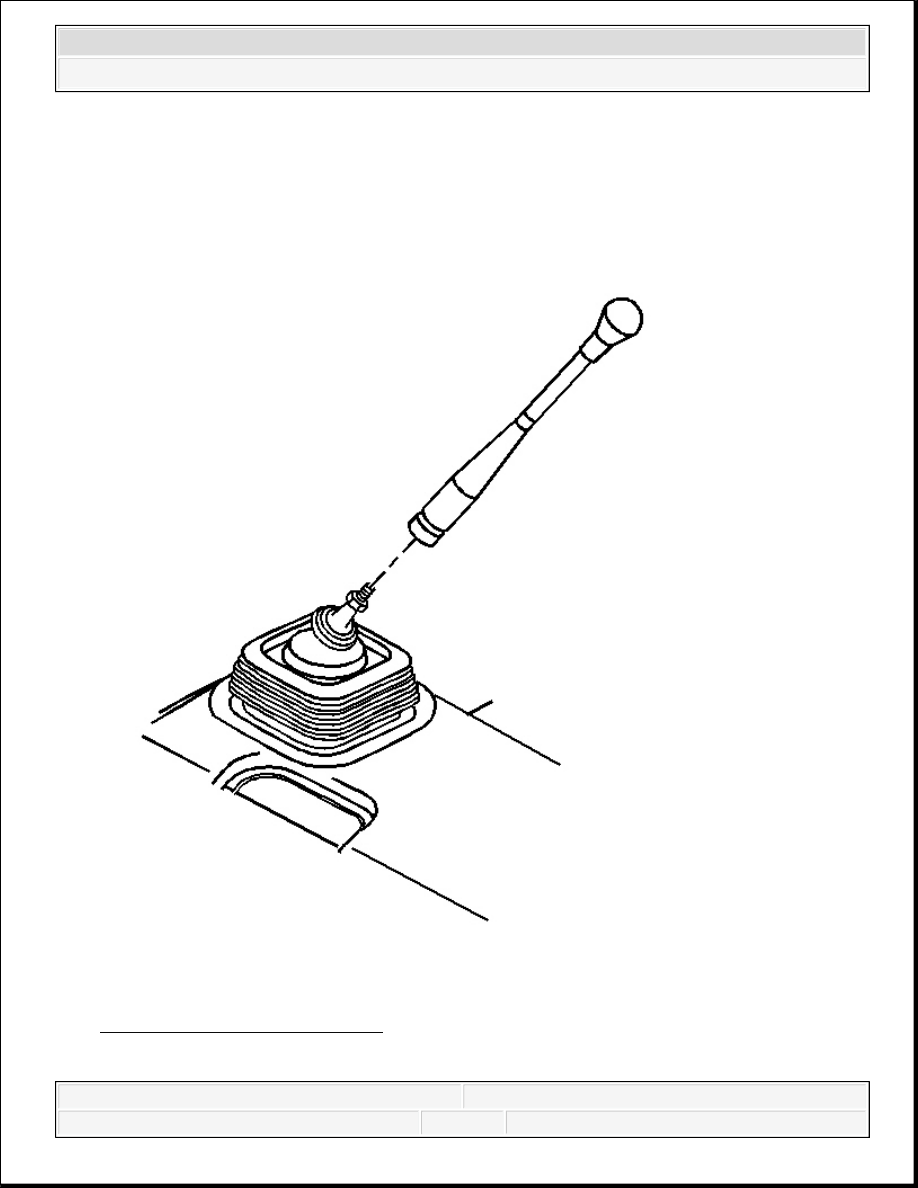

Fig. 11: View Of Control Lever IMPORTANT: DO NOT move the shift lever assembly adjustment nut if replacing the control lever.
2008 Chevrolet Silverado 1500 2008 TRANSMISSION Manual Transmission - Tremec 5-Speed (TZ0)
|
|
|
