Chevrolet Silverado / GMC Sierra. Manual - part 2587

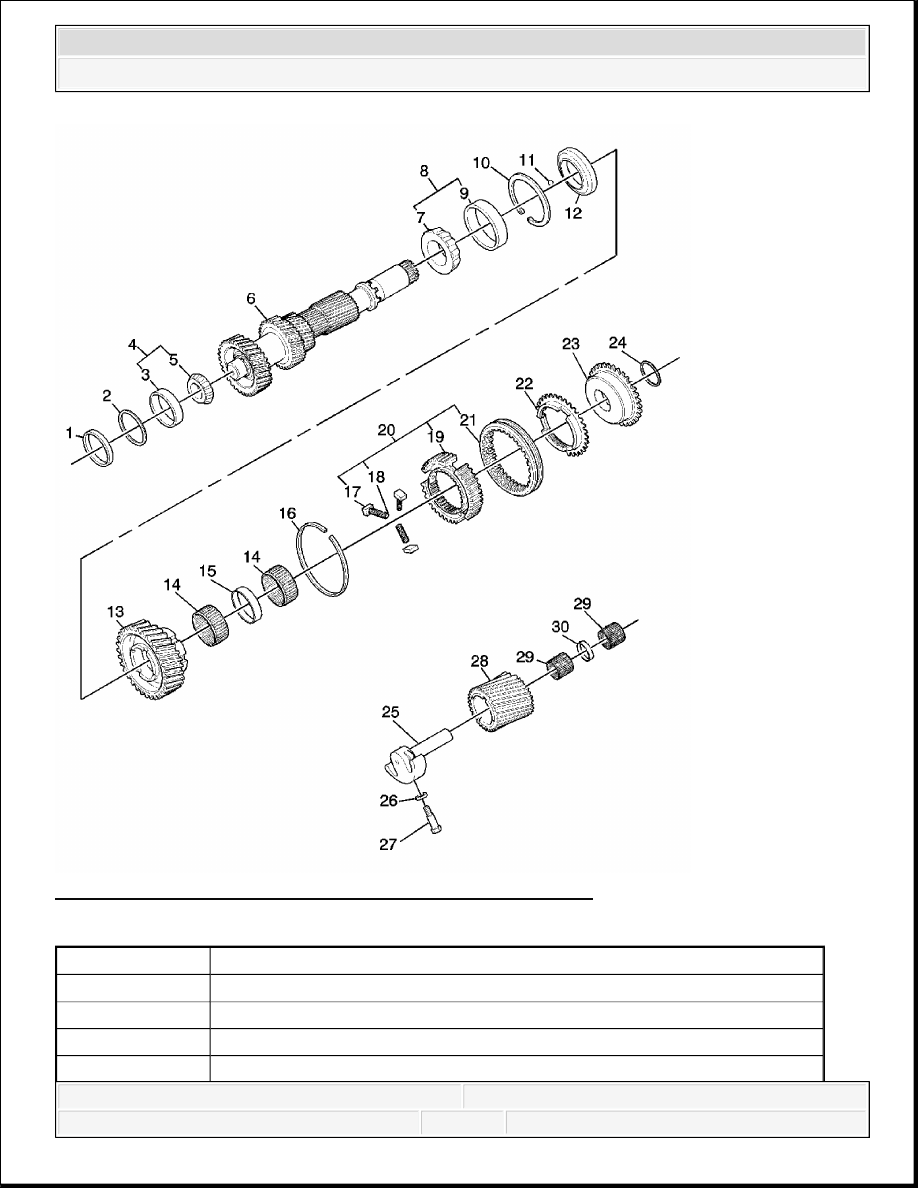

Fig. 3: Counter Gear Shaft, Reverse Idler, and Components
Courtesy of GENERAL MOTORS CORP.
Callout
Component Name
1
Center Gear Front Bearing Spacer
2
Center Gear Bearing Shim
3
Center Gear Front Bearing
4
Center Gear Front Bearing Assembly
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Manual Transmission - Tremec 5-Speed (TZ0)
5
Center Gear Front Bearing
6
Center Gear Shaft
7
Center Gear Rear Bearing
8
Center Gear Rear Bearing Assembly
9
Center Gear Rear Bearing
10
Center Gear Rear Bearing Retainer Ring
11
2nd Gear Thrust Washer Location Ball
12
5th Gear Thrust Washer
13
5th Center Gear
14
5th Gear Bearing
15
Center Gear Front Bearing Spacer
16
Reverse Gear Retainer Ring
17
3rd and 4th Gear Synchronizer Insert
18
Gear Synchronizer Insert Spring
19
5th and Reverse Gear Synchronizer Hub
20
5th Gear Synchronizer
21
5th and Reverse Gear Synchronizer Sleeve
22
4th and 5th Gear Synchronizer Gear
23
Transmission Clutch Gear
24
Main Shaft Bearing Shim
25
Reverse Idler Gear Shaft
26
Reverse Idler Gear Shaft O-Ring Seal
27
Reverse Idler Shaft Lock Bolt
28
Reverse Idler Gear
29
Reverse Gear Bearing
29
Reverse Gear Bearing
30
Center Gear Front Bearing Spacer
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Manual Transmission - Tremec 5-Speed (TZ0)

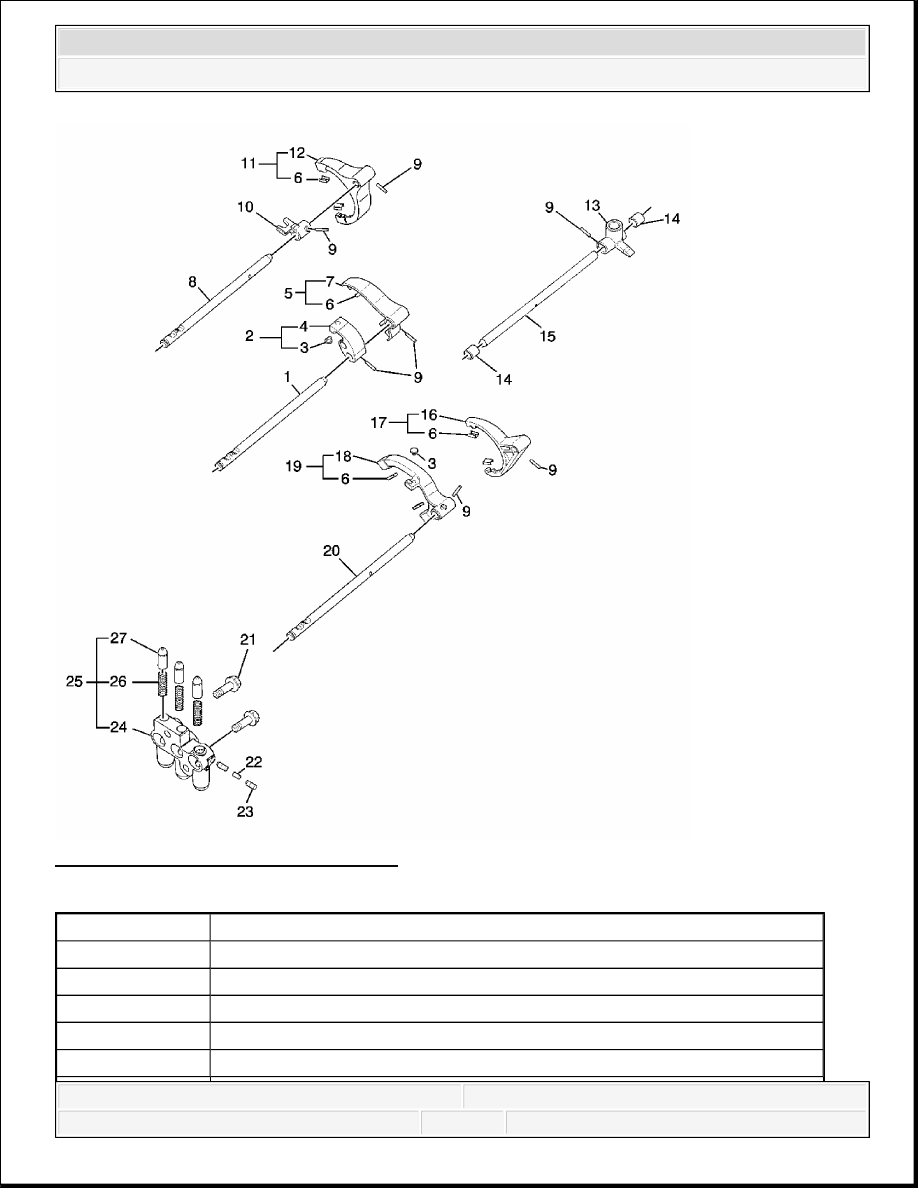

Fig. 4: Shift Control and Components
Courtesy of GENERAL MOTORS CORP.
Callout
Component Name
1
1st and 2nd Shift Shaft
2
1st and 2nd Shift Block Assembly
3
Transmission Shift Fork Pad Insert
4
1st and 2nd Shift Block
5
1st and 2nd Shift Fork Assembly
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Manual Transmission - Tremec 5-Speed (TZ0)
DIAGNOSTIC INFORMATION AND PROCEDURES
DIAGNOSTIC CODE INDEX
6
Transmission Shift Fork Pad Insert
6
Transmission Shift Fork Pad Insert
6
Transmission Shift Fork Pad Insert
6
Transmission Shift Fork Pad Insert
7
1st and 2nd Shift Fork
8
3rd and 4th Shift Shaft
9
Shift Fork Lock Pin
9
Shift Fork Lock Pin
9
Shift Fork Lock Pin
9
Shift Fork Lock Pin
9
Shift Fork Lock Pin
9
Shift Fork Lock Pin
9
Shift Fork Lock Pin
10
3rd and 4th Shift Block
11
3rd and 4th Shift Fork Assembly
12
3rd and 4th Shift Fork
13
Shift Control Shaft Block
14
Shift Shaft Bearing
15
Shift Control Shaft
16
5th Shift Fork
17
5th Shift Fork Assembly
18
Reverse Shift Fork
19
Reverse Shift Fork Assembly
20
5th and Reverse Shift Shaft
21
Shift Bar Support Retainer Bolt
22
Shift Shaft Interlock Pin
23
Transmission Shift Interlock Plunger
24
Shift Bar Support
25
Shift Bar Support Assembly
26
Shift Shaft Lever Spring
27
Shift Interlock Detent
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Manual Transmission - Tremec 5-Speed (TZ0)
