Chevrolet Silverado / GMC Sierra. Manual - part 2585

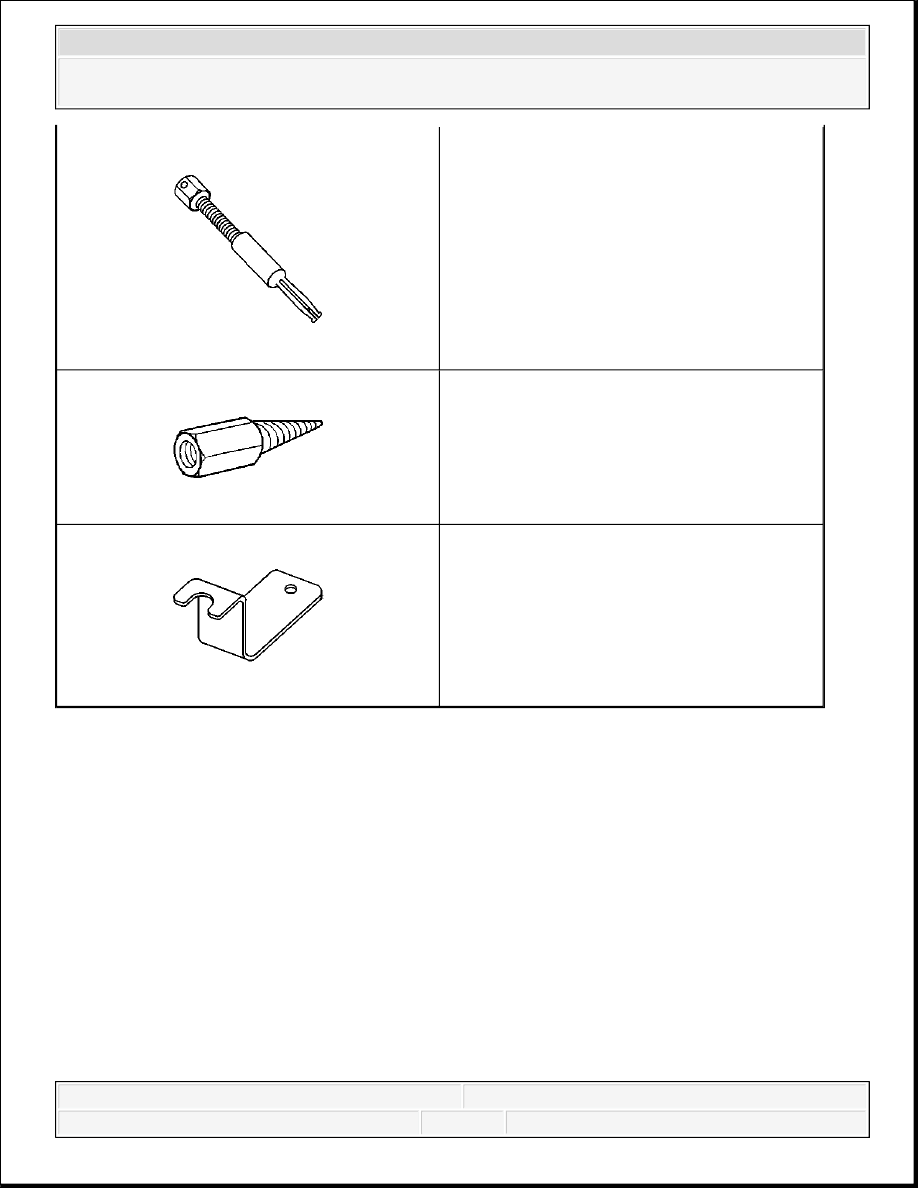

J 36825
Output Shaft Oil Seal Remover (4WD
Models Only)
J 42371
Hydraulic Clutch Line Separator
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Manual Transmission - Tremec 5-Speed (M96) - Cab & Chassis Sierra, Cab & Chassis
Silverado, Sierra & Silverado
2008 TRANSMISSION
Manual Transmission - Tremec 5-Speed (TZ0)
SPECIFICATIONS
FASTENER TIGHTENING SPECIFICATIONS
LUBRICATION SPECIFICATIONS
Application
Specification
Metric
English
Anchor Support Screw
18-37 N.m
13-27 lb ft
Backup Lamp Switch
16-22 N.m
12-16 lb ft
Bearing Retainer Screw
16-27 N.m
12-20 lb ft
Case to Extension Bolt
24-38 N.m
18-28 lb ft
Clutch Actuator Bolts
8 N.m
71 lb in
Clutch Cover Screws
8-10 N.m
71-89 lb in
Clutch Housing Cover Bolts
24-38 N.m
18-28 lb ft
Control Tower Screw
11-17 N.m
8-13 lb ft
Drive Shaft Bearing Retainer Bolt
16-27 N.m
12-20 lb ft
Feed Support Screw
16-27 N.m
12-20 lb ft
Lining to Case Bolt
24-38 N.m
18-28 lb ft
Oil Drain Plug
16-27 N.m
12-20 lb ft
Oil Fill Plug
16-27 N.m
12-20 lb ft
Reverse Axle Pin Bolt
24-30 N.m
18-22 lb ft
Reverse Switch
16-22 N.m
12-16 lb ft
Shift Boot Screws
2 N.m
18 lb in
Shift Lever Nut
47 N.m
35 lb ft
Shift Tower Bolt
11-17 N.m
8-13 lb ft
Speed Sensor Screw
16-22 N.m
12-16 lb ft
Transmission Mount Bolt
50 N.m
37 lb ft
Transmission Mount Nut
45 N.m
33 lb ft
Transmission-to-Engine Bolts
40-60 N.m
30-45 lb ft
Vehicle Speed Sensor Bolt
16-22 N.m
12-16 lb ft
Apply Teflon® sealant to the screws before installation.
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Manual Transmission - Tremec 5-Speed (TZ0)
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Manual Transmission - Tremec 5-Speed (TZ0)
AXIAL PLAY SPECIFICATIONS
TRANSMISSION GEAR RATIO
COMPONENT LOCATOR
TRANSMISSION COMPONENT LOCATION
Application
Metric
English
1874 MTX Fluid 12550
ET-M81
4.4 L
4.6 qt
Application
Specification
Metric
English
1st Gear
0.05-0.20 mm
0.002-0.008 in
2nd Gear
0.10-0.35 mm
0.004-0.014 in
3rd Gear
0.10-0.35 mm
0.004-0.014 in
5th Gear Countershaft
0.127-0.53 mm
0.005-0.021 in
Drive Shaft
0.02-0.12 mm
0.001-0.005 in
Gear Train
0.02-0.12 mm
0.001-0.005 in
Reverse Gear
0.10-0.35 mm
0.004-0.014 in
Reverse Idler Gear
0.02-0.43 mm
0.001-0.017 in
1st
2nd
3rd
4th
5th
Reverse
3.82
2.31
1.42
1.00
0.83
3.82
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Manual Transmission - Tremec 5-Speed (TZ0)

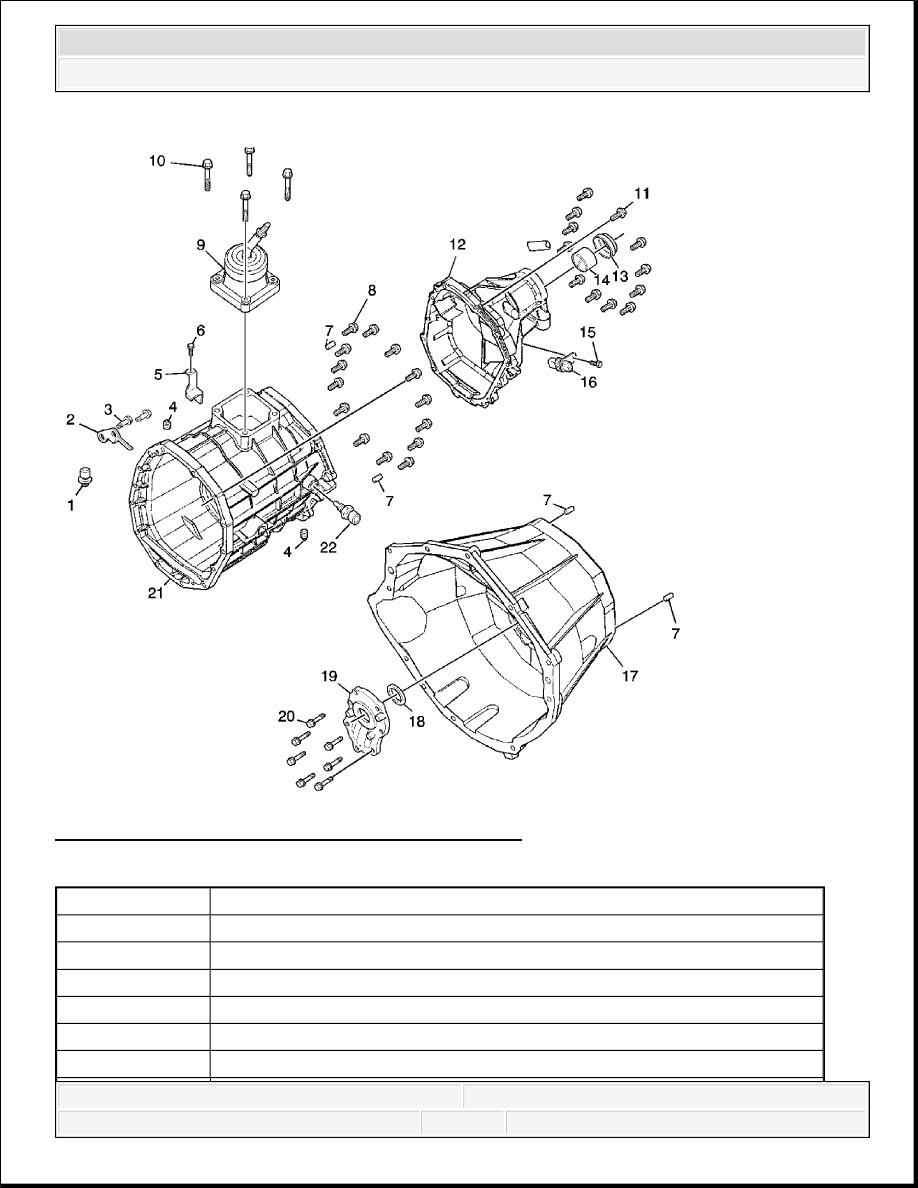

Fig. 1: Transmission Case and Related Components
Courtesy of GENERAL MOTORS CORP.
Callout
Component Name
1
Shift Housing Vent Breather
2
Modulator Cable Anchor Bracket
3
Transmission Brace Bracket Bolt
4
Transmission Lubricant Fill Plug Cap
4
Transmission Lubricant Fill Plug Cap
5
Deflector
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Manual Transmission - Tremec 5-Speed (TZ0)
