Chevrolet Silverado / GMC Sierra. Manual - part 2586
6
Deflector Bolt
7
Transmission Case Locating Pin
7
Transmission Case Locating Pin
7
Transmission Case Locating Pin
8
Shift Bar Support Retainer Bolt
9
Shift Control Cover
10
Shift Control Housing Bolt
11
Shift Bar Support Retainer Bolt
12
Transmission Rear Case
13
Transmission Cover Seal
14
Transmission Extension Bushing
15
Vehicle Speed Sensor Housing Bolt
16
Vehicle Speed Sensor
17
Transmission Front Case
18
Clutch Housing Cover Seal
19
Transmission Main Drive Gear Bearing Retainer
20
Transmission Bearing Retainer Bolt
21
Transmission Case
22
Park/Neutral Position and Backup Lamp Switch
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Manual Transmission - Tremec 5-Speed (TZ0)

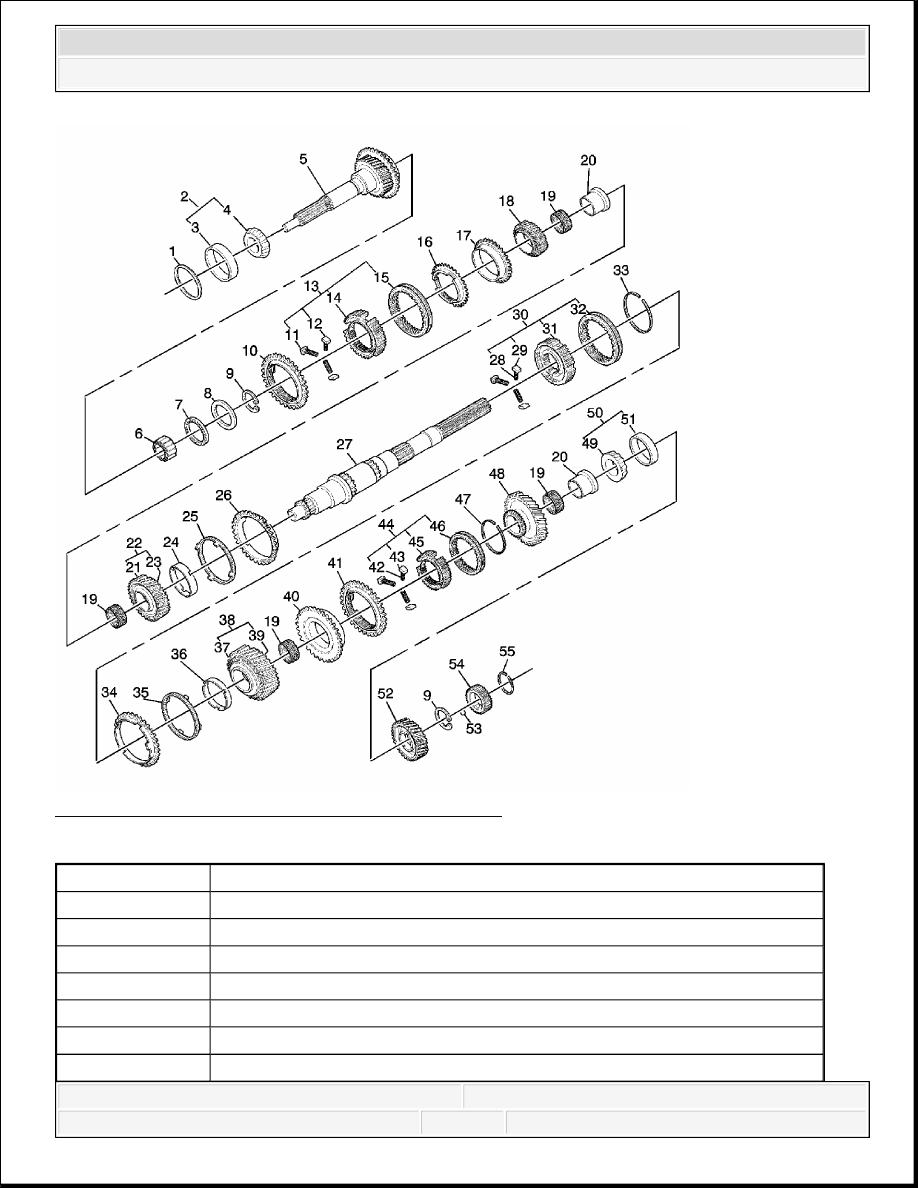

Fig. 2: Main Shaft, Input Shaft, and Components
Courtesy of GENERAL MOTORS CORP.
Callout
Component Name
1
Counter Gear Bearing Shim
2
Input Shaft Bearing Assembly
3
Input Shaft Bearing
4
Input Shaft Bearing
5
Input Shaft
6
Main Shaft Bearing Roller
7
Input Shaft Thrust Bearing
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Manual Transmission - Tremec 5-Speed (TZ0)
8
3rd and 4th Gear Synchronizer Hub Thrust Washer
9
Main Shaft Bearing Shim
9
Main Shaft Bearing Shim
10
4th and 5th Gear Synchronizer Gear
11
Gear Synchronizer Insert Spring
12
3rd and 4th Gear Synchronizer Insert
13
3rd and 4th Gear Synchronizer
14
3rd and 4th Gear Synchronizer Hub
15
3rd and 4th Gear Synchronizer Sleeve
16
3rd Gear Blocking Ring
17
Transmission Drive Gear Clutch - 3rd and 4th Gear Synchronizer - Gear
18
3rd Gear
19
Main Shaft Bearing
19
Main Shaft Bearing
19
Main Shaft Bearing
20
3rd Gear Bushing
20
3rd Gear Bushing
21
2nd Gear
22
2nd Gear Assembly
23
2nd Synchronizer Clutch Gear
24
Transmission Main Shaft Synchronizer Inner Ring
25
Transmission Main Shaft Synchronizer Outer Ring
26
Transmission Main Shaft Synchronizer Center Ring
27
Main Shaft
28
Gear Synchronizer Insert Spring
29
3rd and 4th Gear Synchronizer Insert
30
1st and 2nd Gear Synchronizer Assembly
31
1st and 2nd Gear Synchronizer Hub
32
1st and 2nd Gear Synchronizer Sleeve
33
Main Shaft Bearing Retainer Ring
34
Transmission Main Shaft Synchronizer Center Ring
35
Transmission Main Shaft Synchronizer Outer Ring
36
Transmission Main Shaft Synchronizer Inner Ring
37
2nd Synchronizer Clutch Gear
38
1st Gear Assembly
39
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Manual Transmission - Tremec 5-Speed (TZ0)
1st Gear
40
Transmission Drive Gear Clutch - 5th Gear Synchronizer - Gear
41
4th and 5th Gear Synchronizer Gear
42
Gear Synchronizer Insert Spring
43
3rd and 4th Gear Synchronizer Insert
44
Reverse Gear Synchronizer Assembly
45
5th and Reverse Gear Synchronizer Hub
46
1st and Reverse Gear Synchronizer Sleeve
47
Reverse Gear Retainer Ring
48
Reverse Gear
49
Main Shaft Bearing
50
Main Shaft Bearing Assembly
51
Main Shaft Bearing
52
5th Input Gear
53
Speedometer Gear Ball
54
Speedometer Drive Gear
55
Reverse Gear Blocking Ring
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Manual Transmission - Tremec 5-Speed (TZ0)
