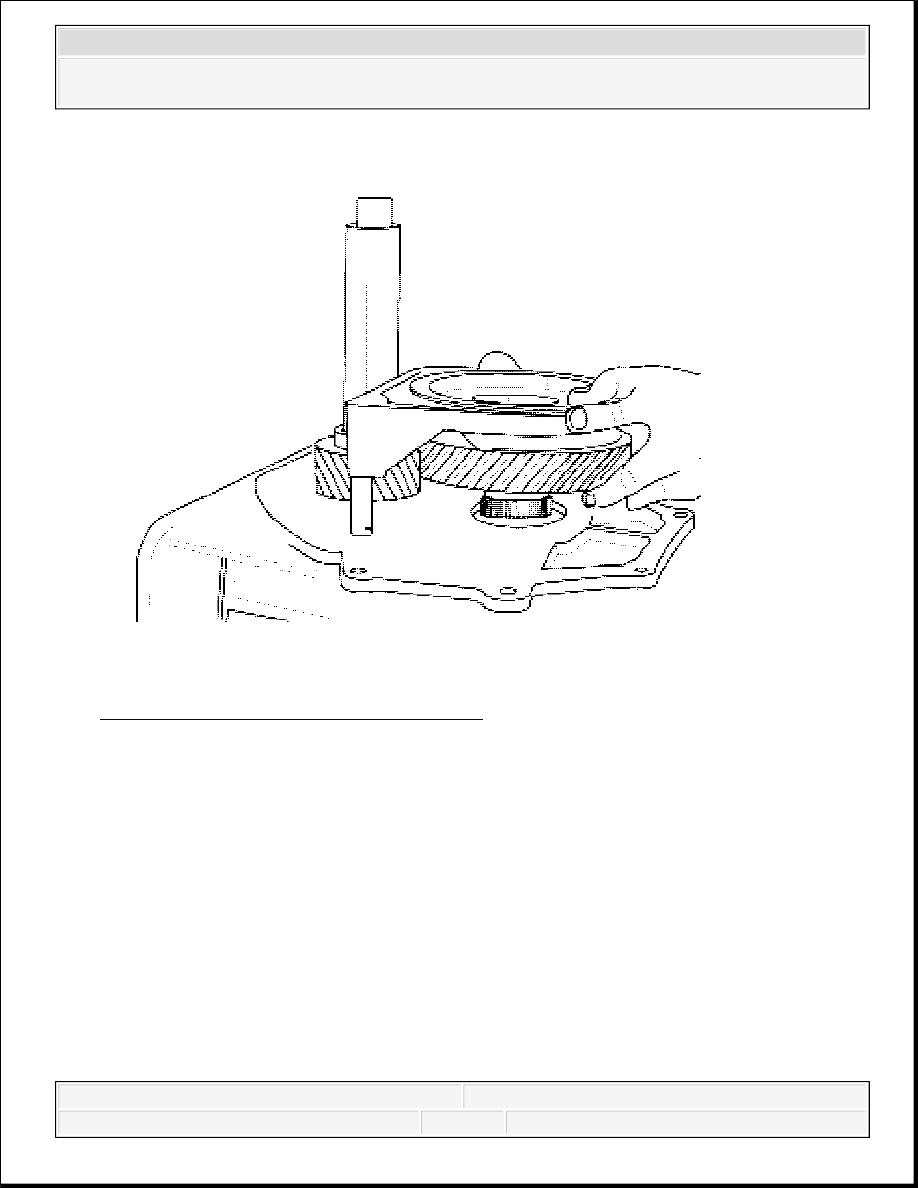

Fig. 230: 5th Gear Synchronizer And Fork
Courtesy of GENERAL MOTORS CORP.
16. Install the 5th gear synchronizer with the fork.
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Manual Transmission - Tremec 5-Speed (M96) - Cab & Chassis Sierra, Cab & Chassis
Silverado, Sierra & Silverado

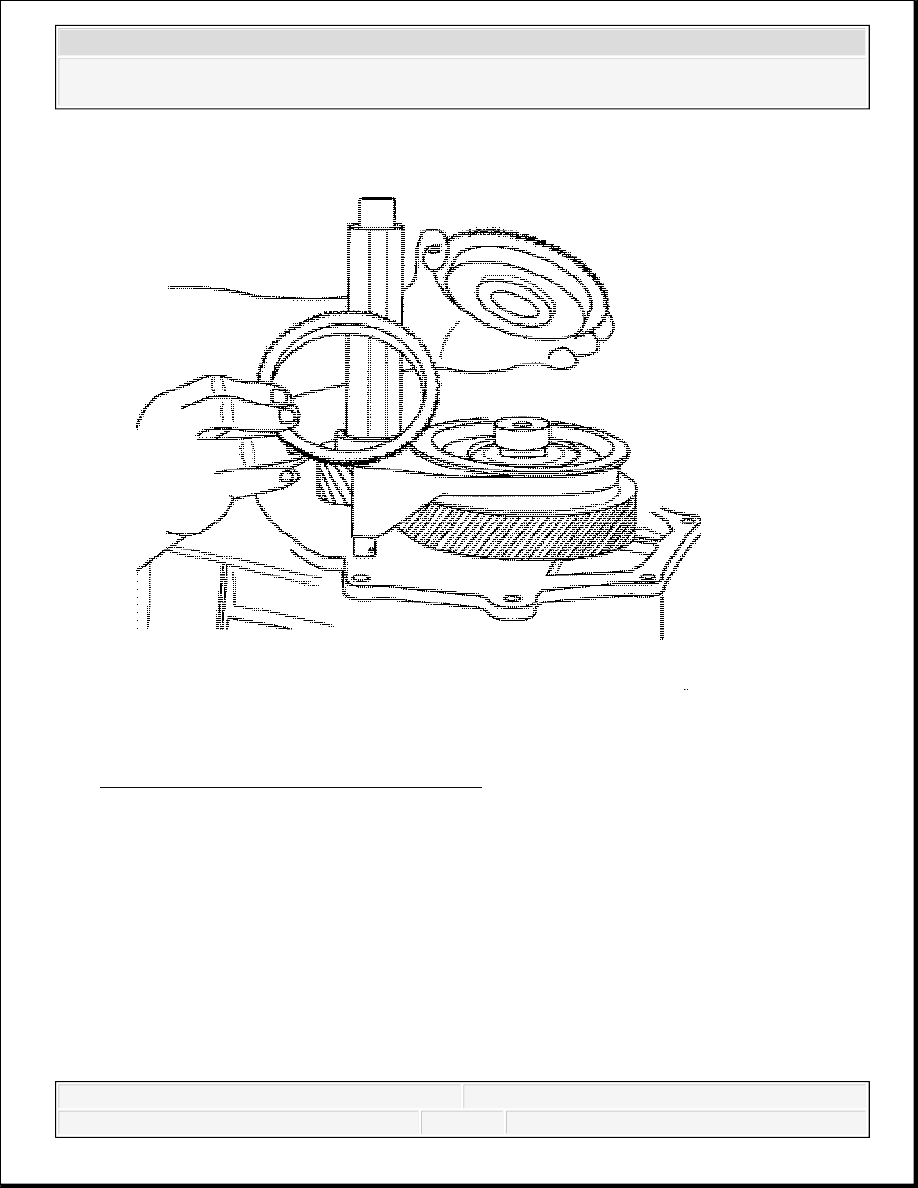

Fig. 231: Synchronizer Ring And 5th Gear
Courtesy of GENERAL MOTORS CORP.
17. Install the lubricated synchronization ring and the 5th gear taper.
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Manual Transmission - Tremec 5-Speed (M96) - Cab & Chassis Sierra, Cab & Chassis
Silverado, Sierra & Silverado

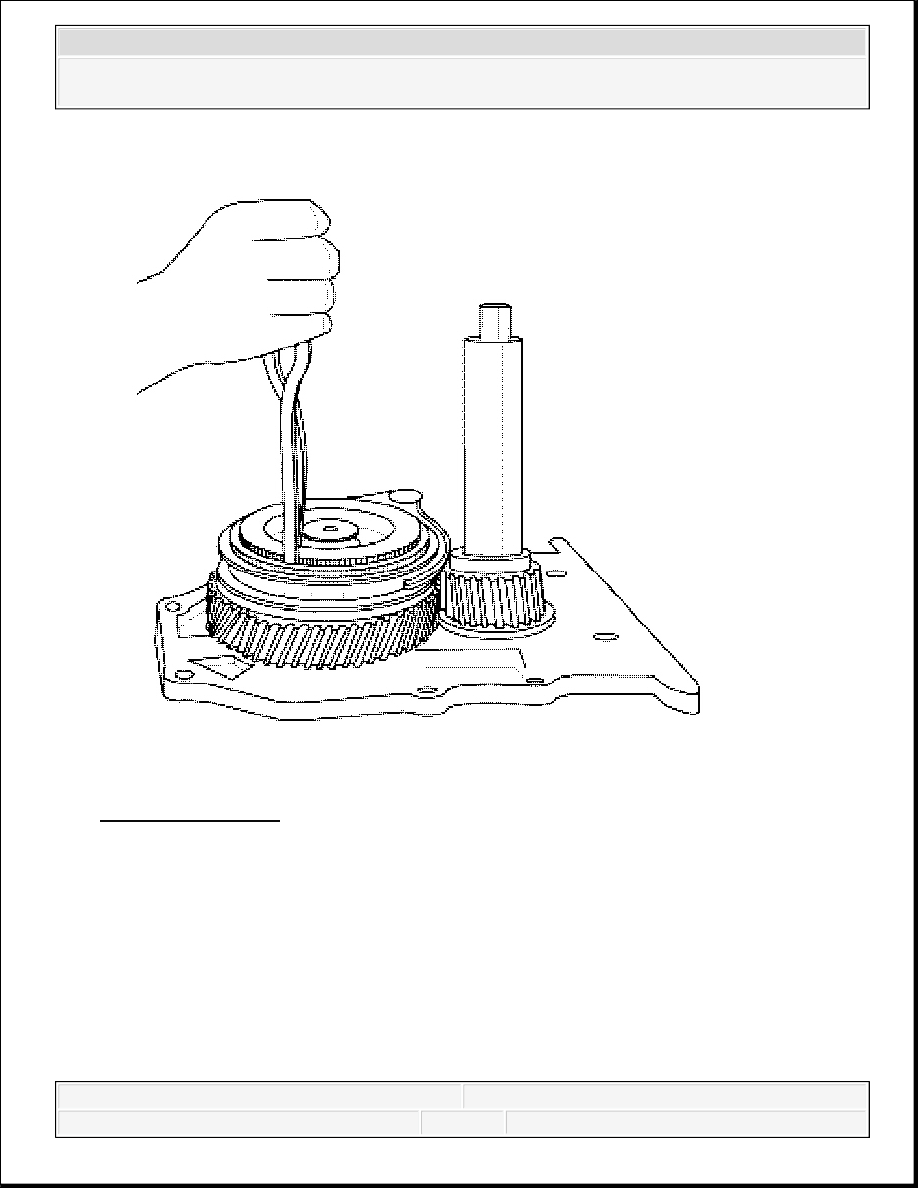

Fig. 232: Snap Ring
Courtesy of GENERAL MOTORS CORP.
18. Using locking pliers, install the 5th gear clutch ring.
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Manual Transmission - Tremec 5-Speed (M96) - Cab & Chassis Sierra, Cab & Chassis
Silverado, Sierra & Silverado

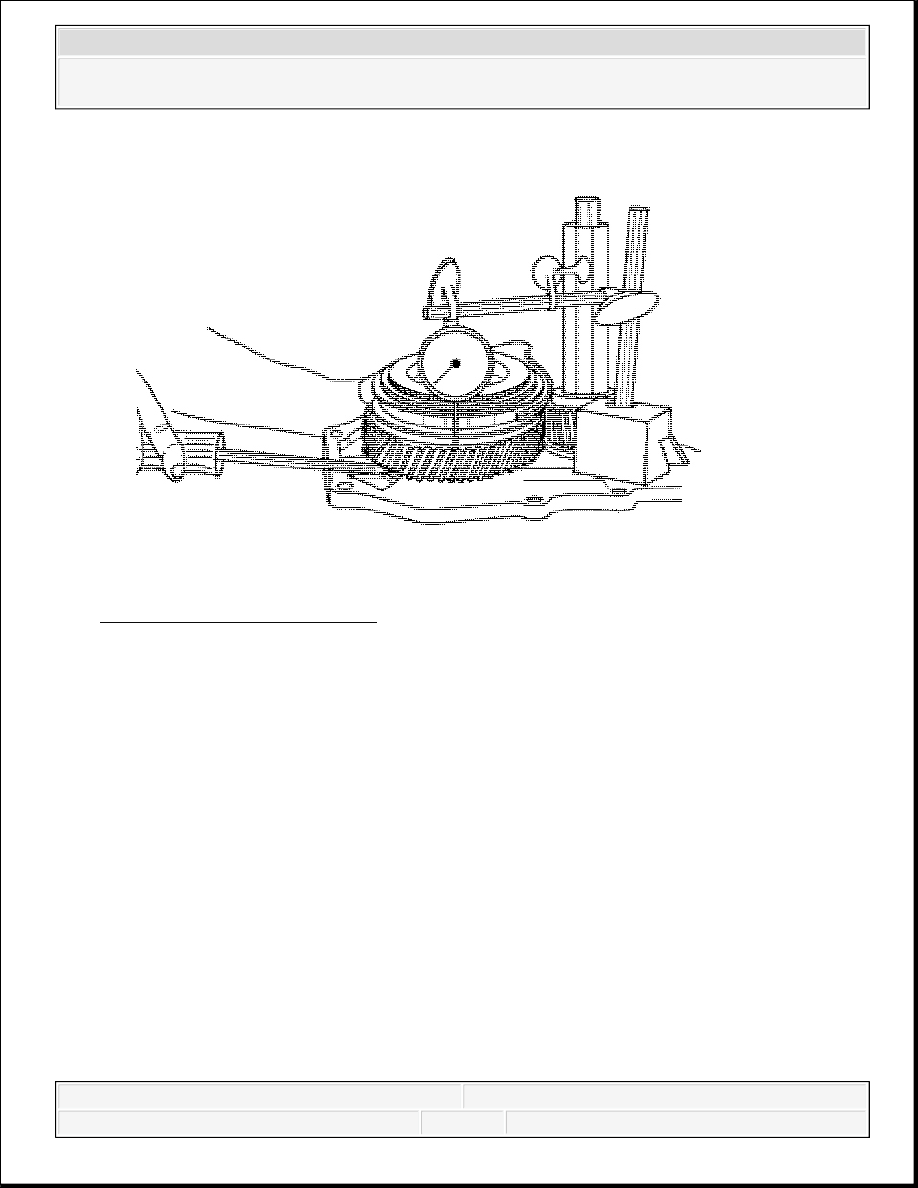

Fig. 233: Observing Axial Play
Courtesy of GENERAL MOTORS CORP.
19. Using a dial indicator, observe the axial play.
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Manual Transmission - Tremec 5-Speed (M96) - Cab & Chassis Sierra, Cab & Chassis
Silverado, Sierra & Silverado
