Chevrolet Silverado / GMC Sierra. Manual - part 2577

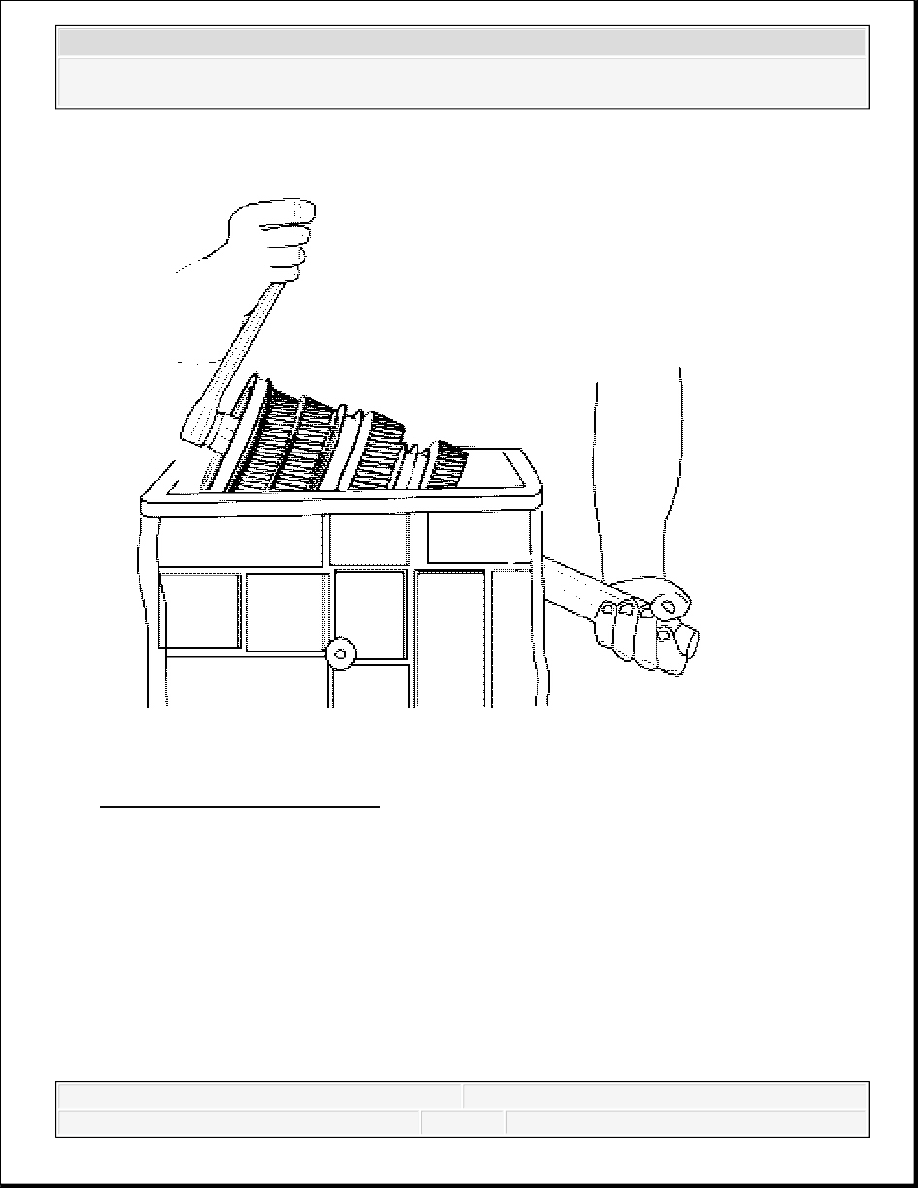

Fig. 221: Main Shaft Assembly
Courtesy of GENERAL MOTORS CORP.
7. Install the main shaft assembly. Fasten it to the synchronizer, lifting with the help of a cord
in one hand and pushing with the other hand.
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Manual Transmission - Tremec 5-Speed (M96) - Cab & Chassis Sierra, Cab & Chassis
Silverado, Sierra & Silverado

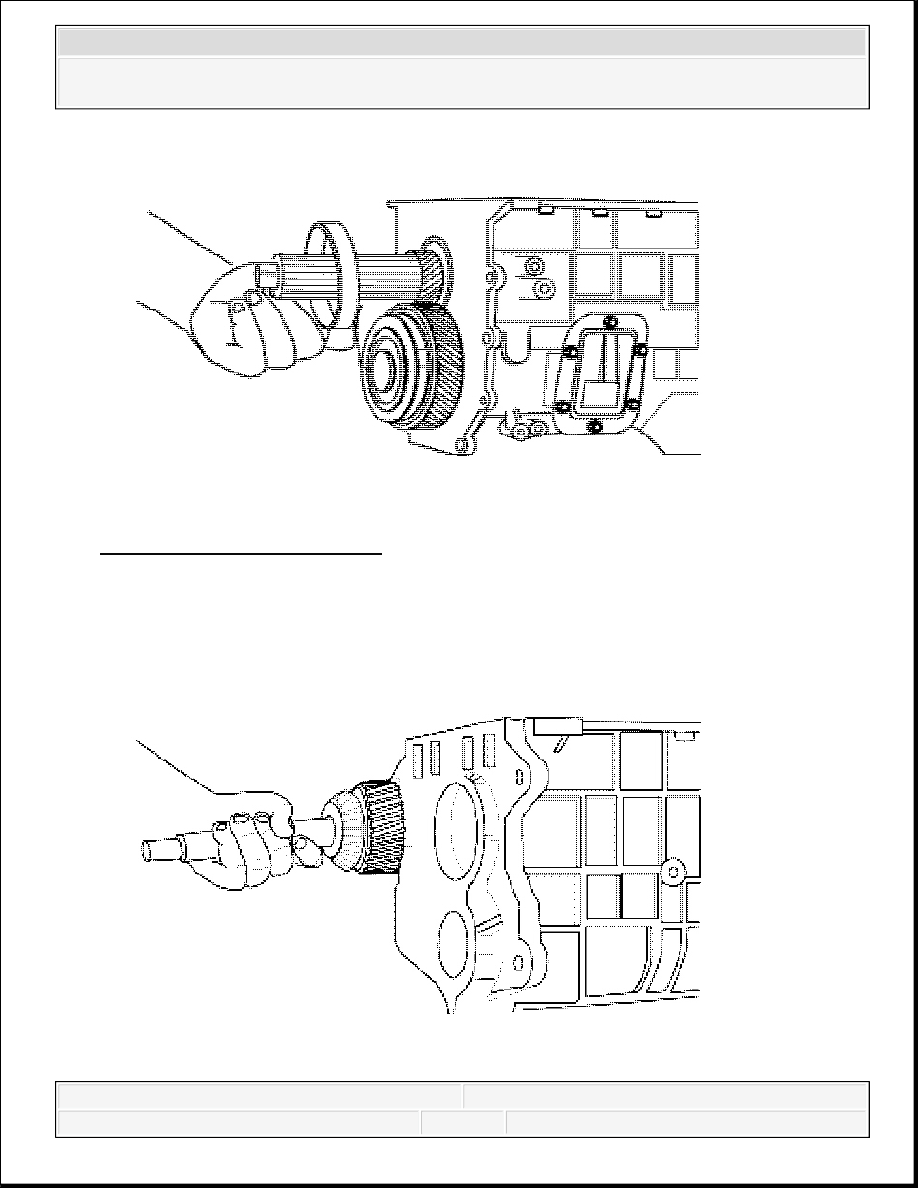

Fig. 222: Tapered Bearing Cup
Courtesy of GENERAL MOTORS CORP.
8. Install the tapered bearing race.
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Manual Transmission - Tremec 5-Speed (M96) - Cab & Chassis Sierra, Cab & Chassis
Silverado, Sierra & Silverado
Fig. 223: Drive Shaft
Courtesy of GENERAL MOTORS CORP.
9. Install the drive shaft, positioning the shaft lubrication grooves with the clutch ring.

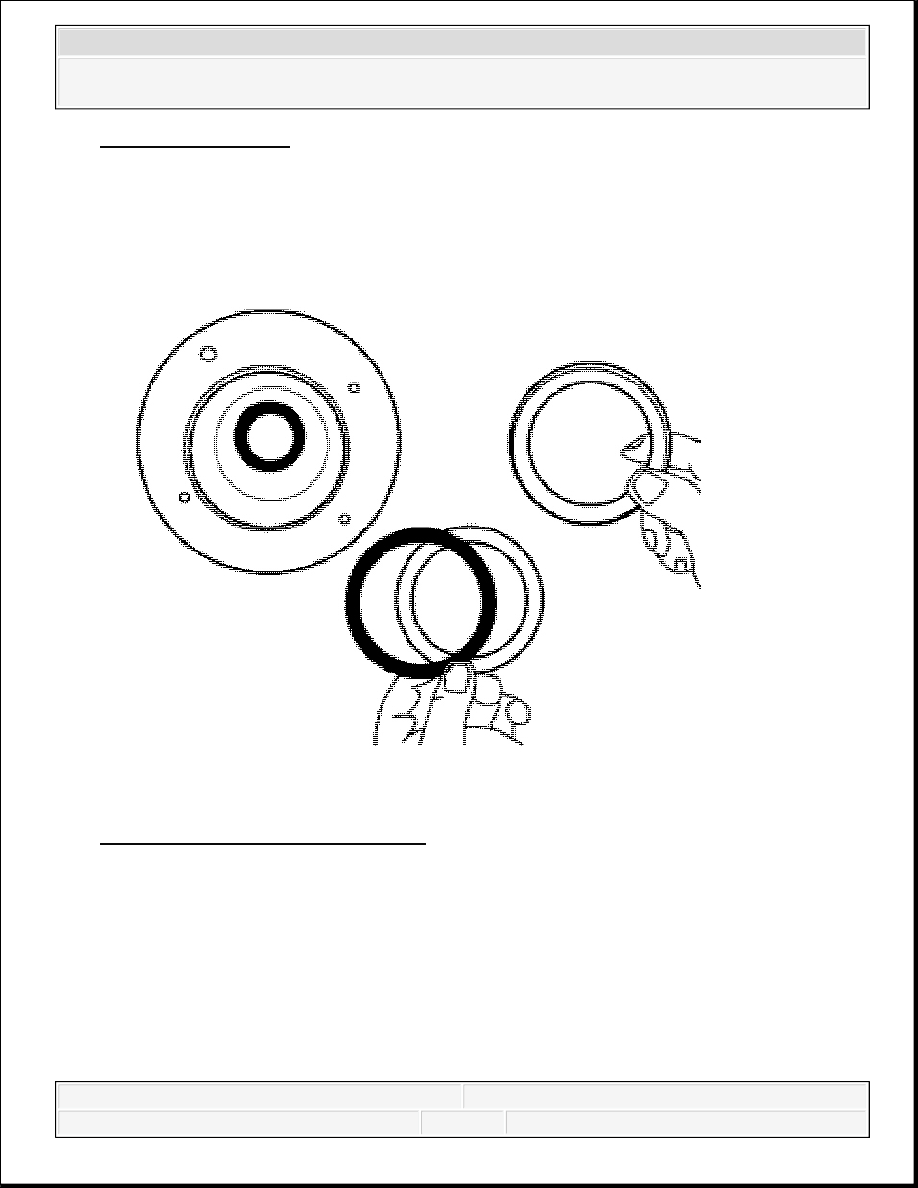

Fig. 224: Spacers And Bearing Race
Courtesy of GENERAL MOTORS CORP.
10. Install the new spacers and bearing race. Add spacers for more play and remove spacers for
less play.
Specification: Axial play should be 0.025-0.127 mm (0.001-0.005 in).
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Manual Transmission - Tremec 5-Speed (M96) - Cab & Chassis Sierra, Cab & Chassis
Silverado, Sierra & Silverado

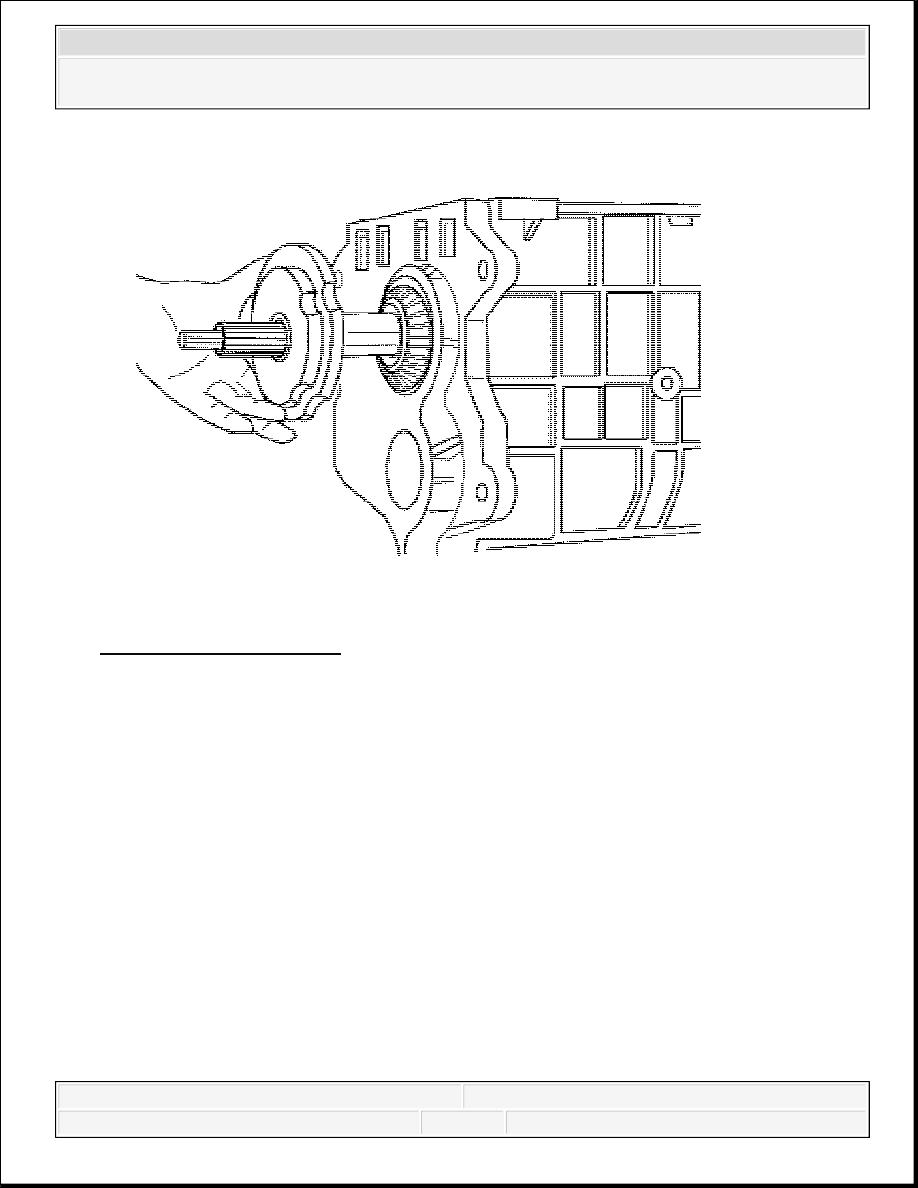

Fig. 225: Bearing Retainer
Courtesy of GENERAL MOTORS CORP.
11. Install the bearing retainer, locating the bearing retainer position to the bore holes, which
are the position of the lubrication bores.
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Manual Transmission - Tremec 5-Speed (M96) - Cab & Chassis Sierra, Cab & Chassis
Silverado, Sierra & Silverado
