REPAIR INSTRUCTIONS - OFF VEHICLE
TRANSMISSION DISASSEMBLE
1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
2. Remove the propeller shaft. Refer to One-Piece Propeller Shaft Replacement or
Two-Piece Propeller Shaft Replacement .
3. Position an appropriate container under the transmission to catch any lost fluid.
1
Main Shaft Nut
Procedure:
Use the J 8614-01 to hold the transmission end yoke while removing or
installing the main shaft nut.
Tighten: 441 N.m (325 lb ft)
Special Tool:
J 8614-01 Flange and Pulley Holding Tool
NOTE:
Refer to Fastener Notice .
2
Main Shaft Washer
3
Transmission End Yoke
4
Main Shaft Seal
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Manual Transmission - Tremec 5-Speed (M96) - Cab & Chassis Sierra, Cab & Chassis
Silverado, Sierra & Silverado

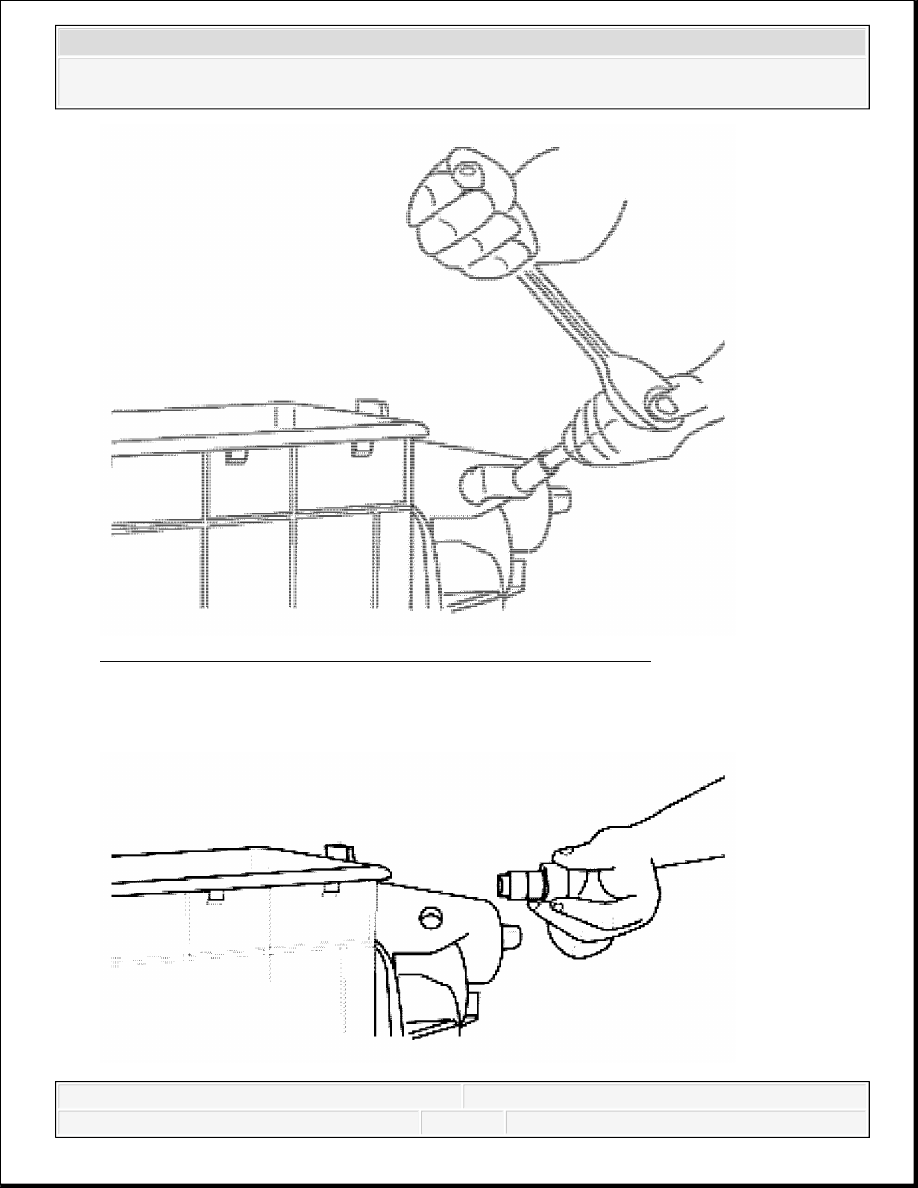

Fig. 29: Using Ratchet On Vehicle Speed Sensor (VSS) Screw
Courtesy of GENERAL MOTORS CORP.
1. Remove the vehicle speed sensor (VSS) screw.
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Manual Transmission - Tremec 5-Speed (M96) - Cab & Chassis Sierra, Cab & Chassis
Silverado, Sierra & Silverado
Fig. 30: VSS
Courtesy of GENERAL MOTORS CORP.
2. Remove the VSS.

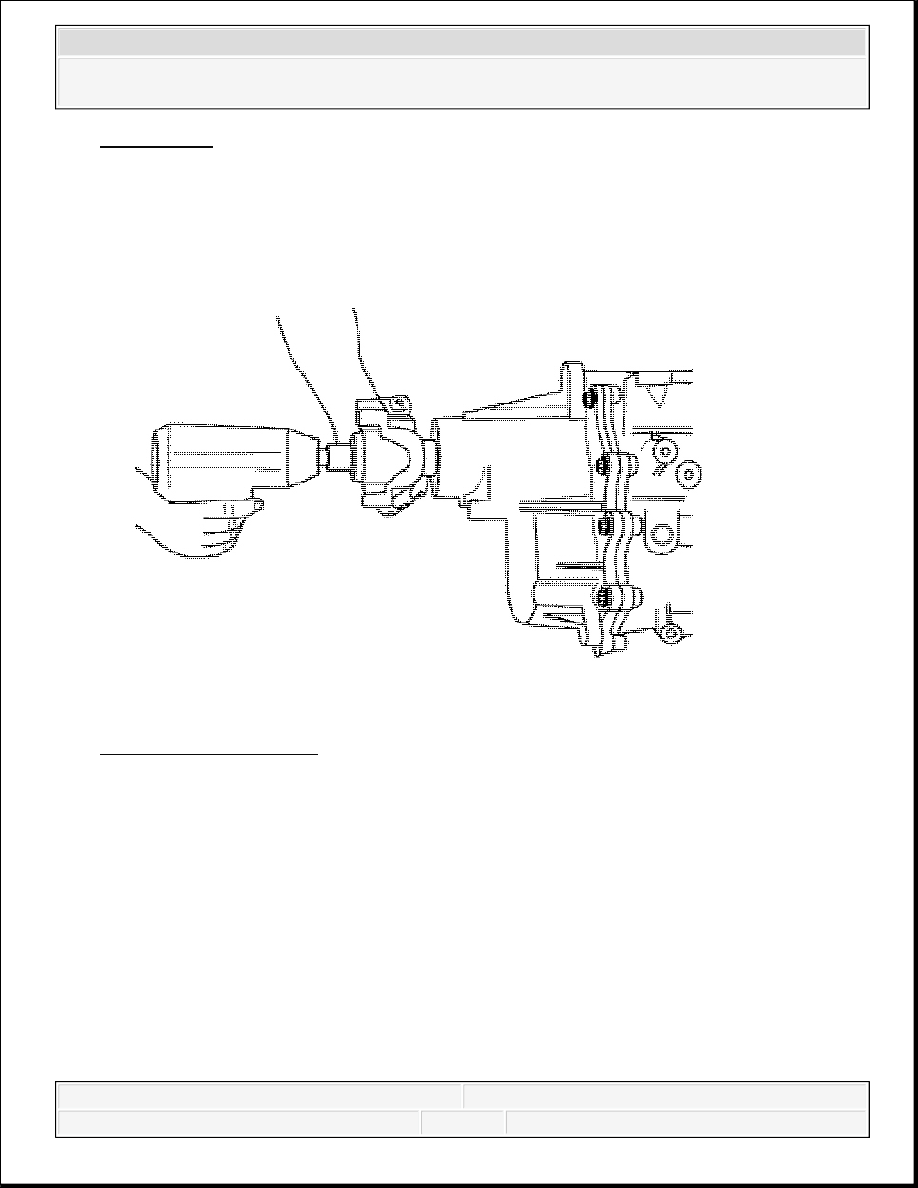

Fig. 31: Main Shaft Nut
Courtesy of GENERAL MOTORS CORP.
3. Remove the main shaft nut.
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Manual Transmission - Tremec 5-Speed (M96) - Cab & Chassis Sierra, Cab & Chassis
Silverado, Sierra & Silverado

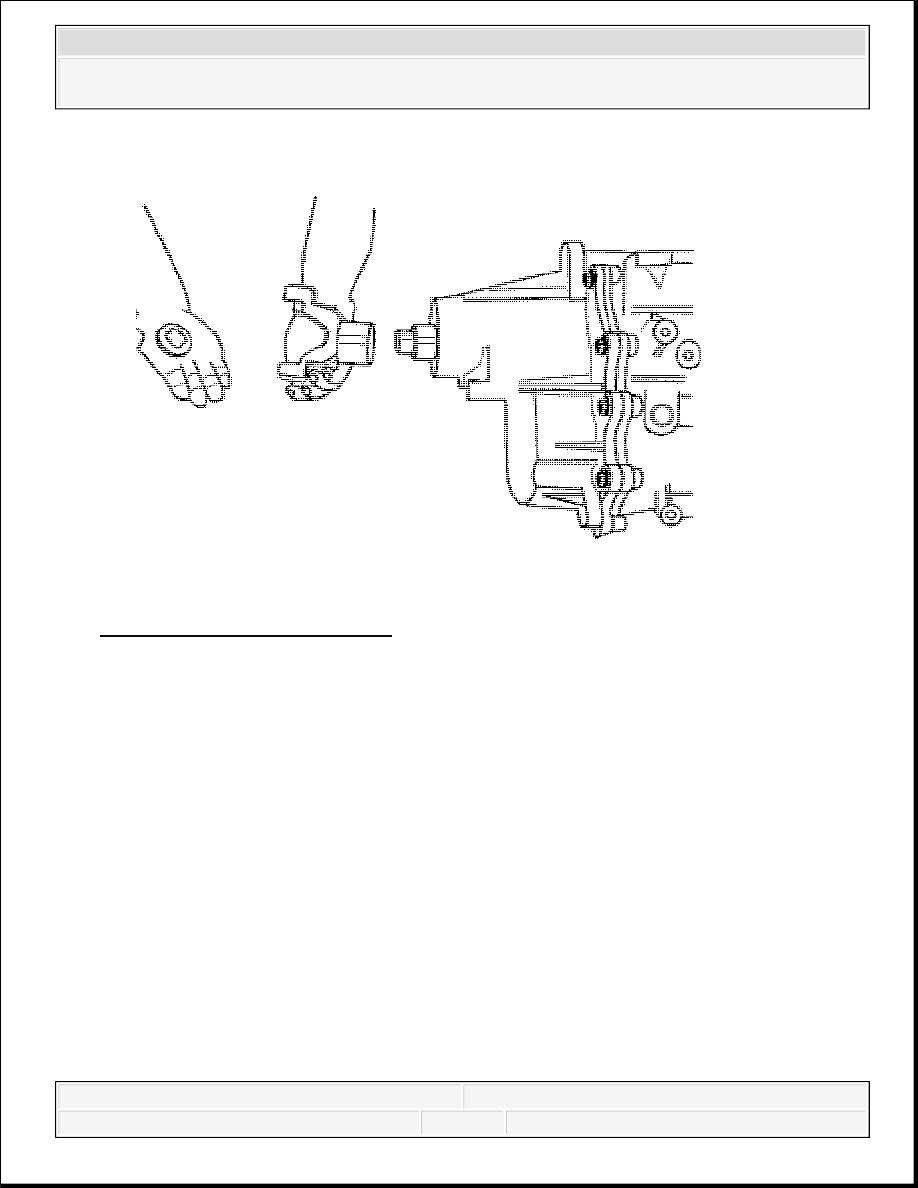

Fig. 32: Main Shaft Nut & Yoke
Courtesy of GENERAL MOTORS CORP.
4. Remove the main shaft nut from the main shaft.
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Manual Transmission - Tremec 5-Speed (M96) - Cab & Chassis Sierra, Cab & Chassis
Silverado, Sierra & Silverado
