10. Remove the transmission to clutch housing bolts (1).

11. Remove the transmission from the clutch housing.

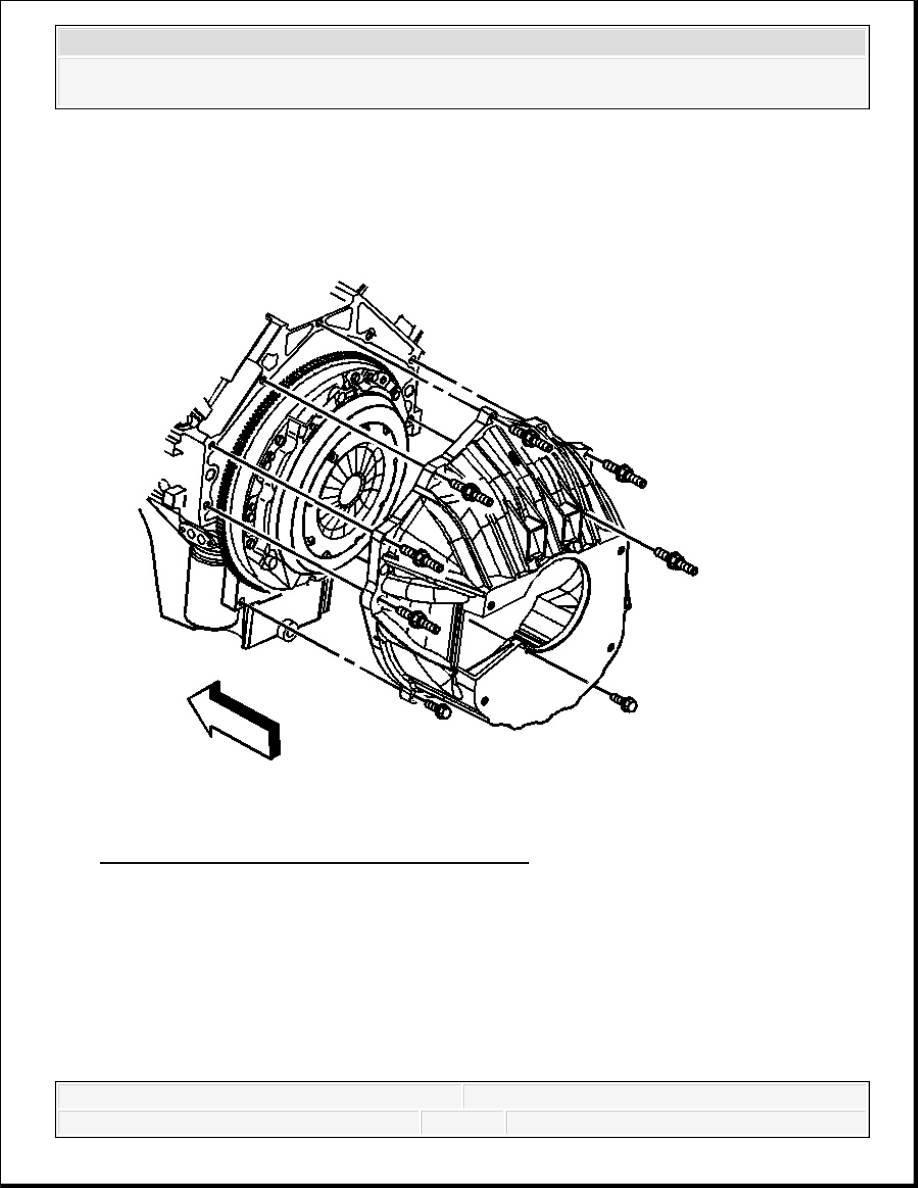

Fig. 22: Identifying Clutch Housing Bolts/Studs
Courtesy of GENERAL MOTORS CORP.

12. If servicing the clutch, remove the clutch housing bolts and studs.

13. Remove the clutch housing.

Installation Procedure

2008 Chevrolet Silverado 1500

2008 TRANSMISSION Manual Transmission - Tremec 5-Speed (M96) - Cab & Chassis Sierra, Cab & Chassis

Silverado, Sierra & Silverado

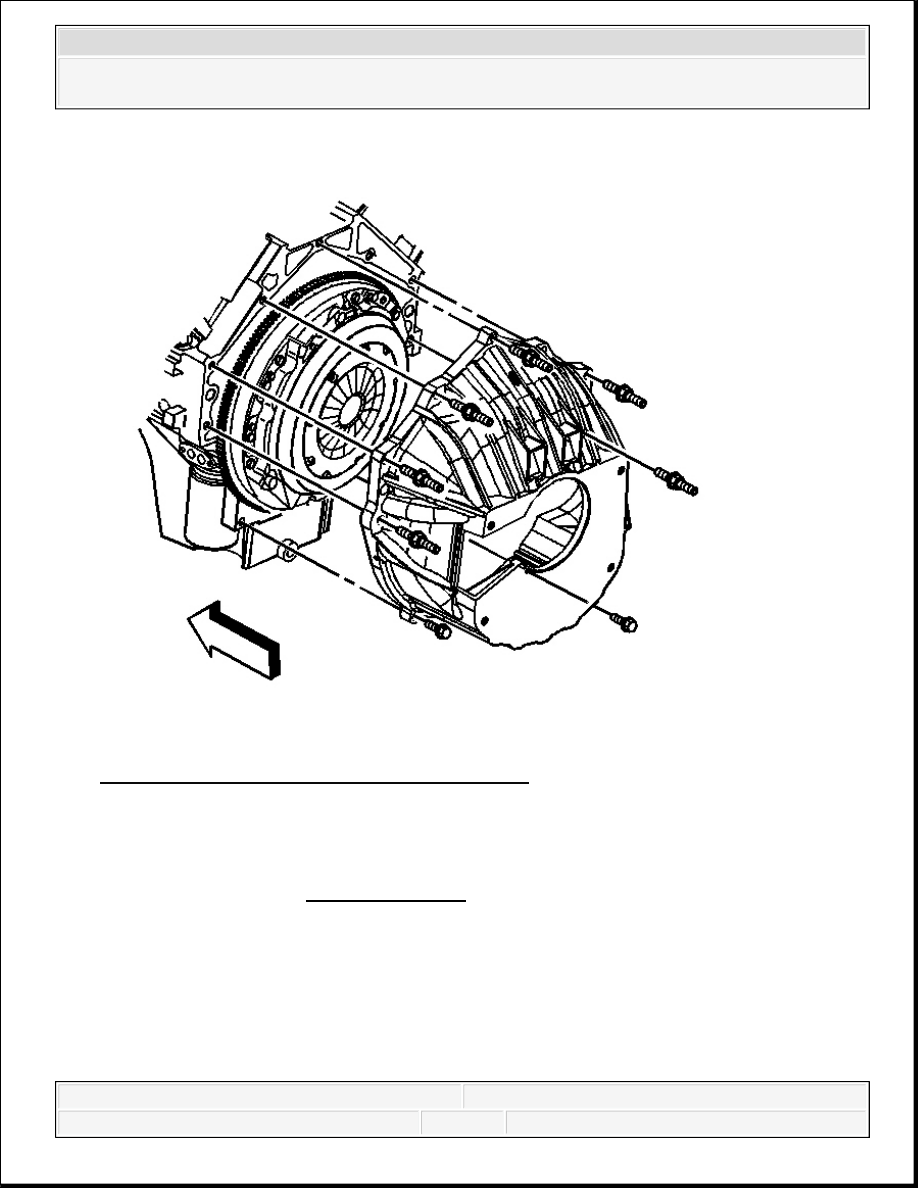

Fig. 23: Identifying Clutch Housing Bolts/Studs
Courtesy of GENERAL MOTORS CORP.

1. Install the clutch housing if previously removed.

2. Install the clutch housing bolts and studs.

Tighten: Tighten the bolts and studs to 50 N.m (37 lb ft).

NOTE:

Refer to Fastener Notice .

2008 Chevrolet Silverado 1500

2008 TRANSMISSION Manual Transmission - Tremec 5-Speed (M96) - Cab & Chassis Sierra, Cab & Chassis

Silverado, Sierra & Silverado

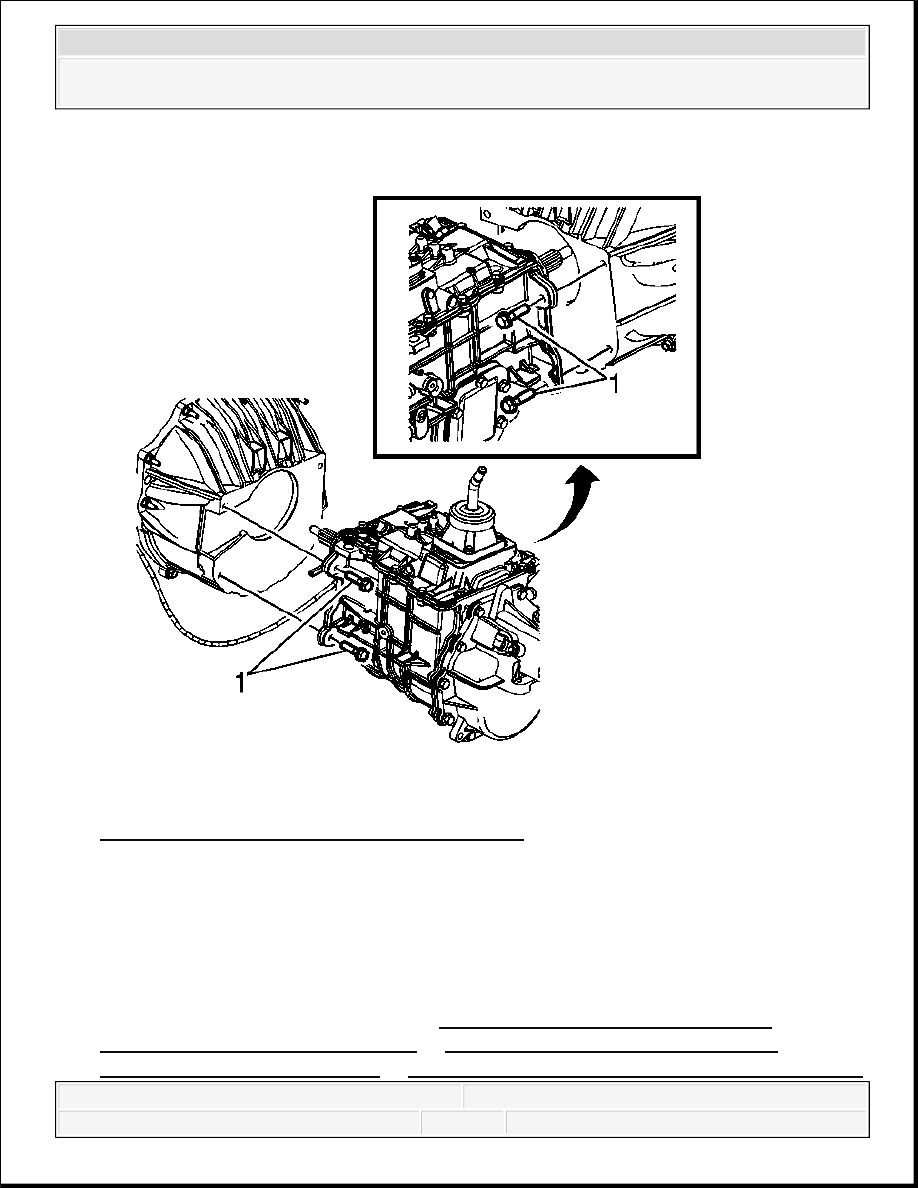

Fig. 24: Transmission To Clutch Housing Bolts
Courtesy of GENERAL MOTORS CORP.

3. Position the transmission to the clutch housing.

4. Install the transmission to clutch housing bolts (1).

Tighten: Tighten the bolts to 100 N.m (74 lb ft).

5. Install the transmission support. Refer to Transmission Support Crossmember

Replacement (2WD 2500 HD/3500) or Transmission Support Crossmember
Replacement (2WD 1500/2500) or Transmission Support Crossmember Replacement

2008 Chevrolet Silverado 1500

2008 TRANSMISSION Manual Transmission - Tremec 5-Speed (M96) - Cab & Chassis Sierra, Cab & Chassis

Silverado, Sierra & Silverado

(4WD 1500/2500) or Transmission Support Crossmember Replacement (4WD 2500
HD/3500) .

6. Remove the transmission jack.

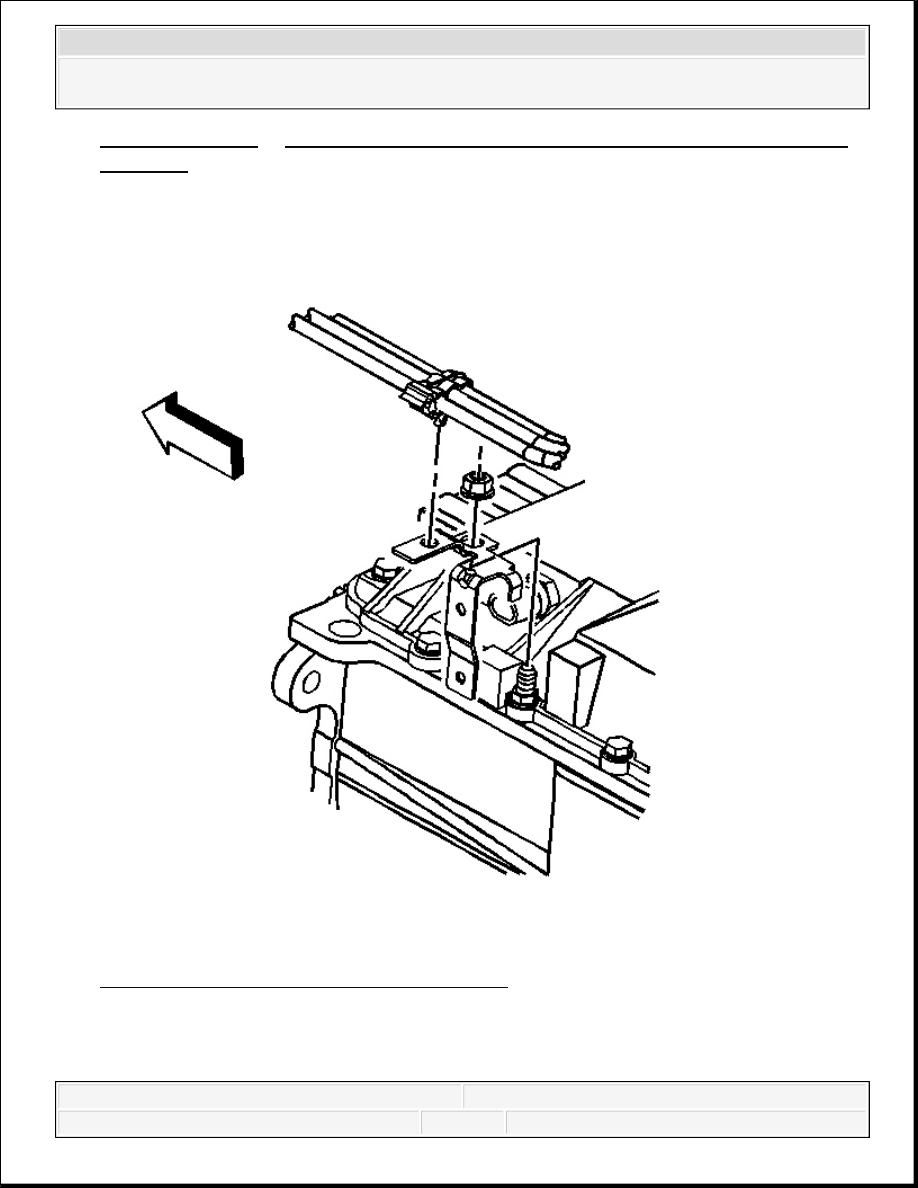

Fig. 25: View Of Fuel Feed/Return Hose Clip
Courtesy of GENERAL MOTORS CORP.

7. Install the fuel pipes to the fuel pipe bracket.

2008 Chevrolet Silverado 1500

2008 TRANSMISSION Manual Transmission - Tremec 5-Speed (M96) - Cab & Chassis Sierra, Cab & Chassis

Silverado, Sierra & Silverado
