Chevrolet Silverado / GMC Sierra. Manual - part 2525
TRANSMISSION REPLACEMENT
Tools Required
J 42371 Hydraulic Clutch Line Separator. See Special Tools.
Removal Procedure
1. Remove the shift lever. Refer to Transmission Control Lever Knob Replacement.
2. Remove the propeller shaft. Refer to One-Piece Propeller Shaft Replacement or Two-
Piece Propeller Shaft Replacement .
4
Transmission Vent Pipe Breather
5
Transmission Vent Pipe
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Manual Transmission - Tremec 5-Speed (M96) - Cab & Chassis Sierra, Cab & Chassis
Silverado, Sierra & Silverado

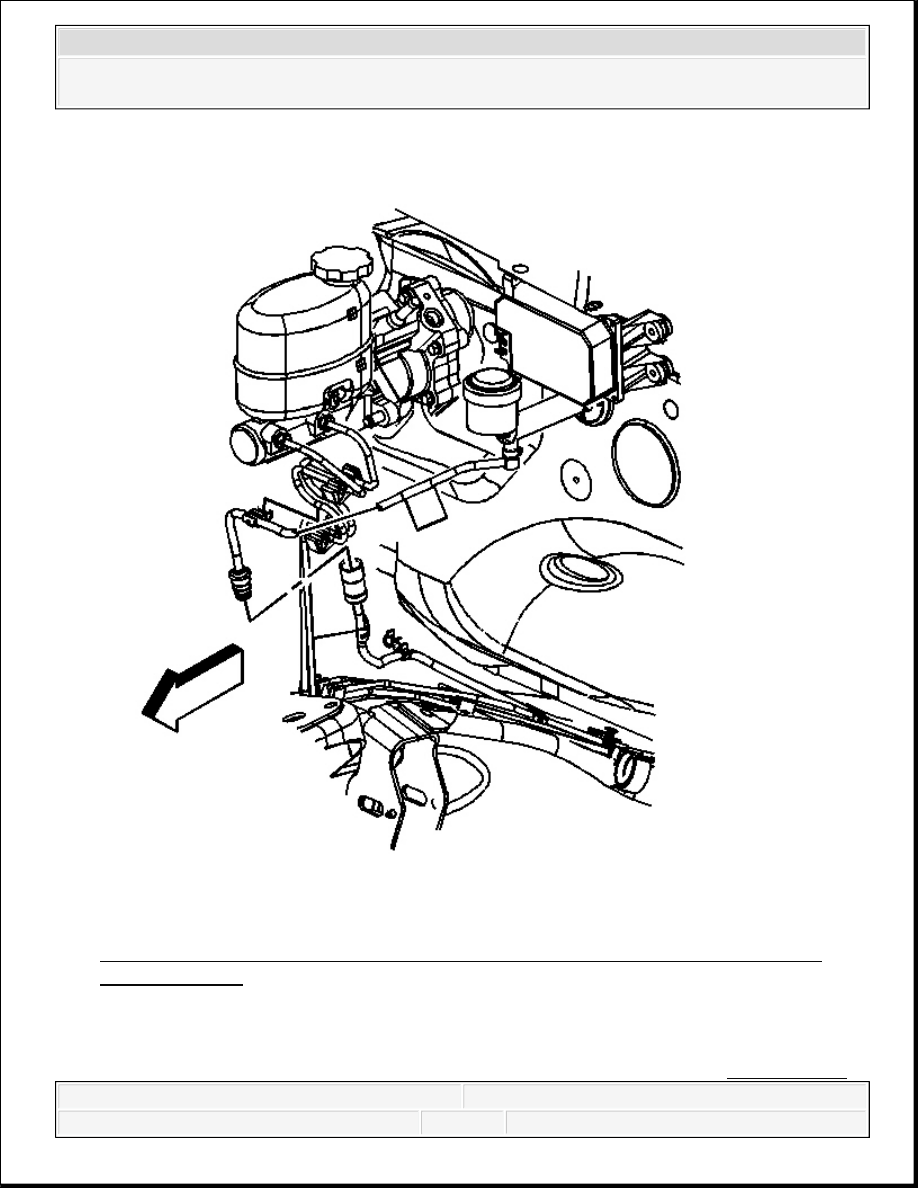

Fig. 19: Identifying Clutch Master Cylinder To Clutch Actuator Cylinder Quick
Connect Fitting
Courtesy of GENERAL MOTORS CORP.
3. Using J 42371 push back on the sleeve on the quick connect in order to disconnect the
clutch actuator cylinder to clutch master cylinder quick connect fitting. See Special Tools.
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Manual Transmission - Tremec 5-Speed (M96) - Cab & Chassis Sierra, Cab & Chassis
Silverado, Sierra & Silverado
4. Disconnect the electrical wiring harness connector from the backup lamp switch.
5. Disconnect the electrical wiring harness connector from the vehicle speed sensor.
6. Remove the engine electrical wiring harness clip from the fuel pipe bracket.

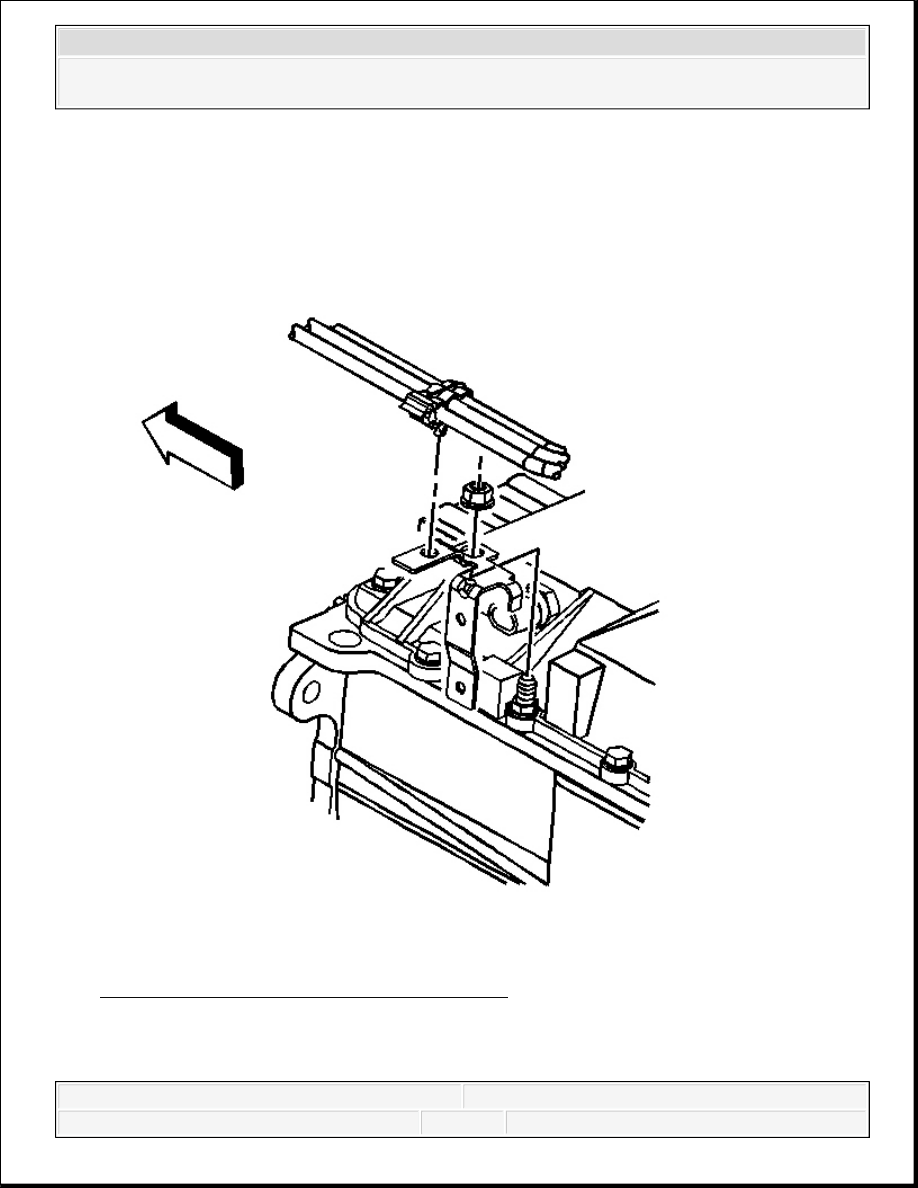

Fig. 20: View Of Fuel Feed/Return Hose Clip
Courtesy of GENERAL MOTORS CORP.
7. Remove the fuel pipes from the fuel pipe bracket.
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Manual Transmission - Tremec 5-Speed (M96) - Cab & Chassis Sierra, Cab & Chassis
Silverado, Sierra & Silverado
8. Support the transmission using a suitable transmission jack.
9. Remove the transmission support. Refer to Transmission Support Crossmember
Replacement (2WD 2500 HD/3500) or Transmission Support Crossmember
Replacement (2WD 1500/2500) or Transmission Support Crossmember Replacement
(4WD 1500/2500) or Transmission Support Crossmember Replacement (4WD 2500
HD/3500) .

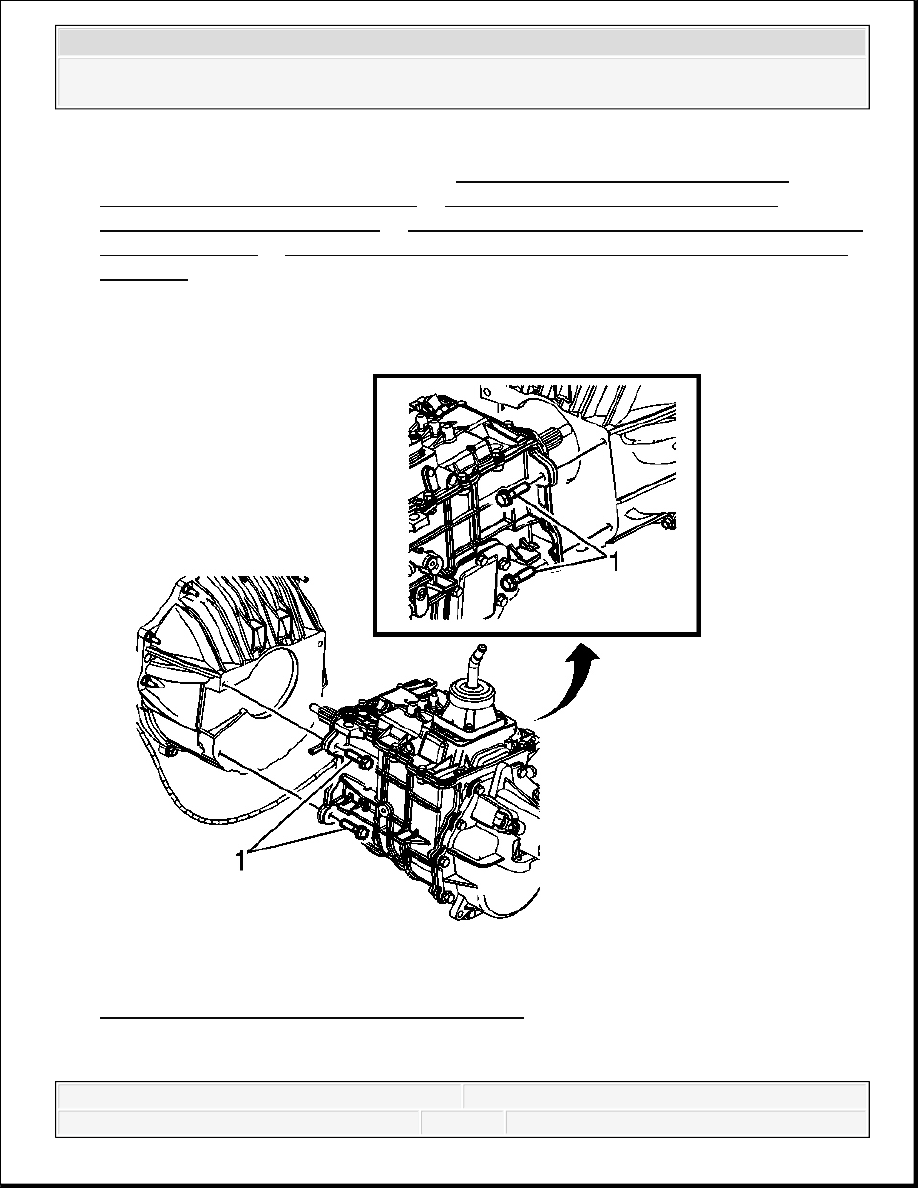

Fig. 21: Transmission To Clutch Housing Bolts
Courtesy of GENERAL MOTORS CORP.
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Manual Transmission - Tremec 5-Speed (M96) - Cab & Chassis Sierra, Cab & Chassis
Silverado, Sierra & Silverado
