Chevrolet Silverado / GMC Sierra. Manual - part 2497

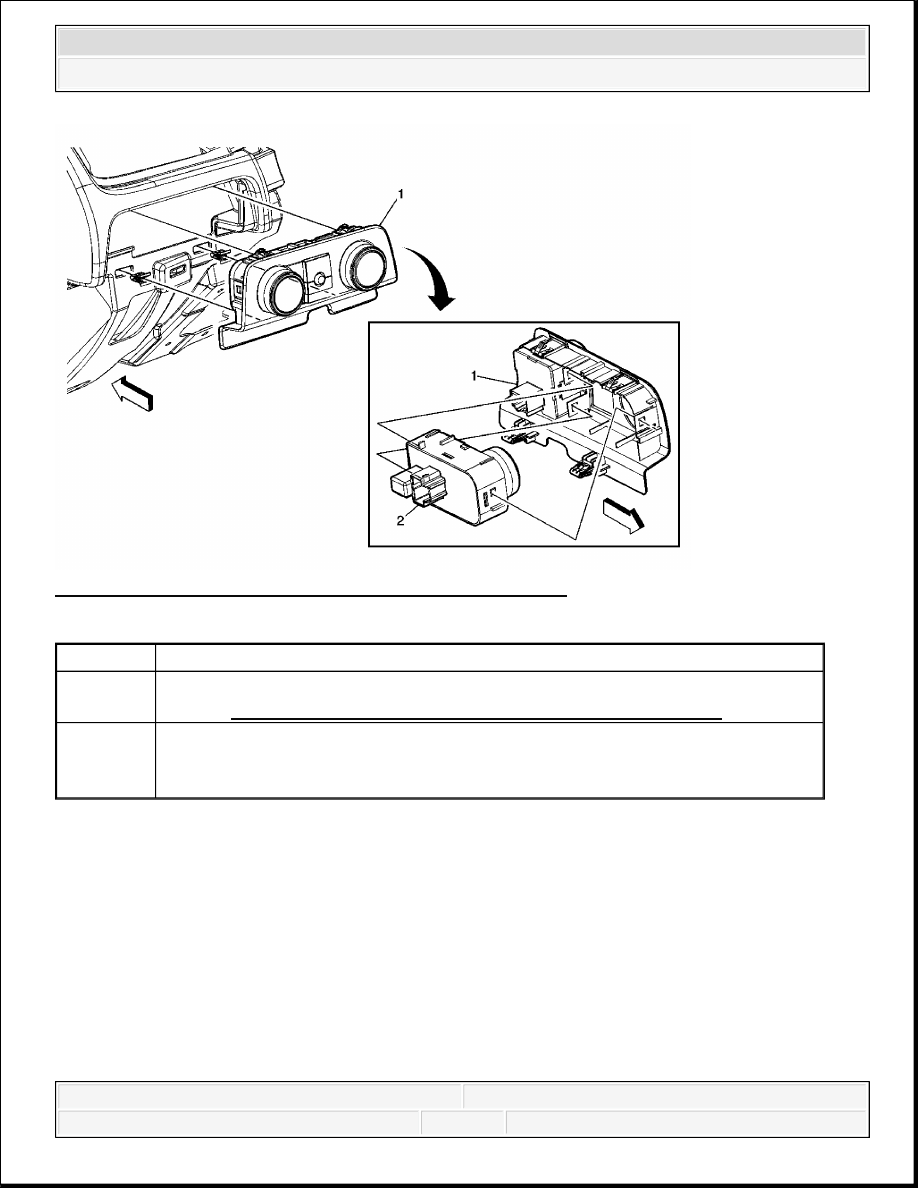

Fig. 26: Fog Lamp Switch Replacement (with RPO SLT)
Courtesy of GENERAL MOTORS CORP.
FOG LAMP SWITCH REPLACEMENT (WITHOUT RPO SLT)
Callout
Component Name
1
Headlamp Switch Trim Plate Assembly
Refer to Headlamp Switch Bezel Replacement (with RPO SLT) .
2
Headlamp and I/P Lamp Dimmer and Dome Lamp Switch Assembly
Tip: Fog lamp switch is an integral part of the headlamp switch and the unit
must therefore be replaced in whole.
2008 Chevrolet Silverado 1500
2008 ACCESSORIES & EQUIPMENT Lighting - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

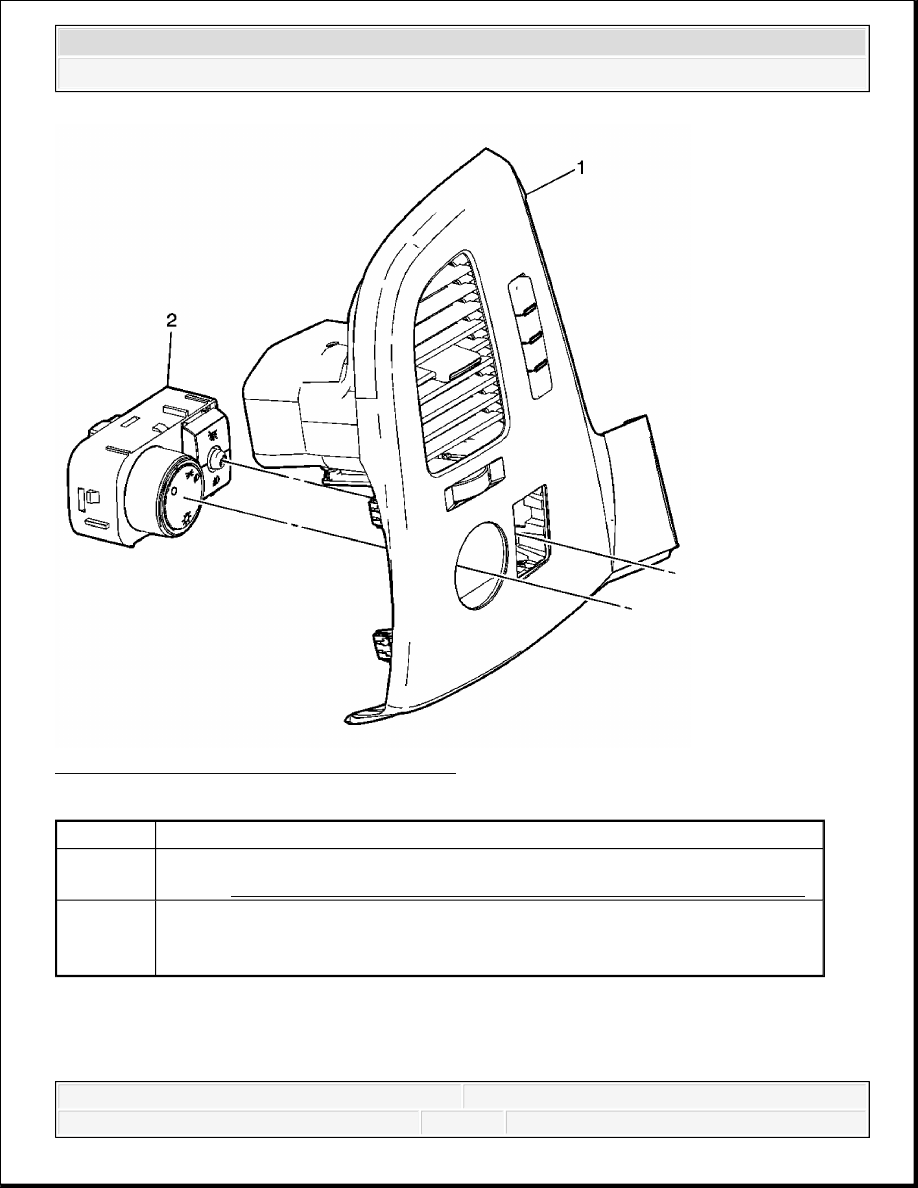

Fig. 27: View Of Switch (without RPO SLT)
Courtesy of GENERAL MOTORS CORP.
AMBIENT LIGHT SENSOR REPLACEMENT
Callout
Component Name
1
Instrument Panel Trim Plate Assembly
Refer to Instrument Panel Trim Plate Replacement (Without RPO SLT) .
2
Headlamp and I/P Lamp Dimmer and Dome Lamp Switch Assembly
Tip: Fog lamp switch is an integral part of the headlamp switch and the unit
must therefore be replaced in whole.
2008 Chevrolet Silverado 1500
2008 ACCESSORIES & EQUIPMENT Lighting - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

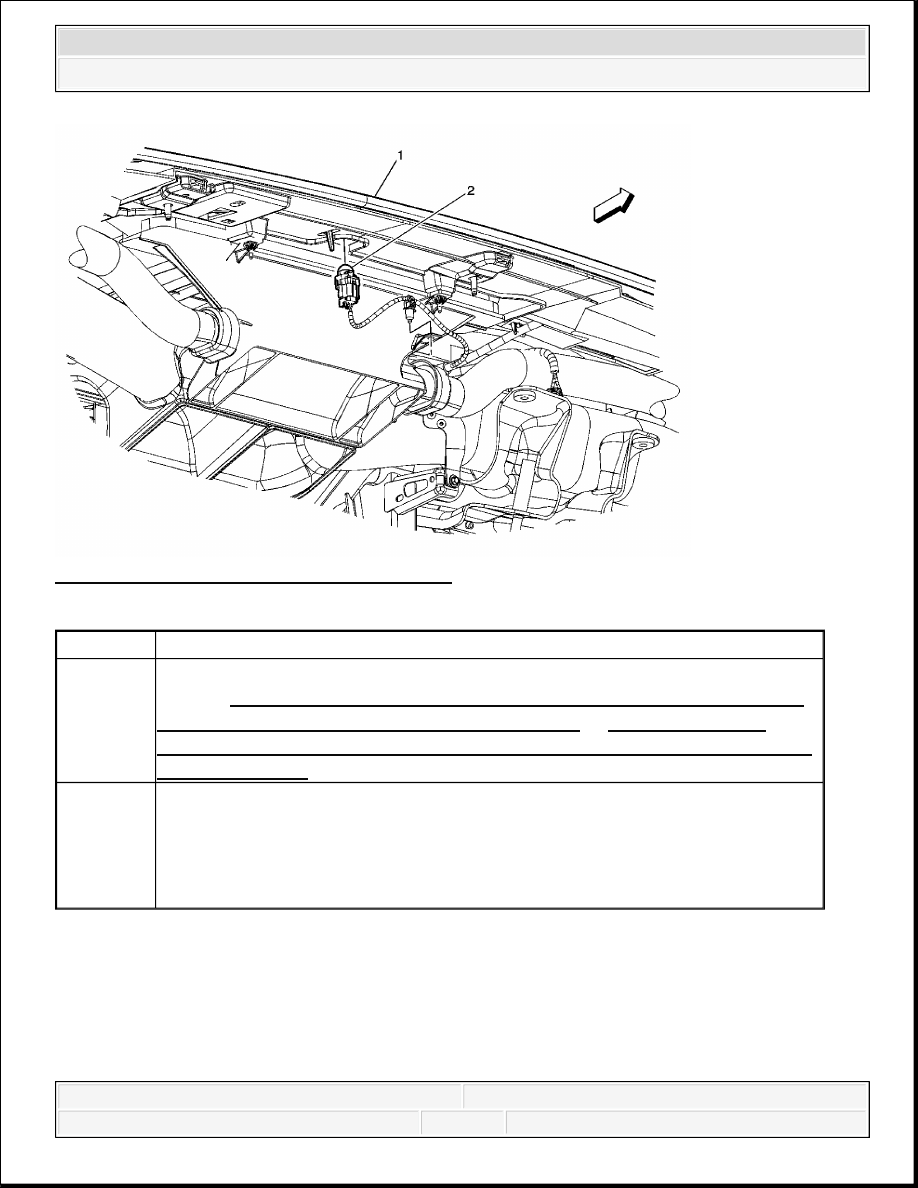

Fig. 28: Ambient Light Sensor Replacement
Courtesy of GENERAL MOTORS CORP.
OUTSIDE REARVIEW MIRROR COURTESY LAMP REPLACEMENT
Callout
Component Name
1
Instrument Panel Trim Panel
Refer to Instrument Panel Upper Trim Panel with Windshield Defroster
Nozzle Grille Replacement (without RPO SLT) or Instrument Panel
Upper Trim Panel with Windshield Defroster Nozzle Grille Replacement
(with RPO SLT) .
2
Headlamp Auto Control Ambient Light Sensor Assembly
Tip:
1. Twist and pull down to remove.
2. Disconnect electrical connector.
2008 Chevrolet Silverado 1500
2008 ACCESSORIES & EQUIPMENT Lighting - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

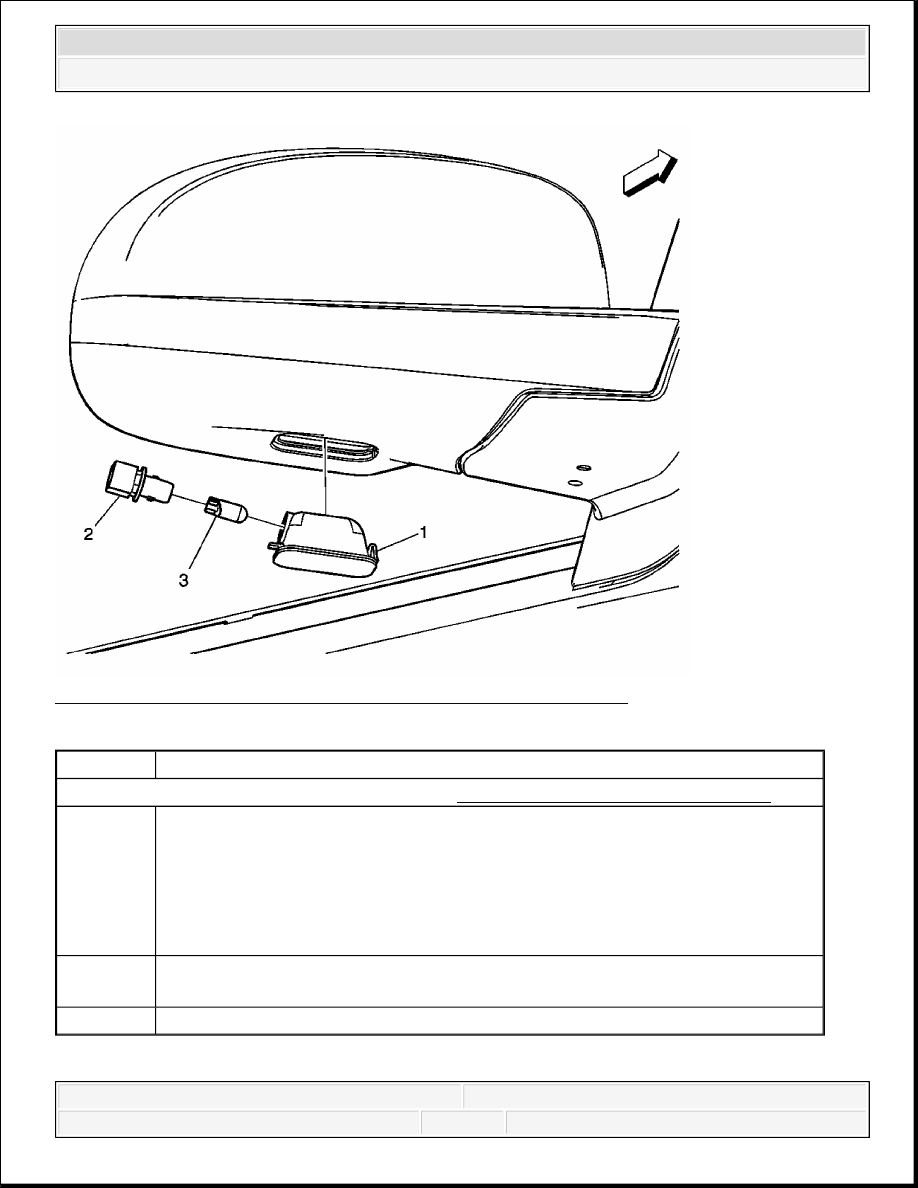

Fig. 29: Outside Rearview Mirror Courtesy Lamp Replacement
Courtesy of GENERAL MOTORS CORP.
DOME LAMP REPLACEMENT
Callout
Component Name
Fastener Tightening Specifications: Refer to Fastener Tightening Specifications.
1
Exterior Courtesy Lamp Assembly
Tip:
1. Use a flat-bladed tool to pry off assembly starting at end closest to door.
Tilt assembly end and pull down to release.
2. Disconnect electrical connector.
2
Exterior Courtesy Lamp Socket
Tip: Twist and pull to release.
3
Exterior Courtesy Lamp Bulb
2008 Chevrolet Silverado 1500
2008 ACCESSORIES & EQUIPMENT Lighting - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
