FRONT SIDE DOOR WATER DEFLECTOR REPLACEMENT Callout Component Name Preliminary Procedure: 1 Rear Access Door Upper Trim Panel Assembly 2 Rear Access Door Upper Rear Trim Panel Assembly 3 Rear Access Door Upper Trim Panel Clip (Qty: 6) 4 Rear Access Door Release Handle Cover 5 Rear Access Door Armrest Opening Cover 6 Rear Access Door Trim Panel Bolt (Qty: 3) Tighten: 2 N.m (18 lb in) NOTE: Refer to Fastener Notice . 7 Rear Access Door Trim Panel Assembly 1. Disengage door lock cable. 2. There are two hooks located on the lower portion of the door trim panel that are being used for manufacturing installation ONLY. 3. If these hook are damaged during either removal or installation of the door trim panel, replacement of the panel is not required. 8 Rear Access Door Trim Panel Retainer (Qty: 7)
2008 Chevrolet Silverado 1500 2008 ACCESSORIES & EQUIPMENT Interior Trim and Paneling - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
Fig. 9: View Of Front Side Door Water Deflector Callout Component Name Preliminary Procedure: 1 Front Side Door Water Deflector 1. Use a flat-bladed tool to separate the bond between the sealer and the door. 2. Use waterproof tape, or 3M 777 or equivalent, if the water deflector is
2008 Chevrolet Silverado 1500 2008 ACCESSORIES & EQUIPMENT Interior Trim and Paneling - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
REAR SIDE DOOR WATER DEFLECTOR REPLACEMENT damaged. 3. It will be necessary to replace trim panel retaining clips, if broken. 4. Before replacing the water deflector clean the door adhesive area, using a 50/50 mix of isopropyl alcohol or equivalent.
2008 Chevrolet Silverado 1500 2008 ACCESSORIES & EQUIPMENT Interior Trim and Paneling - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

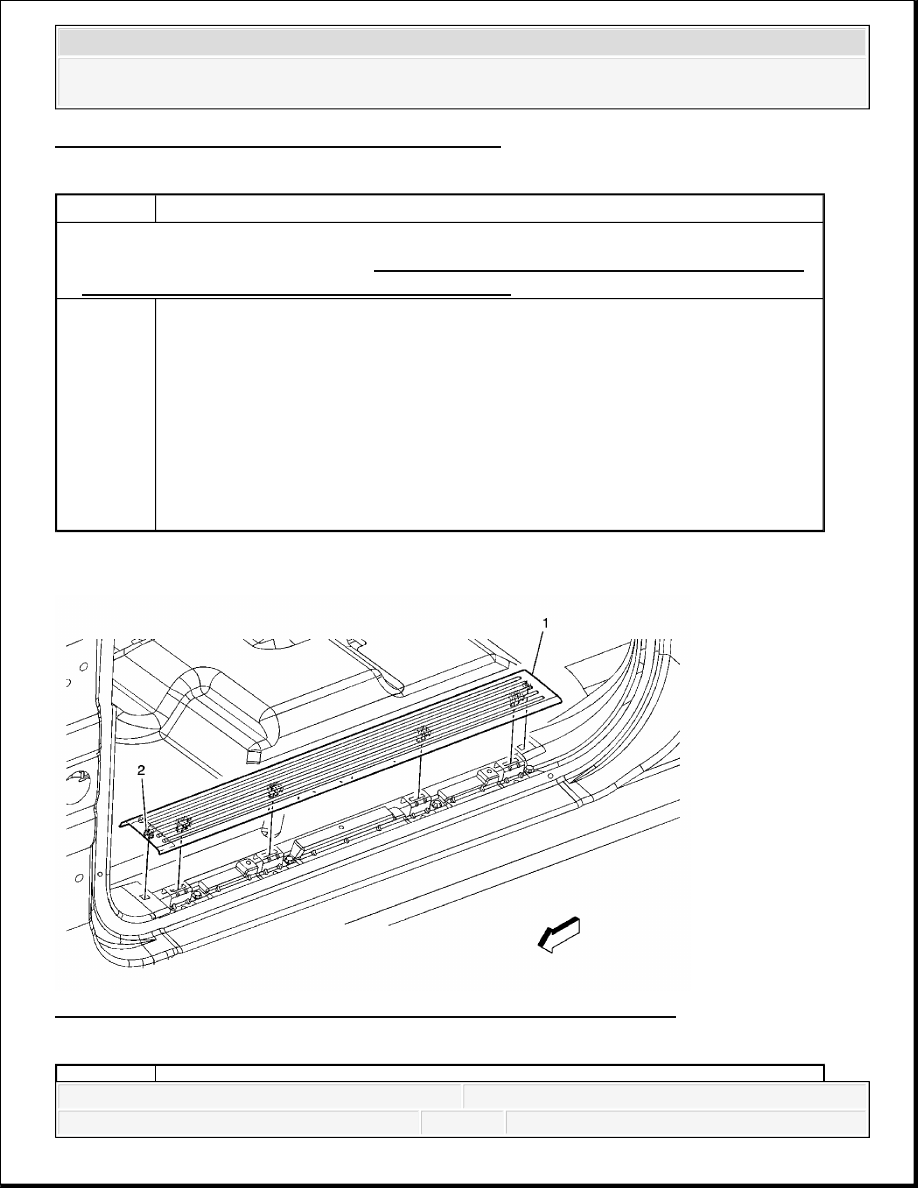

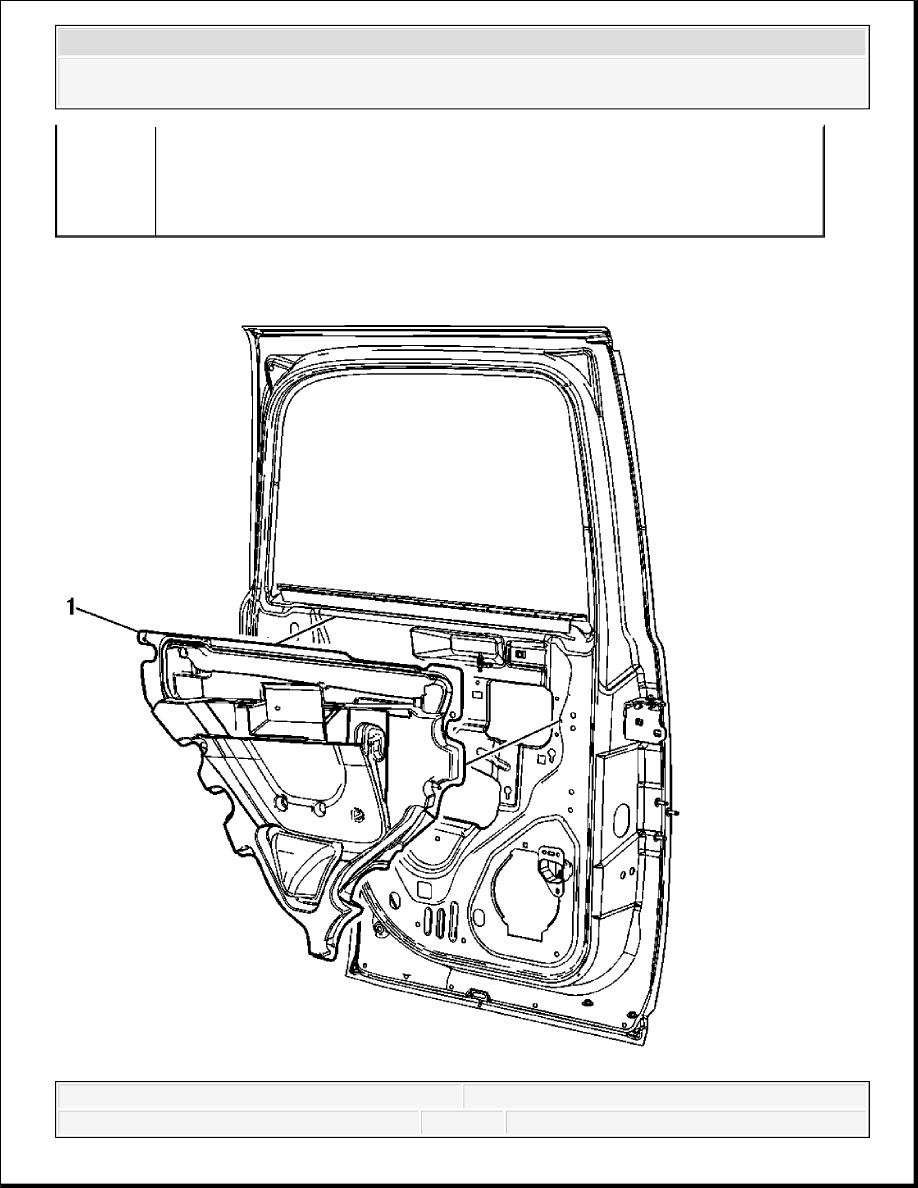

Fig. 10: View Of Rear Side Door Water Deflector FRONT SIDE DOOR SILL PLATE REPLACEMENT (REGULAR CAB/CREW CAB) Fig. 11: View Of Front Side Door Sill Plate (Regular Cab/Crew Cab) Callout Component Name Preliminary Procedure: 1 Rear Side Door Water Deflector 1. Use a flat-bladed tool to separate the bond between the sealer and the door. 2. Use waterproof tape or equivalent, if the water deflector is damaged. 3. It will be necessary to replace trim panel retaining clips, if broken. 4. Before replacing the water deflector, clean the door adhesive area using a 50/50 mix of isopropyl alcohol or equivalent.
