Courtesy of GENERAL MOTORS CORP. FRONT SIDE DOOR TRIM PANEL REPLACEMENT (YE9) Fig. 4: View Of Front Side Door Trim Panel (YE9) Callout Component Name 1 Front Side Door Upper Trim Panel Assembly 2 Front Side Door Upper Trim Panel Clip (Qty: 3) Callout Component Name Preliminary Procedure 1. Remove upper extension trim panel. Refer to Upper Extension Trim Panel Replacement. 2. Remove door pull handle. Refer to Front Side Door Pull Handle Replacement. 3. Remove door lock and window control switch (if equipped). Refer to Door Lock and Side Window Switch Replacement - Driver Side and Door Lock and Side
2008 Chevrolet Silverado 1500 2008 ACCESSORIES & EQUIPMENT Interior Trim and Paneling - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

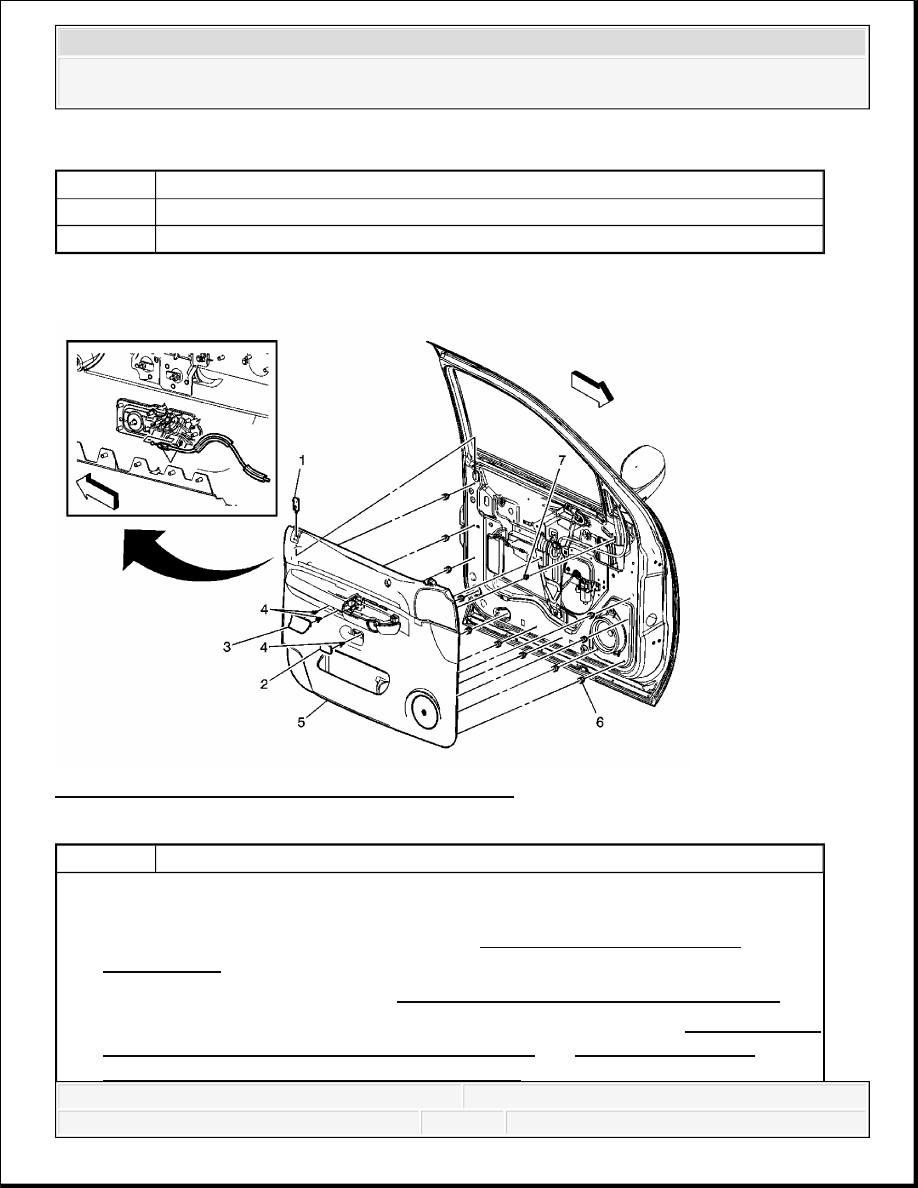

FRONT SIDE DOOR TRIM PANEL REPLACEMENT (SLT) 4. Remove the door window regulator handle (if equipped). Refer to Door Window Regulator Handle Replacement . 1 Front Side Door Locking Rod Knob Assembly 1. Lower window. 2. Ensure locking rod is in the unlocked position. 3. Use a flat-bladed tool to disengage detent tab and then remove knob by pulling upward. 4. When re-installing, push knob down until detent tab touches locking rod opening cover. 5. Push detent tab in to lock knob to locking rod. 2 Front Side Door Release Handle Cover 3 Front Side Door Armrest Opening Cover 4 Front Side Door Trim Panel Bolt (Qty: 3) Tighten: 2 N.m (18 lb in) NOTE: Refer to Fastener Notice . 5 Front Side Door Trim Panel Assembly 1. Disengage door lock cable. 2. There are two hooks located on the lower portion of the door trim panel that are being used for manufacturing installation ONLY. 3. If these hook are damaged during either removal or installation of the door trim panel, replacement of the panel is not required. 6 Front Side Door Trim Panel Retainer (Qty: 11)
2008 Chevrolet Silverado 1500 2008 ACCESSORIES & EQUIPMENT Interior Trim and Paneling - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

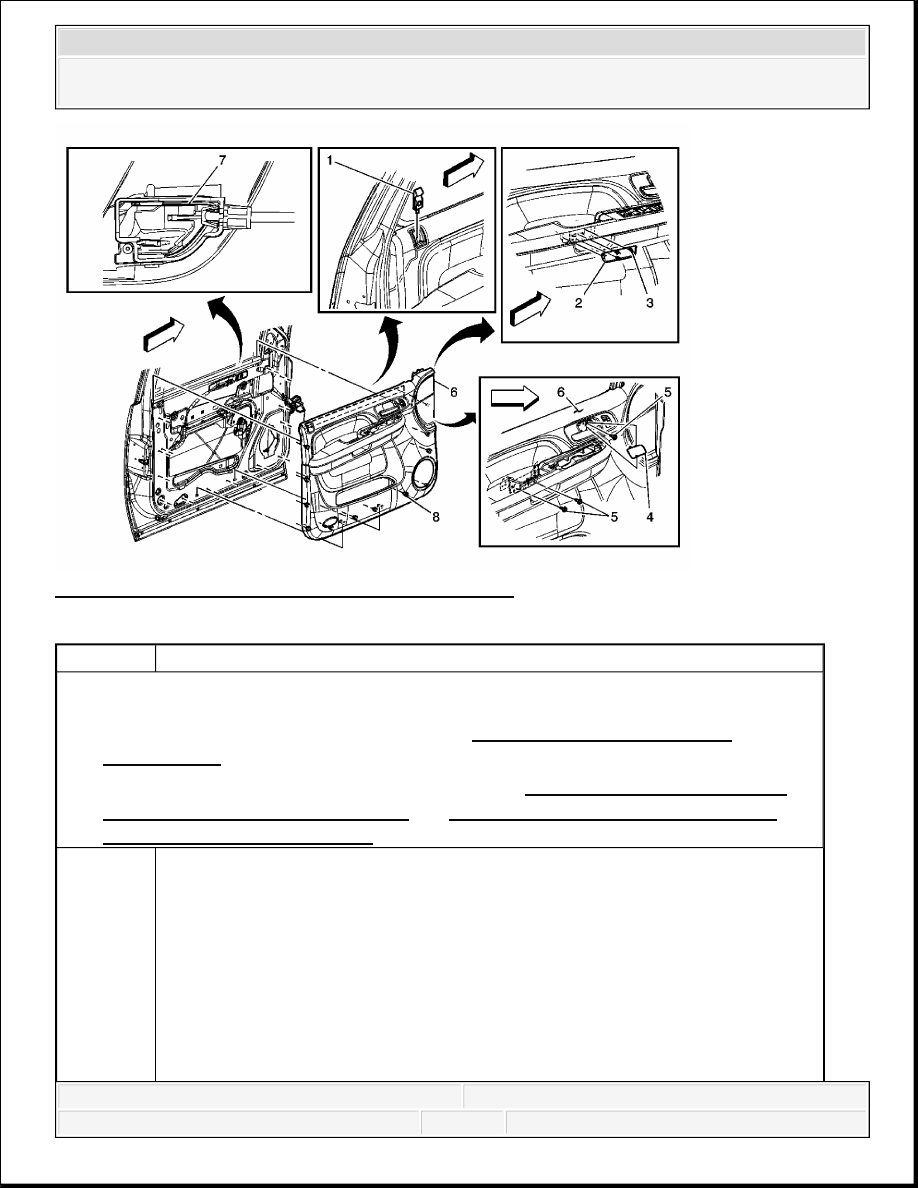

Fig. 5: View Of Front Side Door Trim Panel (SLT) Callout Component Name Preliminary Procedure 1. Remove the door upper trim panel. Refer to Upper Extension Trim Panel Replacement. 2. Remove the door window control switch. Refer to Door Lock and Side Window Switch Replacement - Driver Side and Door Lock and Side Window Switch 1 Front Side Door Locking Rod Knob Assembly 1. Lower the window. 2. Ensure the locking rod is in the unlocked position. 3. Use a flat-bladed tool to disengage the detent tab and then remove the knob by pulling upward. 4. When re-installing, push the knob down until the detent tab touches the locking rod opening cover.
2008 Chevrolet Silverado 1500 2008 ACCESSORIES & EQUIPMENT Interior Trim and Paneling - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
REAR SIDE DOOR TRIM PANEL REPLACEMENT (YE9) 5. Push the detent tab in to lock the knob to the locking rod. 2 Front Side Door Trim Panel Cover 3 Front Side Door Trim Panel Cover Retainer (Qty: 3) 4 Front Side Door Inside Handle Bezel Cover 5 Front Side Door Trim Panel Bolt (Qty: 3) Tighten: 2 N.m (18 lb in) NOTE: Refer to Fastener Notice . 6 Front Side Door Trim Panel Assembly 1. Disconnect the electrical connectors. 2. There are 2 hooks located on the lower portion of the door trim panel that are being used for manufacturing installation ONLY. 3. If these hooks are damaged during either removal or installation of the door trim panel, replacement of the panel is not required. 4. When installing the trim panel start at the lock knob, pushing down and outward moving toward the upper front. 7 Front Side Door Cable Retainer 8 Front Side Door Trim Panel Retainer (Qty: 12)
2008 Chevrolet Silverado 1500 2008 ACCESSORIES & EQUIPMENT Interior Trim and Paneling - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
