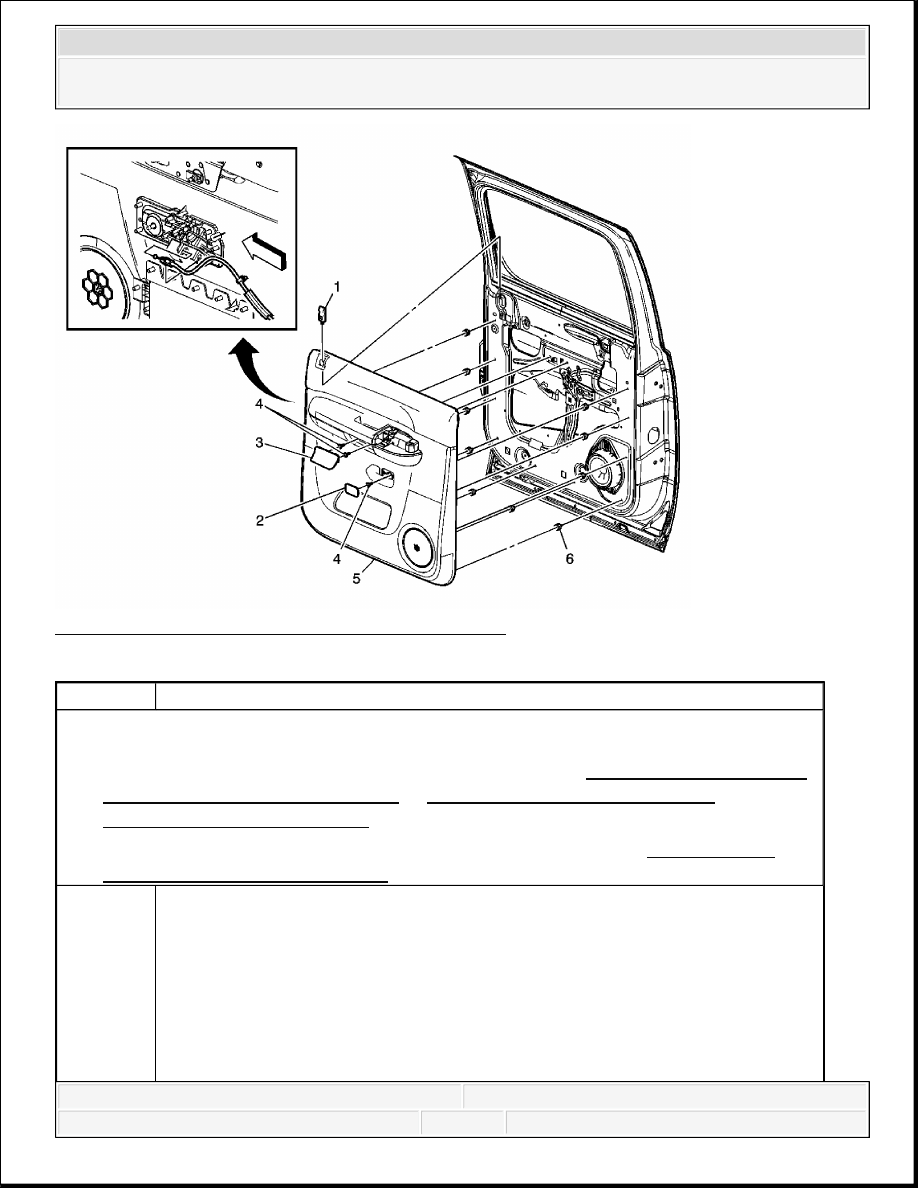

Fig. 6: View Of Rear Side Door Trim Panel (YE9) Callout Component Name Preliminary Procedure 1. Remove the window control switch, if equipped. Refer to Rear Side Door Window Switch Replacement (Crew Cab) or Rear Side Door Window Switch 2. Remove the door window regulator handle, if equipped. Refer to Door Window Regulator Handle Replacement . 1 Rear Side Door Locking Rod Knob Assembly Procedure 1. Lower window. 2. Ensure locking rod is in the unlocked position. 3. Use a flat-bladed tool to disengage detent tab and then remove knob by
2008 Chevrolet Silverado 1500 2008 ACCESSORIES & EQUIPMENT Interior Trim and Paneling - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
REAR SIDE DOOR TRIM PANEL REPLACEMENT (SLT) pulling upward. 4. When re-installing, push knob down until detent tab touches locking rod opening cover. 5. Push detent tab in to lock knob to locking rod. 2 Rear Side Door Release Handle Cover 3 Rear Side Door Armrest Opening Cover 4 Rear Side Door Trim Panel Bolt (Qty: 3) Tighten: 2 N.m (18 lb in) NOTE: Refer to Fastener Notice . 5 Rear Side Door Trim Panel Assembly Procedure 1. Disengage door lock cable. 2. There are two hooks located on the lower portion of the door trim panel that are being used for manufacturing installation ONLY. 3. If these hook are damaged during either removal or installation of the door trim panel, replacement of the panel is not required. 6 Rear Side Door Trim Panel Retainer (Qty: 10)
2008 Chevrolet Silverado 1500 2008 ACCESSORIES & EQUIPMENT Interior Trim and Paneling - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

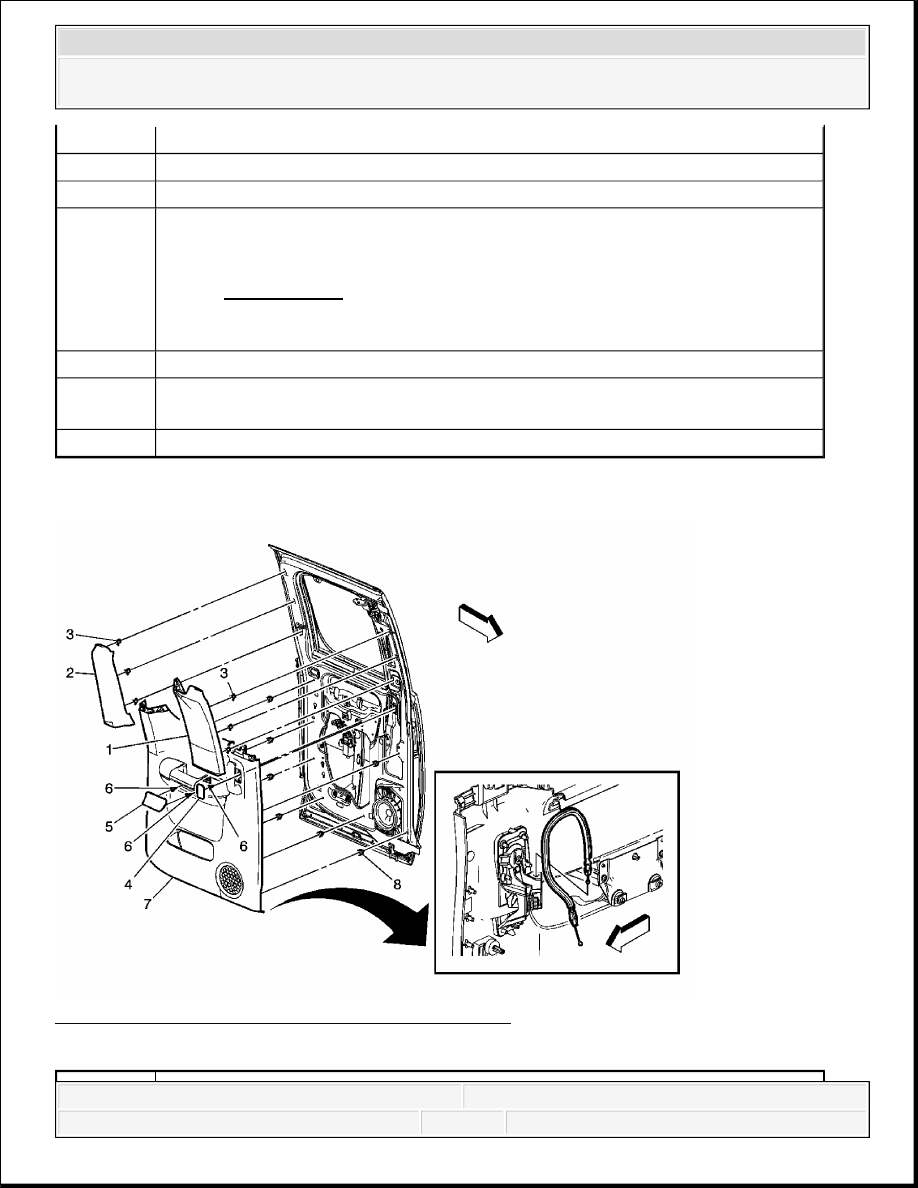

Fig. 7: View Of Rear Side Door Trim Panel (SLT) Callout Component Name Preliminary Procedure: 1 Rear Side Door Locking Rod Knob Assembly Procedure 1. Lower the window. 2. Ensure the locking rod is in the unlocked position. 3. Use a flat-bladed tool to disengage detent tab, then remove knob by pulling upward. 4. When re-installing, push the knob down, until the detent tab touches locking rod opening cover. 5. Push the detent tab in to lock knob to locking rod.
2008 Chevrolet Silverado 1500 2008 ACCESSORIES & EQUIPMENT Interior Trim and Paneling - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

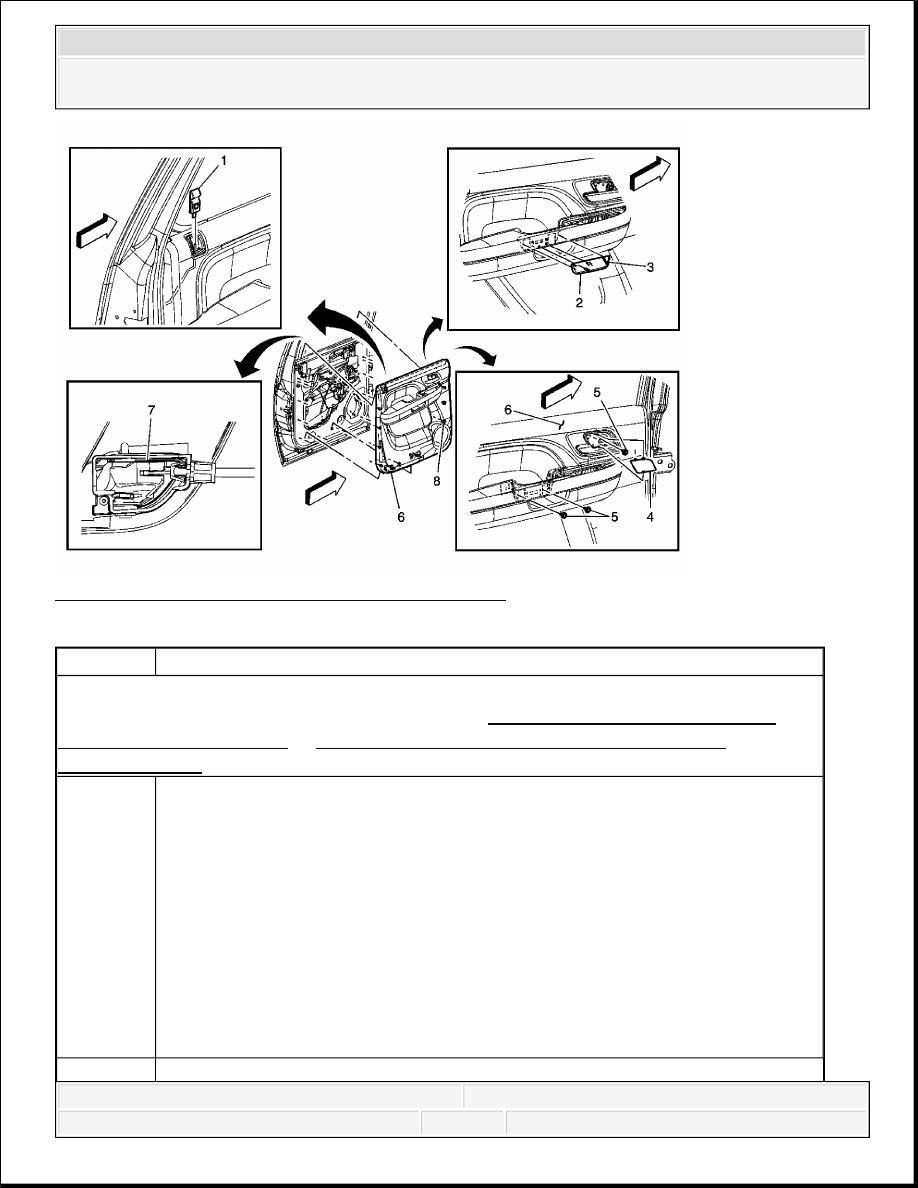

REAR SIDE ACCESS DOOR TRIM PANEL REPLACEMENT Fig. 8: View Of Rear Side Access Door Trim Panel 2 Rear Side Door Trim Panel Cover 3 Rear Side Door Trim Panel Cover Retainer (Qty: 4) 4 Rear Side Door Inside Handle Bezel Cover 5 Rear Side Door Trim Panel Bolt (Qty: 3) Tighten: 2 N.m (18 lb in) NOTE: Refer to Fastener Notice . 6 Rear Side Door Trim Panel Assembly 7 Rear Side Door Cable Retainer 8 Rear Side Door Trim Panel Retainer (Qty: 10)
