INSTRUMENT PANEL UPPER TRIM PANEL WITH WINDSHIELD DEFROSTER NOZZLE Fig. 40: View Of Instrument Panel Upper Trim Panel & Retainer Clips 4 Instrument Panel Lower Trim Panel Assembly Procedure 1. Note location and routing of the instrument panel wiring harness prior to removal of the instrument panel lower trim panel assembly to ensure 2. Disconnect the wiring harness from the instrument panel lower trim panel assembly. 3. With the aid of an assistant, remove the instrument panel lower trim panel assembly from the vehicle. 4. If replacing the instrument panel lower trim panel assembly, transfer all necessary components.
2008 Chevrolet Silverado 1500 2008 ACCESSORIES & EQUIPMENT Instrument Panel and Console Trim - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
INSTRUMENT PANEL UPPER TRIM PANEL WITH WINDSHIELD DEFROSTER NOZZLE Fig. 41: View Of Instrument Panel Upper Trim Panel with Windshield Defroster Nozzle Callout Component Name Preliminary Procedure: 1 Instrument Panel Upper Trim Panel 1. Disconnect the electrical connectors. 2. If replacing the instrument panel upper trim panel, transfer all necessary components. 2 Retainer Clip (Qty: 7) Callout Component Name Preliminary Procedure:
2008 Chevrolet Silverado 1500 2008 ACCESSORIES & EQUIPMENT Instrument Panel and Console Trim - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

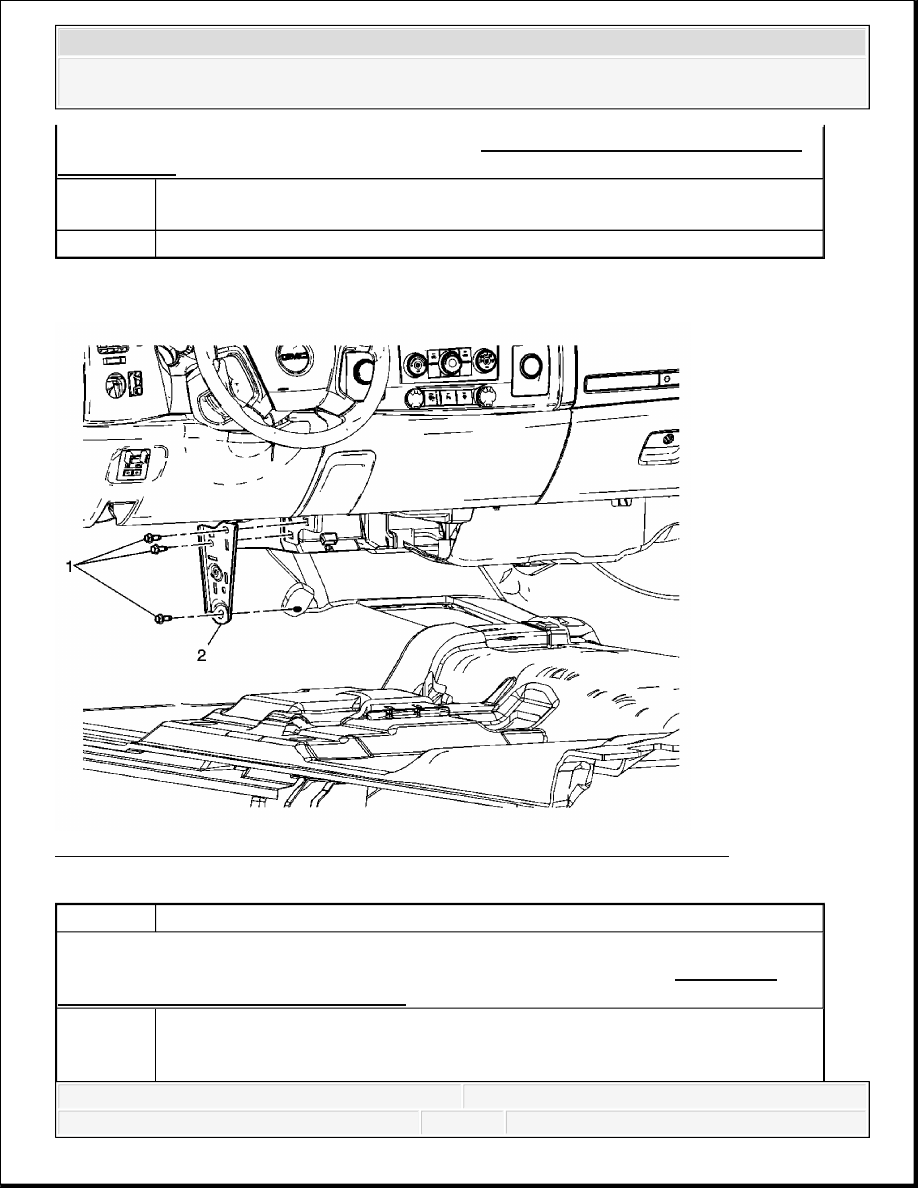

INSTRUMENT PANEL CENTER SUPPORT BRACKET REPLACEMENT Fig. 42: View Of Instrument Panel Lower Center Support Bracket & Bolts Remove the windshield garnish moldings. Refer to Windshield Pillar Garnish Molding 1 Instrument Panel Upper Trim Panel 2 Retainer Clips (Qty: 7) Callout Component Name Preliminary Procedure: Instrument Panel Lower Center Support Bracket Bolt (Qty: 3) NOTE:
2008 Chevrolet Silverado 1500 2008 ACCESSORIES & EQUIPMENT Instrument Panel and Console Trim - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

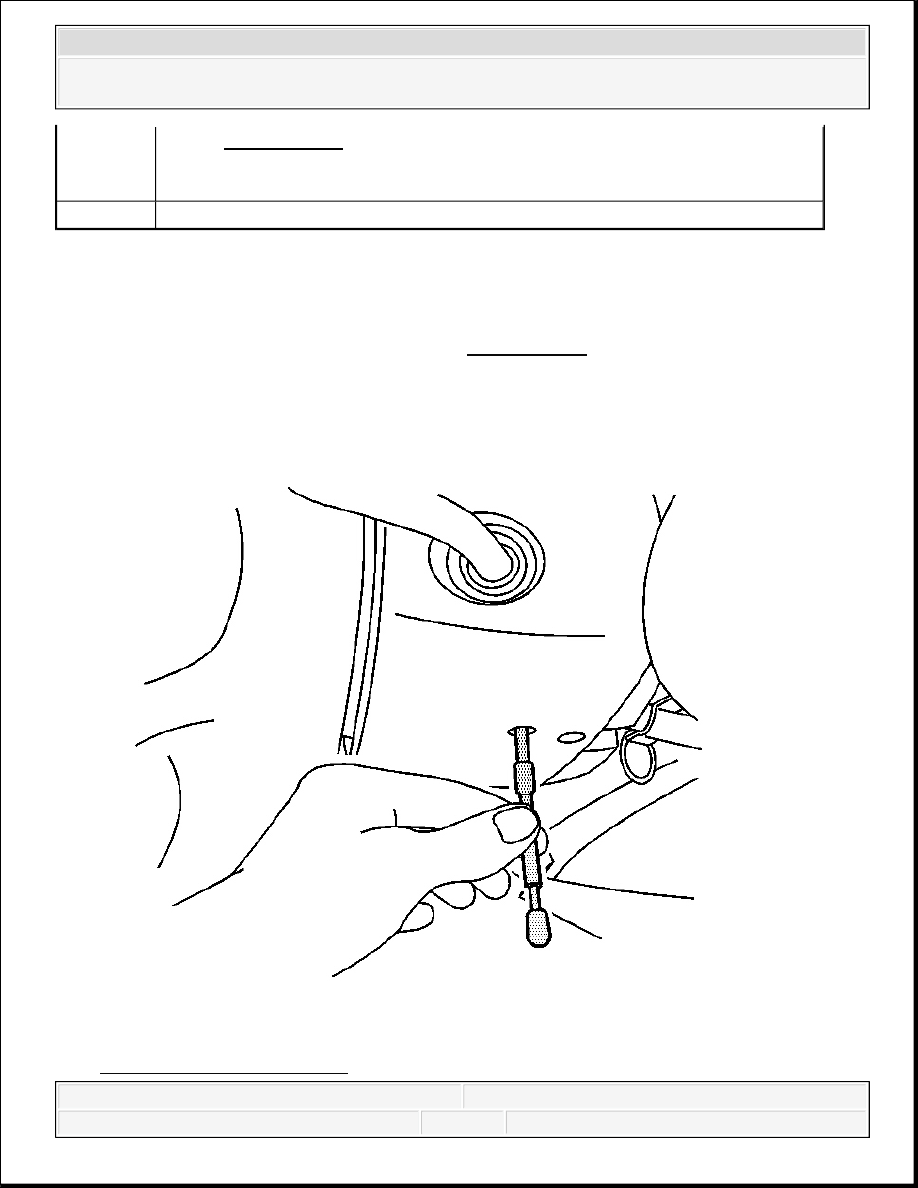

INSTRUMENT PANEL SERVICE POSITIONING (WITHOUT SLT) Special Tools J 42640 Steering Column Anti-Rotation Pin. See Special Tools. Removal Procedure Fig. 43: Identifying J 42640 1 Tighten: 22 N.m (16 lb ft) Refer to Fastener Notice . 2 Instrument Panel Lower Center Support Bracket
