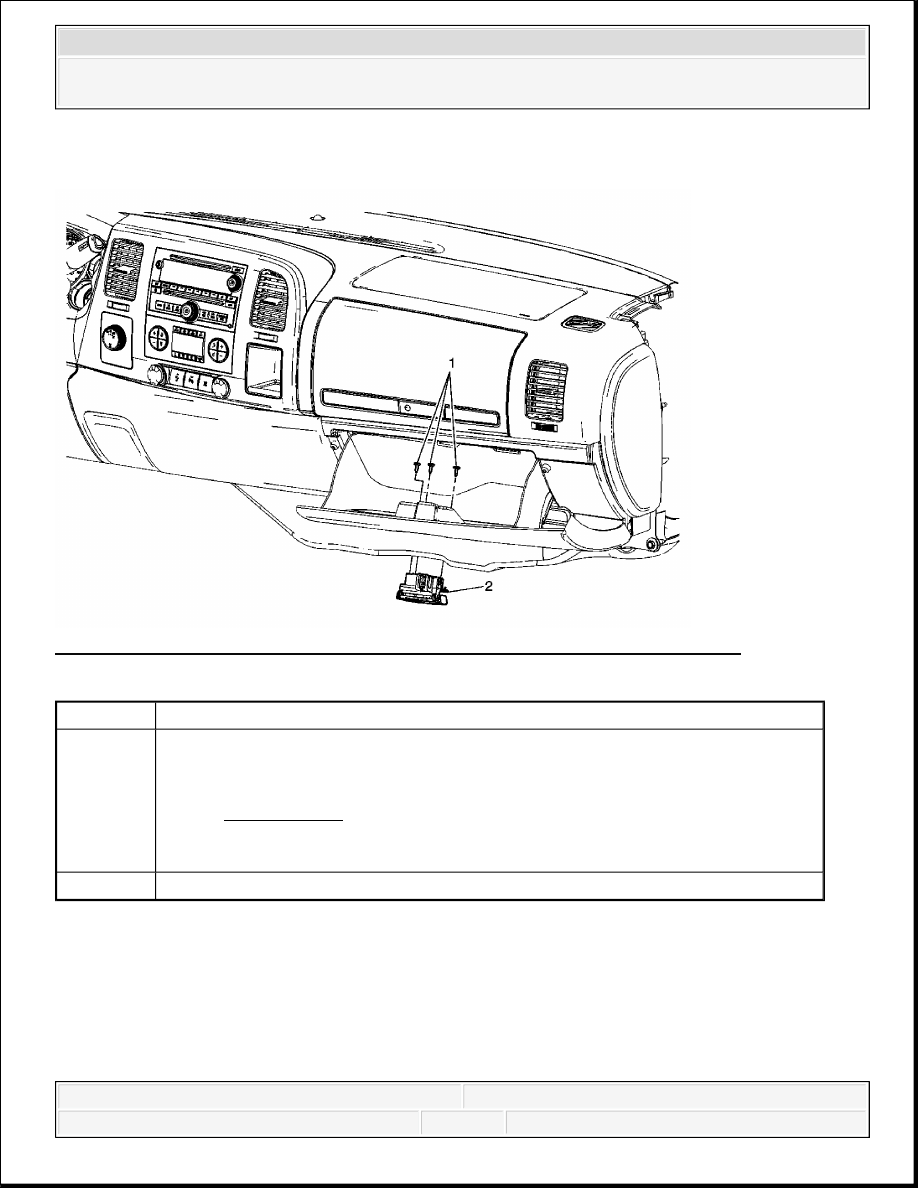

INSTRUMENT PANEL COMPARTMENT DOOR LATCH REPLACEMENT (WITHOUT RPO SLT) Fig. 32: View Of Instrument Panel Compartment Latch Assembly & Screws INSTRUMENT PANEL COMPARTMENT DOOR LOCK CYLINDER REPLACEMENT Removal Procedure Callout Component Name 1 Instrument Panel Compartment Latch Screw (Qty: 3) Tighten: 2 N.m (18 lb in) NOTE: Refer to Fastener Notice . 2 Instrument Panel Compartment Latch Assembly
2008 Chevrolet Silverado 1500 2008 ACCESSORIES & EQUIPMENT Instrument Panel and Console Trim - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

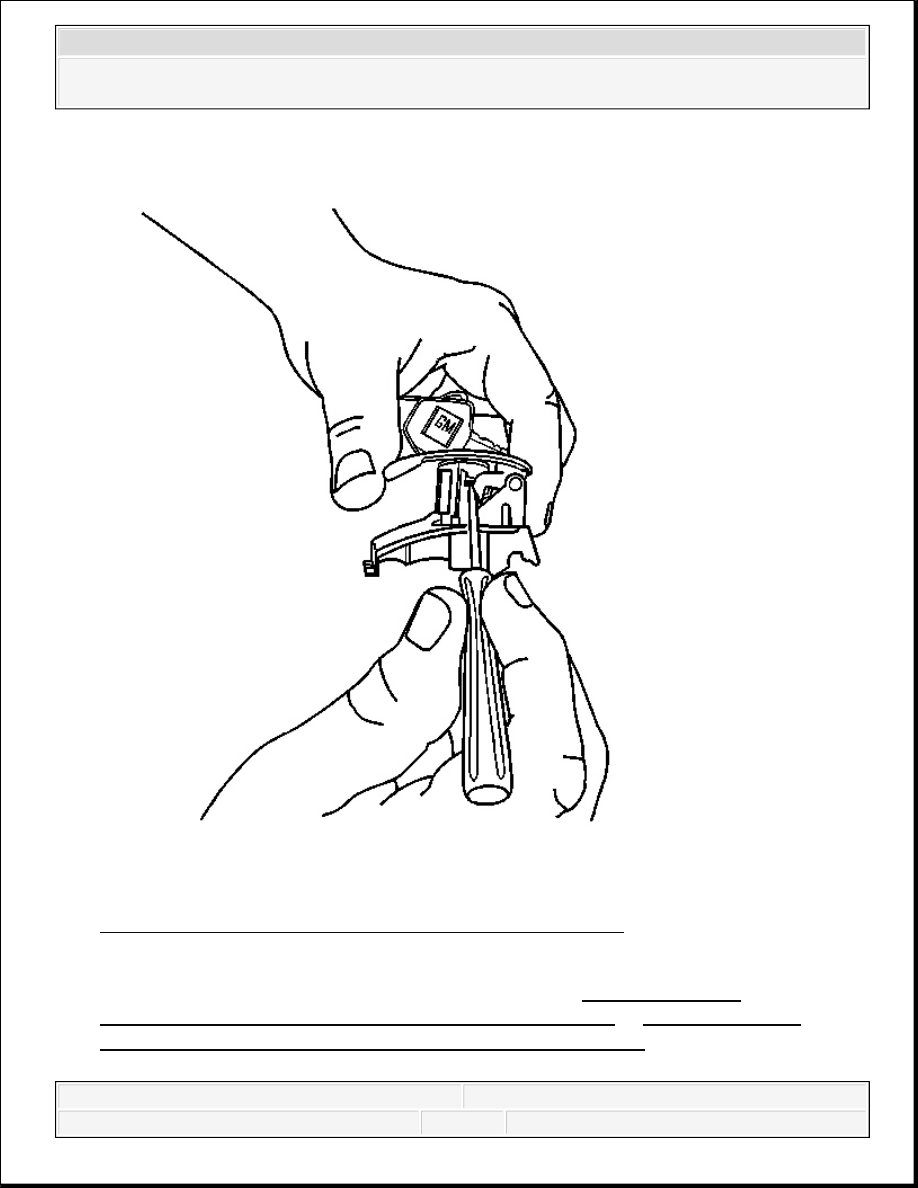

Fig. 33: Depressing Retainer Tumbler Through Poke Hole 1. Remove the instrument panel compartment latch. Refer to Instrument Panel Compartment Door Latch Replacement (with RPO SLT) or Instrument Panel 2. Position the instrument panel compartment latch fork bolt in the up position.
2008 Chevrolet Silverado 1500 2008 ACCESSORIES & EQUIPMENT Instrument Panel and Console Trim - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

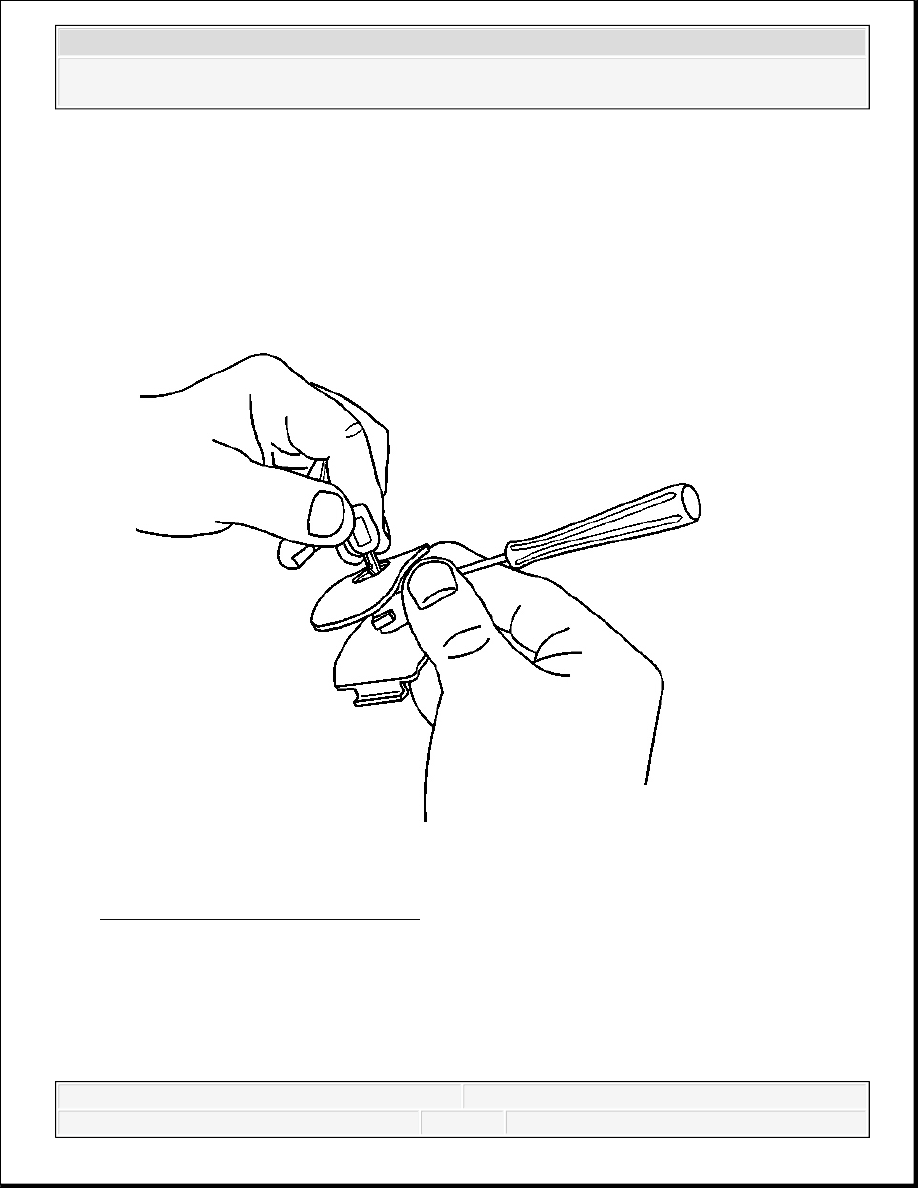

3. Insert the key into the instrument panel compartment lock cylinder. 4. Rotate the instrument panel compartment lock cylinder clockwise to the 3 o'clock position with the key. 5. With the key in position, apply a light load and depress the retainer tumbler through the poke hole at the right hand side of the instrument panel compartment latch. Fig. 34: Rotating Key To 5 O'Clock 6. Rotate the key until the instrument panel compartment lock cylinder rotates to about the 5 o'clock position. This will line up the notch at the rear of the instrument panel compartment lock cylinder
2008 Chevrolet Silverado 1500 2008 ACCESSORIES & EQUIPMENT Instrument Panel and Console Trim - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

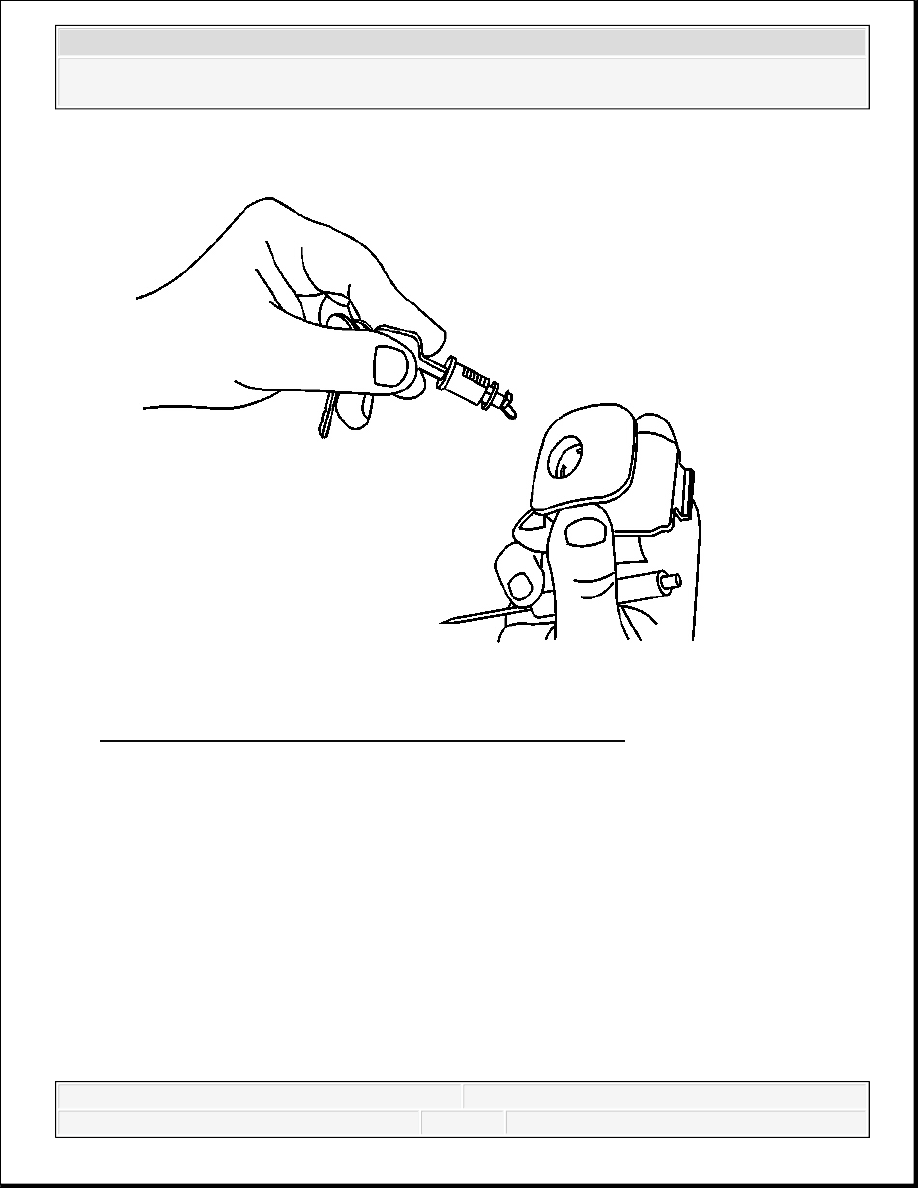

Fig. 35: Identifying I/P Compartment Door Lock Cylinder 7. Remove the instrument panel compartment lock cylinder from the instrument panel compartment latch by pulling on the key. Installation Procedure
2008 Chevrolet Silverado 1500 2008 ACCESSORIES & EQUIPMENT Instrument Panel and Console Trim - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
