Chevrolet Silverado / GMC Sierra. Manual - part 2404
INSTRUMENT PANEL COMPARTMENT ACCESS HOLE COVER REPLACEMENT (WITHOUT
RPO SLT)

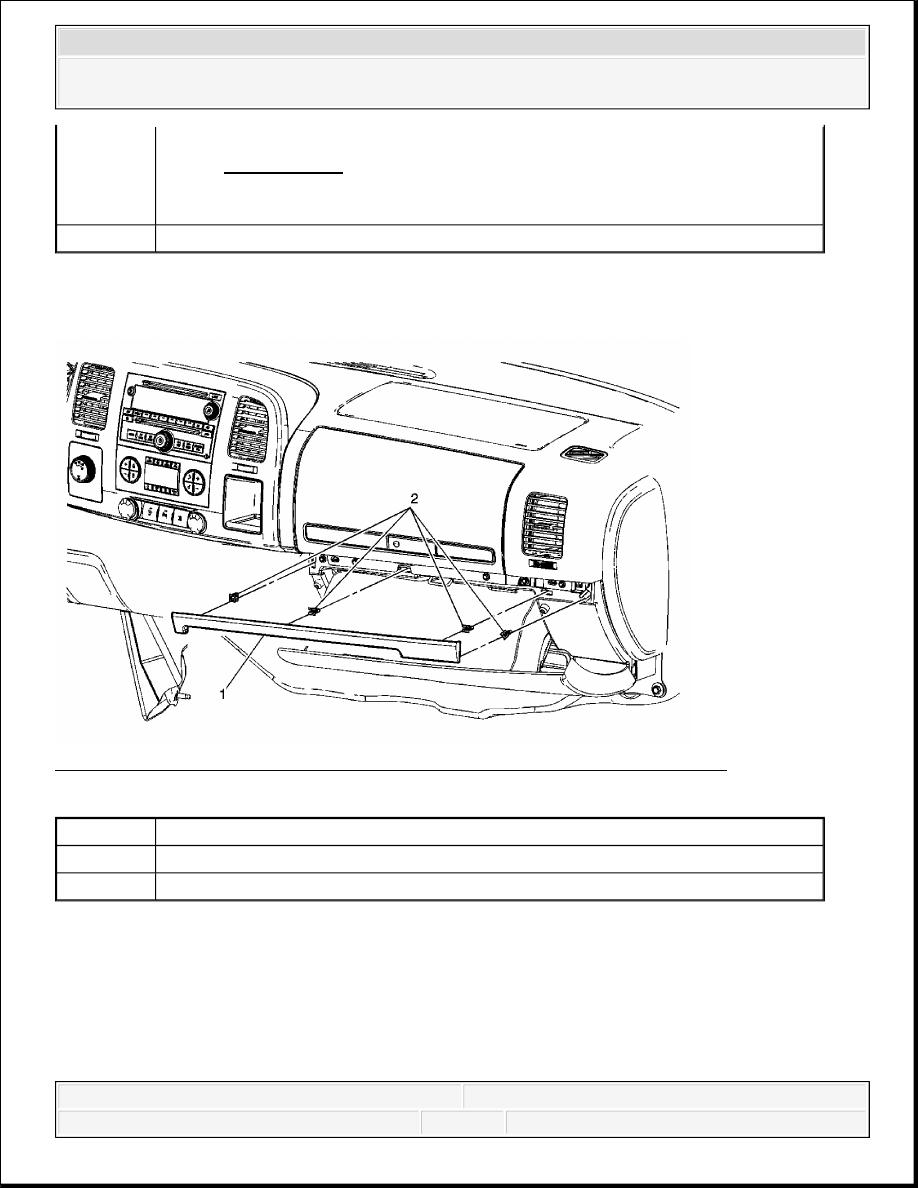

Fig. 28: View Of Instrument Panel Compartment Cover Assembly & Clips
Courtesy of GENERAL MOTORS CORP.
INSTRUMENT PANEL COMPARTMENT ACCESS HOLE COVER REPLACEMENT (WITH RPO
RPO SLT)
2
Tighten: 2 N.m (18 lb in)
NOTE:
Refer to Fastener Notice .
3
Instrument Panel Compartment Assembly (Lower Trim Panel)
Callout
Component Name
1
Instrument Panel Compartment Access Cover Assembly
2
Retainer Clip (Qty: 4)
2008 Chevrolet Silverado 1500
2008 ACCESSORIES & EQUIPMENT Instrument Panel and Console Trim - Cab & Chassis Sierra, Cab & Chassis
Silverado, Sierra & Silverado

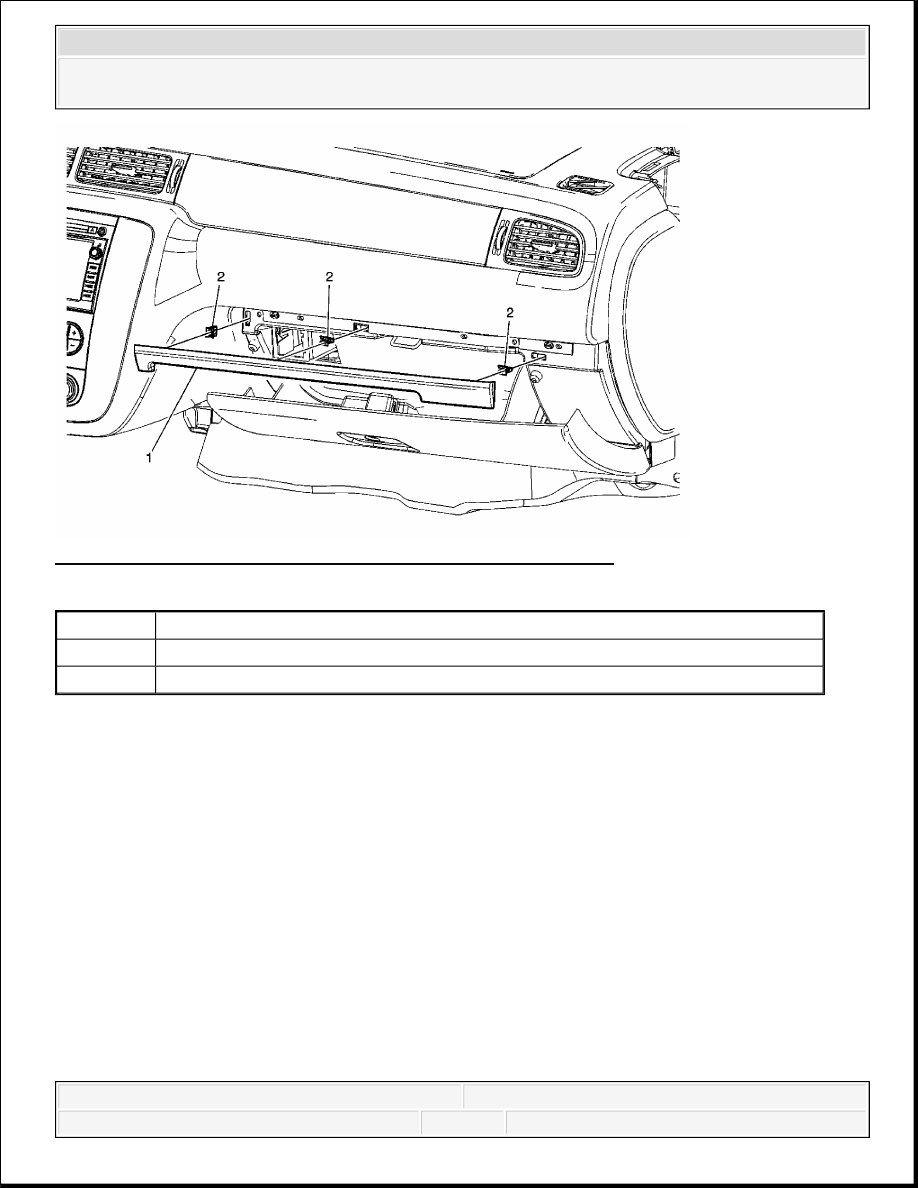

Fig. 29: View Of Instrument Panel Access Hole Cover & Clips
Courtesy of GENERAL MOTORS CORP.
INSTRUMENT PANEL COMPARTMENT DOOR OPENING FRAME REPLACEMENT (WITH
(WITHOUT RPO SLT)
Callout
Component Name
1
Instrument Panel Access Hole Cover
2
Retainer Clips (Qty: 3)
2008 Chevrolet Silverado 1500
2008 ACCESSORIES & EQUIPMENT Instrument Panel and Console Trim - Cab & Chassis Sierra, Cab & Chassis
Silverado, Sierra & Silverado

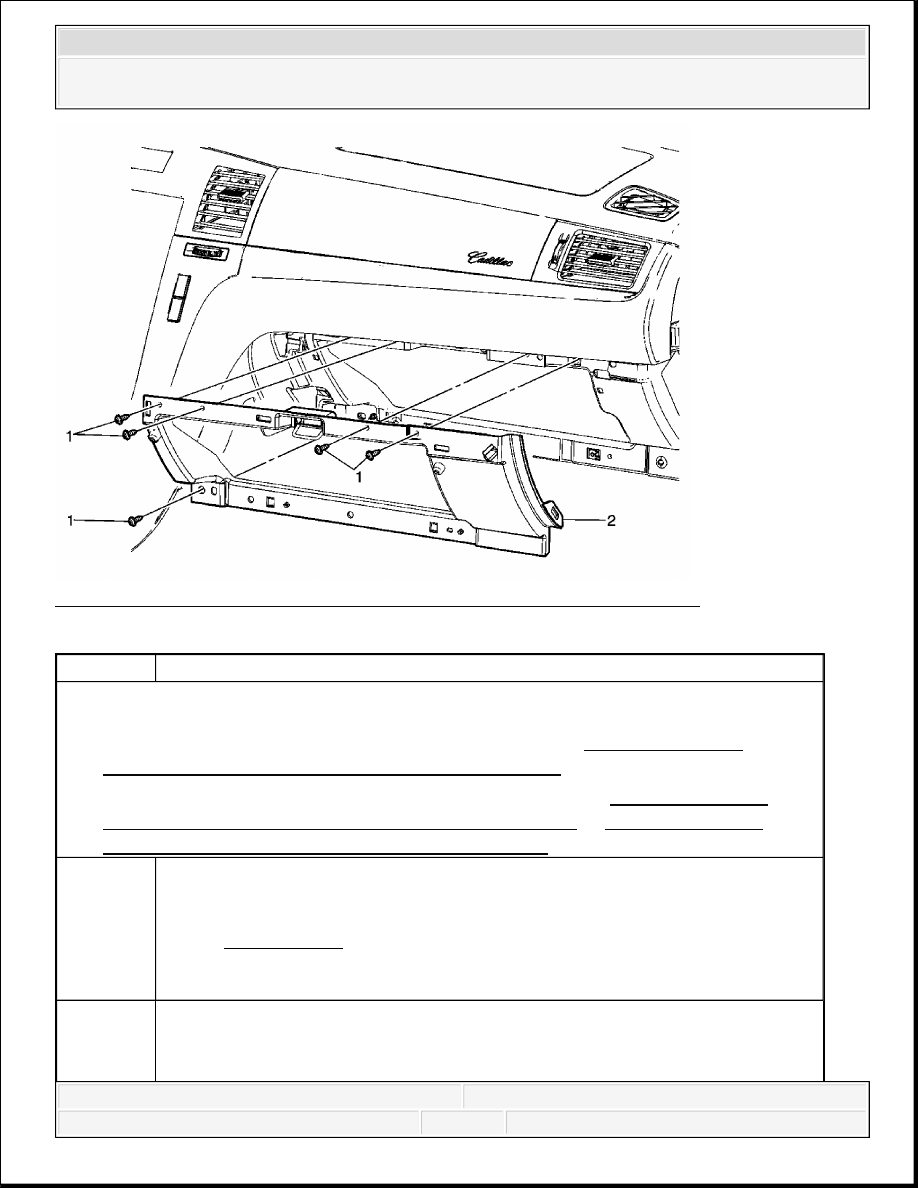

Fig. 30: View Of Instrument Panel Compartment Door Opening Frame
Courtesy of GENERAL MOTORS CORP.
Callout
Component Name
Preliminary Procedure
1. Remove the instrument panel compartment door. Refer to Instrument Panel
Compartment Door Replacement (with RPO SLT).
2. Remove the right instrument panel outer trim cover. Refer to Instrument Panel
Outer Trim Cover Replacement (without RPO SLT) or Instrument Panel
Outer Trim Cover Replacement (with RPO SLT).
1
Instrument Panel Compartment Opening Frame Screw (Qty: 5)
Tighten: 2.5 N.m (22 lb in)
NOTE:
Refer to Fastener Notice Fastener Notice.
Instrument Panel Compartment Opening Frame Assembly
Procedure
2008 Chevrolet Silverado 1500
2008 ACCESSORIES & EQUIPMENT Instrument Panel and Console Trim - Cab & Chassis Sierra, Cab & Chassis
Silverado, Sierra & Silverado
INSTRUMENT PANEL COMPARTMENT DOOR LATCH REPLACEMENT (WITH RPO SLT)

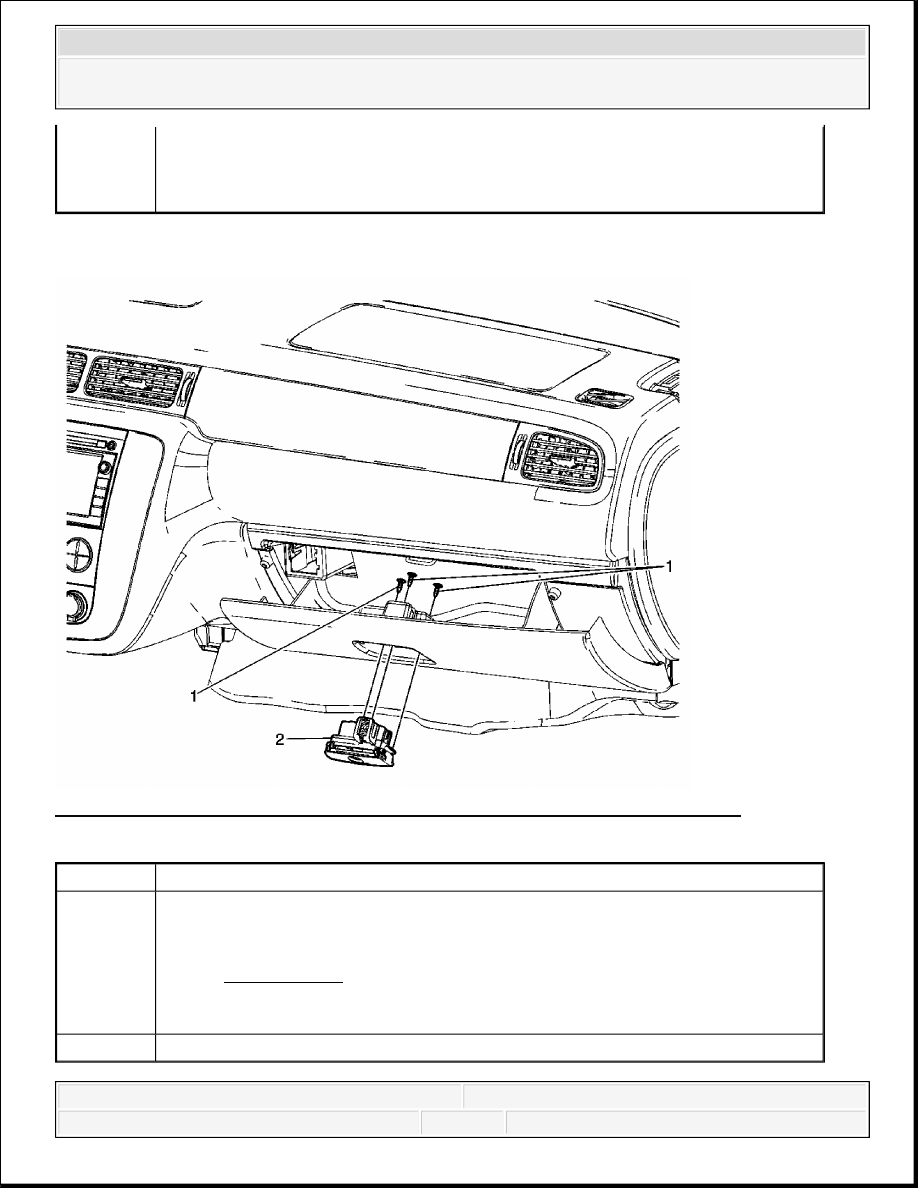

Fig. 31: View Of Instrument Panel Compartment Latch Assembly & Screws
Courtesy of GENERAL MOTORS CORP.
2
1. Disconnect the electrical connections.
2. When replacing the instrument panel compartment opening frame
assembly, transfer all necessary components.
Callout
Component Name
1
Instrument Panel Compartment Latch Screws (Qty: 3)
Tighten: 2 N.m (18 lb in)
NOTE:
Refer to Fastener Notice .
2
Instrument Panel Compartment Latch Assembly
2008 Chevrolet Silverado 1500
2008 ACCESSORIES & EQUIPMENT Instrument Panel and Console Trim - Cab & Chassis Sierra, Cab & Chassis
Silverado, Sierra & Silverado
