Chevrolet Silverado / GMC Sierra. Manual - part 2403
INSTRUMENT PANEL STORAGE COMPARTMENT REPLACEMENT

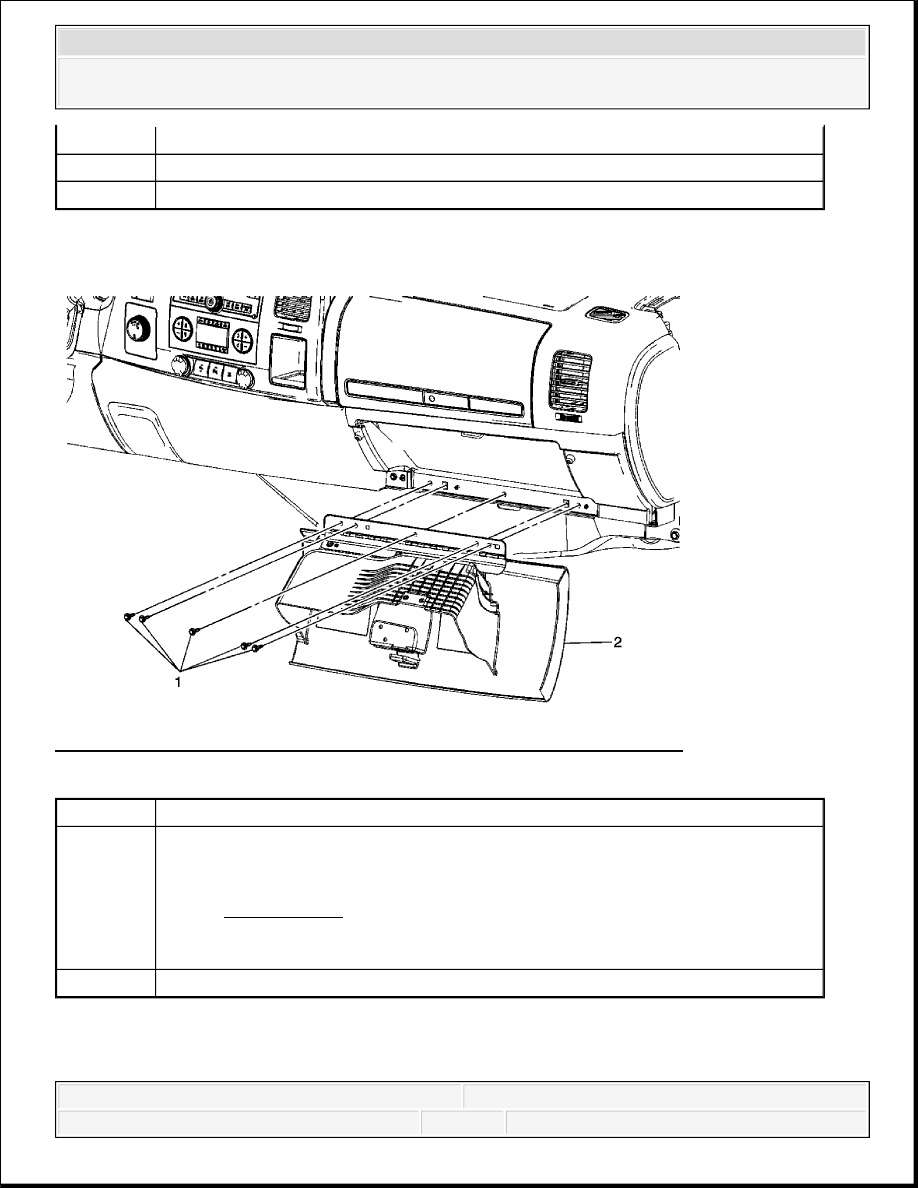

Fig. 24: View Of Instrument Panel Compartment Assembly & Screws
Courtesy of GENERAL MOTORS CORP.
INSTRUMENT PANEL COMPARTMENT DOOR LOCK STRIKER REPLACEMENT (WITH RPO
RPO SLT)
Tighten: 2 N.m (18 lb in)
2
Instrument Panel Upper Storage Compartment Assembly
3
Retainer Clip (Qty: 4)
Callout
Component Name
1
Instrument Panel Compartment Assembly Screw (Qty: 5)
Tighten: 2 N.m (18 lb in)
NOTE:
Refer to Fastener Notice .
2
Instrument Panel Compartment Assembly
2008 Chevrolet Silverado 1500
2008 ACCESSORIES & EQUIPMENT Instrument Panel and Console Trim - Cab & Chassis Sierra, Cab & Chassis
Silverado, Sierra & Silverado

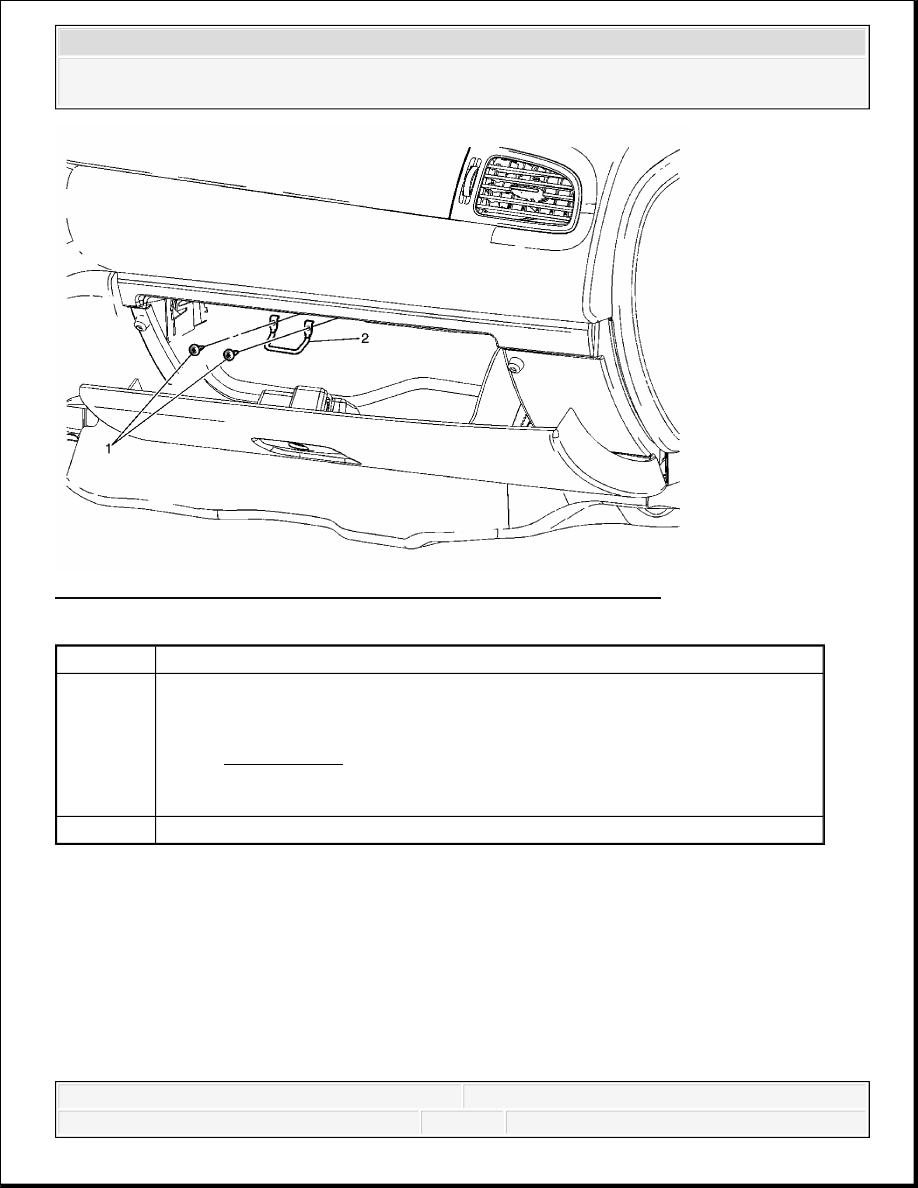

Fig. 25: View Of Instrument Panel Compartment Striker & Screws
Courtesy of GENERAL MOTORS CORP.
INSTRUMENT PANEL COMPARTMENT DOOR REPLACEMENT (WITH RPO SLT)
Callout
Component Name
1
Instrument Panel Compartment Striker Screws (Qty: 2)
Tighten: 2 N.m (18 lb in)
NOTE:
Refer to Fastener Notice .
2
Instrument Panel Compartment Striker
2008 Chevrolet Silverado 1500
2008 ACCESSORIES & EQUIPMENT Instrument Panel and Console Trim - Cab & Chassis Sierra, Cab & Chassis
Silverado, Sierra & Silverado

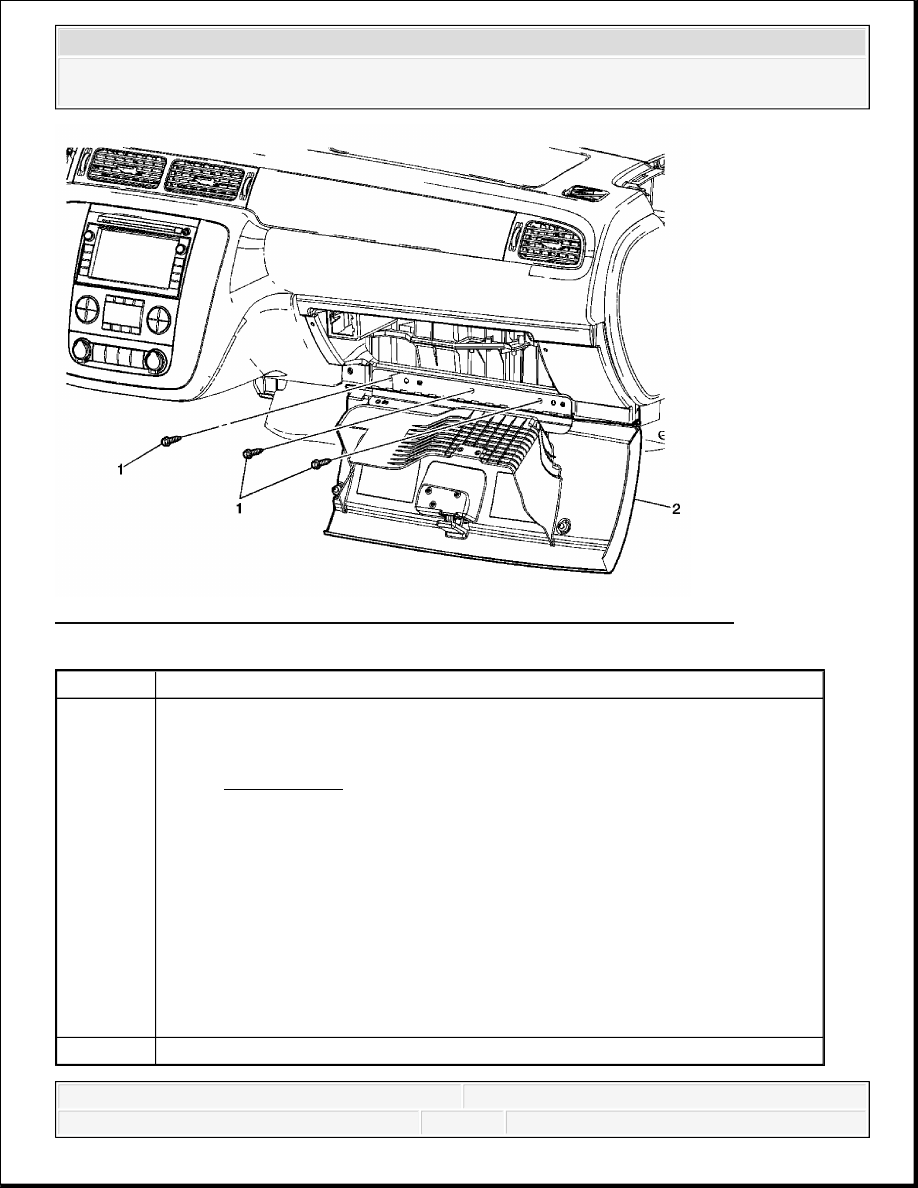

Fig. 26: View Of Instrument Panel Compartment Door Assembly & Screws
Courtesy of GENERAL MOTORS CORP.
Callout
Component Name
1
Instrument Panel Compartment Door Screw (Qty: 3)
Tip:
1. Open the instrument panel compartment door.
2. Release the instrument panel compartment door stop.
3. Allow the instrument panel compartment door to open completely to
access the screws.
Tighten: 2 N.m (18 lb in)
NOTE:
Refer to Fastener Notice .
2
Instrument Panel Compartment Door Assembly
2008 Chevrolet Silverado 1500
2008 ACCESSORIES & EQUIPMENT Instrument Panel and Console Trim - Cab & Chassis Sierra, Cab & Chassis
Silverado, Sierra & Silverado
INSTRUMENT PANEL COMPARTMENT DOOR ASSEMBLY REPLACEMENT (WITH RPO SLT)
SLT)

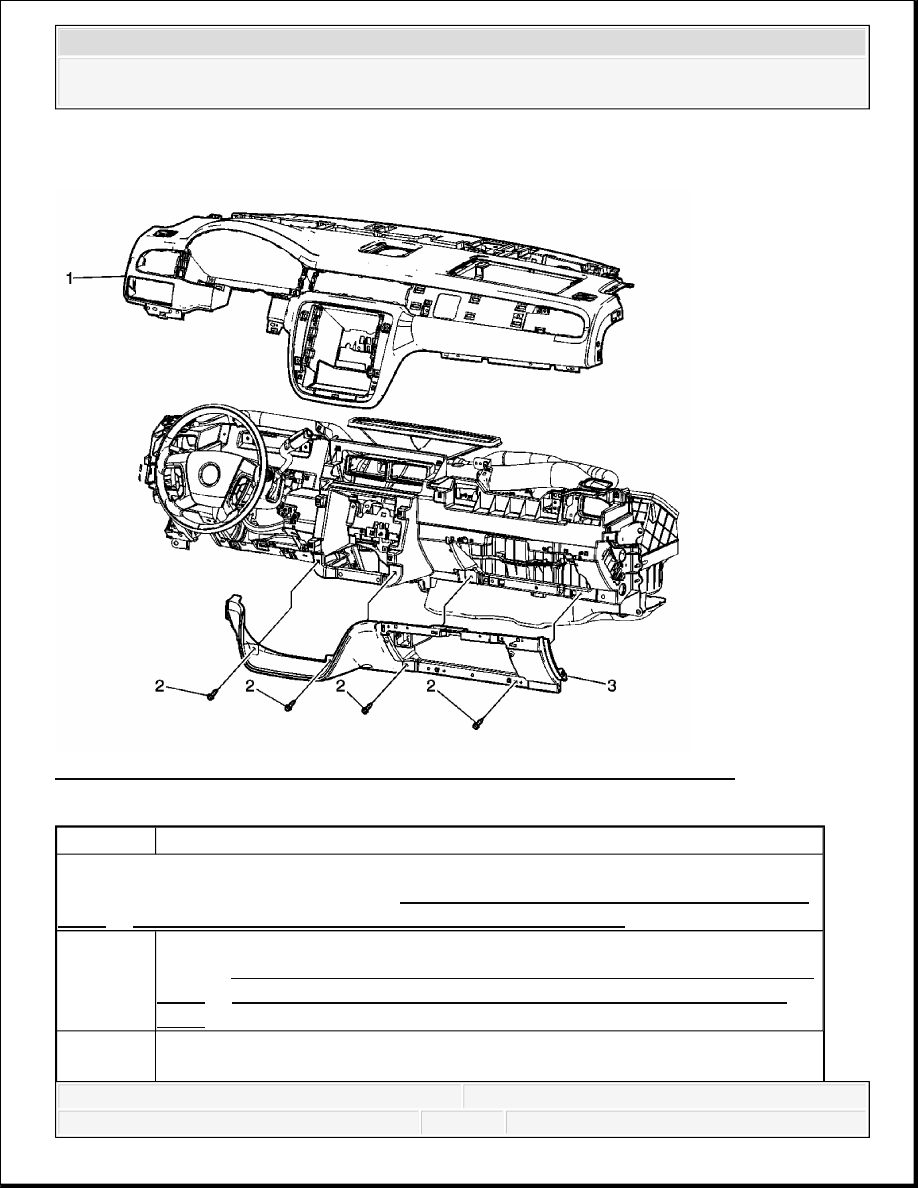

Fig. 27: View Of Instrument Panel Compartment Assembly & Components
Courtesy of GENERAL MOTORS CORP.
Callout
Component Name
Preliminary Procedure:
Remove the front floor console. Refer to Front Floor Console Replacement (with RPO
SLT) or Front Floor Console Replacement (without RPO SLT).
1
Instrument Panel Upper Trim Panel Assembly
Refer to Instrument Panel Upper Trim Panel Replacement (without RPO
SLT) or Instrument Panel Upper Trim Panel Replacement (with RPO
SLT).
Instrument Panel Compartment Assembly Screws (Qty: 18)
2008 Chevrolet Silverado 1500
2008 ACCESSORIES & EQUIPMENT Instrument Panel and Console Trim - Cab & Chassis Sierra, Cab & Chassis
Silverado, Sierra & Silverado
