Chevrolet Silverado / GMC Sierra. Manual - part 2401
HEADLAMP SWITCH BEZEL REPLACEMENT (WITH RPO SLT)

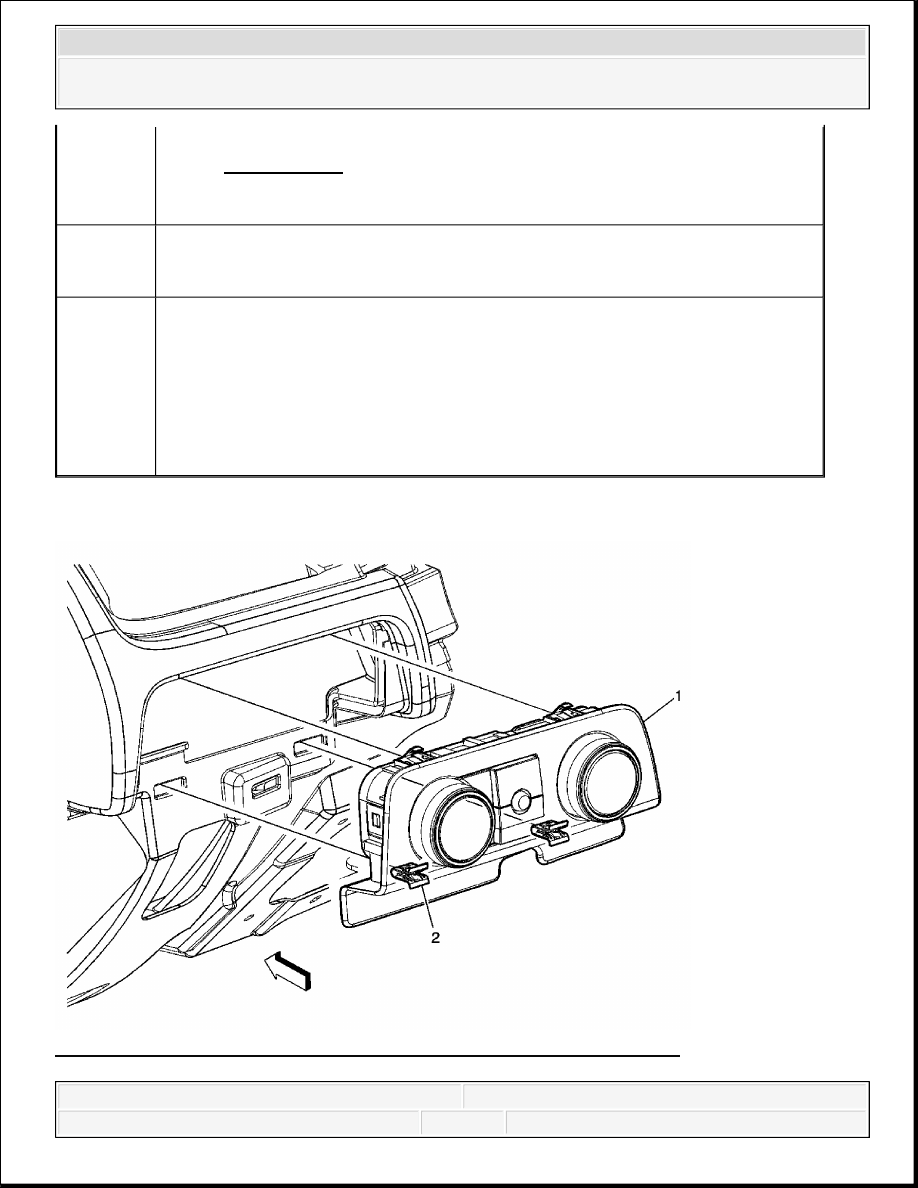

Fig. 15: View Of Headlamp Switch Trim Plate Assembly & Retainers
Courtesy of GENERAL MOTORS CORP.
Tighten: 9 N.m (80 lb in)
NOTE:
Refer to Fastener Notice .
2
Instrument Panel Upper Trim Panel Screw (Qty: 27)
Tighten: 2 N.m (18 lb in)
3
Instrument Panel Upper Trim Panel Assembly
Tip:
1. Prior to removal of the trim panel from the carrier assembly, note the
routing of the wiring to aid in reassembly.
2. Disconnect electrical connections.
3. With the aid of an assistant, remove the trim panel from the vehicle.
2008 Chevrolet Silverado 1500
2008 ACCESSORIES & EQUIPMENT Instrument Panel and Console Trim - Cab & Chassis Sierra, Cab & Chassis
Silverado, Sierra & Silverado
INSTRUMENT PANEL CLUSTER TRIM PLATE COVER REPLACEMENT (WITHOUT RPO SLT)
SLT)

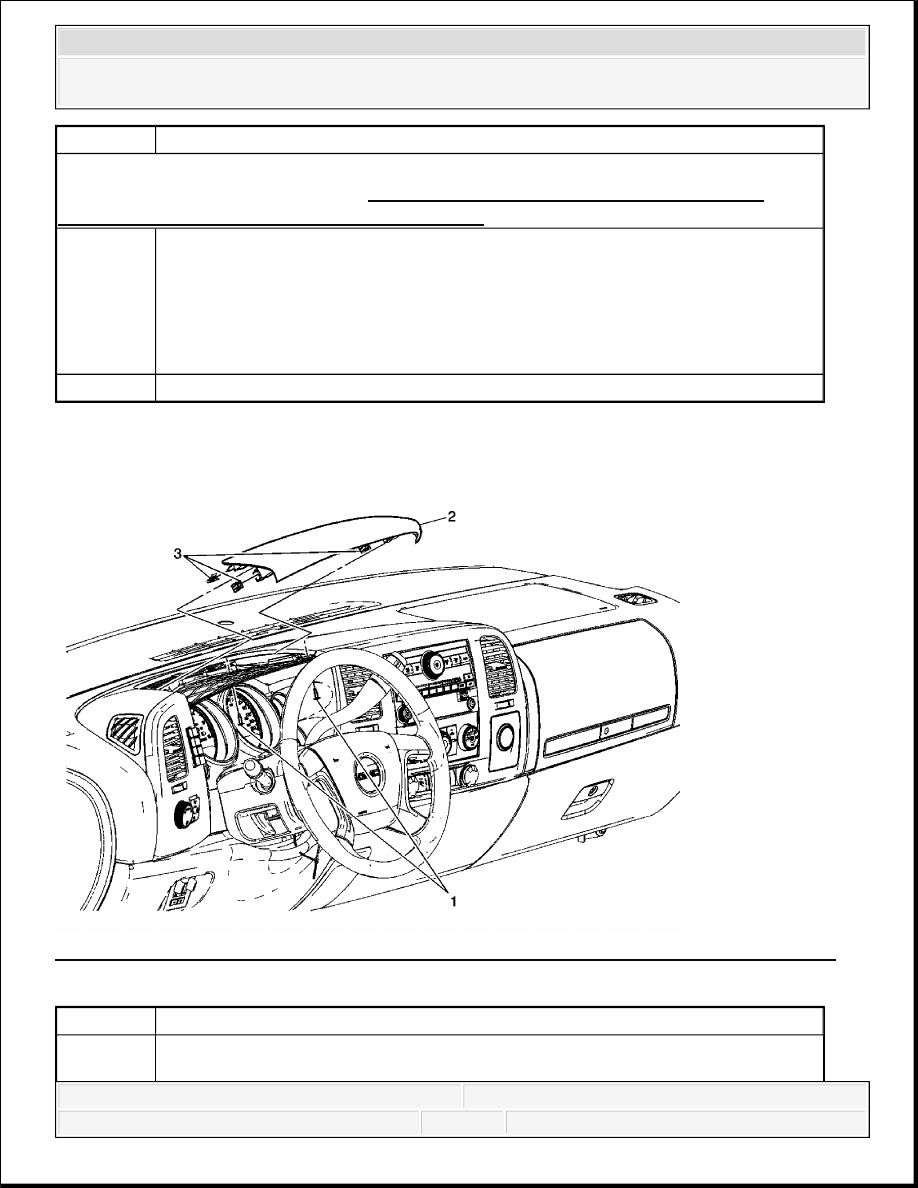

Fig. 16: View Of Instrument Panel Cluster Trim Plate Cover Assembly & Components
Courtesy of GENERAL MOTORS CORP.
Callout
Component Name
Preliminary Procedure:
Remove the knee bolster. Refer to Knee Bolster Replacement (with RPO SLT) or
Knee Bolster Replacement (without RPO SLT).
1
Headlamp Switch Trim Plate Assembly
Procedure
1. Disconnect the electrical connectors.
2. If replacing the trim plate, transfer the switches as needed.
2
Headlamp Switch Plate Retainer (Qty: 4)
Callout
Component Name
Instrument Panel Cluster Trim Plate Cover Screw (Qty: 2)
2008 Chevrolet Silverado 1500
2008 ACCESSORIES & EQUIPMENT Instrument Panel and Console Trim - Cab & Chassis Sierra, Cab & Chassis
Silverado, Sierra & Silverado
INSTRUMENT PANEL CLUSTER TRIM PLATE COVER REPLACEMENT (WITH RPO SLT)

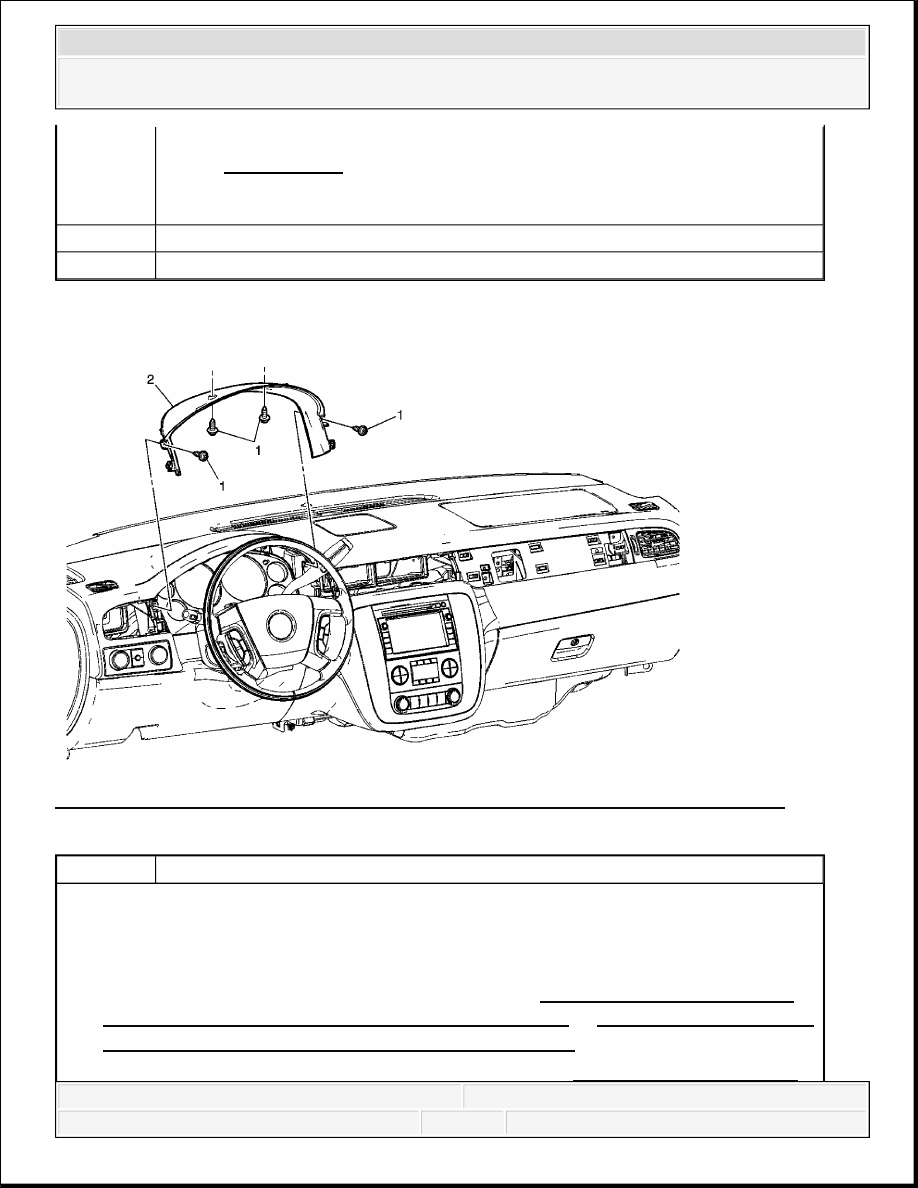

Fig. 17: View Of Instrument Panel Cluster Trim Plate Cover Assembly & Screws
Courtesy of GENERAL MOTORS CORP.
1
Tighten: 2 N.m (18 lb in)
NOTE:
Refer to Fastener Notice .
2
Instrument Panel Cluster Trim Plate Cover Assembly
3
Retainer Clip (Qty: 4)
Callout
Component Name
Preliminary Procedures
1. Tilt the steering wheel to its lowest position.
2. Remove the instrument panel left air outlet. Refer to Instrument Panel Outer Air
Outlet Replacement - Left Side (without RPO SLT) or Instrument Panel Outer
Air Outlet Replacement - Left Side (with RPO SLT) .
3. Remove the instrument panel center trim panel. Refer to Instrument Panel Center
2008 Chevrolet Silverado 1500
2008 ACCESSORIES & EQUIPMENT Instrument Panel and Console Trim - Cab & Chassis Sierra, Cab & Chassis
Silverado, Sierra & Silverado
INSTRUMENT CLUSTER TRIM PANEL REPLACEMENT (WITH RPO SLT)

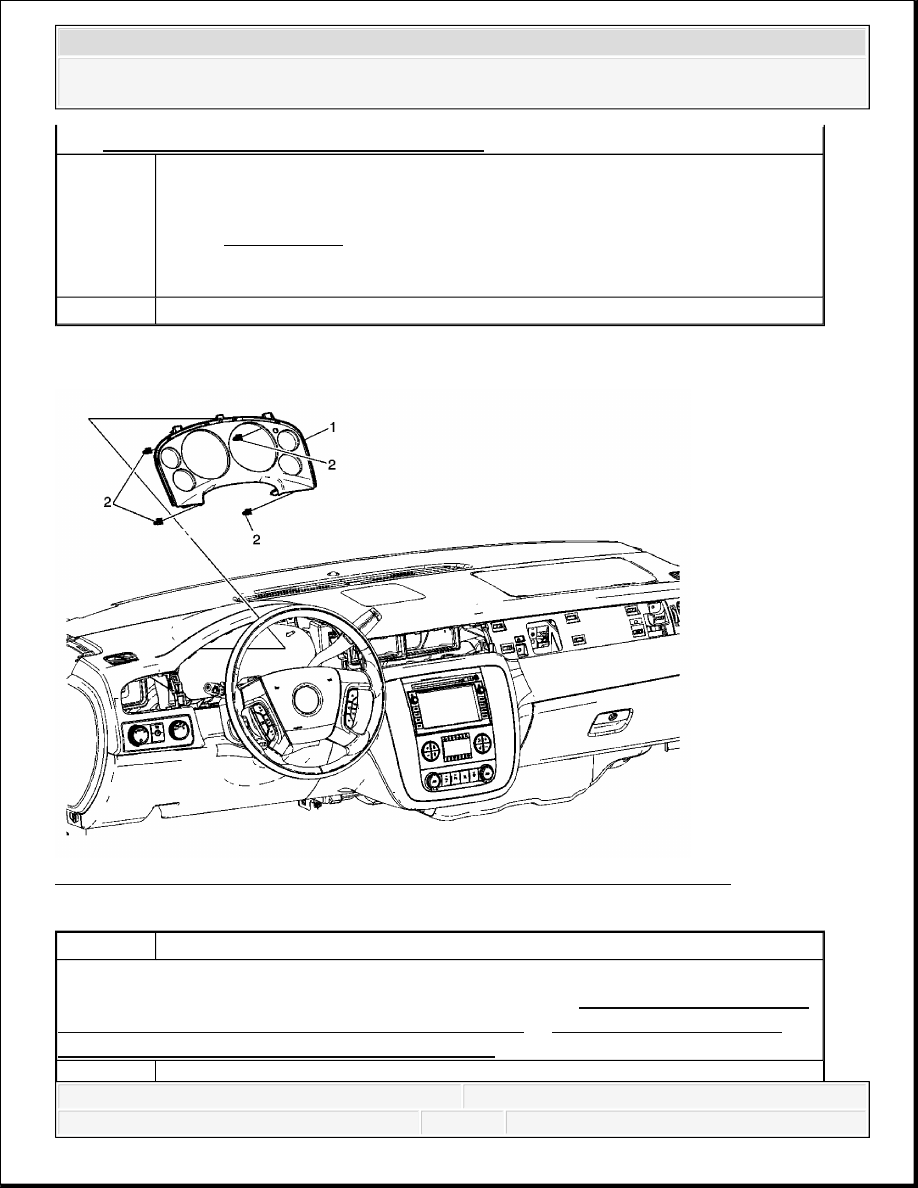

Fig. 18: View Of Instrument Cluster Trim Panel Assembly, Screws & Clips
Courtesy of GENERAL MOTORS CORP.
Trim Panel Replacement (with RPO SLT).
1
Instrument Panel Cluster Trim Plate Cover Assembly Screws (Qty: 4)
Tighten: 2 N.m (18 lb in)
NOTE:
Refer to Fastener Notice .
2
Instrument Panel Cluster Trim Plate Cover Assembly
Callout
Component Name
Preliminary Procedure:
Remove the instrument panel cluster trim plate cover. Refer to Instrument Panel Cluster
Trim Plate Cover Replacement (without RPO SLT) or Instrument Panel Cluster
Trim Plate Cover Replacement (with RPO SLT).
2008 Chevrolet Silverado 1500
2008 ACCESSORIES & EQUIPMENT Instrument Panel and Console Trim - Cab & Chassis Sierra, Cab & Chassis
Silverado, Sierra & Silverado
