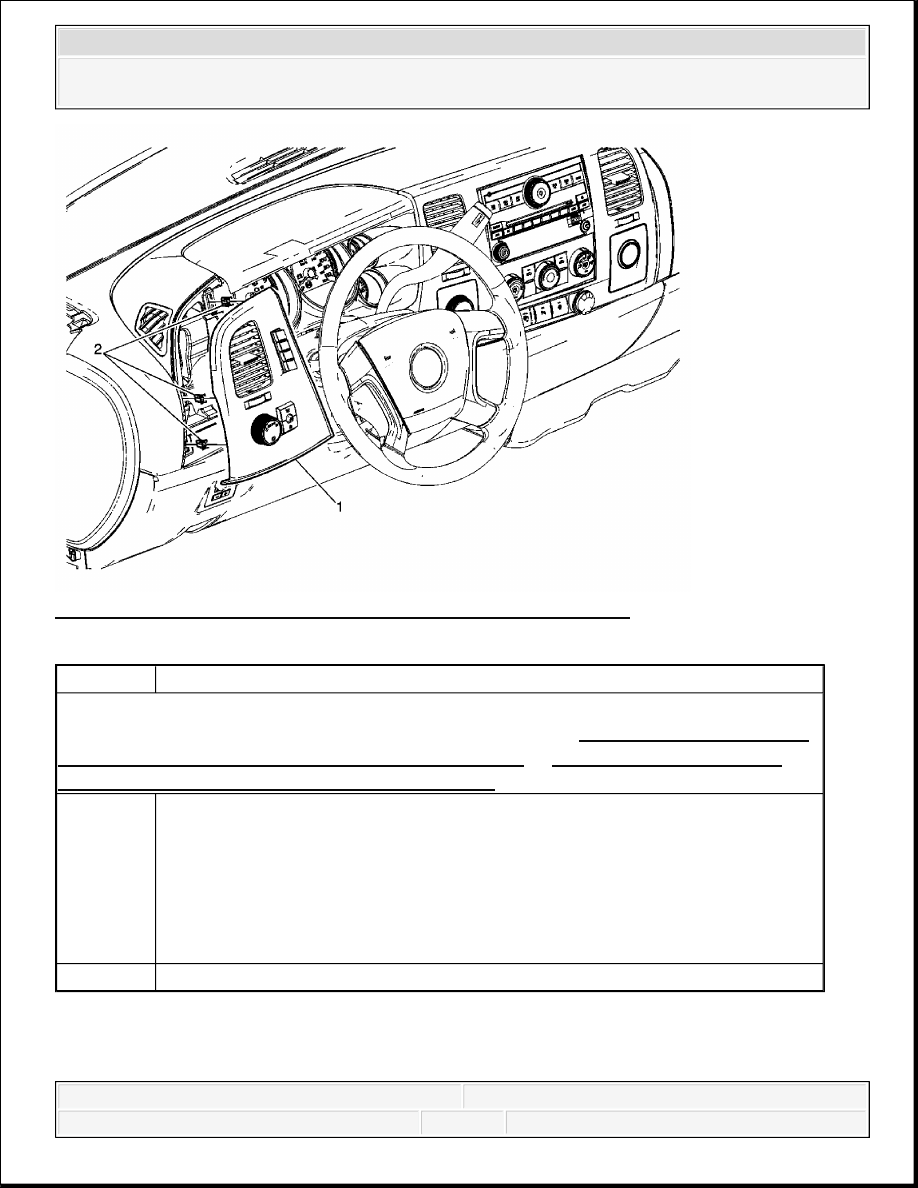

Fig. 9: Instrument Panel Trim Plate Assembly & Retainer Clips
Courtesy of GENERAL MOTORS CORP.
INSTRUMENT PANEL ACCESSORY TRIM PLATE REPLACEMENT (WITHOUT RPO SLT)
Callout
Component Name
Preliminary Procedure:
Remove the instrument panel cluster trim plate cover. Refer to Instrument Panel Cluster
Trim Plate Cover Replacement (without RPO SLT) or Instrument Panel Cluster
Trim Plate Cover Replacement (with RPO SLT).
1
Instrument Panel Trim Plate Assembly
Procedure
1. Disconnect the electrical connectors.
2. If replacing the instrument panel trim plate, transfer all necessary
components.
2
Retainer Clip (Qty: 6)
2008 Chevrolet Silverado 1500
2008 ACCESSORIES & EQUIPMENT Instrument Panel and Console Trim - Cab & Chassis Sierra, Cab & Chassis
Silverado, Sierra & Silverado

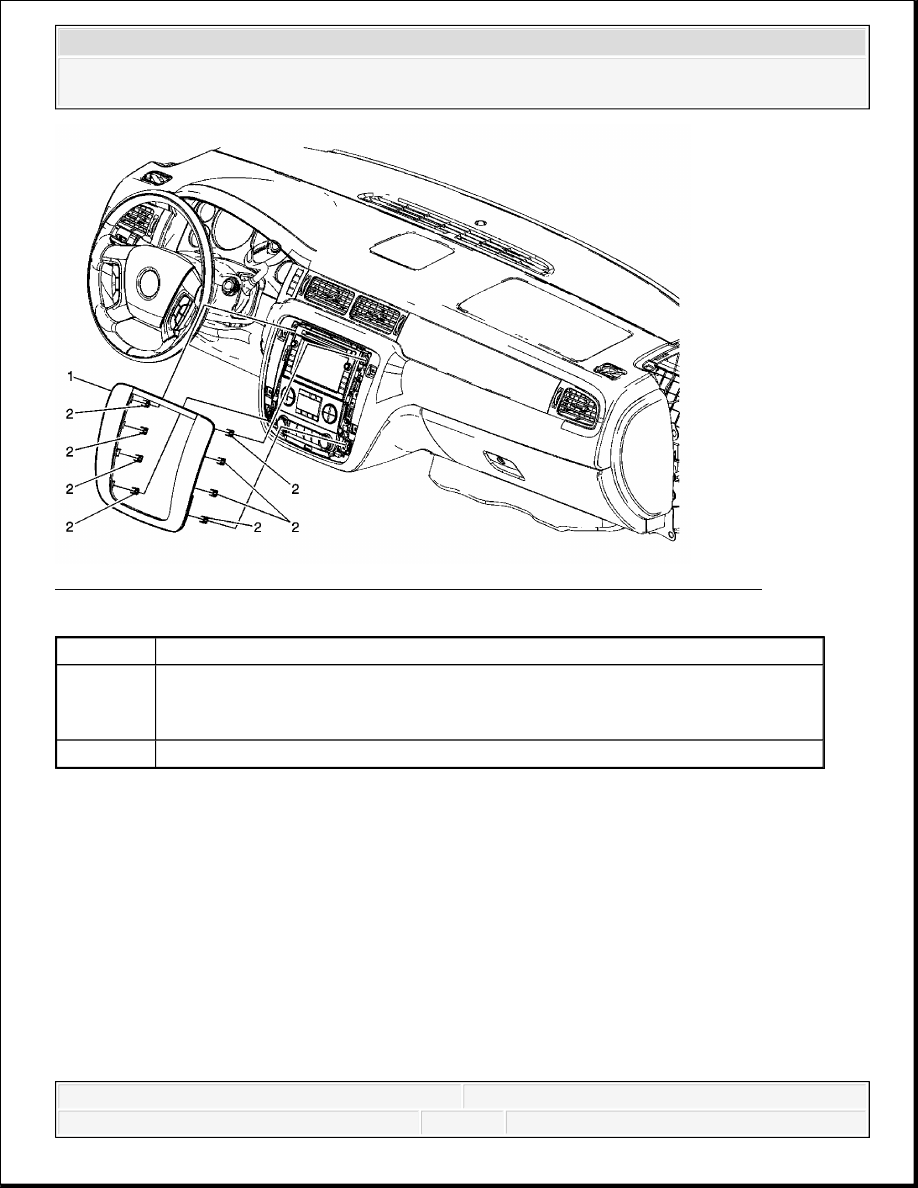

Fig. 10: View Of Instrument Panel Accessory Trim Plate Assembly & Retainer Clips
Courtesy of GENERAL MOTORS CORP.
INSTRUMENT PANEL ACCESSORY TRIM PLATE REPLACEMENT (WITH RPO SLT)
Callout
Component Name
Preliminary Procedure:
Remove the instrument panel cluster trim plate cover. Refer to Instrument Panel Cluster
Trim Plate Cover Replacement (without RPO SLT) or Instrument Panel Cluster
Trim Plate Cover Replacement (with RPO SLT).
1
Instrument Panel Accessory Trim Plate Assembly
Procedure
1. Disconnect the electrical connectors.
2. When replacing the accessory trim plate, transfer all necessary
components.
2
Retainer Clips (Qty: 14)
2008 Chevrolet Silverado 1500
2008 ACCESSORIES & EQUIPMENT Instrument Panel and Console Trim - Cab & Chassis Sierra, Cab & Chassis
Silverado, Sierra & Silverado

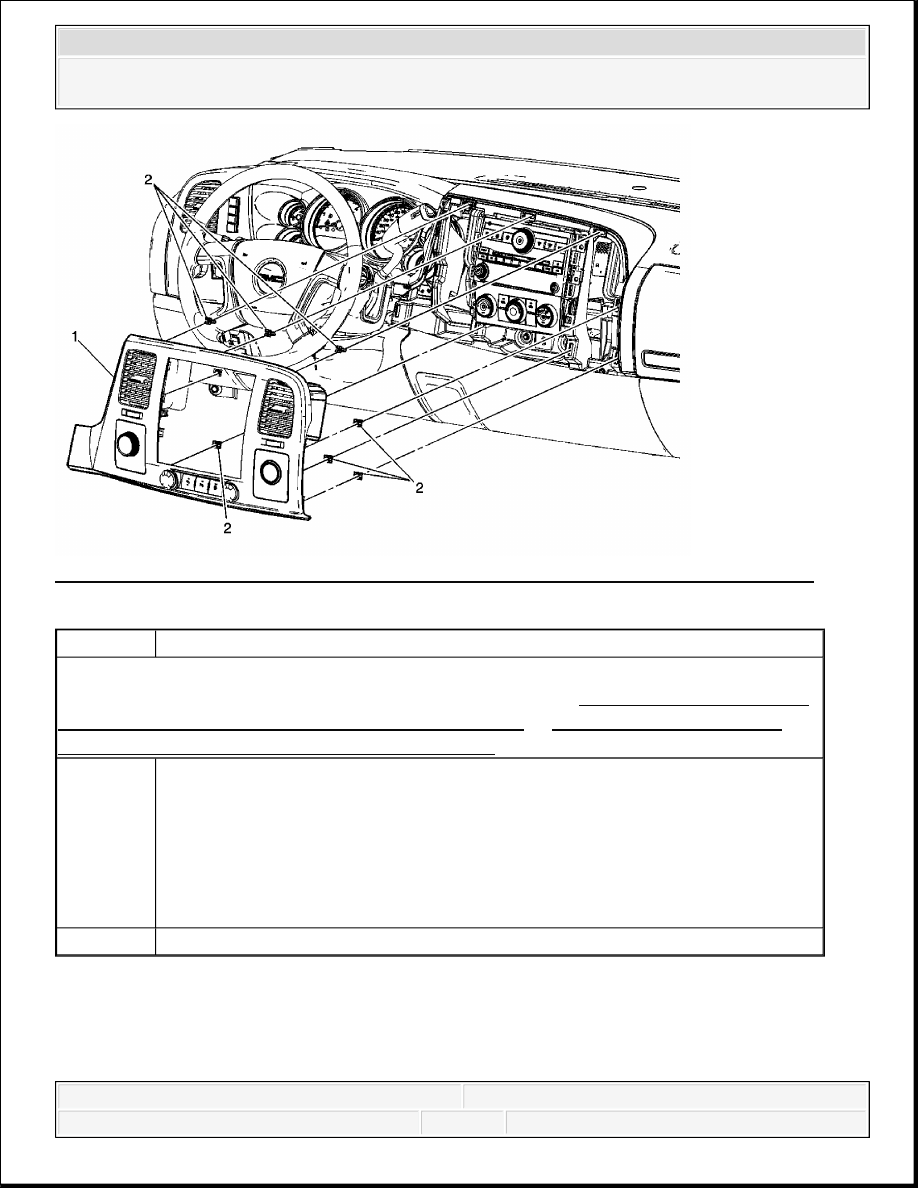

Fig. 11: View Of Instrument Panel Accessory Plate Assembly & Retainer Clips
Courtesy of GENERAL MOTORS CORP.
INSTRUMENT PANEL CENTER TRIM PANEL REPLACEMENT (WITH RPO SLT)
Callout
Component Name
1
Instrument Panel Accessory Trim Plate
Tip: Use a flat-bladed plastic trim tool in order to release the retainer clips
securing the trim plate to the instrument panel.
2
Retainer Clips (Qty: 9)
2008 Chevrolet Silverado 1500
2008 ACCESSORIES & EQUIPMENT Instrument Panel and Console Trim - Cab & Chassis Sierra, Cab & Chassis
Silverado, Sierra & Silverado

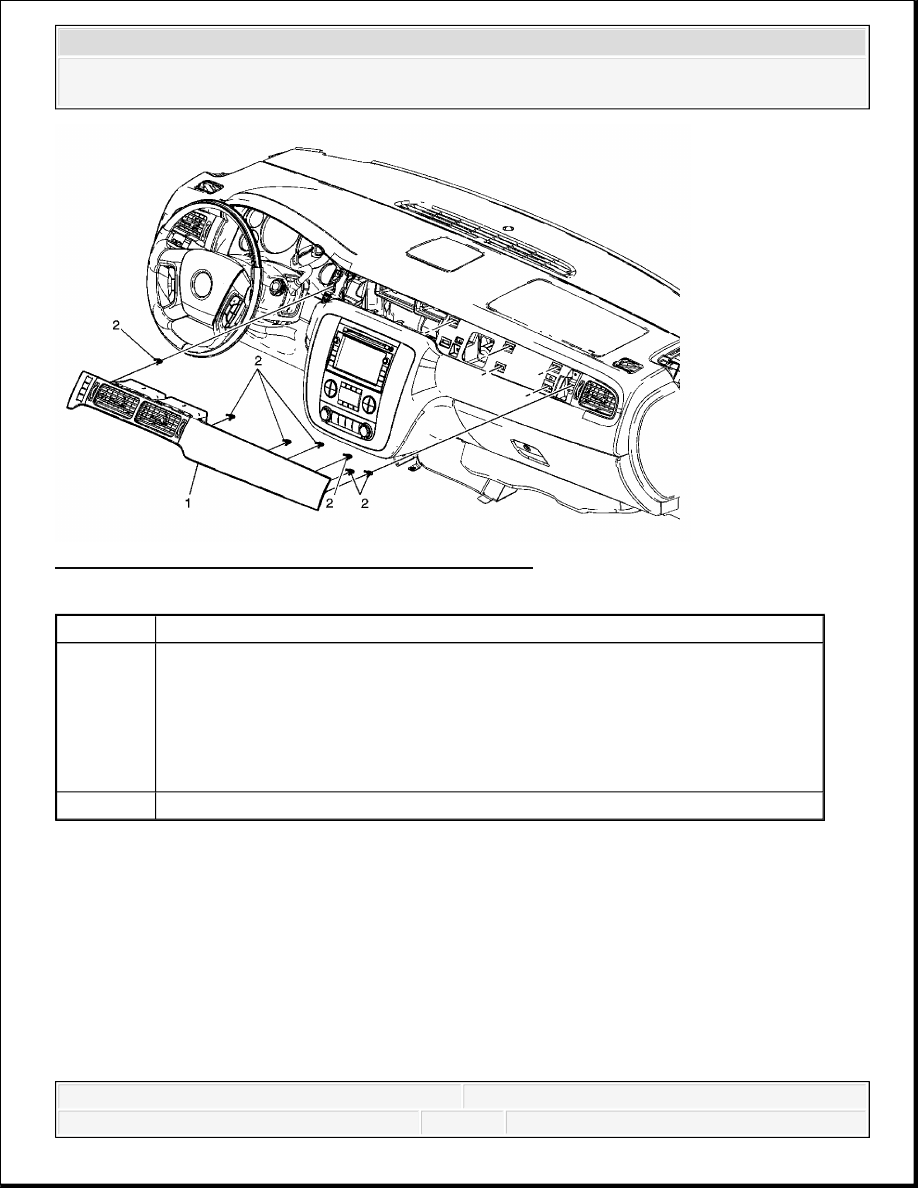

Fig. 12: Instrument Panel Center Trim Plate & Clips
Courtesy of GENERAL MOTORS CORP.
INSTRUMENT PANEL UPPER TRIM PANEL REPLACEMENT (WITHOUT RPO SLT)
Callout
Component Name
1
Instrument Panel Center Trim Plate
Tip:
1. Use a flat-bladed plastic trim tool in order to release the retainer clips
securing the trim plate to the instrument panel.
2. Disconnect the electrical connections.
2
Retainer Clips (Qty: 7)
2008 Chevrolet Silverado 1500
2008 ACCESSORIES & EQUIPMENT Instrument Panel and Console Trim - Cab & Chassis Sierra, Cab & Chassis
Silverado, Sierra & Silverado
