Courtesy of GENERAL MOTORS CORP. 1. Lock the steering column through the access hole in the steering column shroud using anti- rotation pin J 42640. NOTE: Secure the steering wheel utilizing a strap to prevent rotation. The steering column The intermediate shaft The steering gear
2008 Chevrolet Silverado 1500 2008 ACCESSORIES & EQUIPMENT Instrument Panel and Console Trim - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

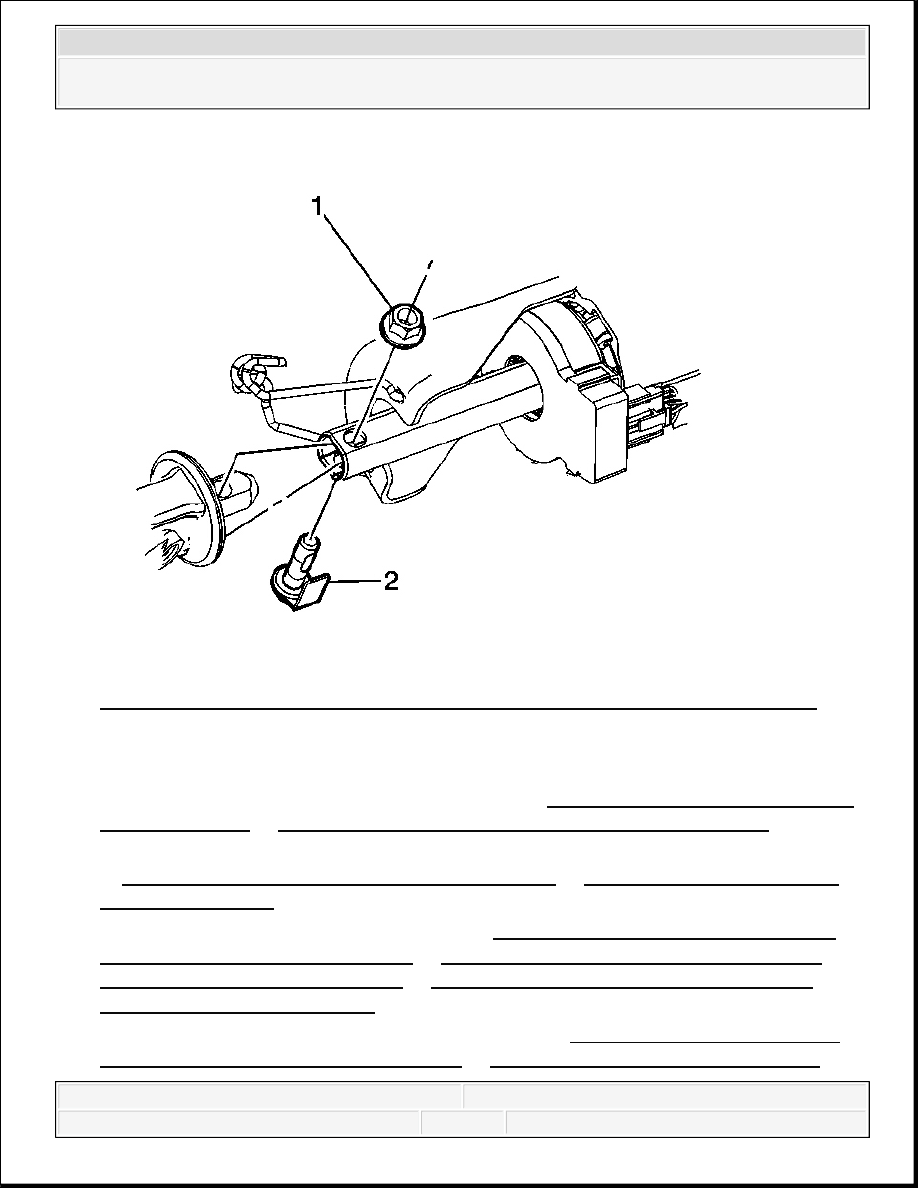

Fig. 44: View Of Upper Intermediate Shaft Pinch Bolt, Nut & Steering Column 2. Remove the steering shaft coupling nut (1) and bolt (2) at the steering column. 3. Remove the front floor console, If equipped. Refer to Front Floor Console Replacement (with RPO SLT) or Front Floor Console Replacement (without RPO SLT). 4. Remove the transmission control lever knob, if equipped with a manual transmission. Refer to Transmission Control Lever Knob Replacement or Transmission Control Lever 5. Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection (w/Single Battery) or Battery Negative Cable Disconnection and 6. Remove the instrument panel outer trim covers. Refer to Instrument Panel Outer Trim Cover Replacement (without RPO SLT) or Instrument Panel Outer Trim Cover
2008 Chevrolet Silverado 1500 2008 ACCESSORIES & EQUIPMENT Instrument Panel and Console Trim - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
Replacement (with RPO SLT). 7. Remove the windshield pillar garnish moldings. Refer to Windshield Pillar Garnish Molding Replacement . 8. Remove the instrument panel upper trim panel with windshield defroster nozzle grille. Refer to Instrument Panel Upper Trim Panel with Windshield Defroster Nozzle Grille 9. Tape the ambient light sensor to the instrument panel upper trim panel to ensure it does not fall behind the instrument panel assembly during reinstallation. 10. Remove the right and left body hinge pillar trim panel. Refer to Body Hinge Pillar Trim Panel Replacement . 11. Remove the instrument panel center support bracket. Refer to Instrument Panel Center Support Bracket Replacement. 12. Note location and routing of the instrument panel wiring harness prior to removal in order to ensure proper installation. 13. On the right side of the instrument panel. Disconnect the electrical connections to the instrument panel right electrical center. Disconnect the electrical connection for the instrument panel inflatable restraint Disconnect the radio antennas. Release the wire looms securing the wiring harnesses to the right side of the instrument 14. On the left side of the instrument panel. Disconnect the electrical connections to the instrument panel left electrical center. Disconnect the ground wires from the upper left cowl panel. Remove the body wiring harness junction block from its bracket to allow movement in Release the wire looms securing the wiring harnesses to the left side of the instrument
2008 Chevrolet Silverado 1500 2008 ACCESSORIES & EQUIPMENT Instrument Panel and Console Trim - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

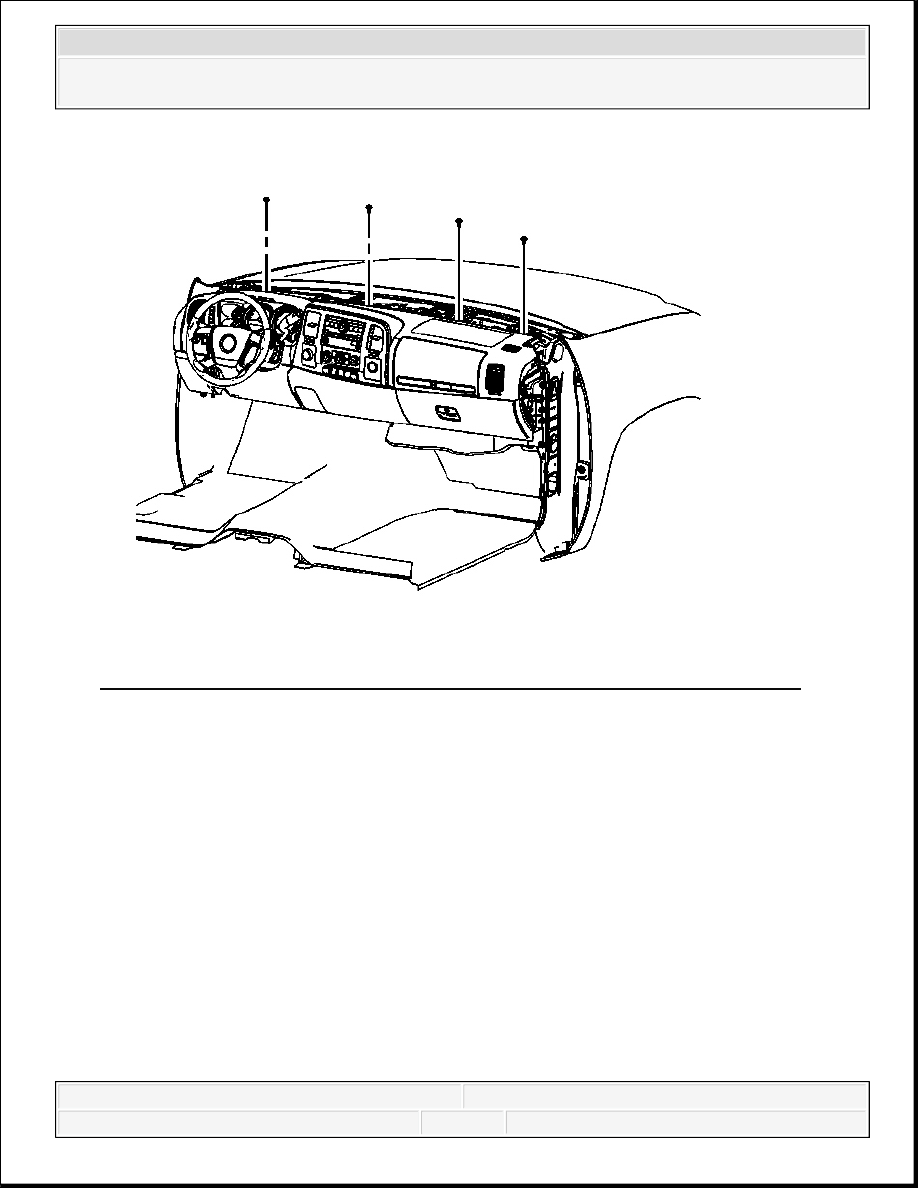

Fig. 45: View Of Bolts Securing Instrument Panel Upper Trim Panel To Cowl 15. Remove the (4) bolts (1) securing the instrument panel upper trim panel to the cowl.
2008 Chevrolet Silverado 1500 2008 ACCESSORIES & EQUIPMENT Instrument Panel and Console Trim - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
