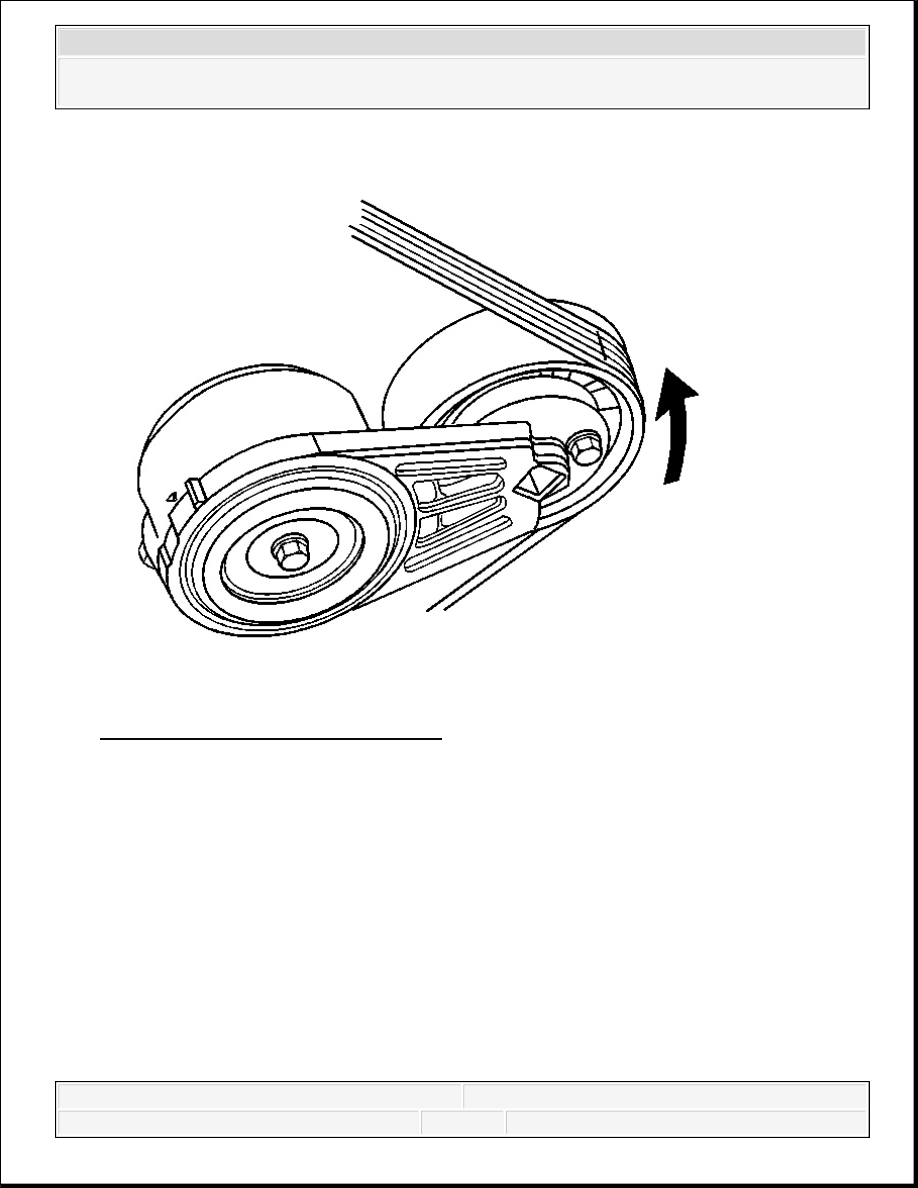

Fig. 27: View Of Drive Belt Tensioner 9. Install a ratchet into the belt tensioner adapter opening. 10. Rotate the belt tensioner counterclockwise in order to relieve the tension on the belt. 11. Install the belt to the A/C compressor. 12. Slowly release the tension on the belt tensioner. 13. Remove the ratchet from the belt tensioner. COMPRESSOR CLUTCH PLATE/HUB ASSEMBLY REPLACEMENT (V8 - GAS) Removal Procedure
2008 Chevrolet Silverado 1500 2008 HVAC Heating, Ventilation, and Air Conditioning - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

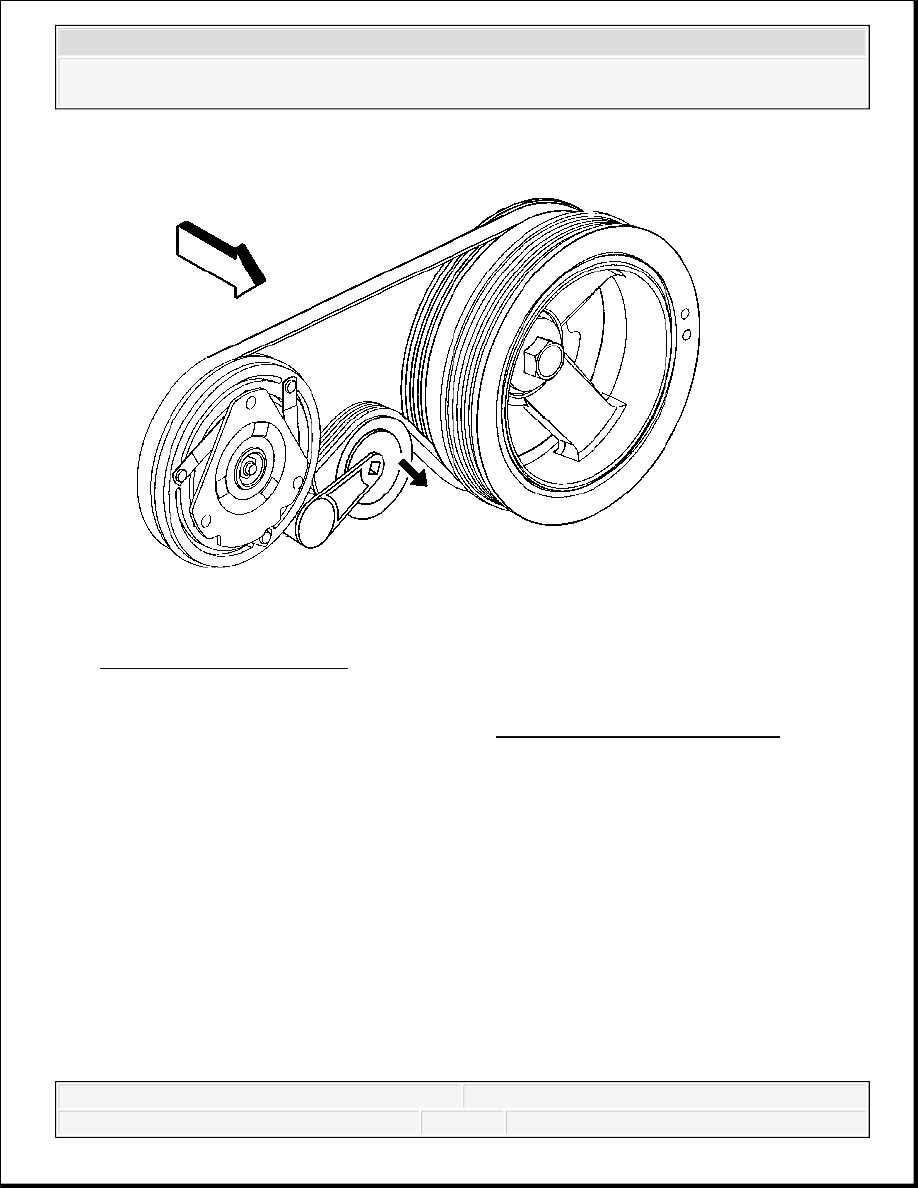

Fig. 28: A/C Belt Tensioner 1. Raise and suitably support the vehicle. Refer to Lifting and Jacking the Vehicle . 2. Remove the engine protection shield. 3. Install a ratchet into the air conditioning (A/C) belt tensioner adapter opening. 4. Rotate the A/C belt tensioner clockwise in order to relieve the tension on the belt. 5. Remove the A/C belt from the A/C compressor. 6. Slowly release the tension on the A/C belt tensioner.
2008 Chevrolet Silverado 1500 2008 HVAC Heating, Ventilation, and Air Conditioning - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

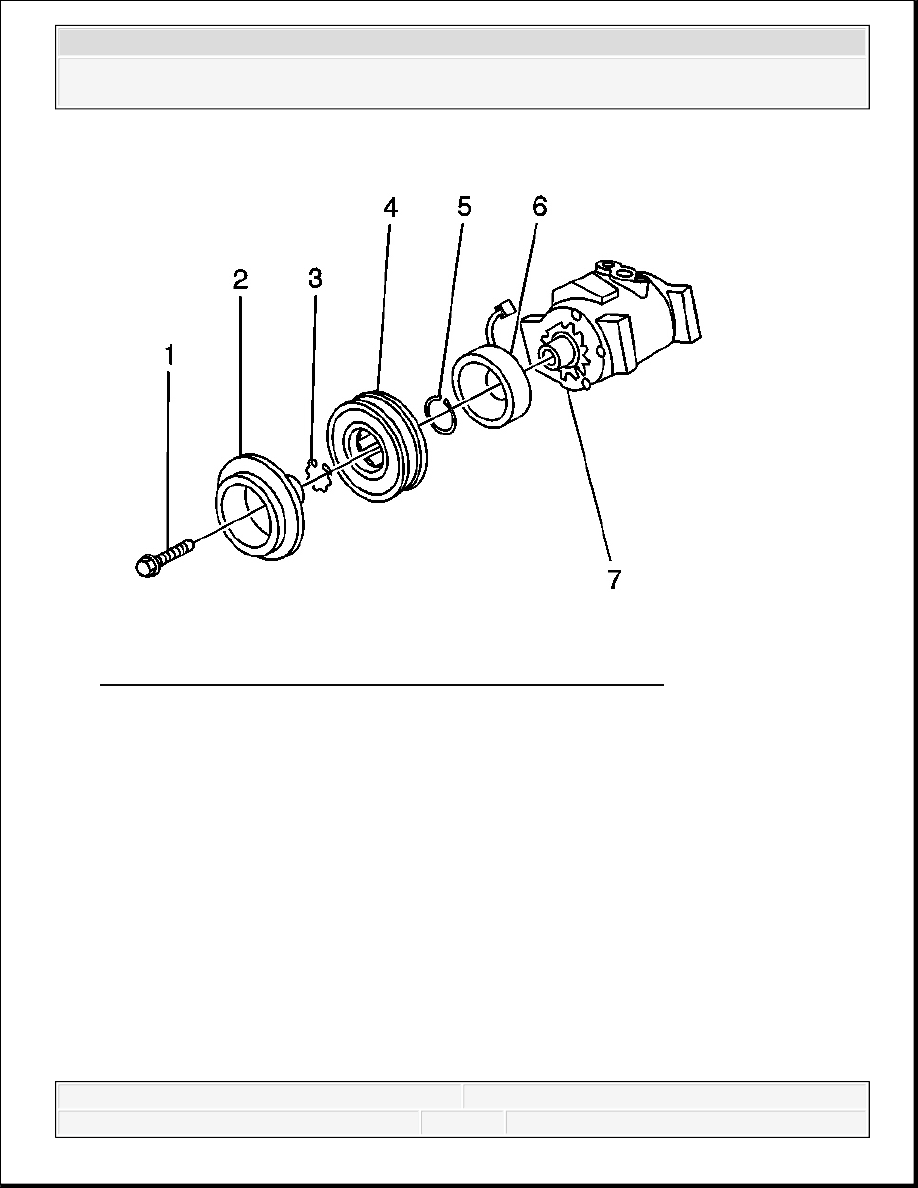

Fig. 29: Exploded View Of Compressor Clutch Plate Assembly 7. Remove the clutch plate retaining bolt (1). 8. Remove the clutch plate assembly (2). 9. Remove the clutch hub/bearing snap ring (3). 10. Remove the clutch hub/bearing assembly (4). 11. Remove the snap ring (5) from the clutch coil (6). 12. Remove the clutch coil (6) from the A/C compressor (7). Installation Procedure
2008 Chevrolet Silverado 1500 2008 HVAC Heating, Ventilation, and Air Conditioning - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
Fig. 30: Exploded View Of Compressor Clutch Plate Assembly 1. Install the clutch coil (6) to the A/C compressor (7). 2. Install the snap ring (5) to the clutch coil (6). 3. Install the clutch hub/bearing assembly (4). 4. Install the clutch hub/bearing snap ring (3). 5. Place a small amount of oil on the thinnest air gap shim and place it inside the clutch plate.
2008 Chevrolet Silverado 1500 2008 HVAC Heating, Ventilation, and Air Conditioning - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
