Chevrolet Silverado / GMC Sierra. Manual - part 2264

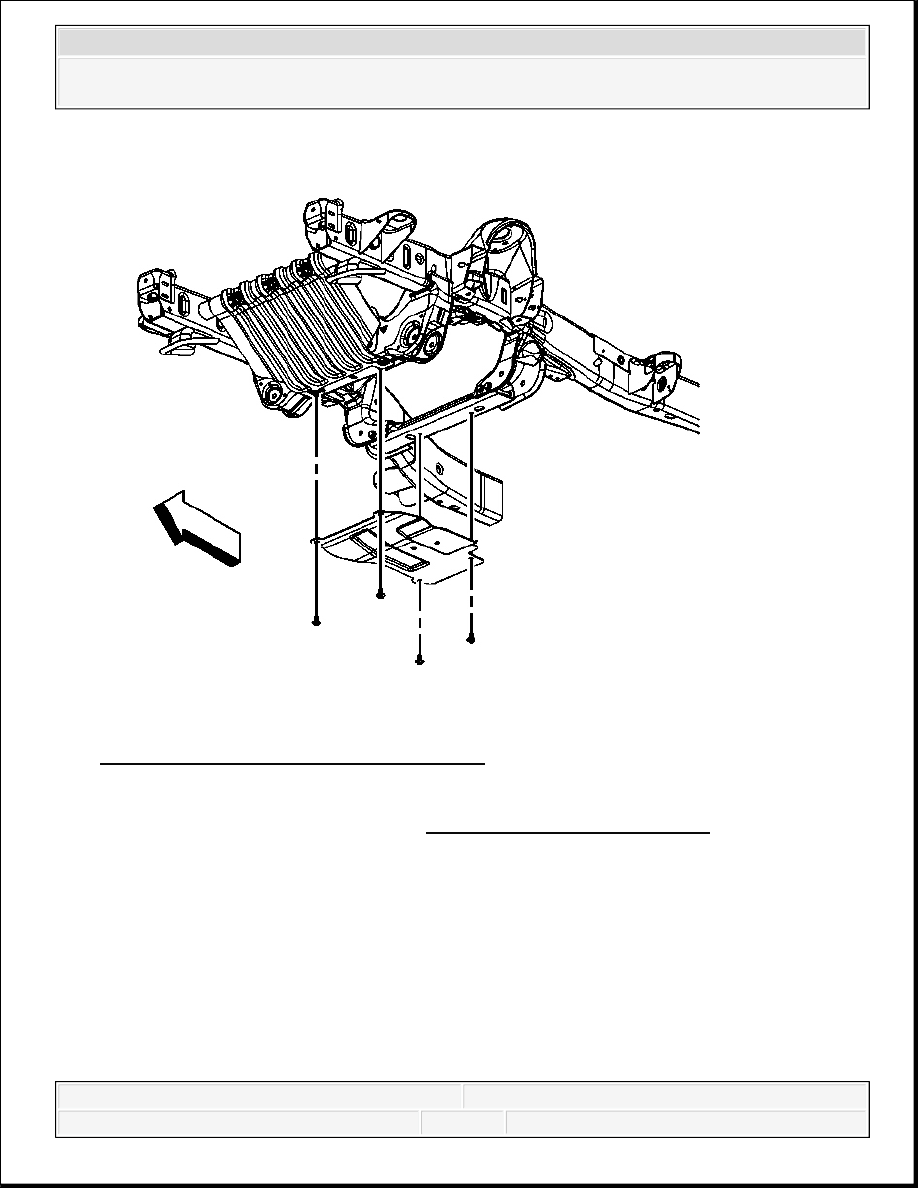

Fig. 3: View Of Oil Pan Skid Plate & Bolts
Courtesy of GENERAL MOTORS CORP.
1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
2. Remove the mounting bolts for the oil pan skid plate.
3. Remove the oil pan skid plate.
2008 Chevrolet Silverado 1500
2008 ACCESSORIES & EQUIPMENT Frame and Underbody - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra
& Silverado

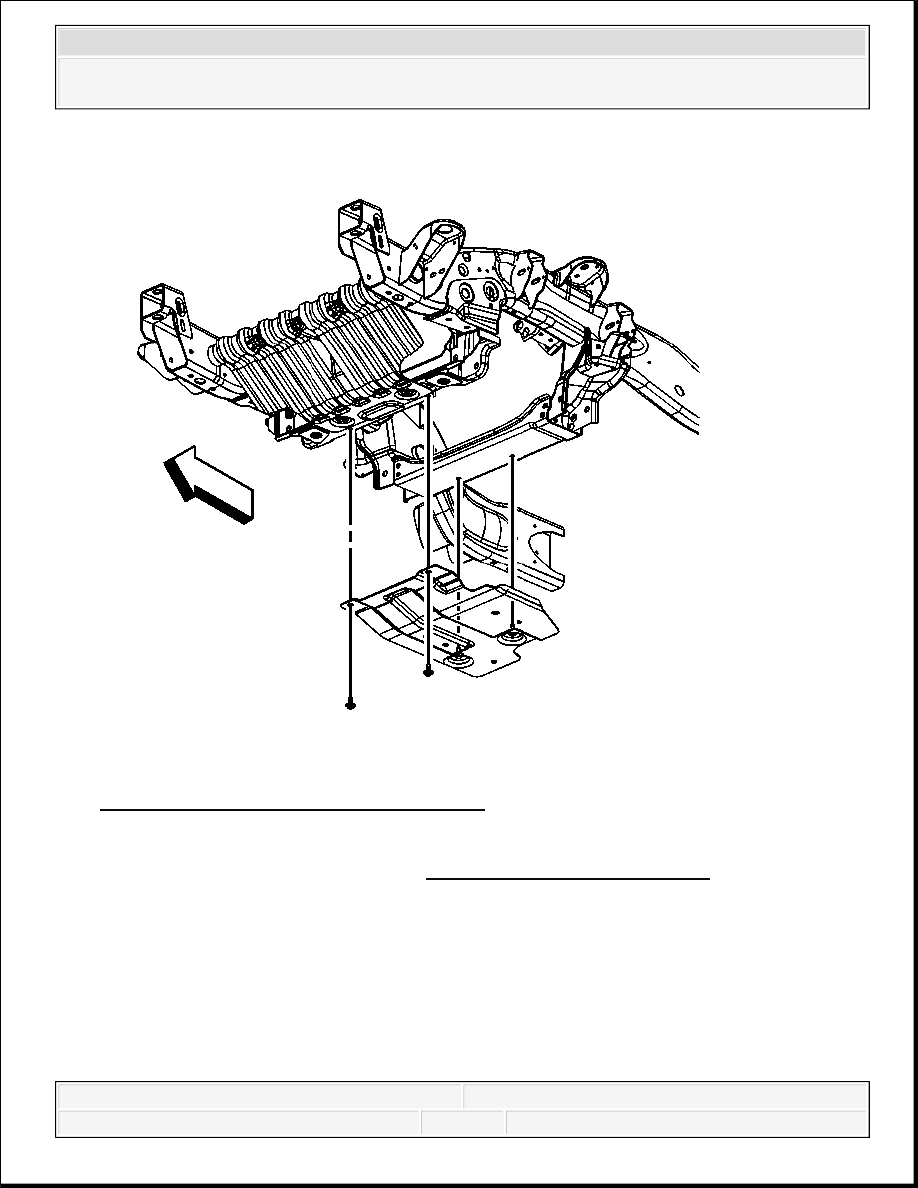

Fig. 4: View Of Oil Pan Skid Plate & Bolts
Courtesy of GENERAL MOTORS CORP.
4. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
5. Remove the mounting bolts for the oil pan skid plate.
6. Remove the oil pan skid plate.
Installation Procedure
2008 Chevrolet Silverado 1500
2008 ACCESSORIES & EQUIPMENT Frame and Underbody - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra
& Silverado
Fig. 5: View Of Oil Pan Skid Plate & Bolts
Courtesy of GENERAL MOTORS CORP.
1. Position the oil skid plate on the frame.
2. Install the oil skid plate mounting bolts.
Tighten: Tighten the bolts to 28 N.m (21 lb ft).
ENGINE SHIELD REPLACEMENT
NOTE:
Refer to Fastener Notice .
2008 Chevrolet Silverado 1500
2008 ACCESSORIES & EQUIPMENT Frame and Underbody - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra
& Silverado

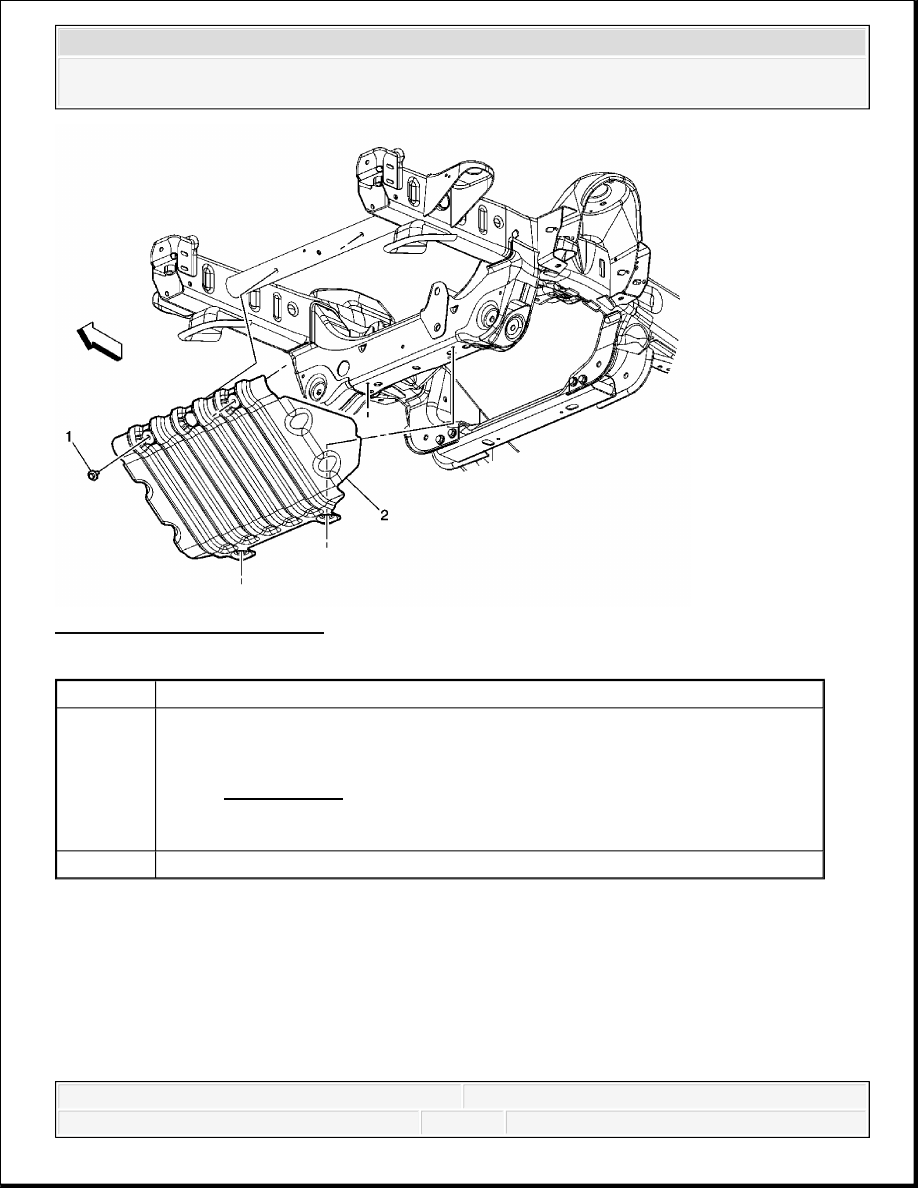

Fig. 6: View Of Engine Shield
Courtesy of GENERAL MOTORS CORP.
DRIVETRAIN AND FRONT SUSPENSION FRAME FRONT CROSSMEMBER REPLA
REPLACEMENT (4WD 2500 HD, 3500)
Callout
Component Name
1
Engine Shield Bolts (Qty: 4)
Tighten: 20 N.m (15 lb ft)
NOTE:
Refer to Fastener Notice .
2
Engine Shield
2008 Chevrolet Silverado 1500
2008 ACCESSORIES & EQUIPMENT Frame and Underbody - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra
& Silverado
