GLOBAL POSITIONING SYSTEM (GPS) ANTENNA REPLACEMENT Steering Shaft Replacement . 4. Remove the 4 I/P bolts to body bolts. 5. Disconnect the 5 electrical connections on the passenger side. 6. Pull the passenger side of the I/P back approximately 760 mm (2.5 ft) pivoting on the drivers side. Set on floor or seat. 7. Remove the 2 screws from the HVAC recirculation door and push door towards the center of the vehicle. Refer to Air Inlet Assembly Replacement . 8. Disconnect the coaxial cable at the junction. 9. Insert a shim between the HVAC and side metal approximately 38 mm (1.5 in). 10. Tape pull wire to the coaxial cable. 1 Radio Antenna Mast Tighten: 6 N.m (53 lb in) NOTE: Refer to Fastener Notice . 2 Air Inlet Grille Outer Cover 3 Radio Antenna Assembly Screw (Qty: 3) Tighten: 5 N.m (44 lb in) 4 Radio Antenna Assembly 1. Remove the cable grommet from the body using the screwdriver from top down. 2. Tie a long wire to the antenna cable to aid in installation of new antenna. Use a screwdriver to guide the cable from the inside. 3. Tape a long pull wire to the antenna cable to aid in installation of the new antenna. Use a screwdriver to guide the wire from the inside. 4. Lubricate the grommet to aid in installation.
2008 Chevrolet Silverado 1500 2008 ACCESSORIES & EQUIPMENT Cellular, Entertainment, and Navigation - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

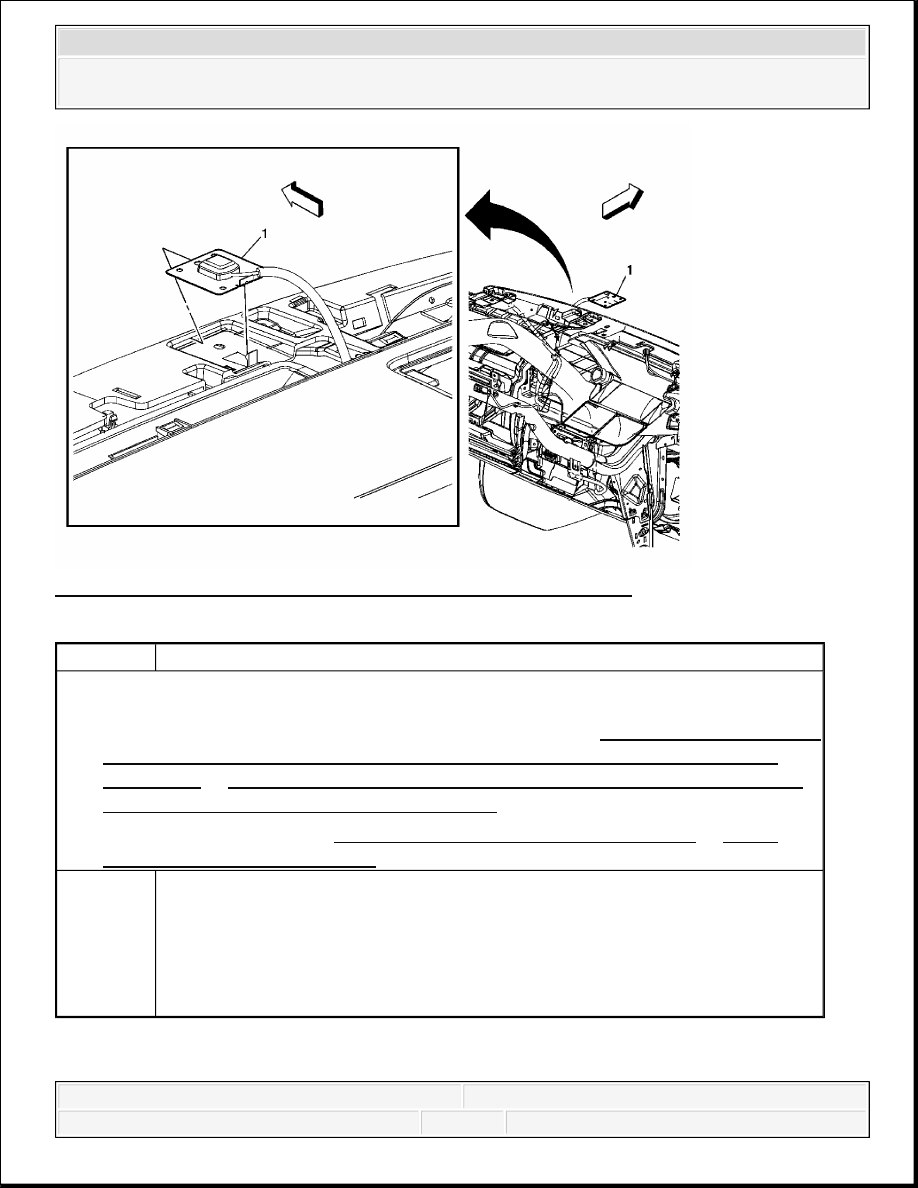

Fig. 22: Global Positioning System (GPS) Antenna Replacement RADIO ANTENNA CABLE EXTENSION CABLE REPLACEMENT (WITH RPO SLT) Callout Component Name Preliminary Procedure 1. Remove the instrument panel (I/P) upper trim pad. Refer to Instrument Panel Upper Trim Panel with Windshield Defroster Nozzle Grille Replacement (without 2. Remove the radio. Refer to Radio Replacement (without RPO SLT) or Radio Replacement (with RPO SLT). 1 Radio Antenna Module Assembly Procedure 1. Disconnect the antenna module from the radio. 2. Disconnect the extension cable from the center HVAC duct.
2008 Chevrolet Silverado 1500 2008 ACCESSORIES & EQUIPMENT Cellular, Entertainment, and Navigation - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

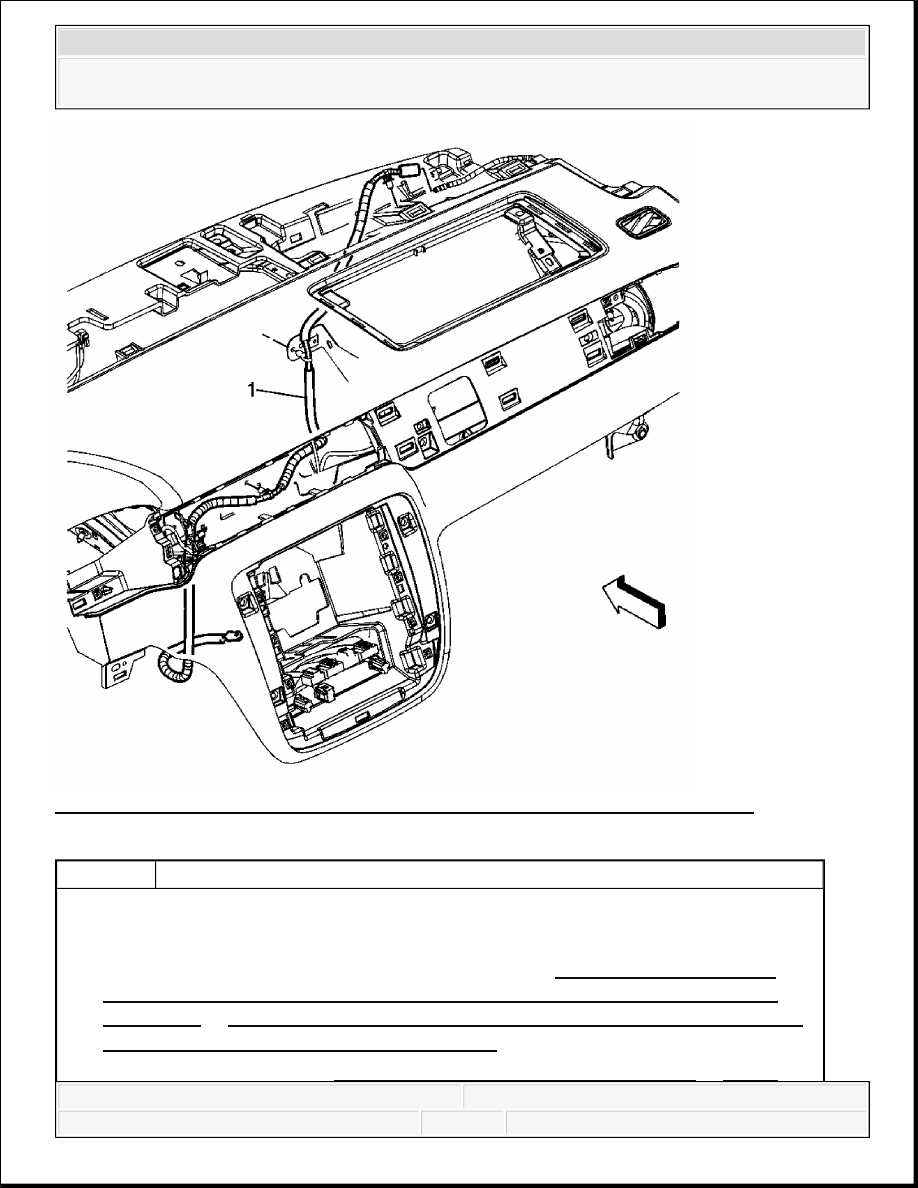

Fig. 23: Radio Antenna Cable Extension Cable Replacement (with RPO SLT) Callout Component Name Preliminary Procedure 1. Remove the instrument panel upper trim pad. Refer to Instrument Panel Upper Trim Panel with Windshield Defroster Nozzle Grille Replacement (without 2. Remove the radio. Refer to Radio Replacement (without RPO SLT) or Radio
2008 Chevrolet Silverado 1500 2008 ACCESSORIES & EQUIPMENT Cellular, Entertainment, and Navigation - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

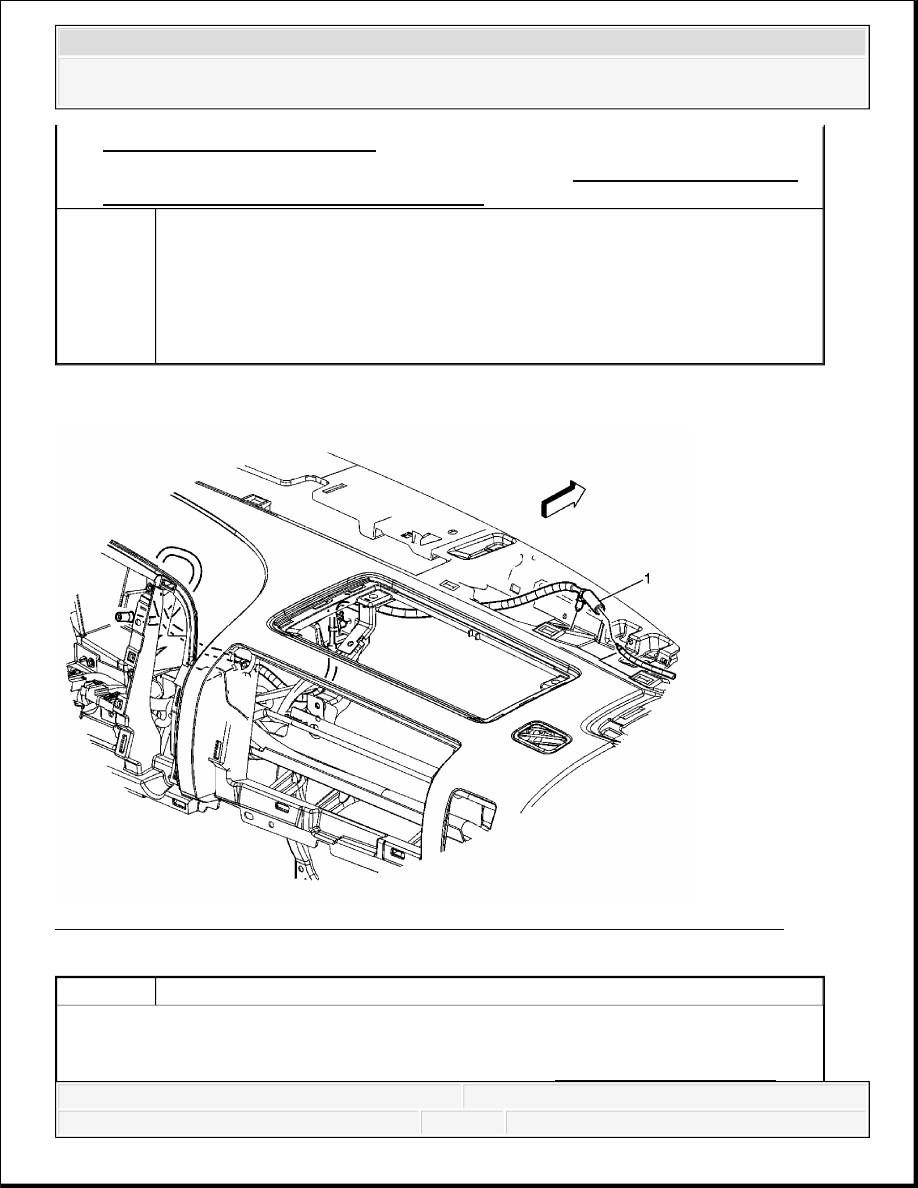

RADIO ANTENNA CABLE EXTENSION CABLE REPLACEMENT (WITHOUT RPO SLT) Fig. 24: Radio Antenna Cable Extension Cable Replacement (without RPO SLT) Replacement (with RPO SLT). 3. Remove the instrument panel center trim panel. Refer to Instrument Panel Center Trim Panel Replacement (with RPO SLT) . 1 Radio Antenna Extension Cable Assembly Disconnect the extension cable from the antenna. Disconnect the extension cable from the radio. Disconnect the extension cable from the center HVAC duct. Callout Component Name Preliminary Procedure 1. Remove the instrument panel upper trim pad. Refer to Instrument Panel Upper
2008 Chevrolet Silverado 1500 2008 ACCESSORIES & EQUIPMENT Cellular, Entertainment, and Navigation - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
