Chevrolet Silverado / GMC Sierra. Manual - part 2242
2008 Chevrolet Silverado 1500
2008 ACCESSORIES & EQUIPMENT Cellular, Entertainment, and Navigation - Cab & Chassis Sierra, Cab & Chassis
Silverado, Sierra & Silverado

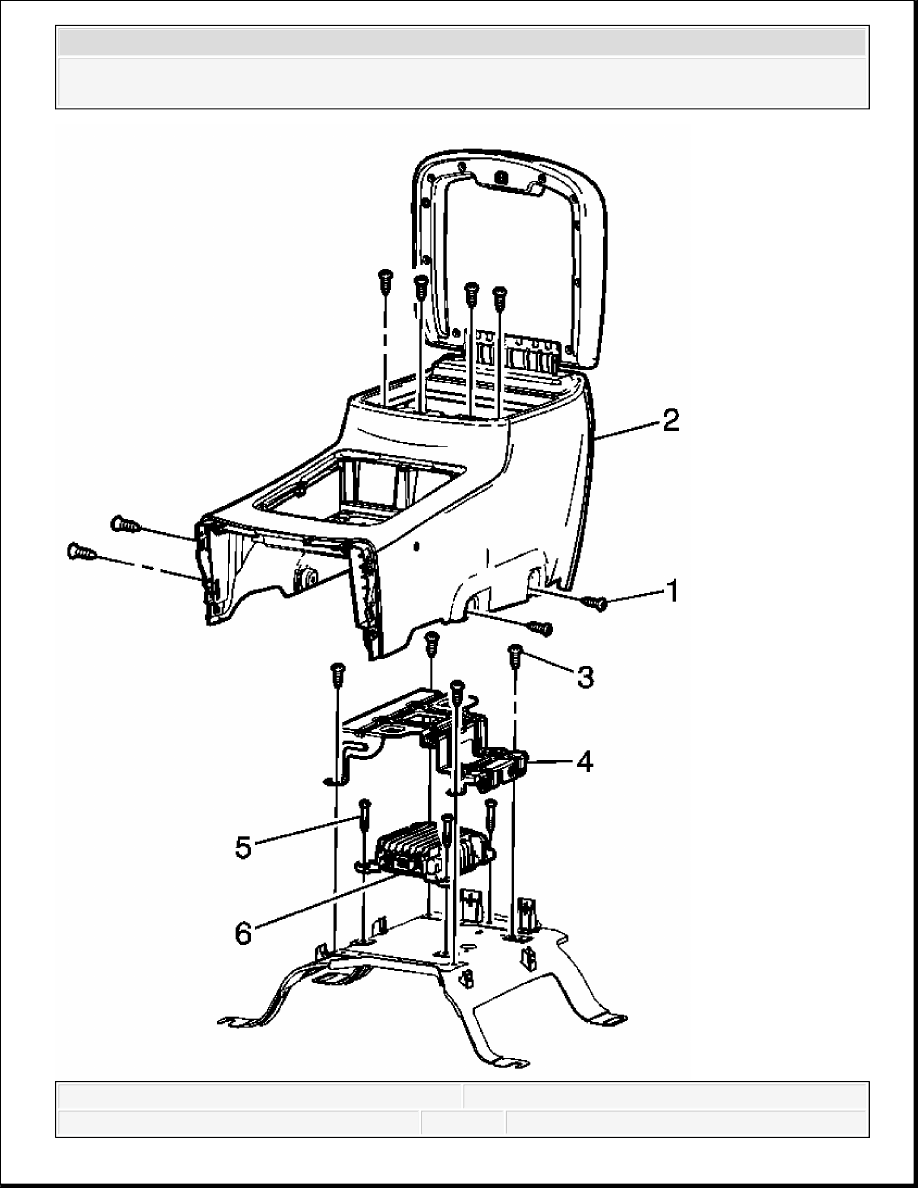

Fig. 19: Radio Speaker Amplifier Replacement
Courtesy of GENERAL MOTORS CORP.
MOBILE TELEPHONE DIGITAL ANTENNA REPLACEMENT
Callout
Component Name
1
Front Floor Console Screw (Qty: 8)
Tighten: 9 N.m (80 lb in)
NOTE:
Refer to Fastener Notice .
2
Front Floor Console Assembly
Refer to Front Floor Console Replacement (with RPO SLT) or Front
Floor Console Replacement (without RPO SLT) .
3
Front Floor Console Bracket Screw (Qty: 4)
Tighten: 9 N.m (80 lb in)
4
Front Floor Console Bracket
5
Amplifier Screw (Qty: 3)
Tighten: 9 N.m (80 lb in)
6
Radio Speaker Amplifier Assembly
Tip:
1. Disconnect the electrical connectors.
2. If replacing the amplifier, program the replacement amplifier. Refer to
Control Module References .
2008 Chevrolet Silverado 1500
2008 ACCESSORIES & EQUIPMENT Cellular, Entertainment, and Navigation - Cab & Chassis Sierra, Cab & Chassis
Silverado, Sierra & Silverado
Fig. 20: Mobile Telephone Digital Antenna Replacement
Courtesy of GENERAL MOTORS CORP.
Callout
Component Name
Preliminary Procedure:
Lower the front of the headliner. Refer to Headlining Trim Panel Replacement
(Regular Cab) or Headlining Trim Panel Replacement (Crew Cab) or Headlining
Trim Panel Replacement (Extended Cab) .
1
Mobile Telephone Antenna Bolt
NOTE:
Refer to Fastener Notice .
2008 Chevrolet Silverado 1500
2008 ACCESSORIES & EQUIPMENT Cellular, Entertainment, and Navigation - Cab & Chassis Sierra, Cab & Chassis
Silverado, Sierra & Silverado
RADIO ANTENNA REPLACEMENT
Fig. 21: Radio Antenna Replacement
Courtesy of GENERAL MOTORS CORP.
Tighten: 9 N.m (80 lb in)
2
Mobile Telephone Antenna Expansion Sleeve
3
Mobile Telephone and Navigation Antenna Assembly
Tip: Disconnect the antenna cable.
Callout
Component Name
Preliminary Procedures
1. Remove the battery. Refer to Battery Replacement .
2. Remove the instrument panel (I/P) upper trim pad. Refer to Instrument Panel Upper
Trim Panel with Windshield Defroster Nozzle Grille Replacement (without
RPO SLT) or Instrument Panel Upper Trim Panel with Windshield Defroster
Nozzle Grille Replacement (with RPO SLT) .
3. Disconnect the upper intermediate steering shaft. Refer to Upper Intermediate
2008 Chevrolet Silverado 1500
2008 ACCESSORIES & EQUIPMENT Cellular, Entertainment, and Navigation - Cab & Chassis Sierra, Cab & Chassis
Silverado, Sierra & Silverado
