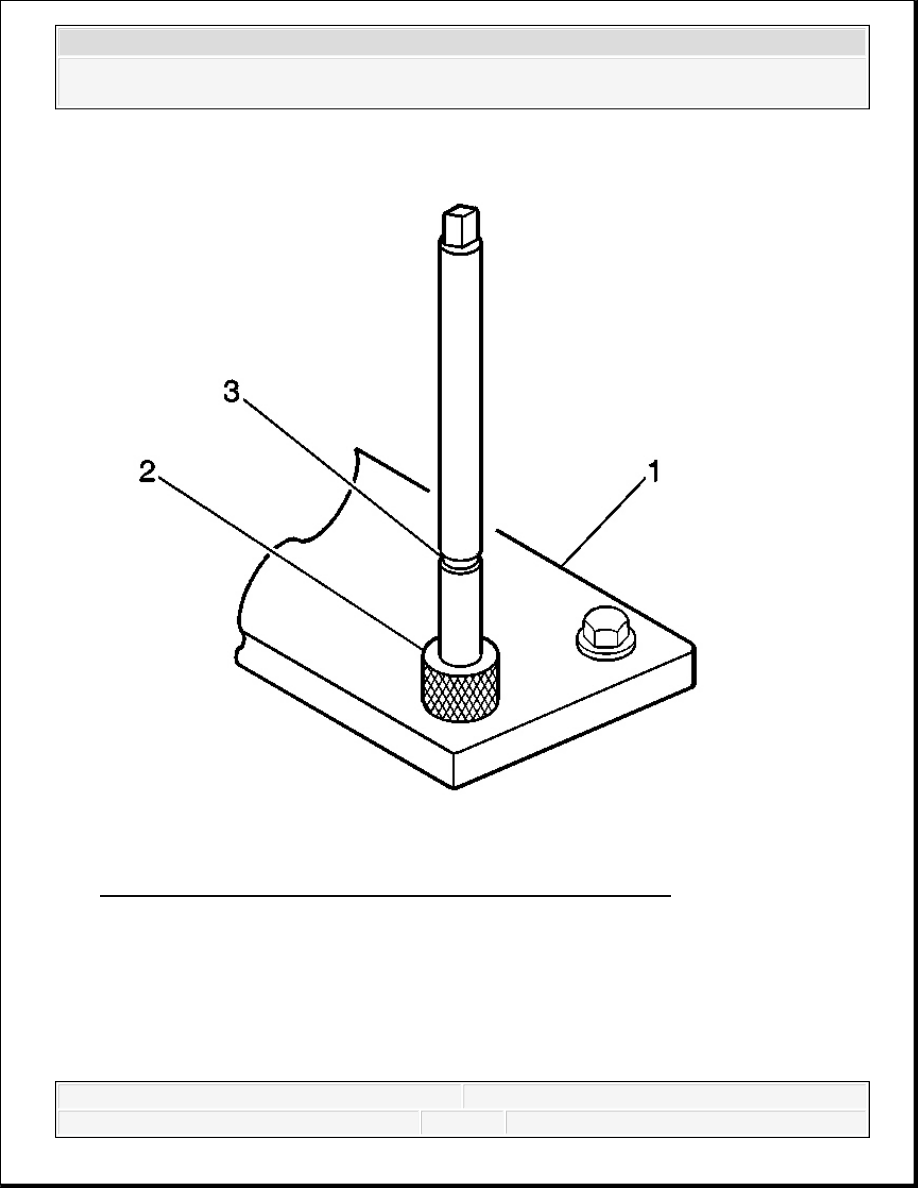

Fig. 162: View Of Fixture Plate, Drill Bushing & Tool Marking 13. Install the insert and driver (1) through the fixture plate and bushing and into the hole. IMPORTANT: The fixture plate and bushing remains installed onto the engine block during the insert installation procedure.
2008 Chevrolet Silverado 1500 2008 ENGINE Engine Mechanical - 4.8L, 5.3L, 6.0L, 6.2L, or 7.0L - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
Rotate the driver tool until the mark on the tool (3) aligns with the top of the bushing (2). The installer tool will tighten up before screwing completely through the insert. This is SERVICE PRIOR TO ASSEMBLY Dirt or debris will cause premature wear of the rebuilt engine. Clean all components. Refer Use the proper tools to measure components when inspecting for excessive wear. When the components are installed into an engine, return the components to their original During assembly, lubricate all moving parts with clean engine oil. This provides initial ENGINE BLOCK PLUG INSTALLATION
2008 Chevrolet Silverado 1500 2008 ENGINE Engine Mechanical - 4.8L, 5.3L, 6.0L, 6.2L, or 7.0L - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

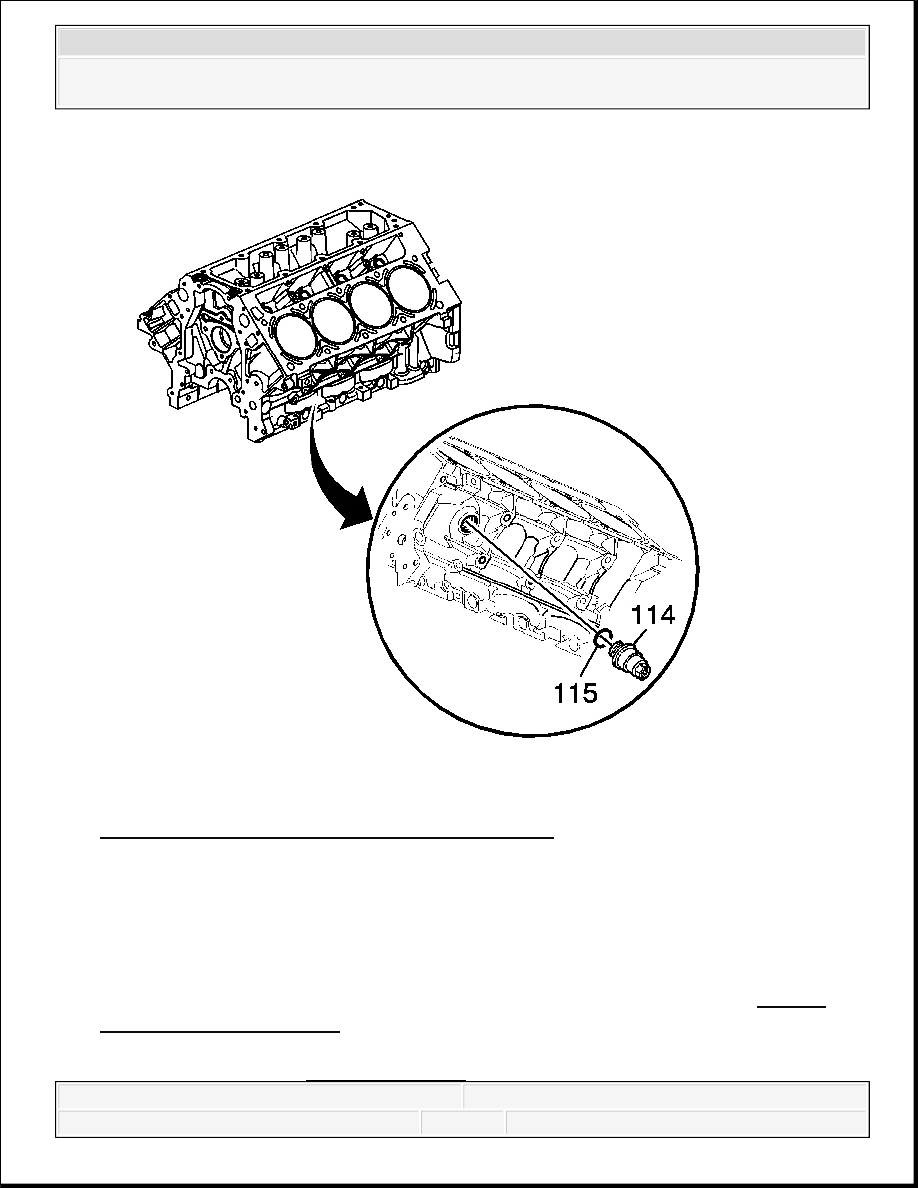

Fig. 163: Identifying Engine Block Coolant Heater 1. Apply a 3.175 mm (0.125 in) bead of sealant GM P/N 12346004 (Canadian P/N 10953480) to the engine block coolant heater sealing washer (115), if applicable. Refer to Sealers, IMPORTANT: Engine block plug, oil gallery, and coolant sealing washers may be used again if not bent, scored or otherwise damaged. NOTE: Refer to Fastener Notice .
2008 Chevrolet Silverado 1500 2008 ENGINE Engine Mechanical - 4.8L, 5.3L, 6.0L, 6.2L, or 7.0L - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

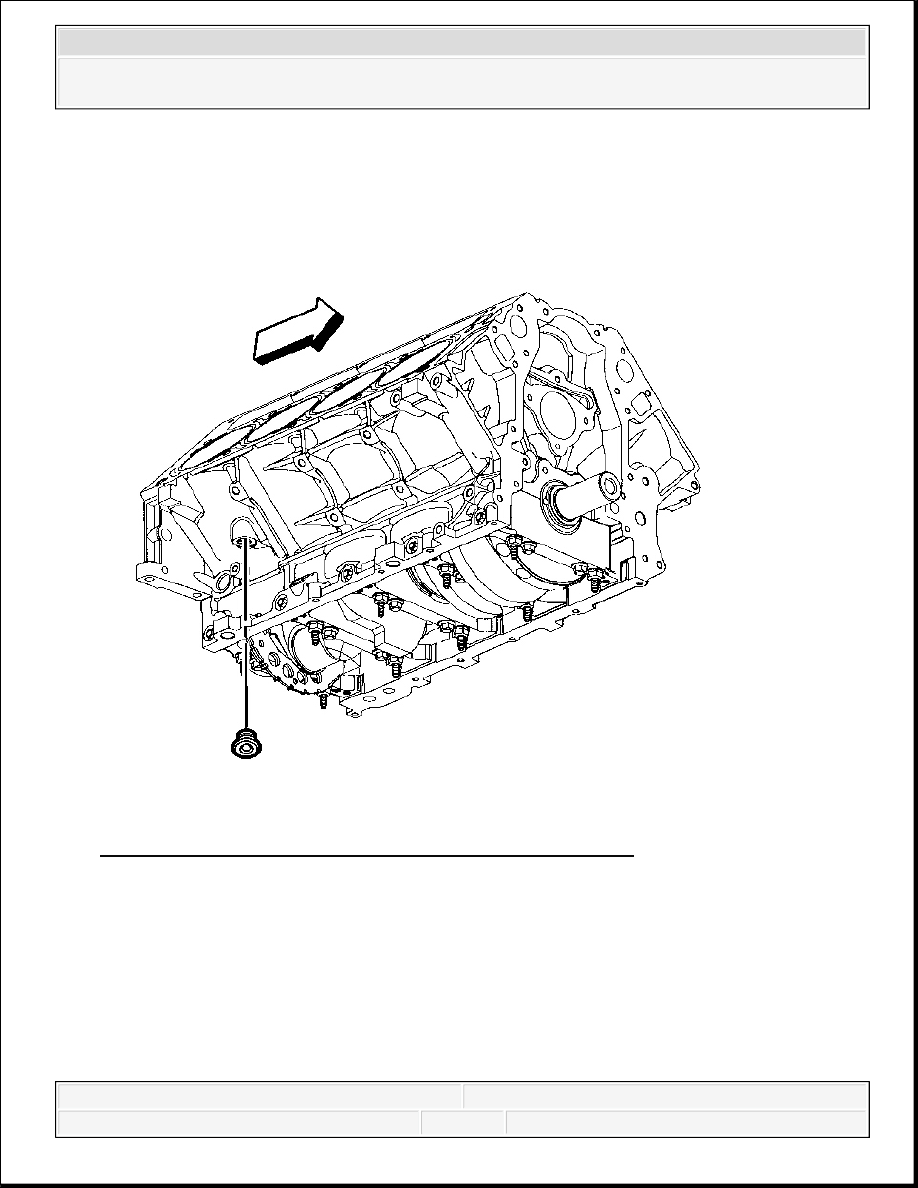

2. Install the engine block coolant heater (114) to the engine block. Tighten: Tighten the engine block coolant heater to 50 N.m (37 lb ft). Fig. 164: Identifying Plug Location On Underside Of Block 3. Apply a 3.175 mm (0.125 in) bead of sealant GM P/N 12346004 (Canadian P/N 10953480) to the engine block right rear coolant drain hole plug sealing washer. 4. Install the engine block right rear coolant drain hole plug. Tighten: Tighten the engine block right rear coolant drain hole plug to 60 N.m (44 lb ft).
2008 Chevrolet Silverado 1500 2008 ENGINE Engine Mechanical - 4.8L, 5.3L, 6.0L, 6.2L, or 7.0L - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
