Chevrolet Silverado / GMC Sierra. Manual - part 2159
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Mechanical - 4.8L, 5.3L, 6.0L, 6.2L, or 7.0L - Cab & Chassis Sierra, Cab & Chassis Silverado,
Sierra & Silverado

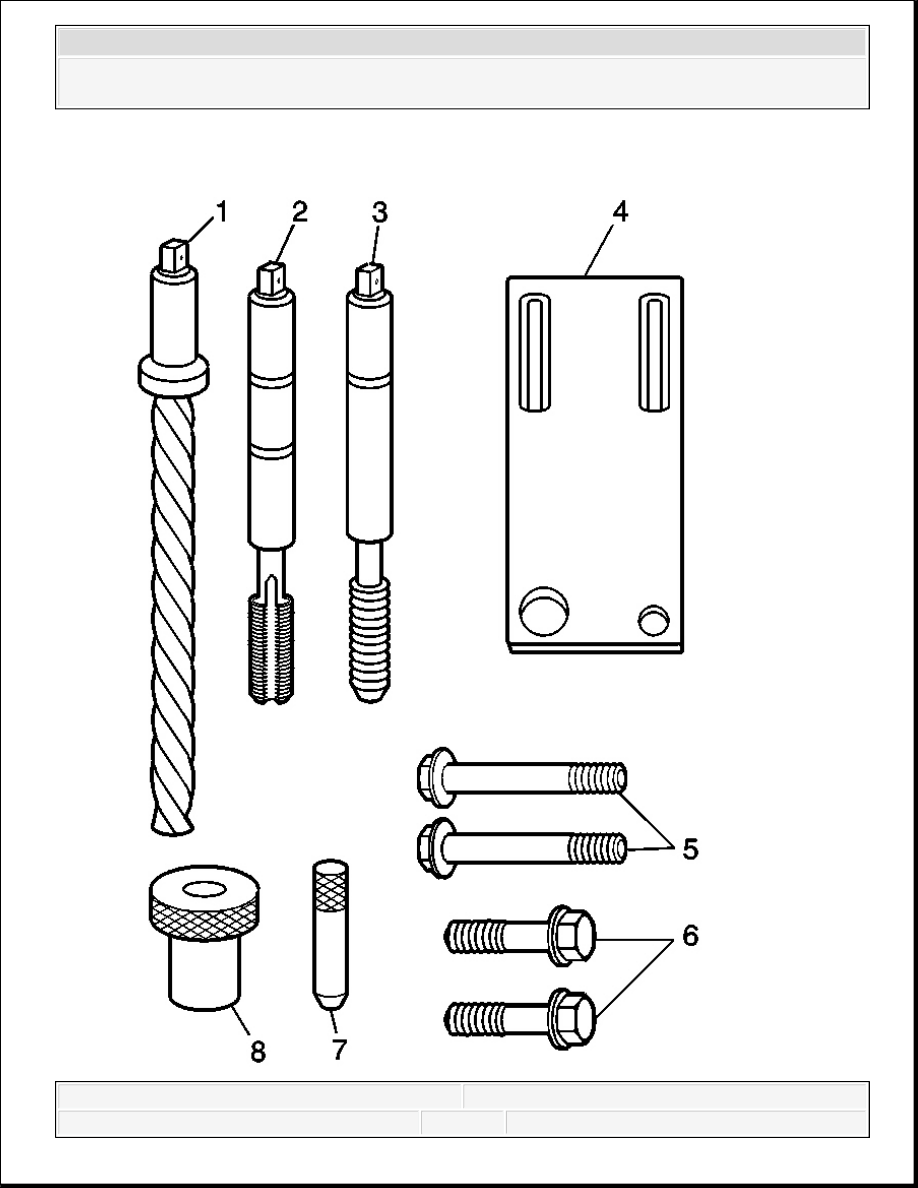

Fig. 155: Identifying Thread Repair Kit Components
Courtesy of GENERAL MOTORS CORP.
1. The main cap bolt hole thread repair kit consists of the following items:
The drill (1)
The tap (2)
The installer (3)
The fixture plate (4)
The long bolts (5)
The short bolts (6)
The alignment pin (7)
The bushing (8)
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Mechanical - 4.8L, 5.3L, 6.0L, 6.2L, or 7.0L - Cab & Chassis Sierra, Cab & Chassis Silverado,
Sierra & Silverado

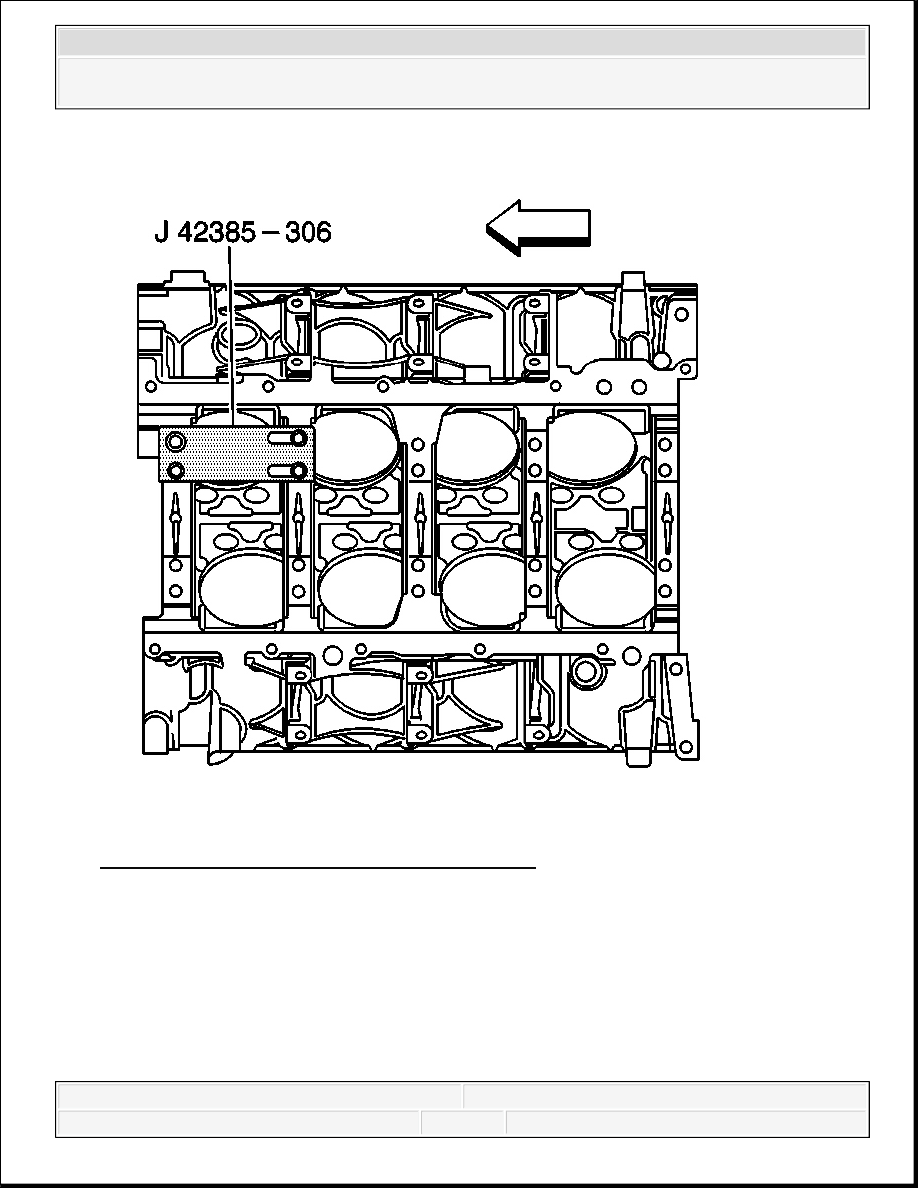

Fig. 156: View Of Fixture Plate, Bolt & Bushing
Courtesy of GENERAL MOTORS CORP.
2. Install the fixture plate, bolt, and bushing onto the engine block.
Position the fixture plate and bushing over the hole that is to be repaired.
3. Position the alignment pin in the desired hole and tighten the fixture retaining bolts.
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Mechanical - 4.8L, 5.3L, 6.0L, 6.2L, or 7.0L - Cab & Chassis Sierra, Cab & Chassis Silverado,
Sierra & Silverado

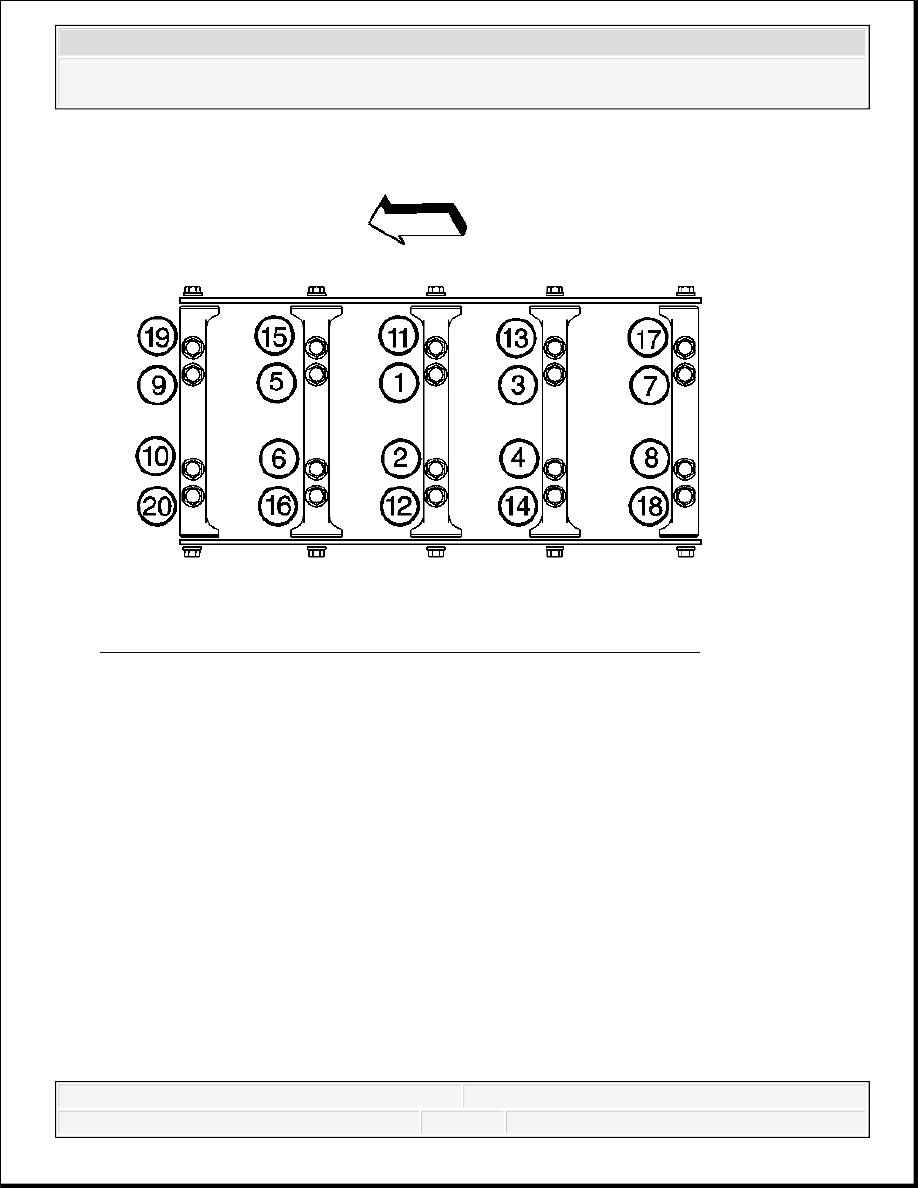

Fig. 157: Crankshaft Main Bearing Cap Bolt Tightening Sequence
Courtesy of GENERAL MOTORS CORP.
4. Drill out the damaged hole.
The outer bolt hole locations 11-20 have the shallower counterbores. Use sleeve J 42385-
316 with the drill.
Drill until the stop collar of the drill bit or the sleeve contacts the bushing.
5. Using compressed air, clean out any chips.
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Mechanical - 4.8L, 5.3L, 6.0L, 6.2L, or 7.0L - Cab & Chassis Sierra, Cab & Chassis Silverado,
Sierra & Silverado
