Chevrolet Silverado / GMC Sierra. Manual - part 2066

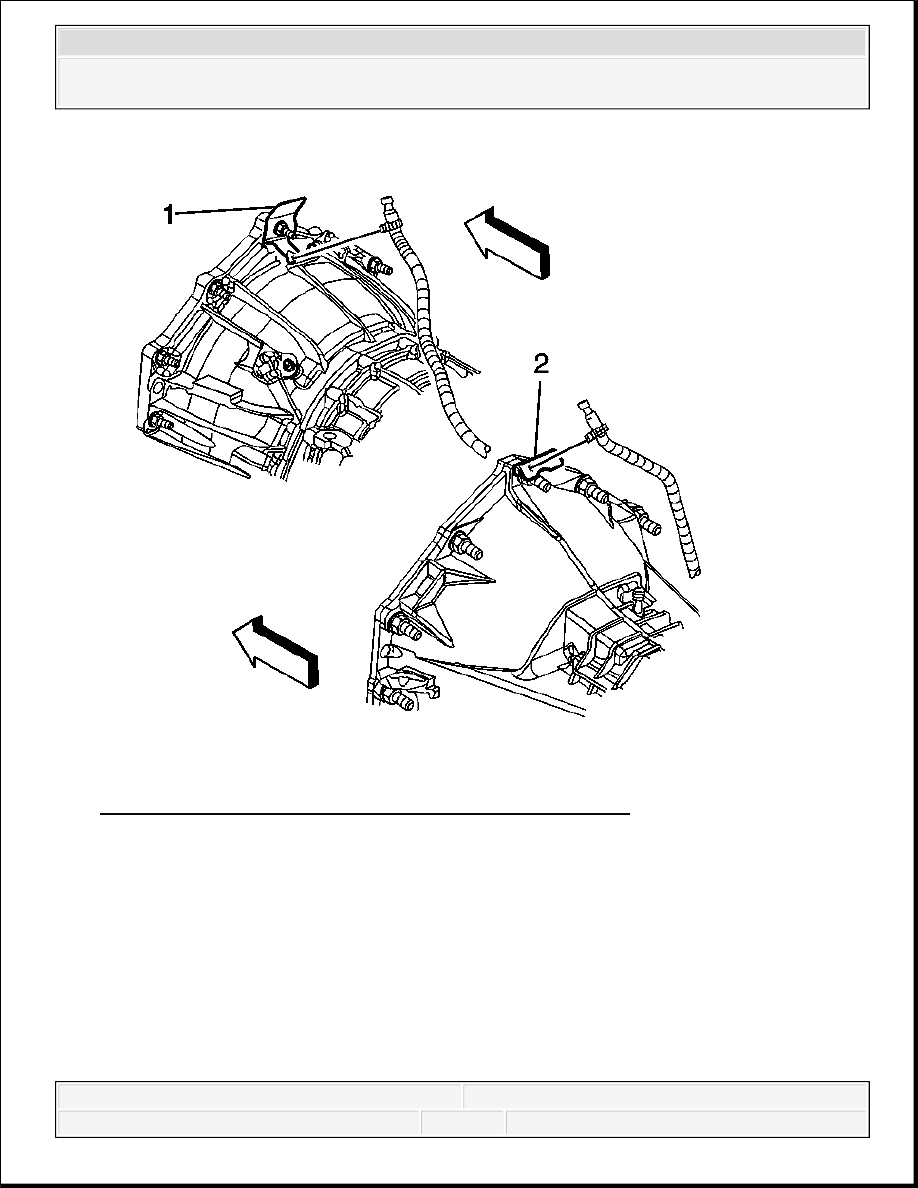

Fig. 134: View Of Transfer Case Vent Hose Bracket & Nut
Courtesy of GENERAL MOTORS CORP.
69. For the 4L80-E automatic transmission, remove the transfer case vent hose bracket (1) nut
from the stud, if equipped.
70. For the 4L60-E/4L70-E/6L80-E automatic transmission, remove the transfer case vent hose
bracket (2) nut from the stud, if equipped.
71. Reposition the transfer case vent hose bracket and hose out of the way, if equipped.
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Mechanical - 4.8L, 5.3L, 6.0L, 6.2L, or 7.0L - Cab & Chassis Sierra, Cab & Chassis Silverado,
Sierra & Silverado

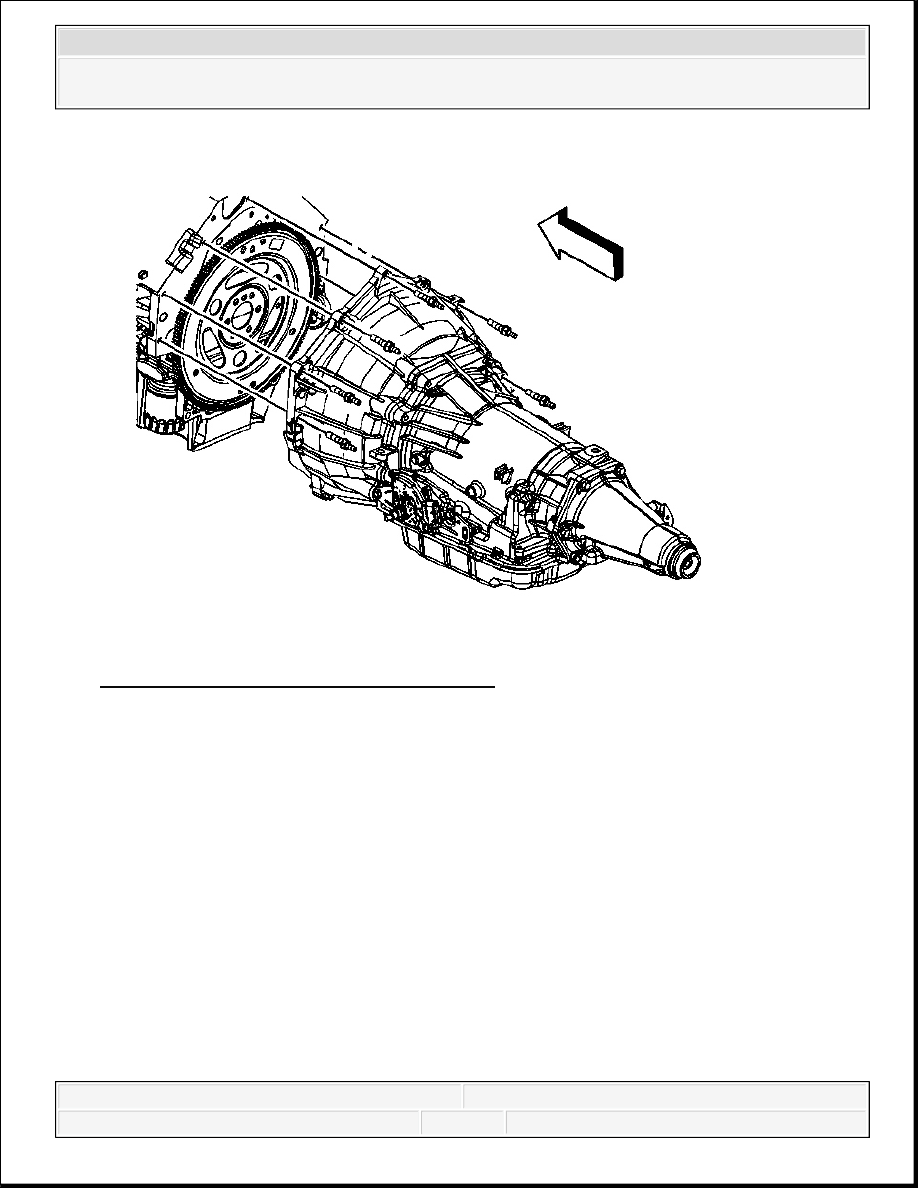

Fig. 135: View Of Transmission Bolts/Studs
Courtesy of GENERAL MOTORS CORP.
72. If equipped with the 4L60-E/4L70-E automatic transmission, remove the transmission
bolts/studs.
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Mechanical - 4.8L, 5.3L, 6.0L, 6.2L, or 7.0L - Cab & Chassis Sierra, Cab & Chassis Silverado,
Sierra & Silverado

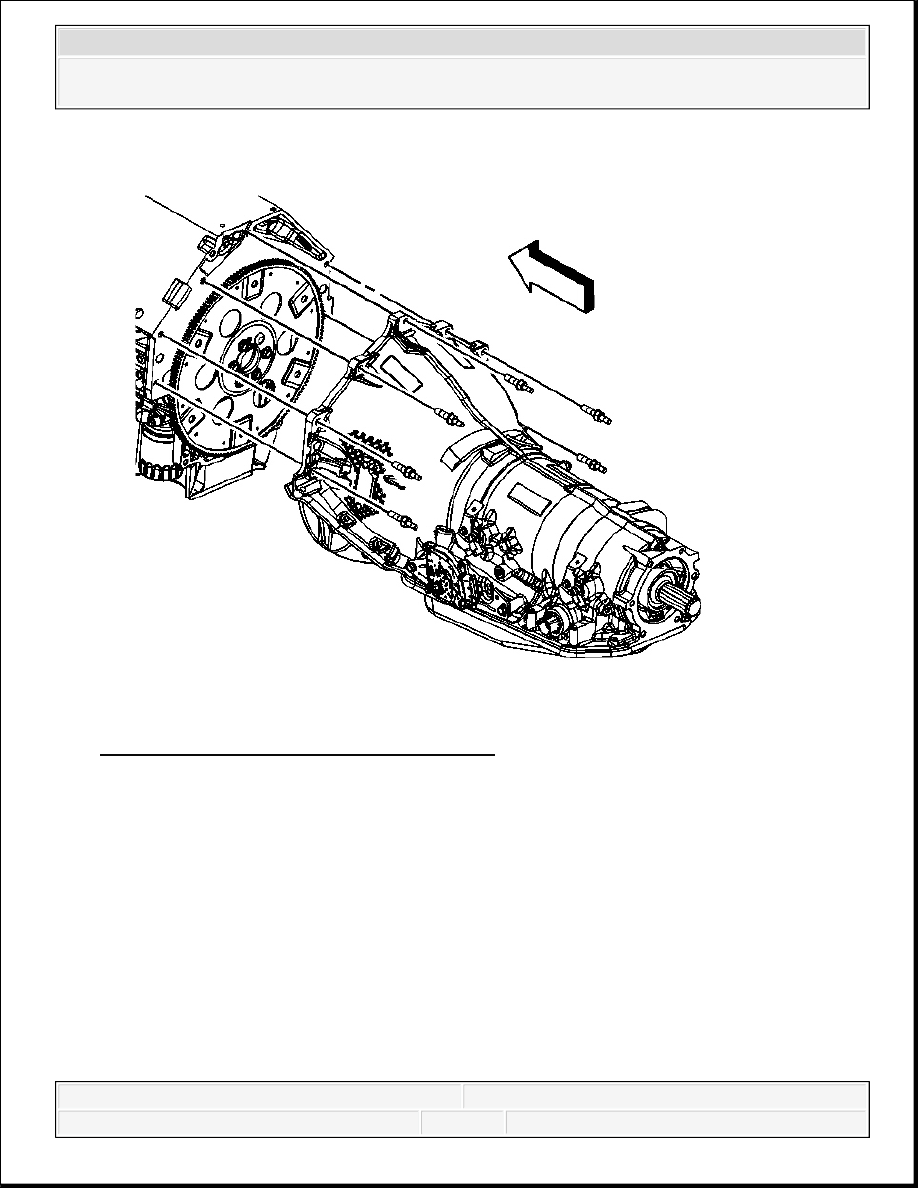

Fig. 136: View Of Transmission Bolts/Studs
Courtesy of GENERAL MOTORS CORP.
73. If equipped with the 4L80-E automatic transmission, remove the transmission bolts/studs.
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Mechanical - 4.8L, 5.3L, 6.0L, 6.2L, or 7.0L - Cab & Chassis Sierra, Cab & Chassis Silverado,
Sierra & Silverado

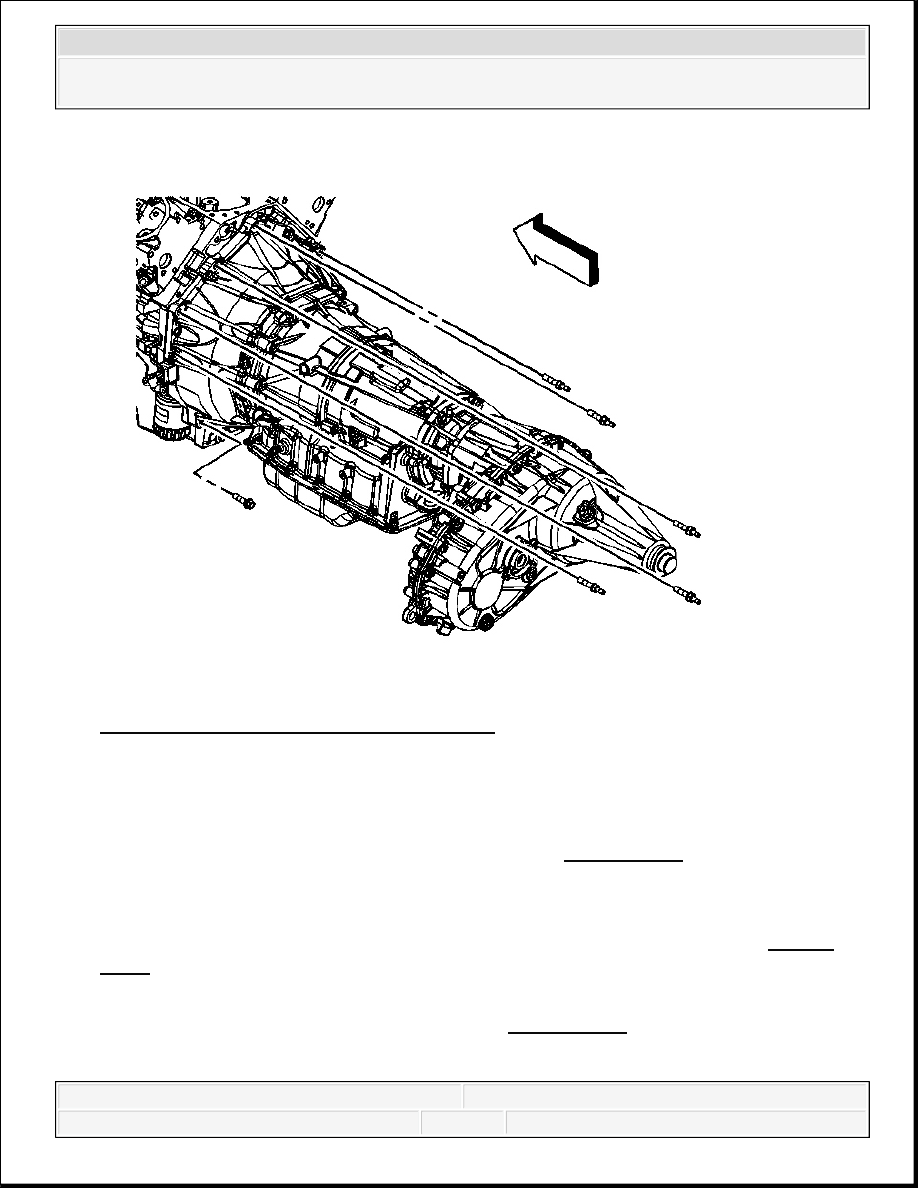

Fig. 137: View Of Transmission Bolts/Studs
Courtesy of GENERAL MOTORS CORP.
74. If equipped with the 6L80-E automatic transmission, remove the transmission bolts/studs.
75. Lower the vehicle.
76. Position and install an engine hoist to the J 41798 . See Special Tools .
77. Install a floor jack under the transmission for support.
78. Remove the engine from the vehicle.
79. Install the J 21366 to the transmission in order to hold the torque converter. See Special
Tools .
80. Position and install the engine onto an engine stand.
81. Remove the engine hoist. from the J 41798 . See Special Tools .
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Mechanical - 4.8L, 5.3L, 6.0L, 6.2L, or 7.0L - Cab & Chassis Sierra, Cab & Chassis Silverado,
Sierra & Silverado
