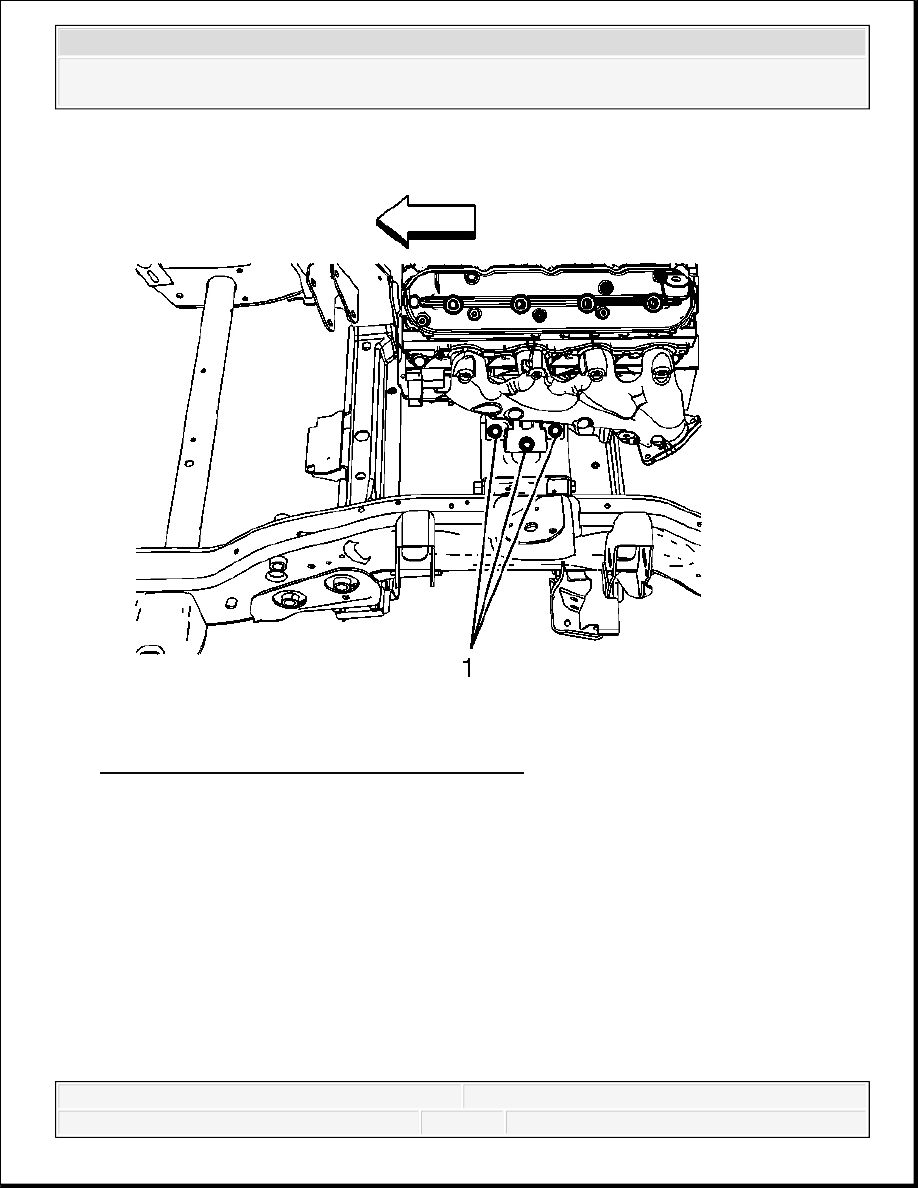

Fig. 127: View Of Engine Mount Bracket Bolts
Courtesy of GENERAL MOTORS CORP.
56. For 2500 series vehicles with a 5.3L, 6.0L, or 6.2L engines, remove the left and right engine
mount to engine mount bracket bolts (1).
57. Raise the vehicle.
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Mechanical - 4.8L, 5.3L, 6.0L, 6.2L, or 7.0L - Cab & Chassis Sierra, Cab & Chassis Silverado,
Sierra & Silverado

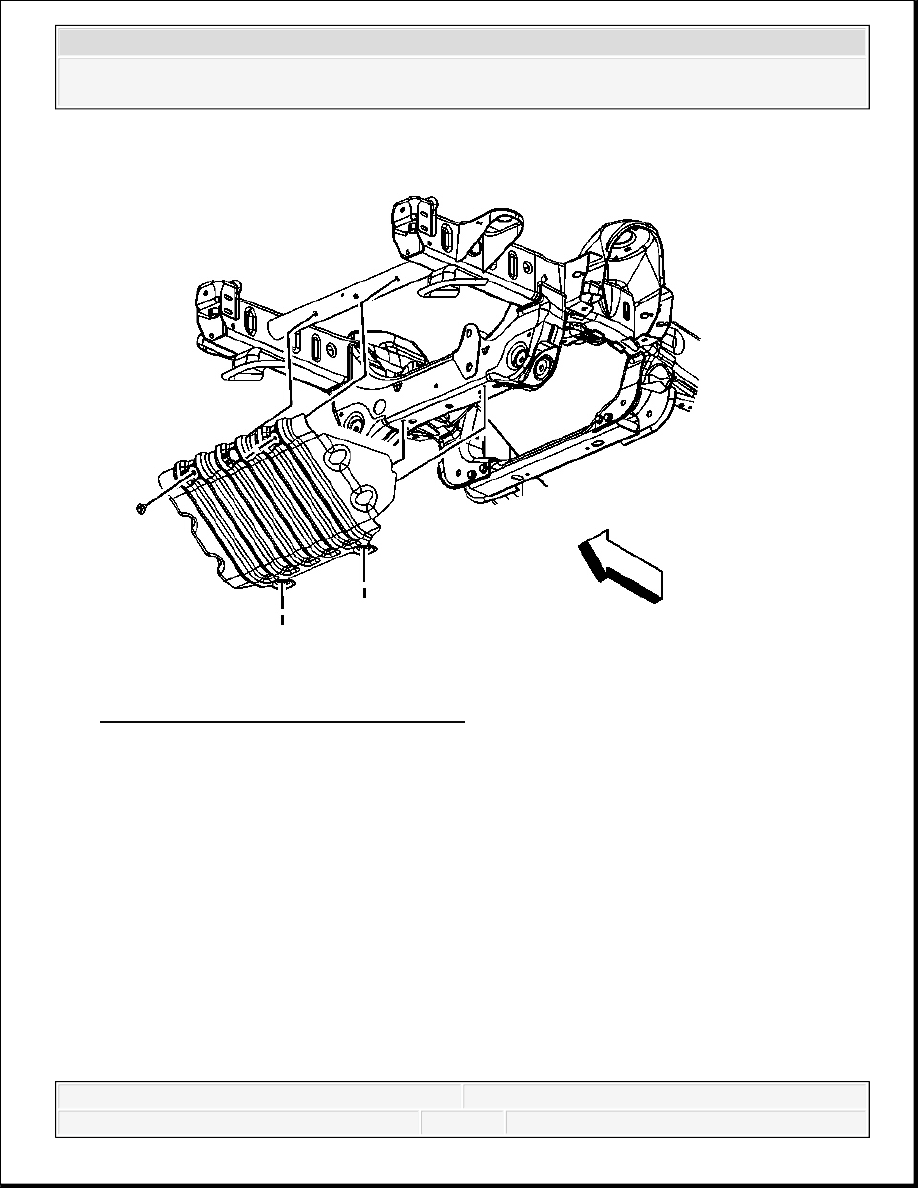

Fig. 128: View Of Engine Shield & Bolts
Courtesy of GENERAL MOTORS CORP.
58. Remove the engine shield bolts and shield.
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Mechanical - 4.8L, 5.3L, 6.0L, 6.2L, or 7.0L - Cab & Chassis Sierra, Cab & Chassis Silverado,
Sierra & Silverado

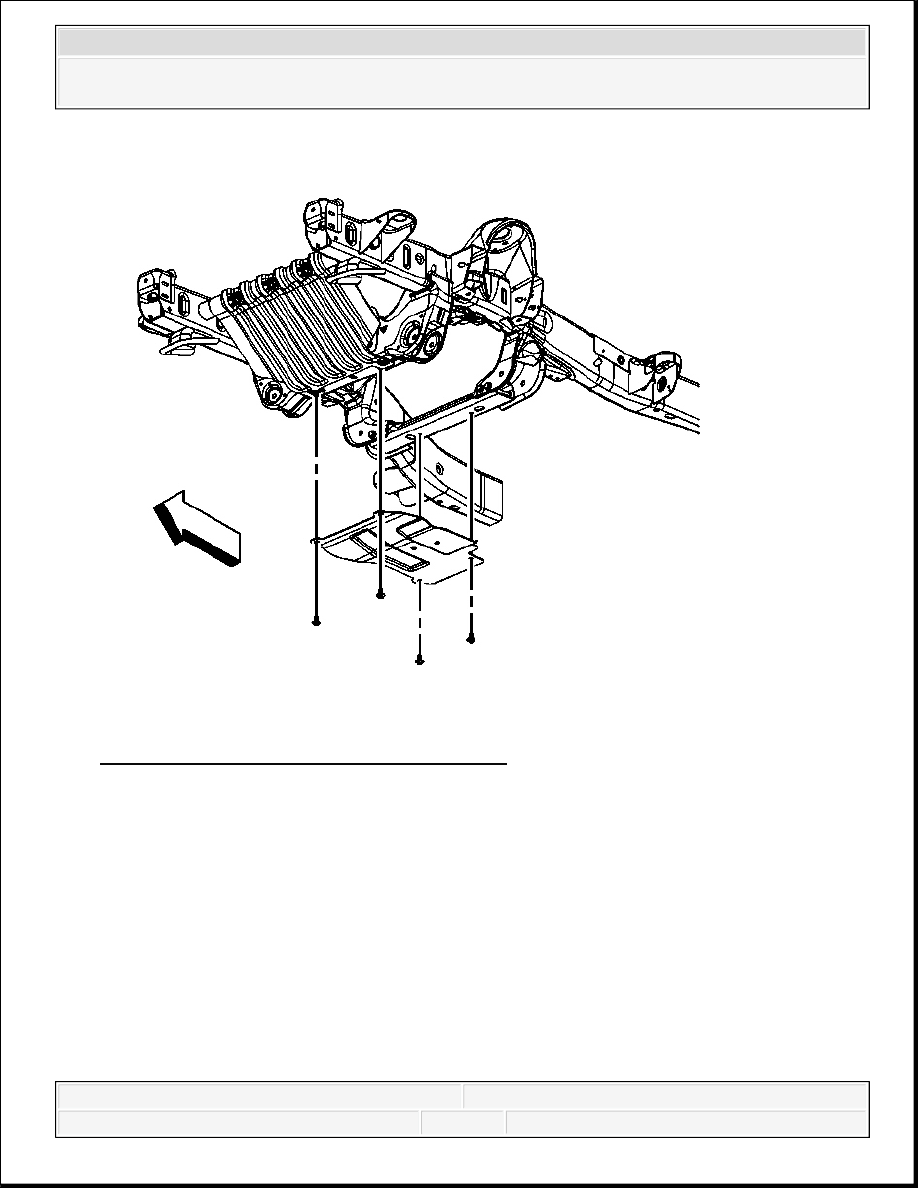

Fig. 129: View Of Oil Pan Skid Plate & Bolts
Courtesy of GENERAL MOTORS CORP.
59. For 1500 series vehicles, remove the oil pan skid plate bolts and plate, if equipped.
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Mechanical - 4.8L, 5.3L, 6.0L, 6.2L, or 7.0L - Cab & Chassis Sierra, Cab & Chassis Silverado,
Sierra & Silverado

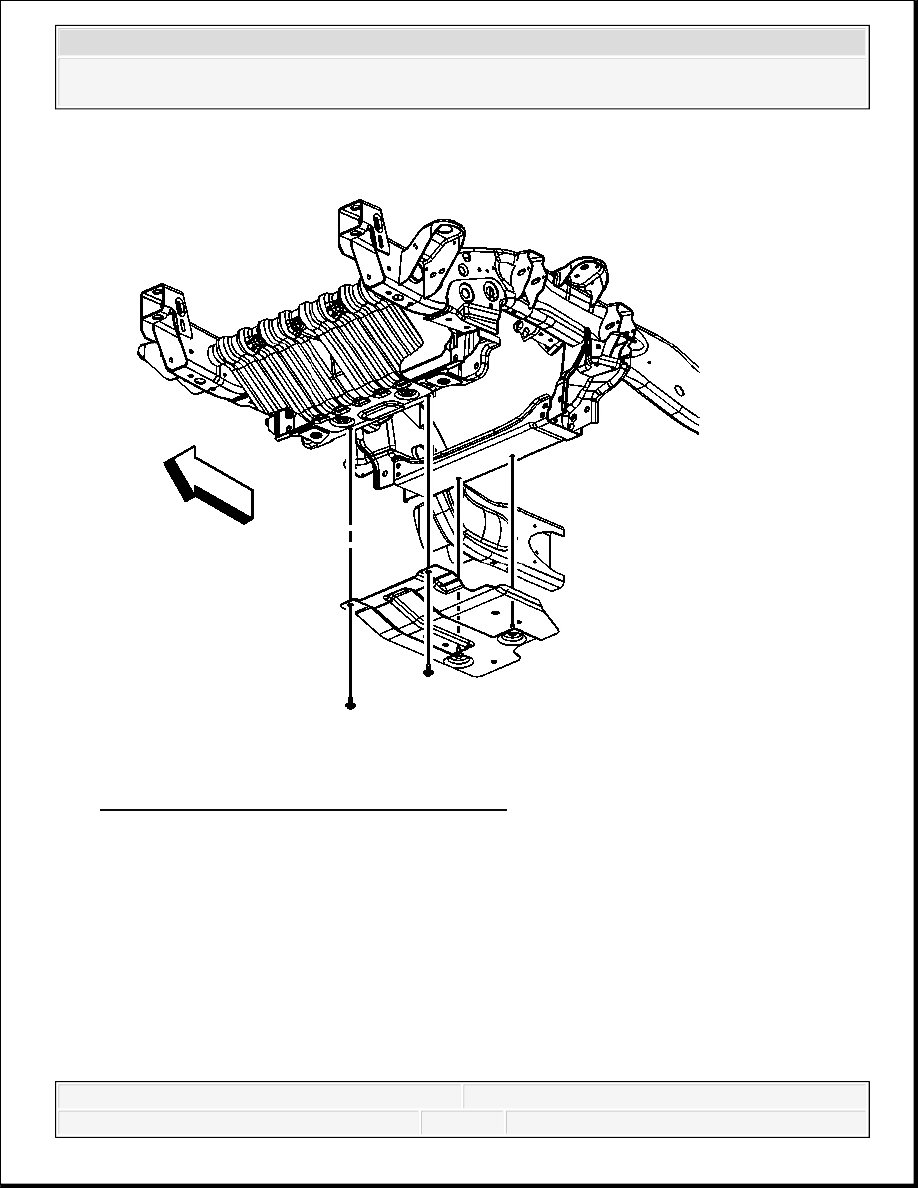

Fig. 130: View Of Oil Pan Skid Plate & Bolts
Courtesy of GENERAL MOTORS CORP.
60. For 2500 series vehicles, remove the oil pan skid plate bolts and plate, if equipped.
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Mechanical - 4.8L, 5.3L, 6.0L, 6.2L, or 7.0L - Cab & Chassis Sierra, Cab & Chassis Silverado,
Sierra & Silverado
