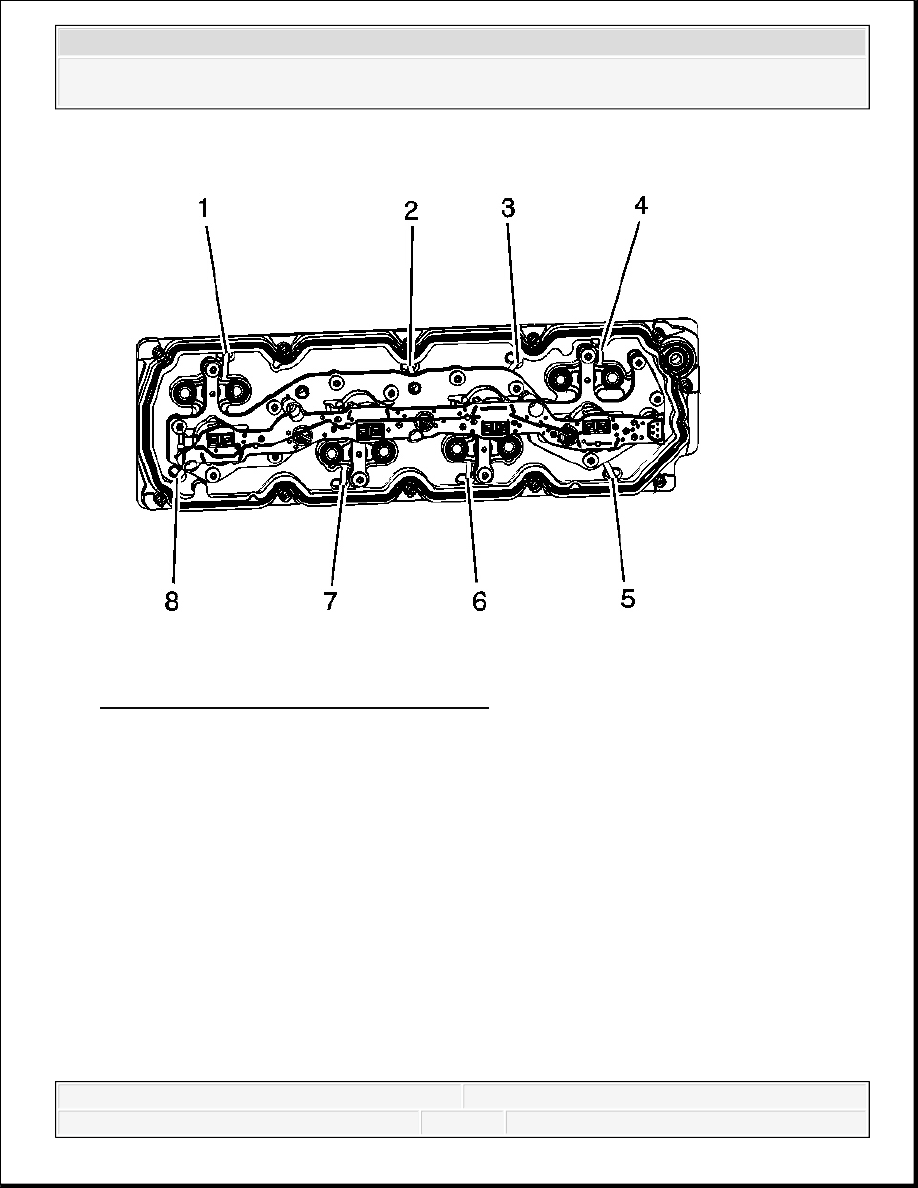

Fig. 219: Gasket Retaining Strap Locations 6. Identify the 8 gasket retaining strap locations (1-8). IMPORTANT: Remove only the outer gasket from the manifold. Do not disassemble any of the internal components of the manifold
2008 Chevrolet Silverado 1500 2008 ENGINE Engine Mechanical - 4.8L, 5.3L, 6.0L, 6.2L, or 7.0L - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

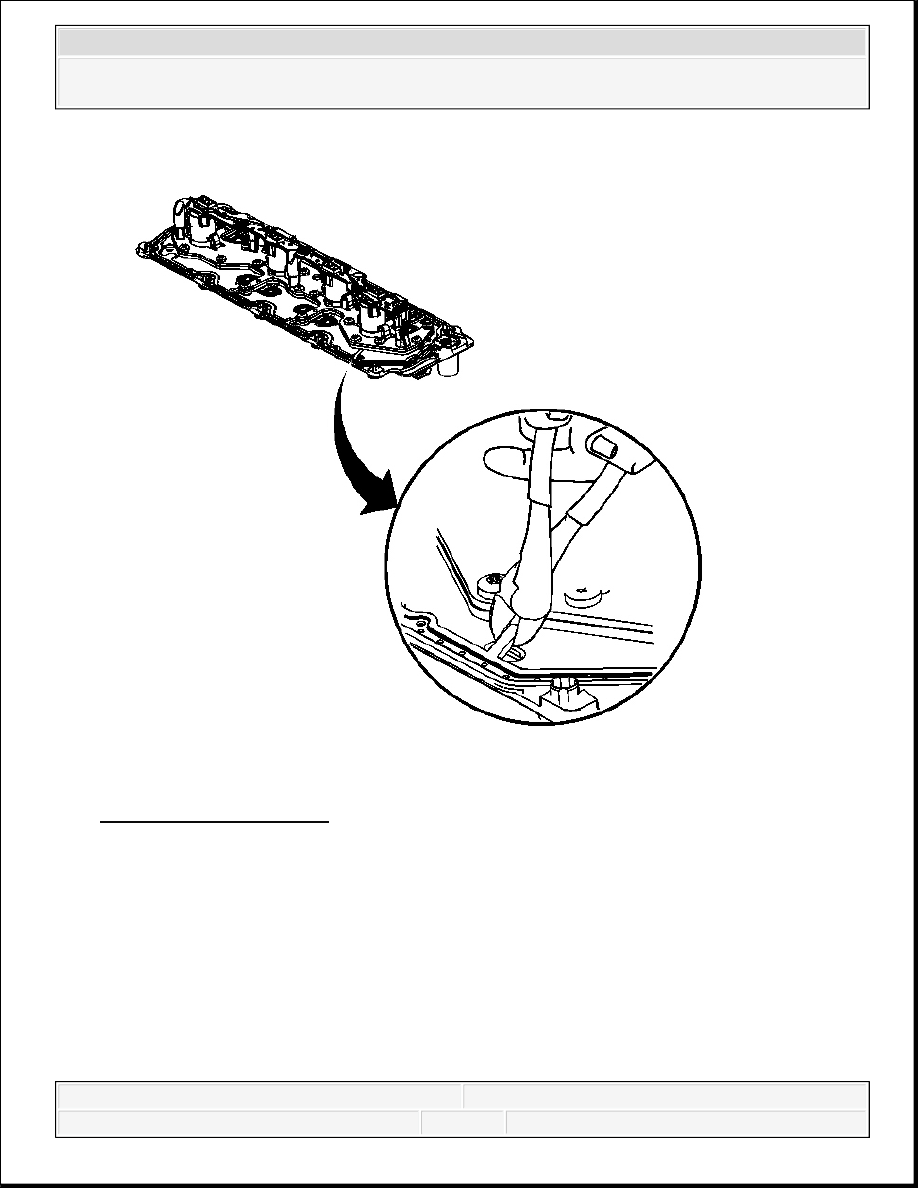

Fig. 220: Retaining Strap 7. Using a cutter type tool, cut the 8 retaining straps.
2008 Chevrolet Silverado 1500 2008 ENGINE Engine Mechanical - 4.8L, 5.3L, 6.0L, 6.2L, or 7.0L - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

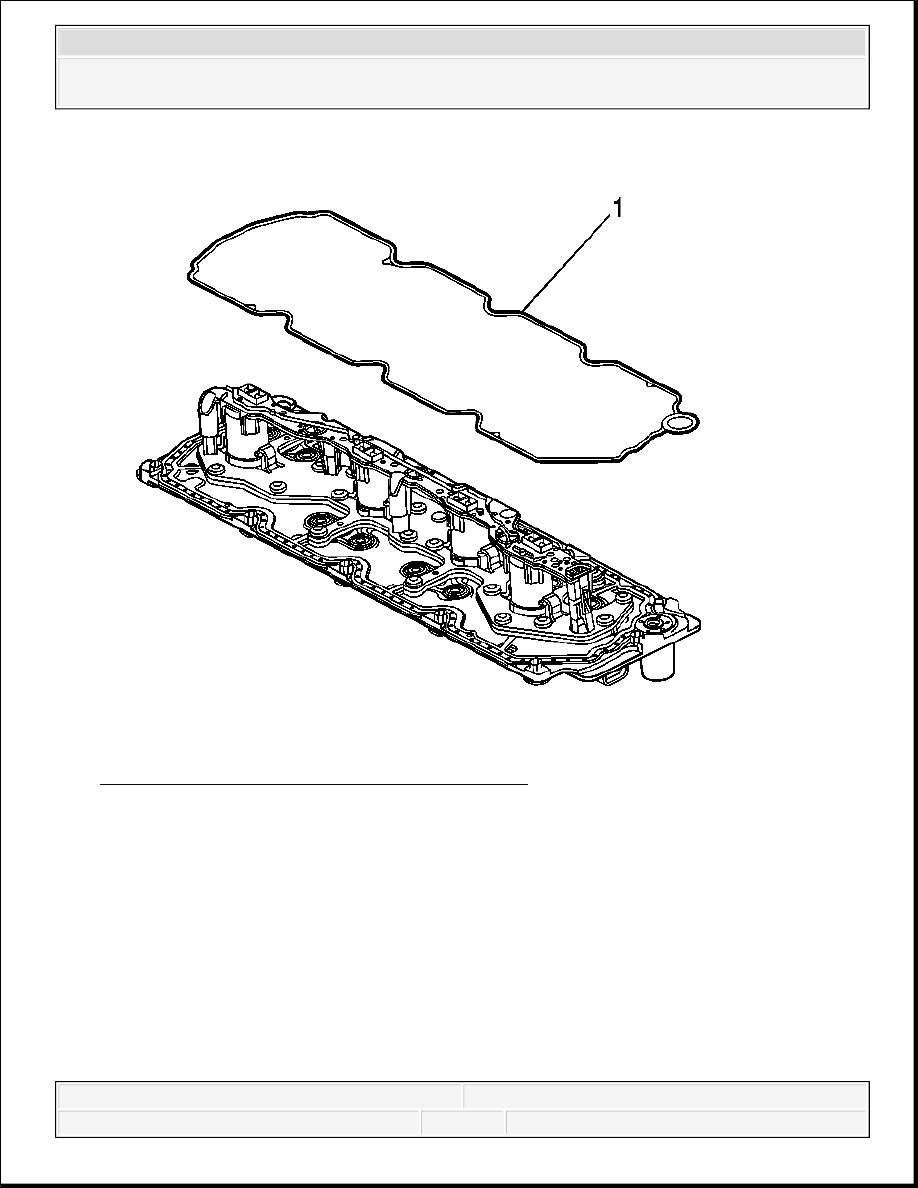

Fig. 221: Identifying Valve Cover Outer Gasket 8. Remove the outer gasket (1) from the valve lifter oil manifold. Installation Procedure IMPORTANT: All gasket surfaces should be free of oil or other foreign material during assembly.
2008 Chevrolet Silverado 1500 2008 ENGINE Engine Mechanical - 4.8L, 5.3L, 6.0L, 6.2L, or 7.0L - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
Fig. 222: Identifying Valve Cover Outer Gasket 1. Place the service gasket (1) onto the valve lifter oil manifold.
2008 Chevrolet Silverado 1500 2008 ENGINE Engine Mechanical - 4.8L, 5.3L, 6.0L, 6.2L, or 7.0L - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
