Chevrolet Silverado / GMC Sierra. Manual - part 1962

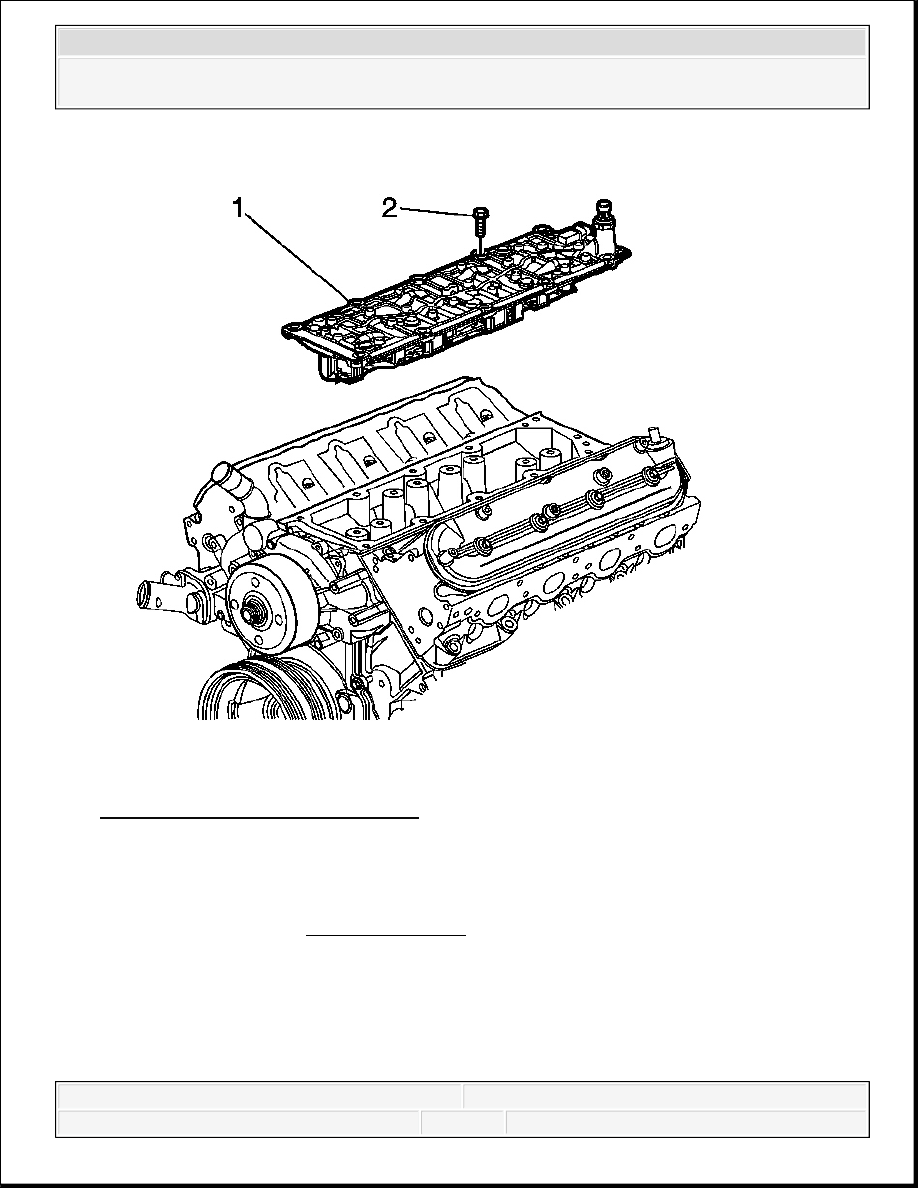

Fig. 223: Valve Lifter Oil Manifold
Courtesy of GENERAL MOTORS CORP.
2. Install the valve lifter oil manifold (1) to the engine.
3. Install the valve lifter oil manifold bolts (2).
Tighten: Tighten the bolts to 25 N.m (18 lb ft).
NOTE:
Refer to Fastener Notice .
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Mechanical - 4.8L, 5.3L, 6.0L, 6.2L, or 7.0L - Cab & Chassis Sierra, Cab & Chassis Silverado,
Sierra & Silverado

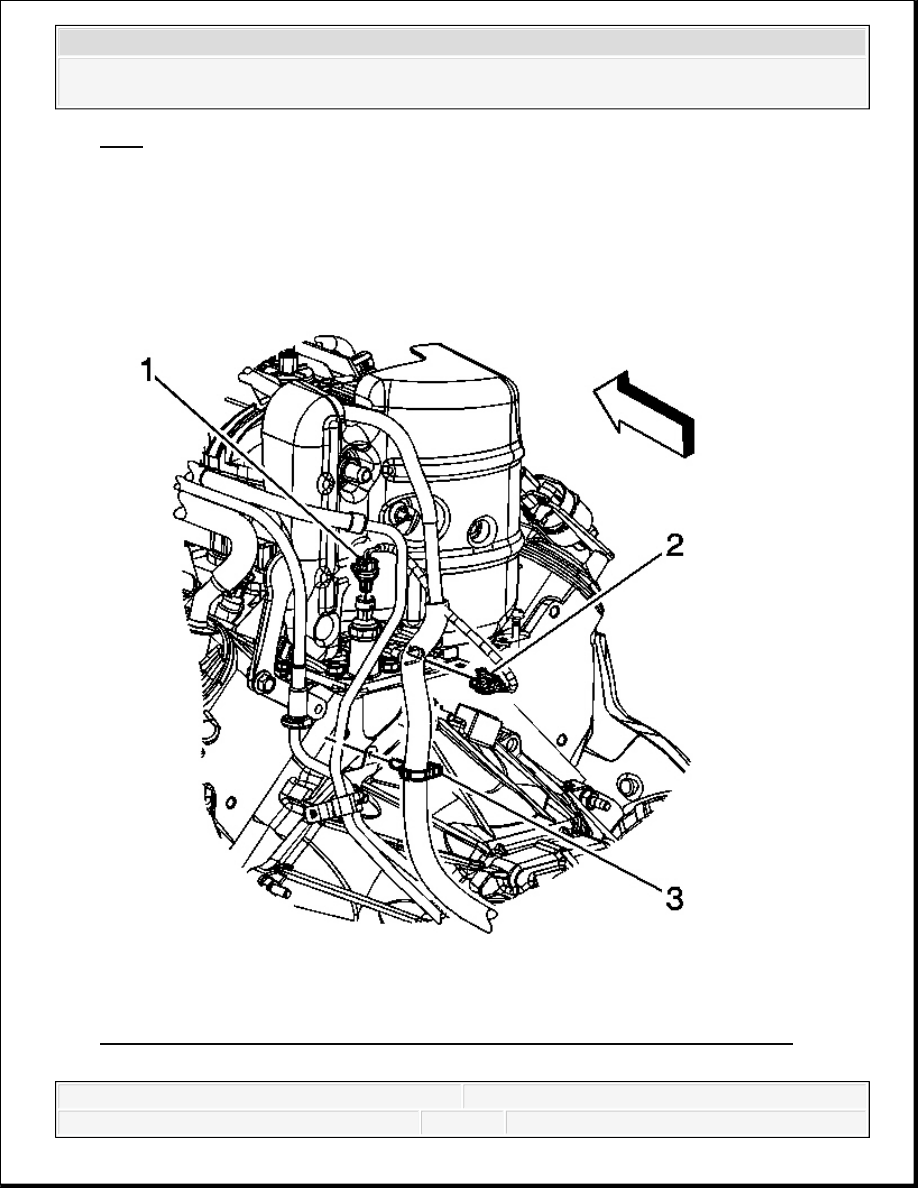

Fig. 224: View Of Engine Harness Electrical Connectors & Inlet Hose Clamp
Courtesy of GENERAL MOTORS CORP.
4. Connect the engine harness electrical connector (1) to the oil pressure sensor.
5. Install the intake manifold. Refer to Intake Manifold Replacement (L92 - First Design)
or Intake Manifold Replacement (L92 - Second Design) or Intake Manifold
Replacement (LY2 and LY6) or Intake Manifold Replacement (LH6, LMG, LY5 and
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Mechanical - 4.8L, 5.3L, 6.0L, 6.2L, or 7.0L - Cab & Chassis Sierra, Cab & Chassis Silverado,
Sierra & Silverado
L76).
VALVE LIFTER OIL FILTER REPLACEMENT
Removal Procedure

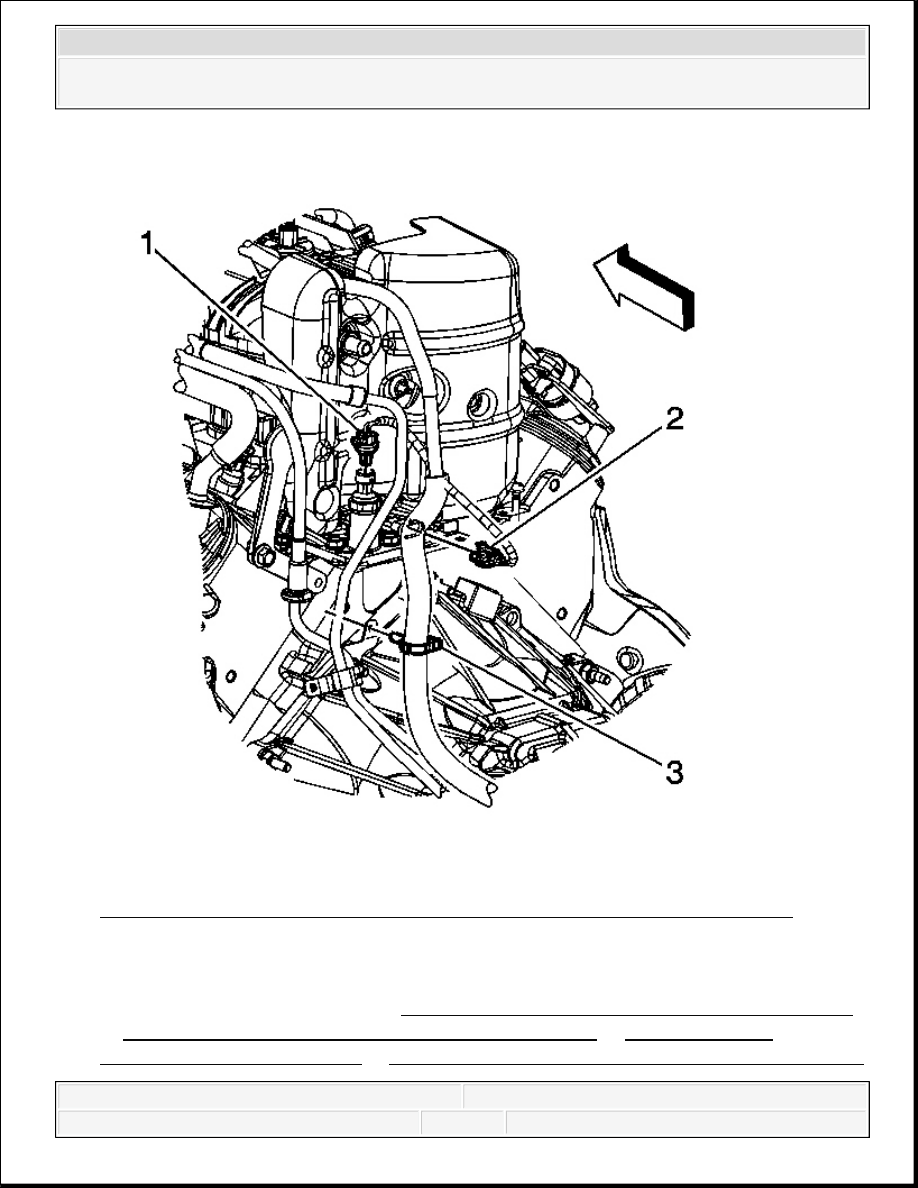

Fig. 225: View Of Engine Harness Electrical Connectors & Inlet Hose Clamp
Courtesy of GENERAL MOTORS CORP.
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Mechanical - 4.8L, 5.3L, 6.0L, 6.2L, or 7.0L - Cab & Chassis Sierra, Cab & Chassis Silverado,
Sierra & Silverado
1. Remove the intake manifold. Refer to Intake Manifold Replacement (L92 - First
Design) or Intake Manifold Replacement (L92 - Second Design) or Intake Manifold
Replacement (LY2 and LY6) or Intake Manifold Replacement (LH6, LMG, LY5 and
L76).
2. Disconnect the engine harness electrical connector (1) from the oil pressure sensor.

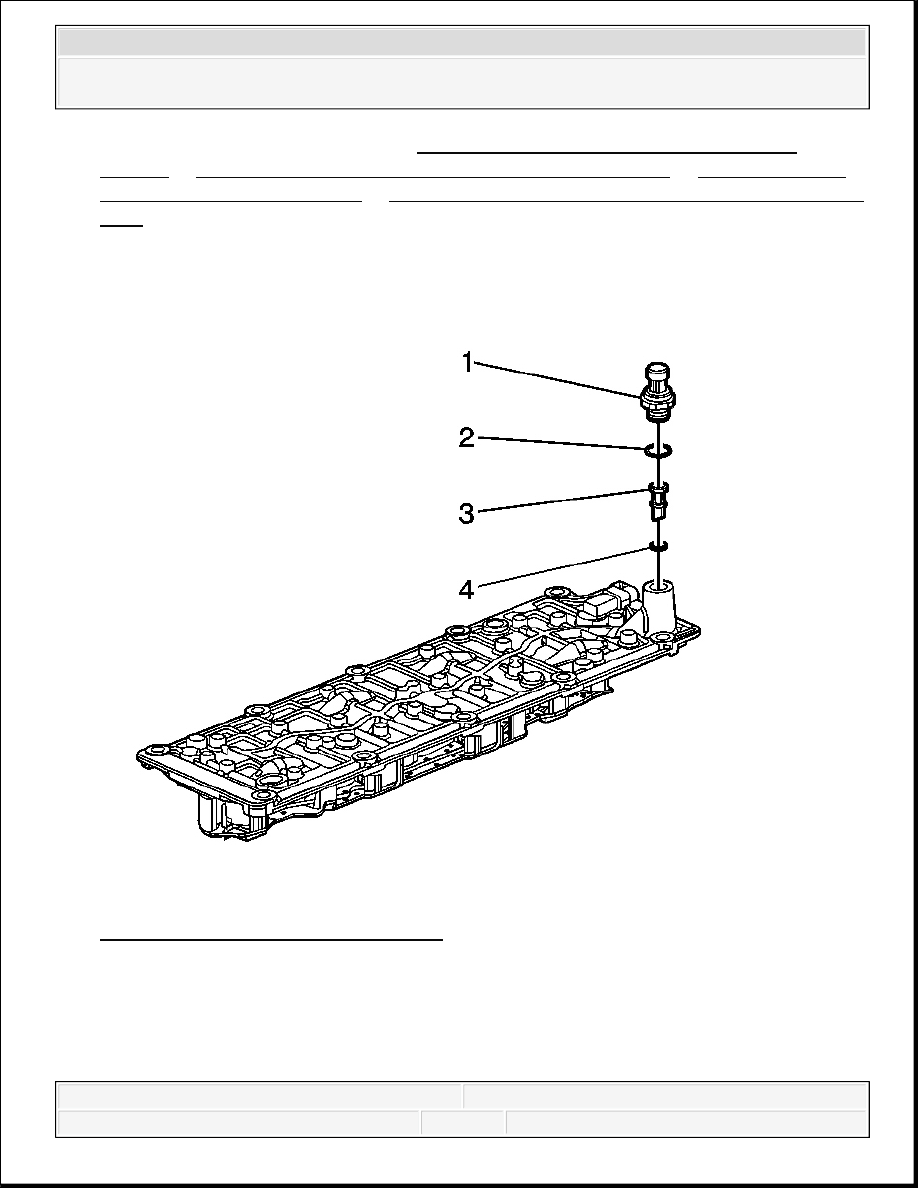

Fig. 226: View Of Oil Pressure Sensor
Courtesy of GENERAL MOTORS CORP.
3. Remove the oil pressure sensor (1) and washer (2).
4. Remove and discard the valve lifter oil filter (3).
5. Remove and discard the valve lifter oil filter O-ring seal (4).
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Mechanical - 4.8L, 5.3L, 6.0L, 6.2L, or 7.0L - Cab & Chassis Sierra, Cab & Chassis Silverado,
Sierra & Silverado
