Chevrolet Silverado / GMC Sierra. Manual - part 1785

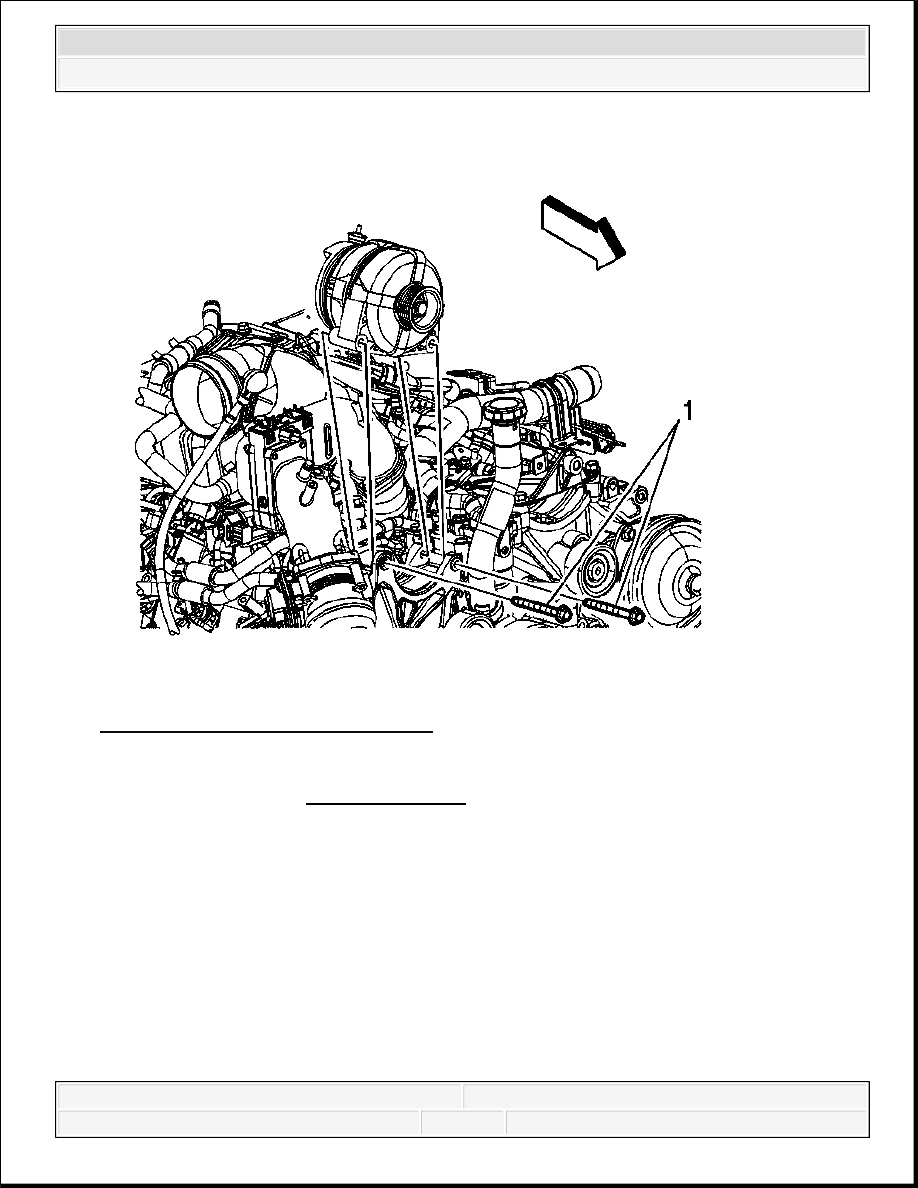

Fig. 310: View Of Generator & Bolts
Courtesy of GENERAL MOTORS CORP.
1. Install the generator.
2. Install the generator bolts (1).
Tighten: Tighten the bolts to 50 N.m (37 lb ft).
NOTE:
Refer to Fastener Notice .
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Electrical - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

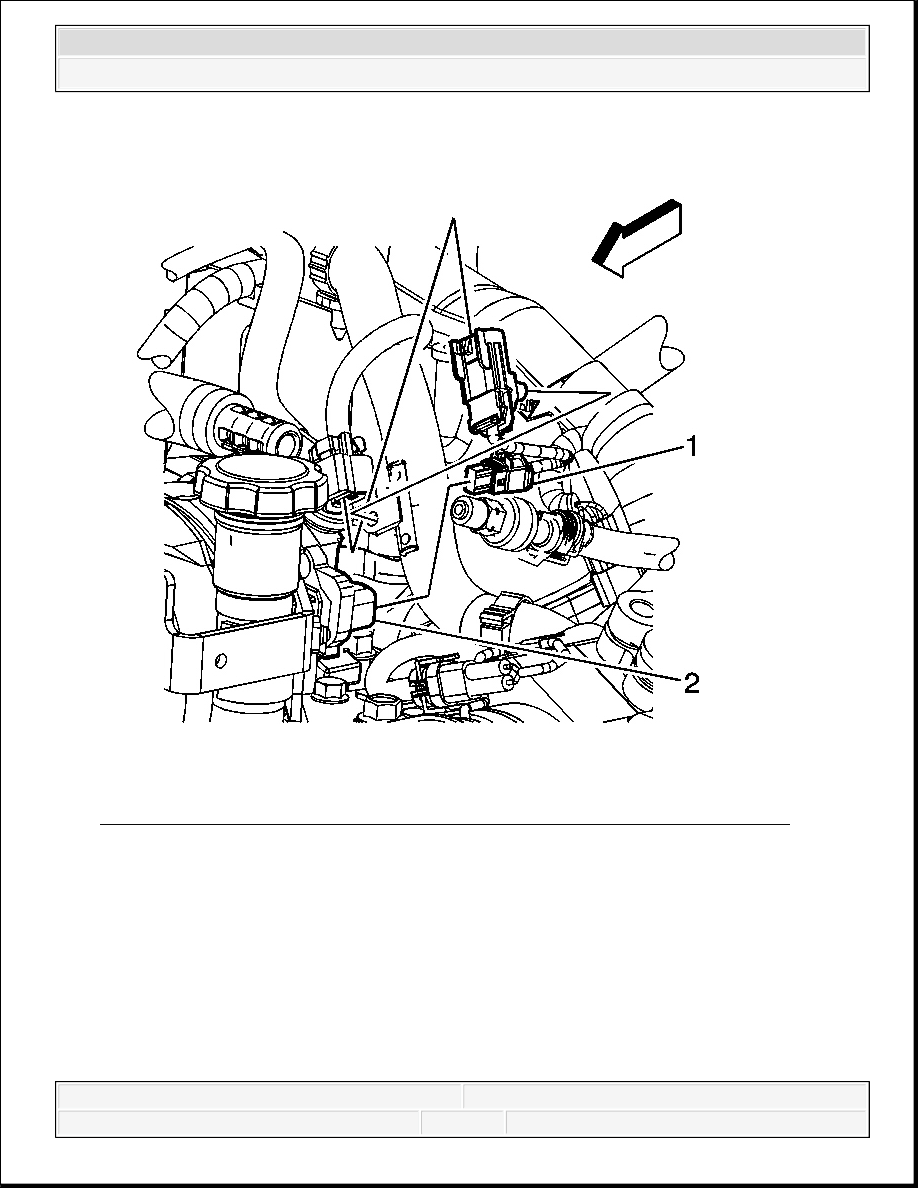

Fig. 311: View Of Engine Wiring Harness Electrical Connector & Generator
Courtesy of GENERAL MOTORS CORP.
3. Connect the engine wiring harness electrical connector (1) to the generator (2).
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Electrical - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

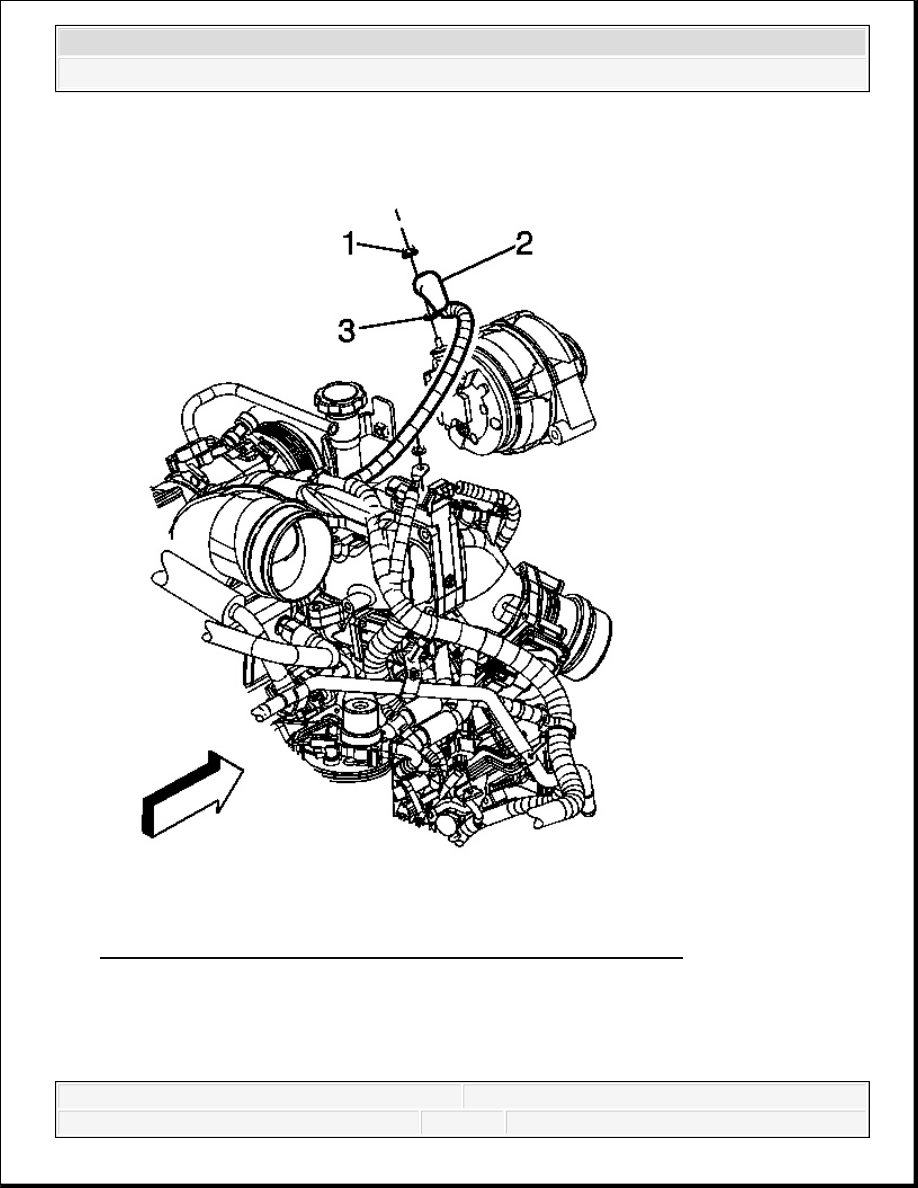

Fig. 312: View Of Engine Wiring Harness Terminal, Boot & Nut
Courtesy of GENERAL MOTORS CORP.
4. Install the engine wiring harness terminal (3) to the generator.
5. Install the engine wiring harness nut (1).
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Electrical - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
Tighten: Tighten the nut to 9 N.m (80 lb in).
6. Position the engine wiring harness boot (2) in order to cover the terminal stud.
7. Install the drive belt. Refer to Drive Belt Replacement .
8. Connect the negative battery cable. Refer to Battery Negative Cable Disconnection and
Connection (w/Single Battery) or Battery Negative Cable Disconnection and
Connection (w/Auxiliary Battery) or Battery Negative Cable Disconnection and
Connection (w/Dual Batteries).
AUXILIARY GENERATOR REPLACEMENT (6.6L)
