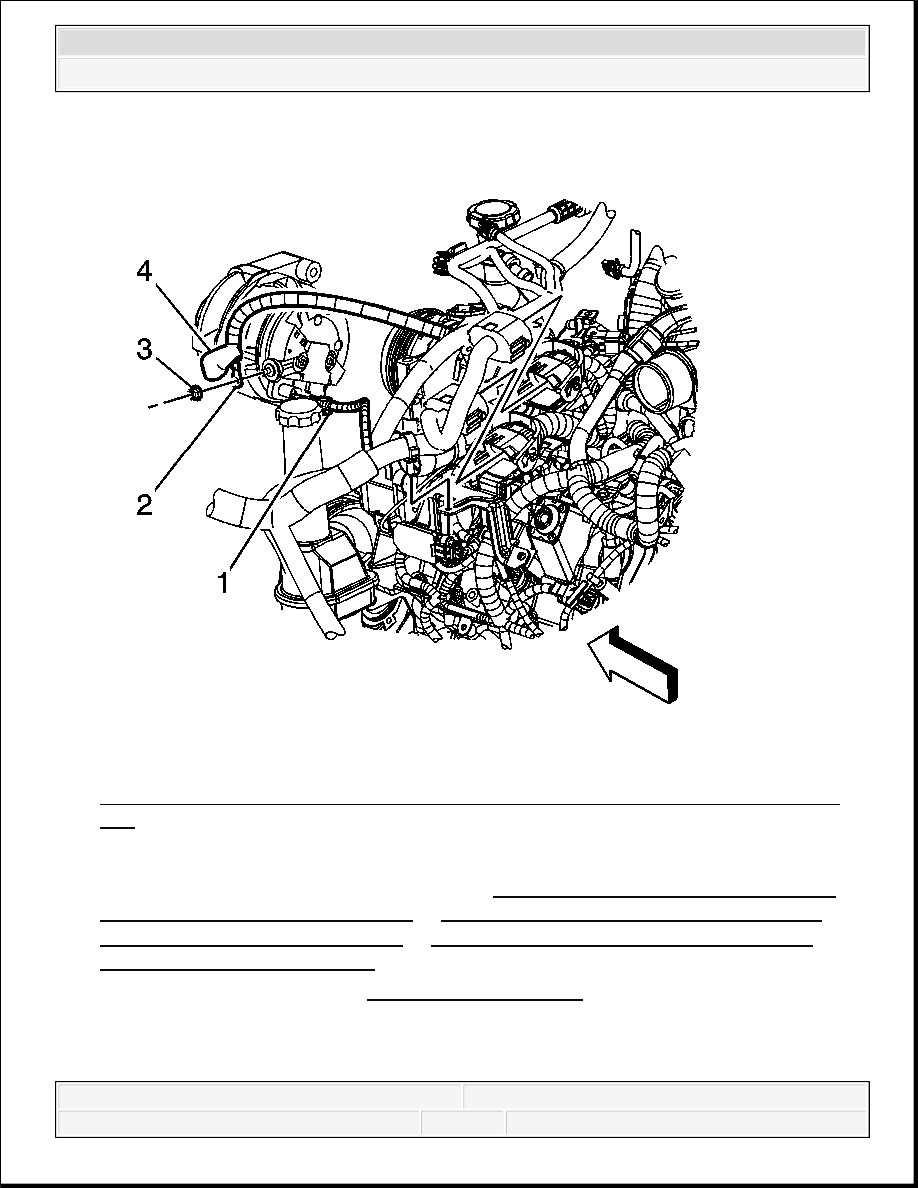

Fig. 313: View Of Engine Wiring Harness Electrical Connector, Terminal, Boot & 1. Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection (w/Single Battery) or Battery Negative Cable Disconnection and 2. Remove the drive belt. Refer to Drive Belt Replacement . 3. Disconnect the engine wiring harness electrical connector (1) from the generator. 4. Reposition the engine wiring harness boot (4) in order to access the terminal stud.
2008 Chevrolet Silverado 1500 2008 ENGINE Engine Electrical - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

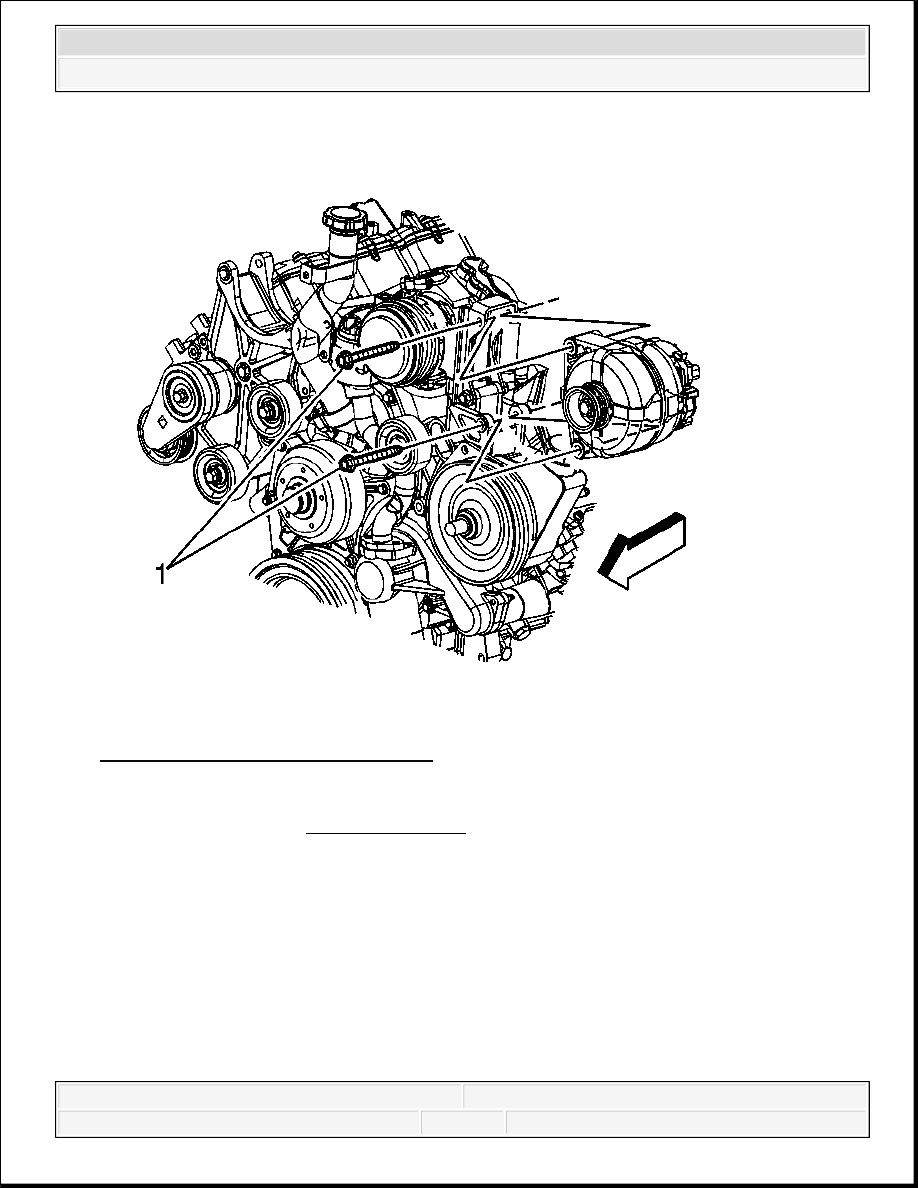

5. Remove the engine wiring harness nut (3). 6. Remove the engine wiring harness terminal (2) from the generator. Fig. 314: View Of Generator & Bolts 7. Remove the generator bolts (1). 8. Remove the generator. Installation Procedure
2008 Chevrolet Silverado 1500 2008 ENGINE Engine Electrical - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

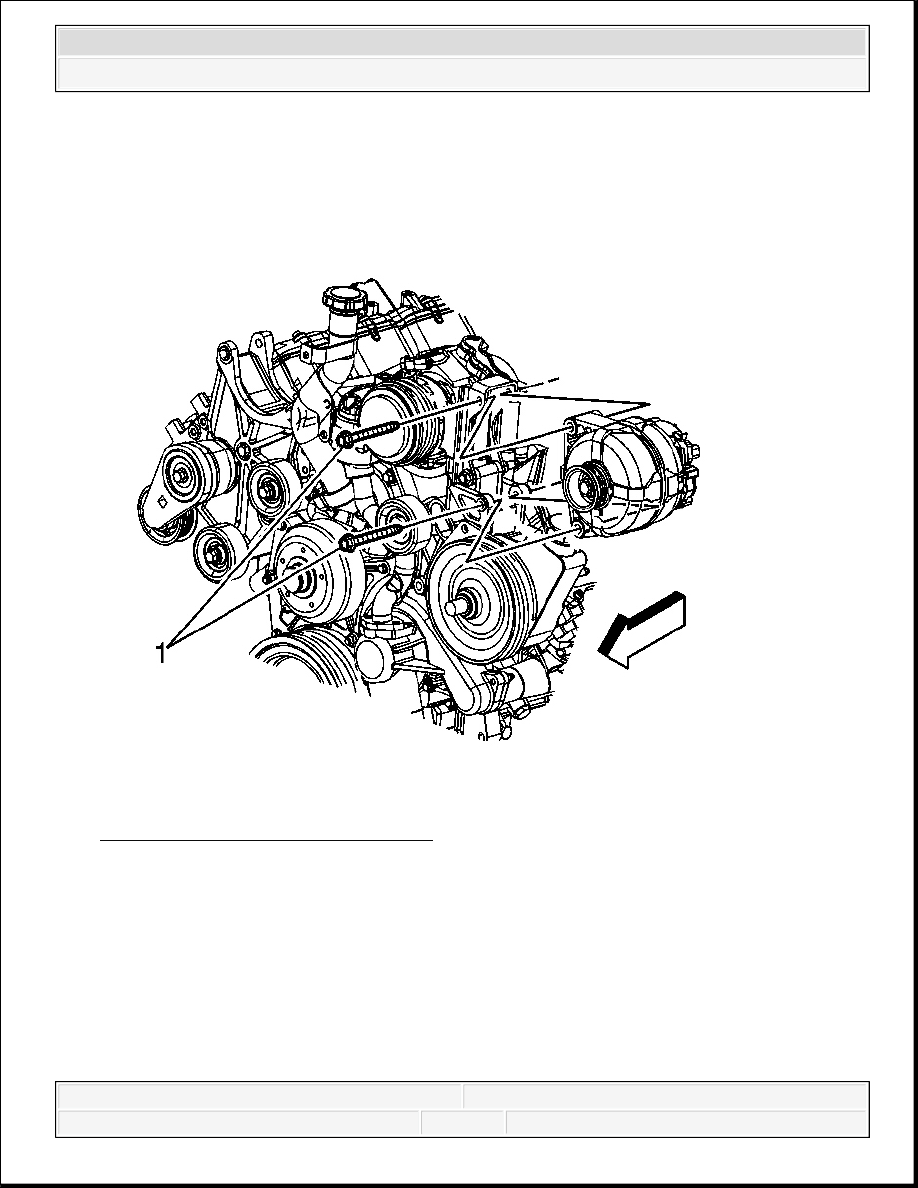

Fig. 315: View Of Generator & Bolts 1. Install the generator. 2. Install the generator bolts (1). Tighten: Tighten the bolts to 50 N.m (37 lb ft). NOTE: Refer to Fastener Notice .
2008 Chevrolet Silverado 1500 2008 ENGINE Engine Electrical - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

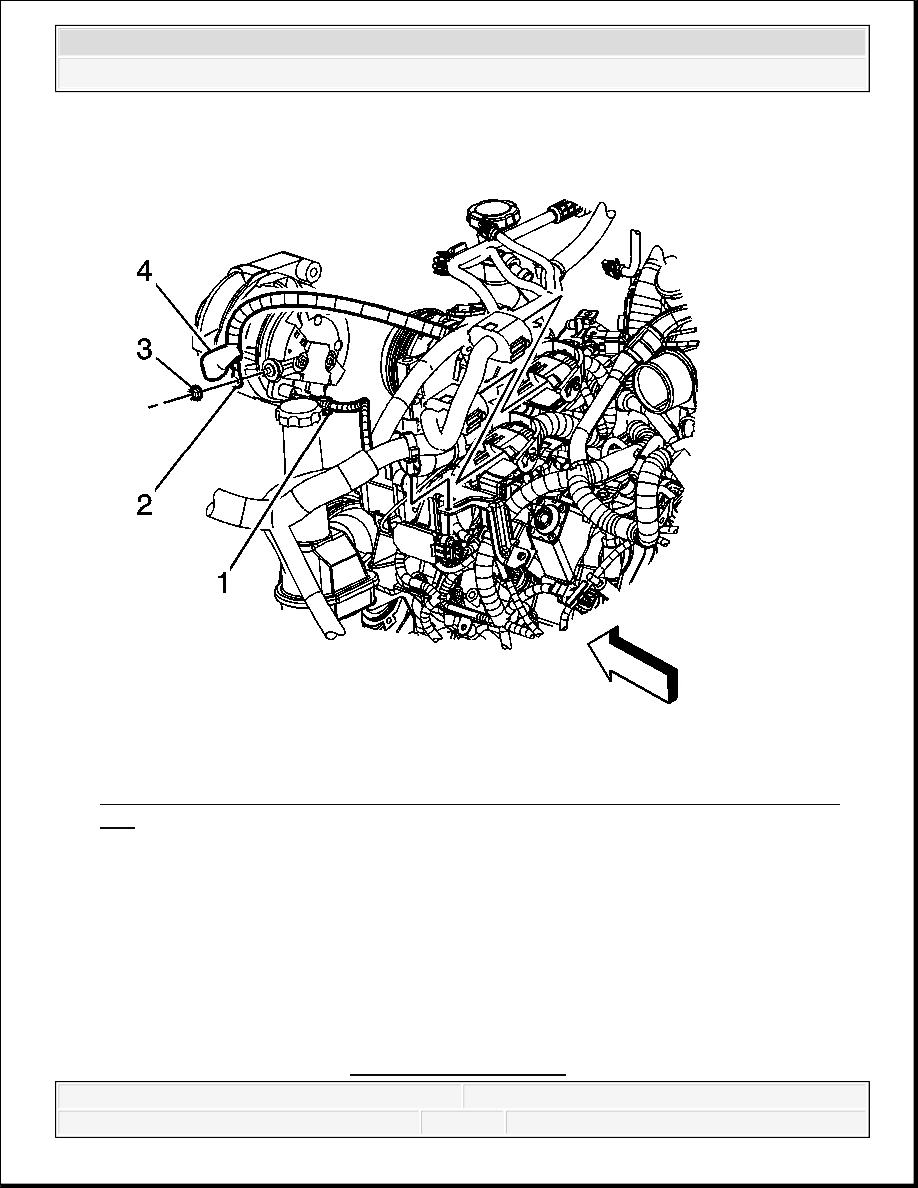

Fig. 316: View Of Engine Wiring Harness Electrical Connector, Terminal, Boot & 3. Install the engine wiring harness terminal (2) to the generator. 4. Install the engine wiring harness nut (3). Tighten: Tighten the nut to 9 N.m (80 lb in). 5. Position the engine wiring harness boot (4) in order to cover the terminal stud. 6. Connect the engine wiring harness electrical connector (1) to the generator. 7. Install the drive belt. Refer to Drive Belt Replacement .
