Chevrolet Silverado / GMC Sierra. Manual - part 1782

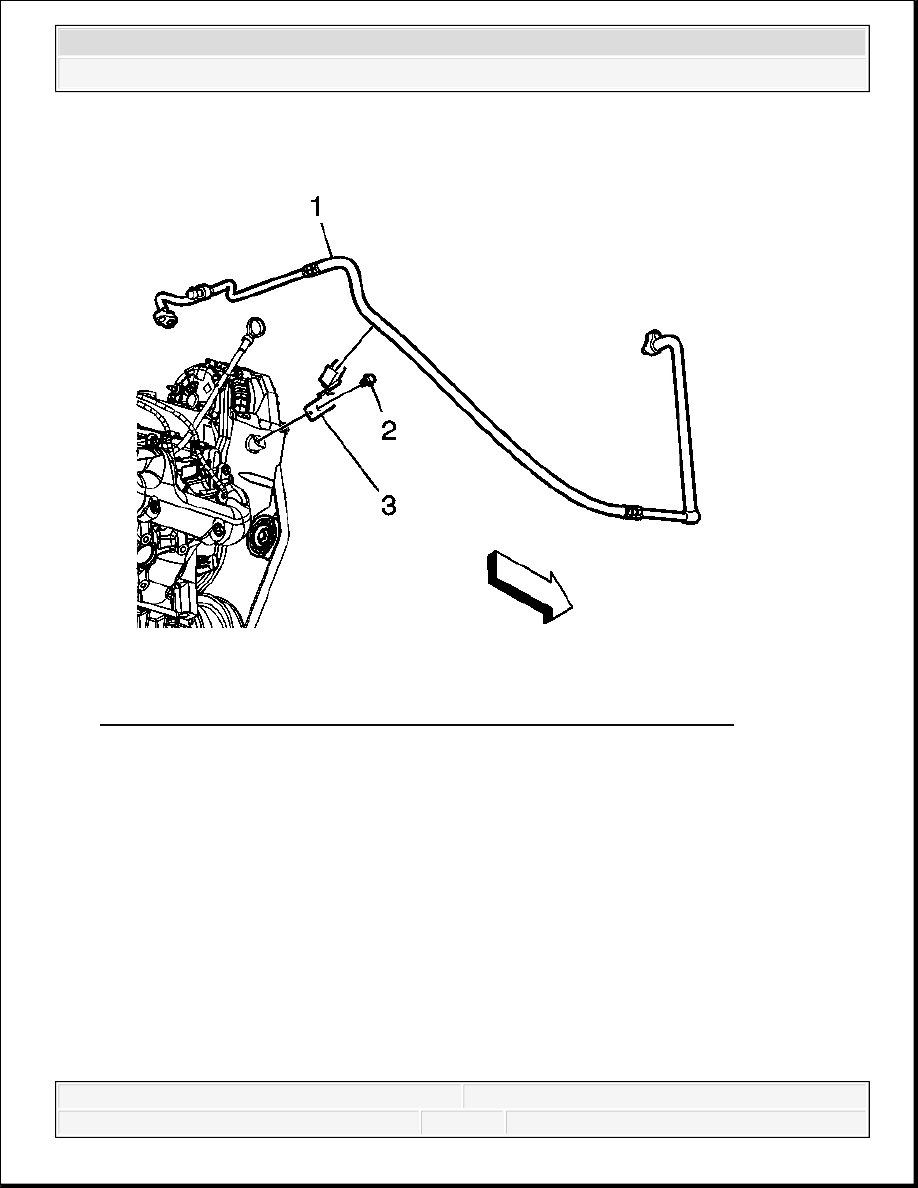

Fig. 299: View Of A/C Compressor & Condenser Hose Bracket & Bolt
Courtesy of GENERAL MOTORS CORP.
9. Install the A/C compressor and condenser hose bracket bolt (2).
Tighten: Tighten the bolt to 25 N.m (18 lb ft).
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Electrical - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
Fig. 300: View Of Engine Wiring Harness & Components
Courtesy of GENERAL MOTORS CORP.
10. Instal the engine wiring harness clip (1) to the A/C compressor/condenser hose bracket.
11. Install the drive belt. Refer to Drive Belt Replacement .
12. Install the air cleaner outlet resonator. Refer to Air Cleaner Outlet Resonator
Replacement .
13. Connect the negative battery cable. Refer to Battery Negative Cable Disconnection and
Connection (w/Single Battery) or Battery Negative Cable Disconnection and
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Electrical - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
Connection (w/Auxiliary Battery) or Battery Negative Cable Disconnection and
Connection (w/Dual Batteries).
GENERATOR REPLACEMENT (4.8L, 5.3L, 6.0L, AND 6.2L)
Removal Procedure
Fig. 301: View Of Generator & Related Connectors
Courtesy of GENERAL MOTORS CORP.
1. Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection
and Connection (w/Single Battery) or Battery Negative Cable Disconnection and
Connection (w/Auxiliary Battery) or Battery Negative Cable Disconnection and
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Electrical - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
Connection (w/Dual Batteries).
2. Remove the intake manifold sight shield. Refer to Upper Intake Manifold Sight Shield
Replacement .
3. Remove the accessory drive belt. Refer to Drive Belt Replacement - Accessory .
4. Disconnect the engine harness electrical connector (3) from the generator.
Fig. 302: View Of Battery Jumper Cable Terminal, Nut & Bolt
Courtesy of GENERAL MOTORS CORP.
5. Reposition the generator battery jumper cable boot (3).
6. Remove the generator battery jumper cable nut (2) from the generator.
7. Remove the generator battery jumper cable terminal (1) from the generator stud.
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Electrical - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
