Fig. 295: View Of Generator & Bolts
Courtesy of GENERAL MOTORS CORP.

11. Remove the generator bolts.

12. Reposition the heater outlet, and AC compressor/condenser hoses as necessary in order to

remove the generator.

13. Remove the generator from the generator bracket.

Installation Procedure

2008 Chevrolet Silverado 1500

2008 ENGINE Engine Electrical - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

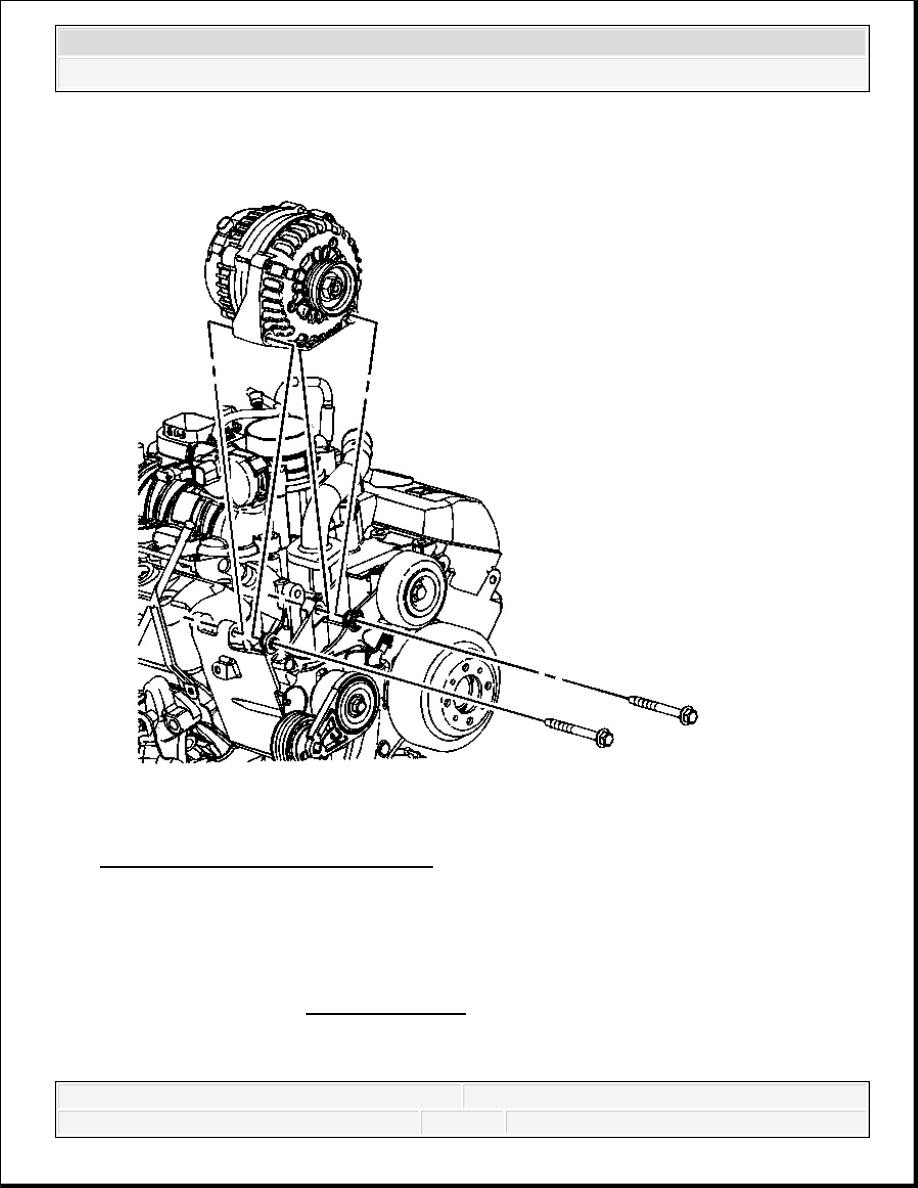

Fig. 296: View Of Generator & Bolts
Courtesy of GENERAL MOTORS CORP.

1. Install the generator into the generator bracket.

2. Position the heater outlet, and AC compressor/condenser hoses as necessary.

3. Install the generator bolts.

NOTE:

Refer to Fastener Notice .

2008 Chevrolet Silverado 1500

2008 ENGINE Engine Electrical - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

Tighten: Tighten the bolts to 50 N.m (37 lb ft).

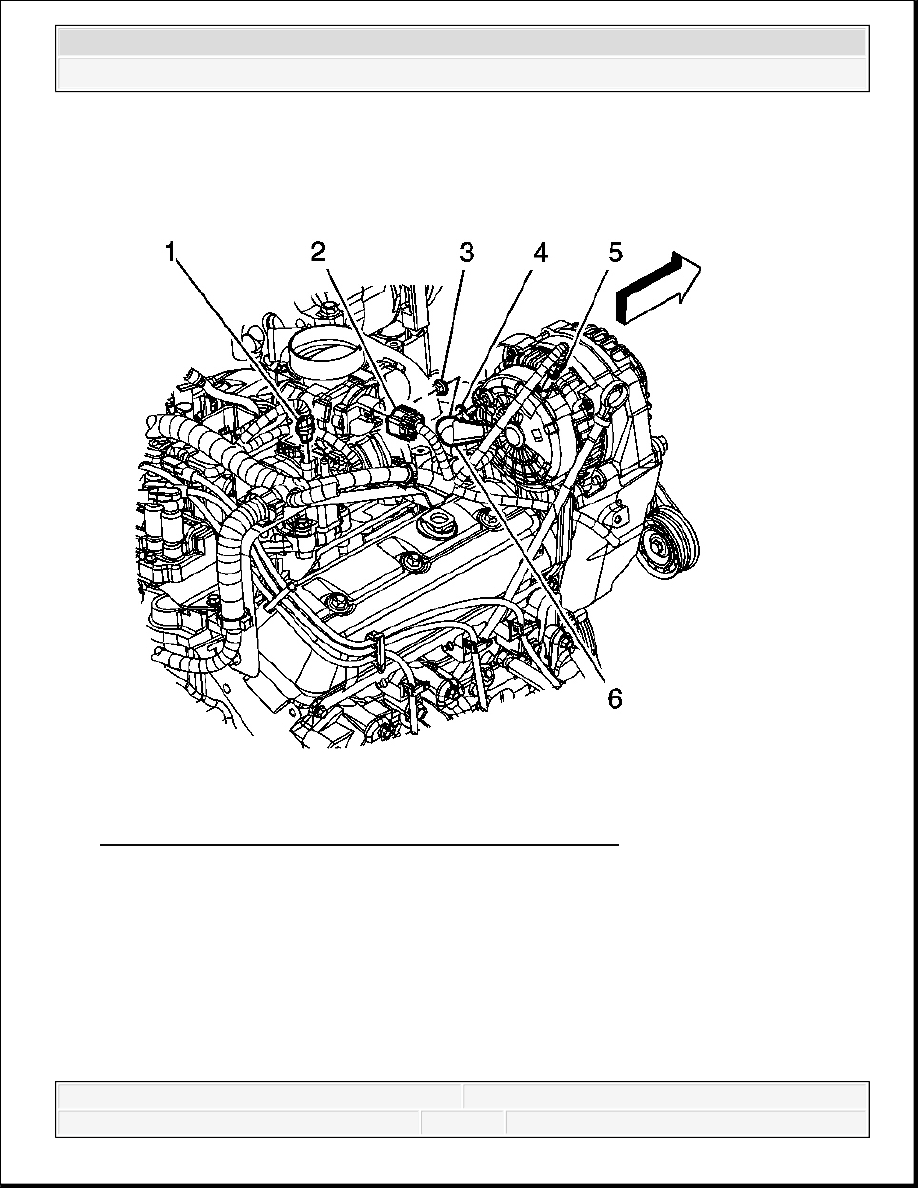

Fig. 297: View Of Engine Wiring Harness & Components
Courtesy of GENERAL MOTORS CORP.

4. Install the engine wiring harness lead (4) to the generator stud.

5. Install the engine wiring harness nut (3) to the generator.

Tighten: Tighten the nut to 9 N.m (80 lb in).

6. Position the engine wiring harness boot (6) over the generator stud.

7. Connect the engine wiring harness electrical connector (5) to the generator.

2008 Chevrolet Silverado 1500

2008 ENGINE Engine Electrical - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

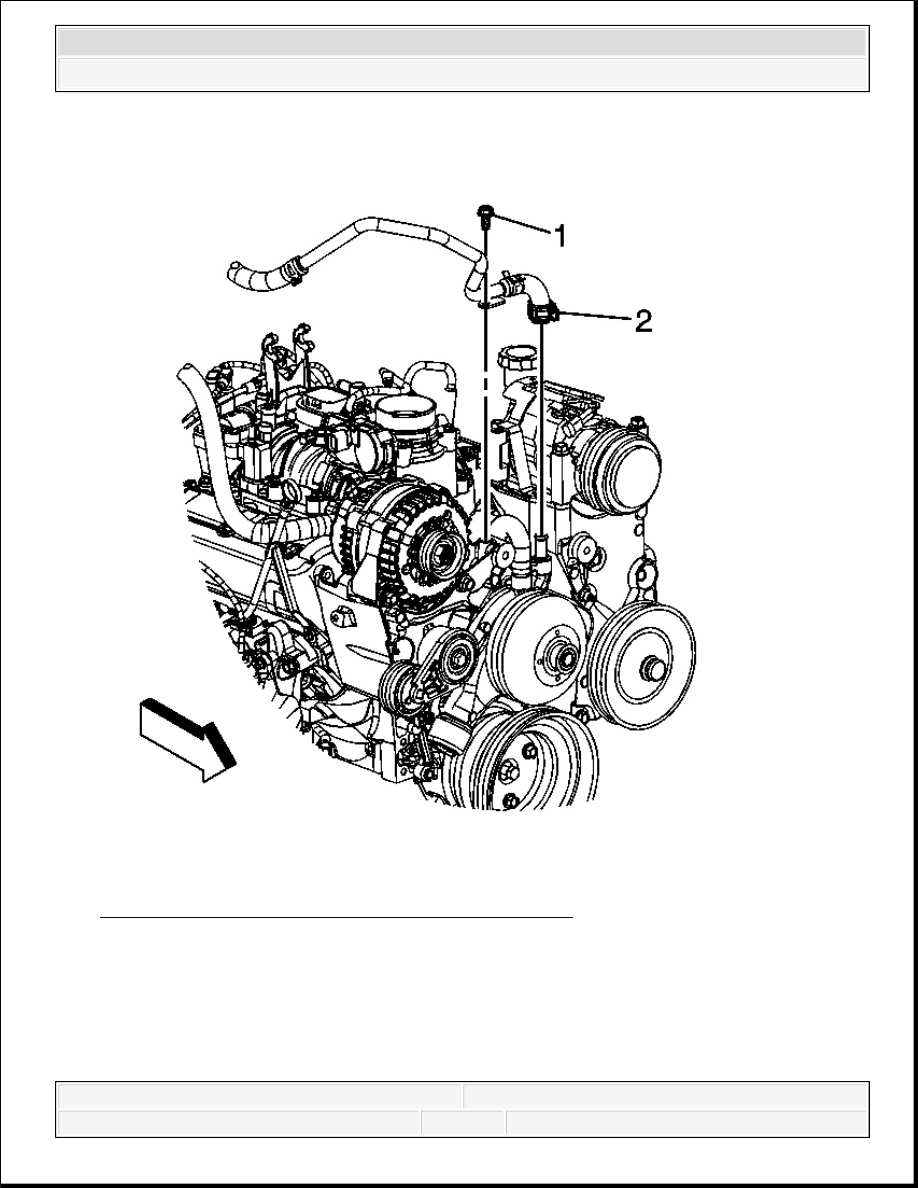

Fig. 298: View Of Heater Outlet Hose & Clamp Bolt
Courtesy of GENERAL MOTORS CORP.

8. Install the heater outlet hose clamp bolt (1) at the generator bracket.

Tighten: Tighten the bolt to 25 N.m (18 lb ft).

2008 Chevrolet Silverado 1500

2008 ENGINE Engine Electrical - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
